Aprilia RSV4, 1100 & Tuono V4 Aim Data Logger Plug & Play Cable
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
Aprilia Motorcycle ECU Connection
The Aprilia ECU Plug & Play Cable allows you to connect Aim Data Loggers, such as the Solo 2 DL, ECULog, XLog or EVO4S, to the Aprilia-specific connector. The Aprilia ECU Cable provides an easy plug & play connection to the motorcycle's ECU on one end, and uses a metal 712 screw-on binder connector with 7-pins on the other end, allowing ECU data to be logged.
Plug & Play Cable
The plug & play cable has been specifically designed for the following Aprilia motorcycle models and years:
- Aprilia RSV4 – 2017-2018
- Aprilia RSV4 1100 – 2019-2020
- Aprilia Tuono V4 – 2017-2020
If you are unsure whether this cable will fit your motorcycle, don't hesitate to contact our team, either by email, phone or online chat.
Example Data Protocols
Example data protocols sampled can include RPM, gear, throttle position, wheel speed, low fuel level, ABS and many more. Refer to the user guide in the Downloads tab for a full protocol list.
Please Note: For these models/years, Aim recommends not to remove the stock dash. Doing so will disable some of the motorcycle's functions or safety controls.
Technical Information
Technical Specs

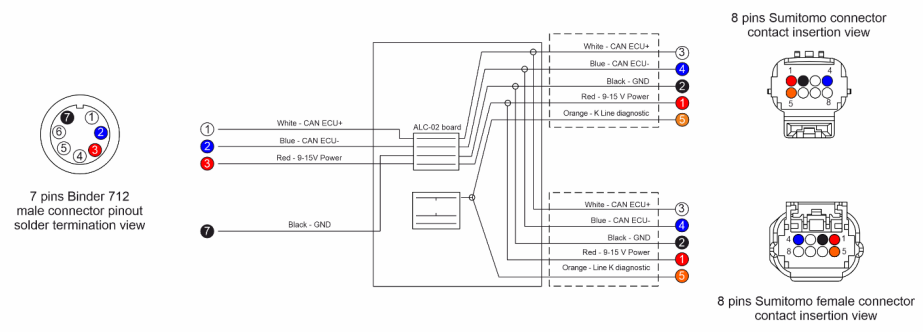

Pinout
Included in the Box
Aprilia Solo 2 DL Plug & Play Cable
-
Free Aim Software
Downloads
