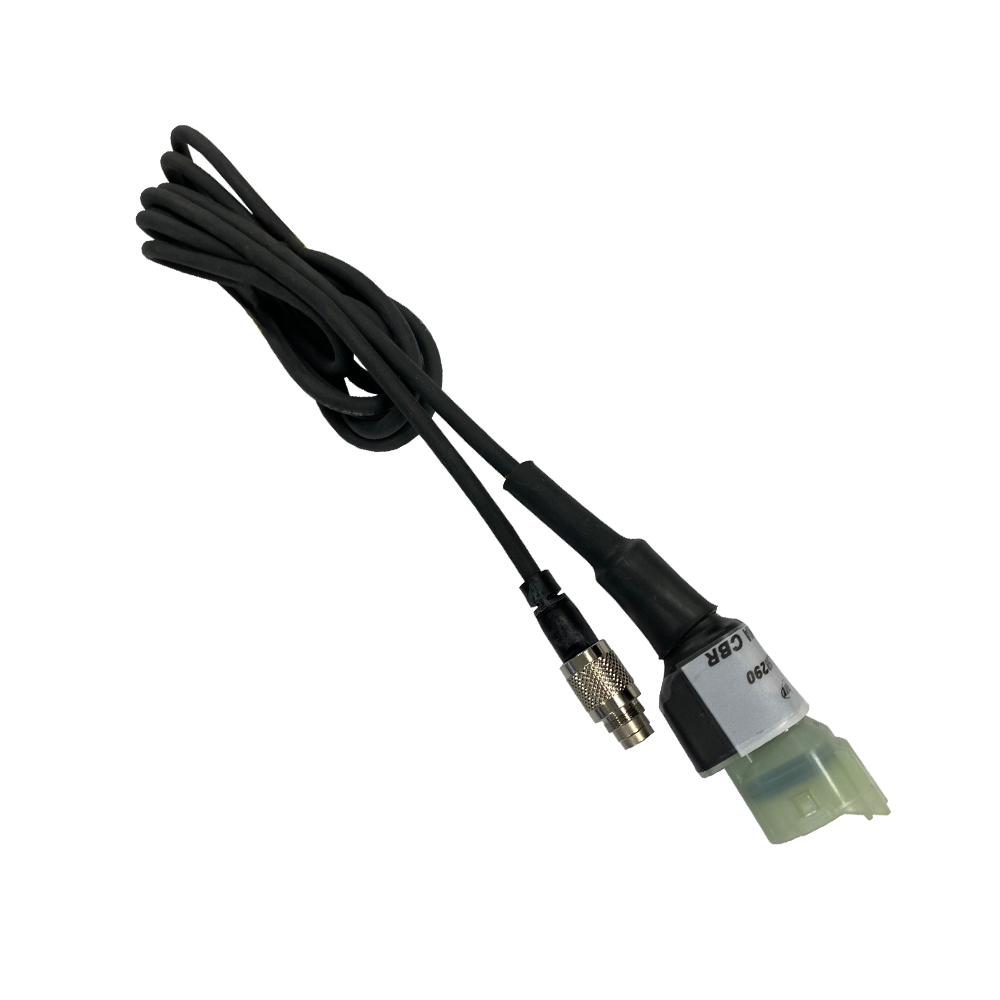

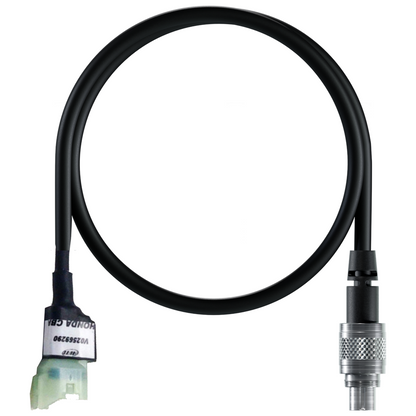

Honda CBR 600RR & 1000RR Solo 2 DL & EVO4S Plug & Play Cable
The AiM ECU plug & play cable has been specifically designed for Honda bikes. Allowing easy installation to a Solo 2 DL and an EVO4S Data Logger. With a 7-pin 712 male binder connection.
Key Features :
| Honda plug & play cable |

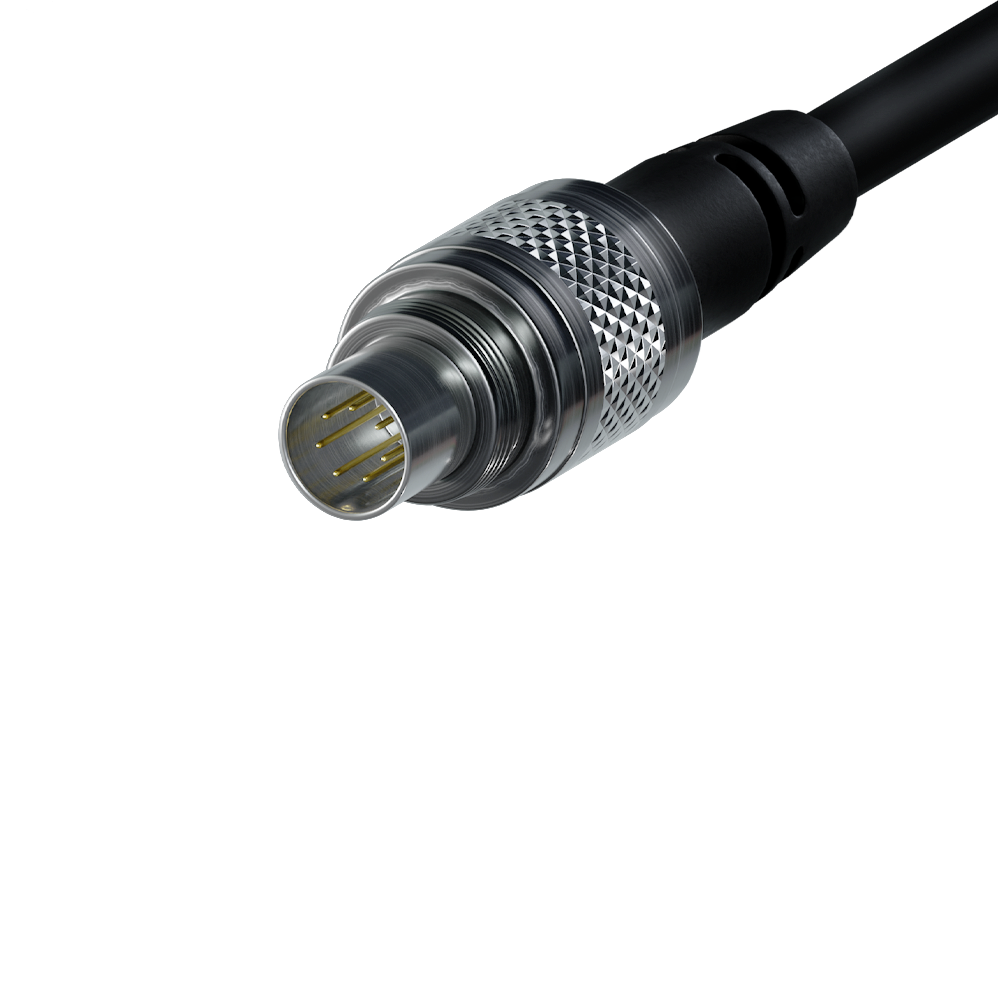

7 pin - 712 male binder connection |
| Receive data |
Suitable for Solo 2 DL & EVO4S Data Logger |
|
|
Honda Plug & Play ECU Cable
The AiM ECU plug & play cable has been specifically designed for the Honda bikes. This plug & play cable can be used for the Solo 2 DL and the EVO4S Data Logger.
The cable is an easy fitment to your bike and allows ECU data to be logged.
Please Note: If you are unsure this ECU cable will fit your bike, don't hesitate to contact one of our team. Either by email, phone or online chat.
Plug & Play

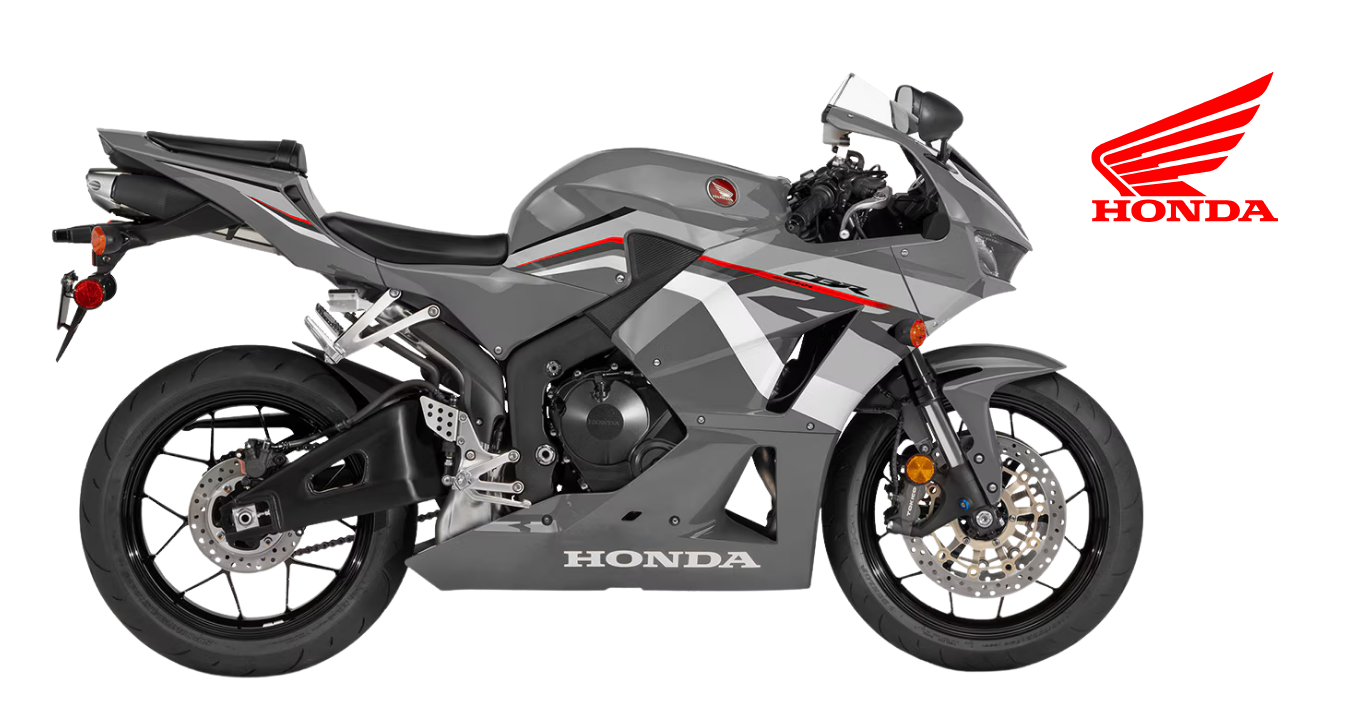

The plug & play cable currently fits the following Honda bike models:
 |
| CBR 600RR - 2003-2019 |
CBR 600RR HRC with D11 marked ECU - 2013-2015 |
| CBR 1000RR - 2004-2016 |
CBR 1000RR HRC - 2014-2016 |
Example data protocols
Example data protocols sampled include RPM, Active gear, Vehicle speed, Front wheel speed, Rear wheel speed warning led, Engine coolant temperature, Brake pressure, Throttle position, Speed, ABS intervention, ALC intervention, Low fuel level, Traction control, Oil pressure, Map menu and many more. Refer to the technical sheet in the Downloads Tab for an extensive protocol list.
Please Note: For these models/years Aim recommends not to remove the stock dash. Doing so will disable some of the bike functions or safety controls.
Expand Your System
These are some of the items that can be added to your bike for incrementing performance and data.
Technical
Honda CBR 600RR & 1000RR Solo 2 DL & EVO4S Plug & Play Cable

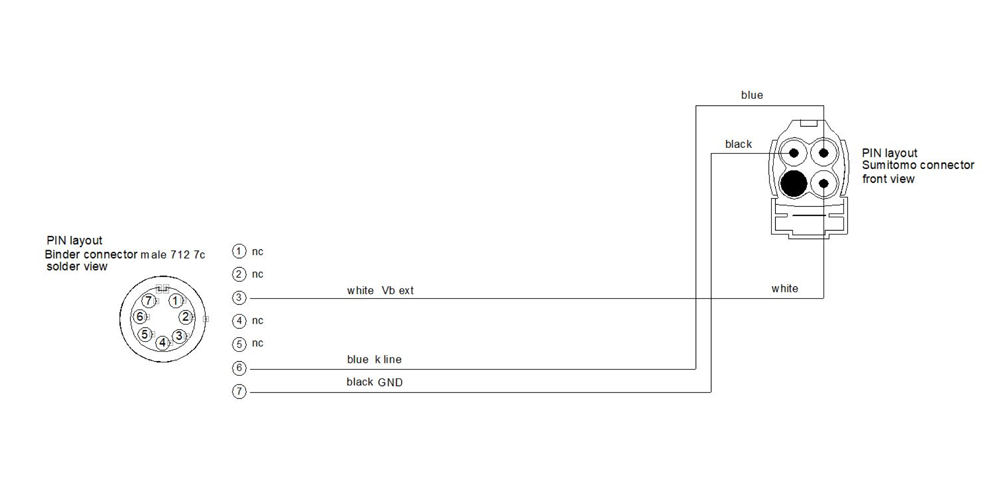

- Below is a pinout drawing for the Honda Solo 2 DL & EVO4S plug & play connection cable
What's in The Box
Honda CBR 600RR & 1000RR Solo 2 DL & EVO4S Plug & Play Cable

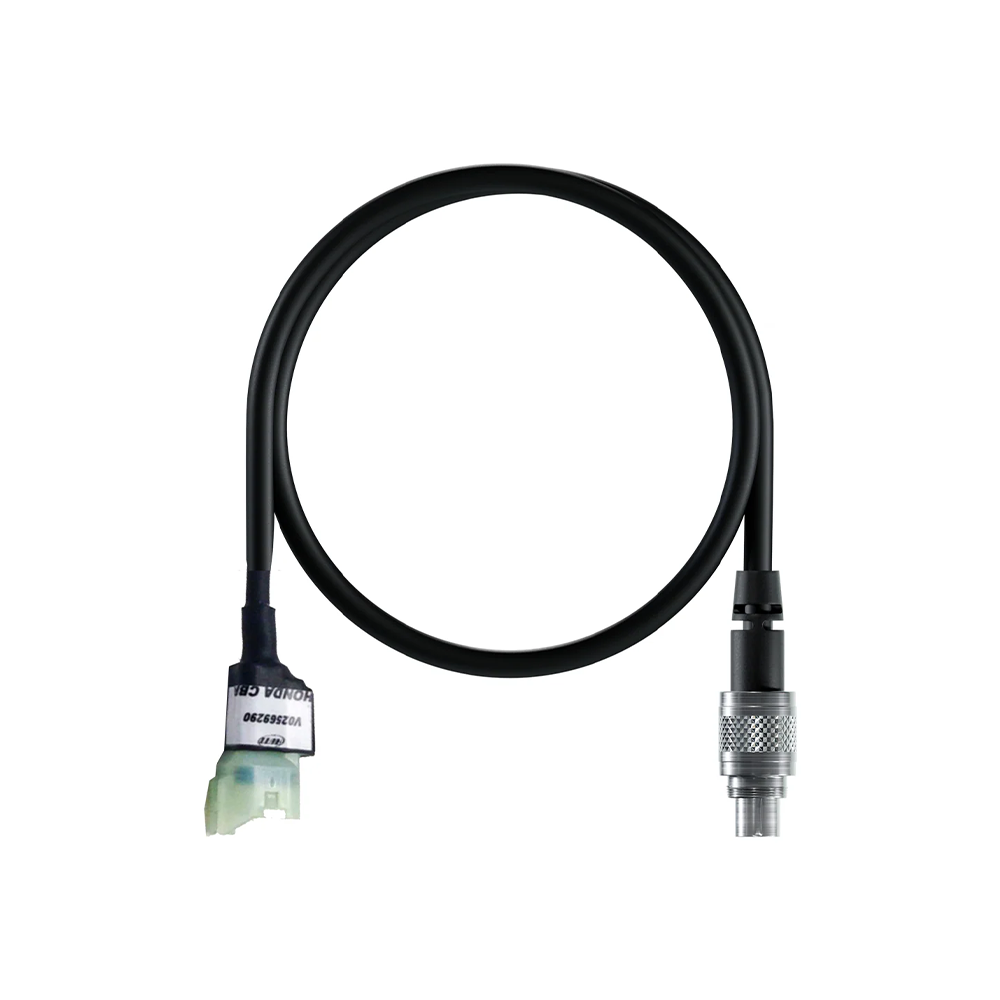

- Honda CBR 600RR, 1000RR Plug & Play connection cable
