Kawasaki ZX-10 Solo 2 DL Plug & Play Kabel mit 7 Pin Stecker 712 Stecker
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
Kawasaki Motorcycle ECU Connection

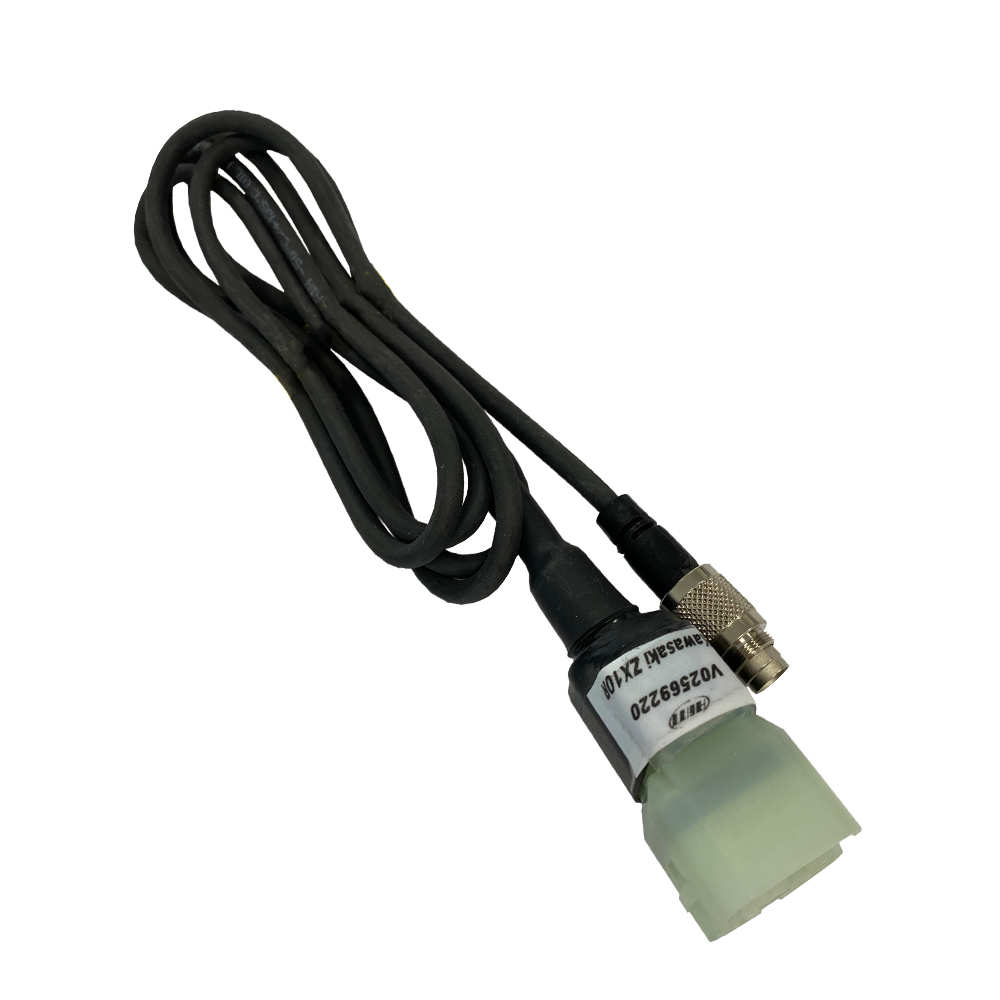

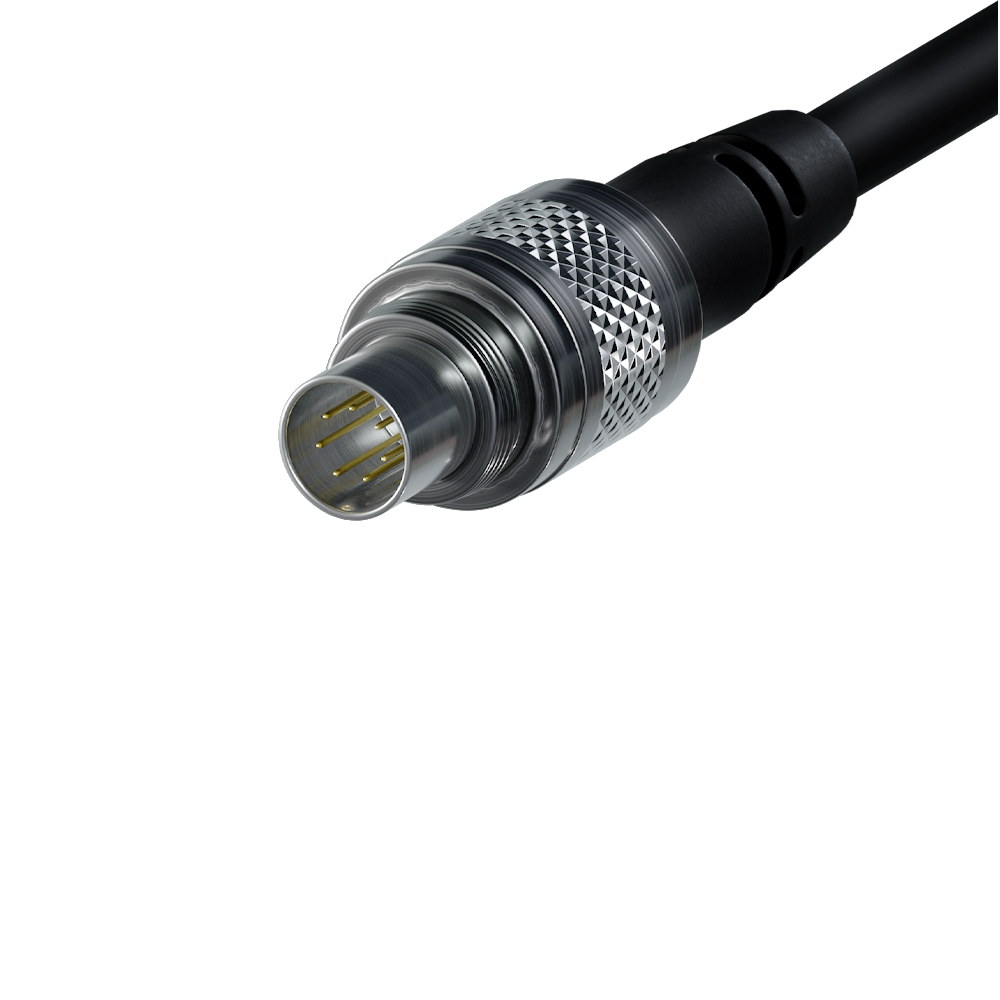

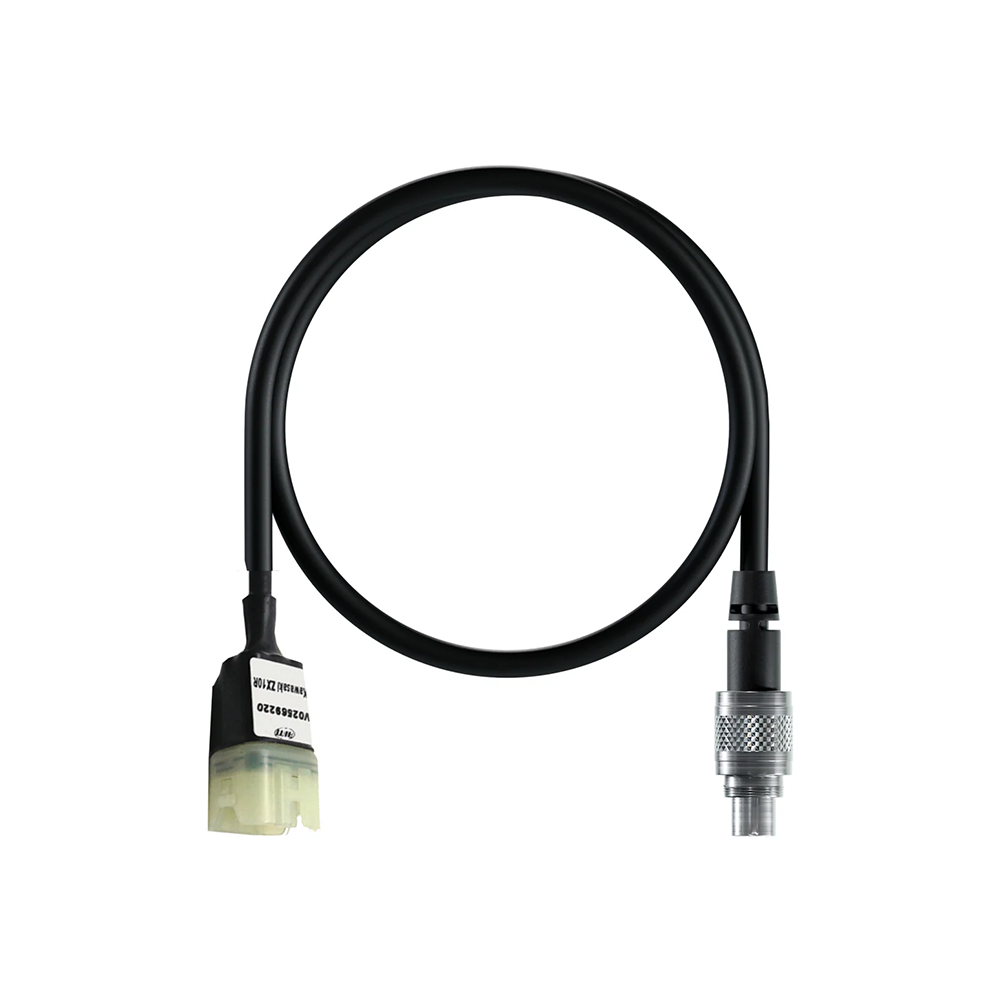

The Kawasaki ECU Plug & Play Cable allows you to connect Aim Data Loggers, such as the Solo 2 DL, ECULog, XLog or EVO4S, to the Kawasaki-specific connector. The Kawasaki ECU Cable provides an easy plug & play connection to the motorcycle's ECU on one end, and uses a metal 712 screw-on binder connector with 7-pins on the other end, allowing ECU data to be logged.
Plug & Play Cable

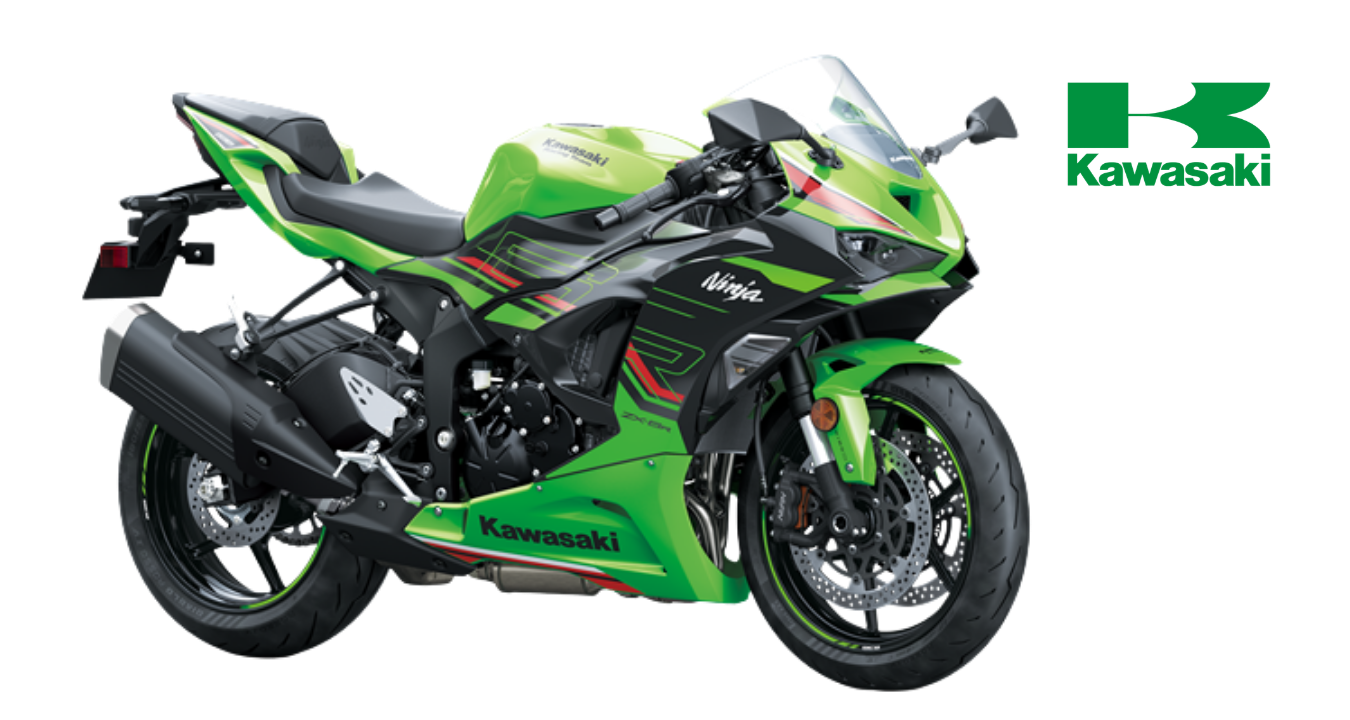

The plug & play cable has been specifically designed for the following Kawasaki motorcycle models and years:
- Kawasaki Ninja ZX-10R MY2011 – 2011-2015
- Kawasaki Ninja ZX-10R MY2011 Racing Kit – 2011-2015
- Kawasaki Ninja ZX-10R MY2016 – 2016-2020
- Kawasaki Ninja ZX-10R MY2016 Racing Kit – 2016-2020
- Kawasaki Ninja ZX-10R MY2021 – From 2021
- Kawasaki Ninja ZX-10R MY2021 Racing Kit – From 2021
If you are unsure whether this cable will fit your motorcycle, don't hesitate to contact our team, either by email, phone or online chat.
Example Data Protocols
Example data protocols sampled can include RPM, gear, vehicle speed, front wheel speed, rear wheel speed, brake and oil pressure, throttle position, low fuel level, traction control, map menu and many more. Refer to the user guide in the Downloads tab for a full protocol list.
Please Note: For these models/years, Aim recommends not to remove the stock dash. Doing so will disable some of the motorcycle's functions or safety controls.
Technical Information
Technical Specs

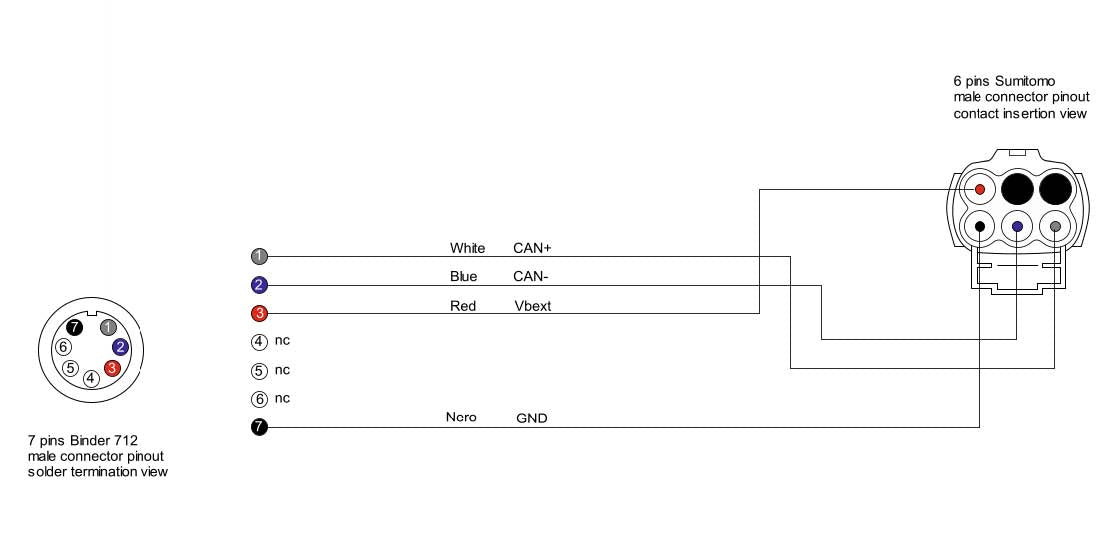

Pinout
Included in the Box
Kawasaki Solo 2 DL Plug & Play Cable
-
Free Aim Software
Downloads
