Suzuki GSX-R 600, 750, 1000 Solo 2 DL Plug & Play-Kabel mit 7-poligem 712-Stecker
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
Suzuki Motorcycle ECU Connection

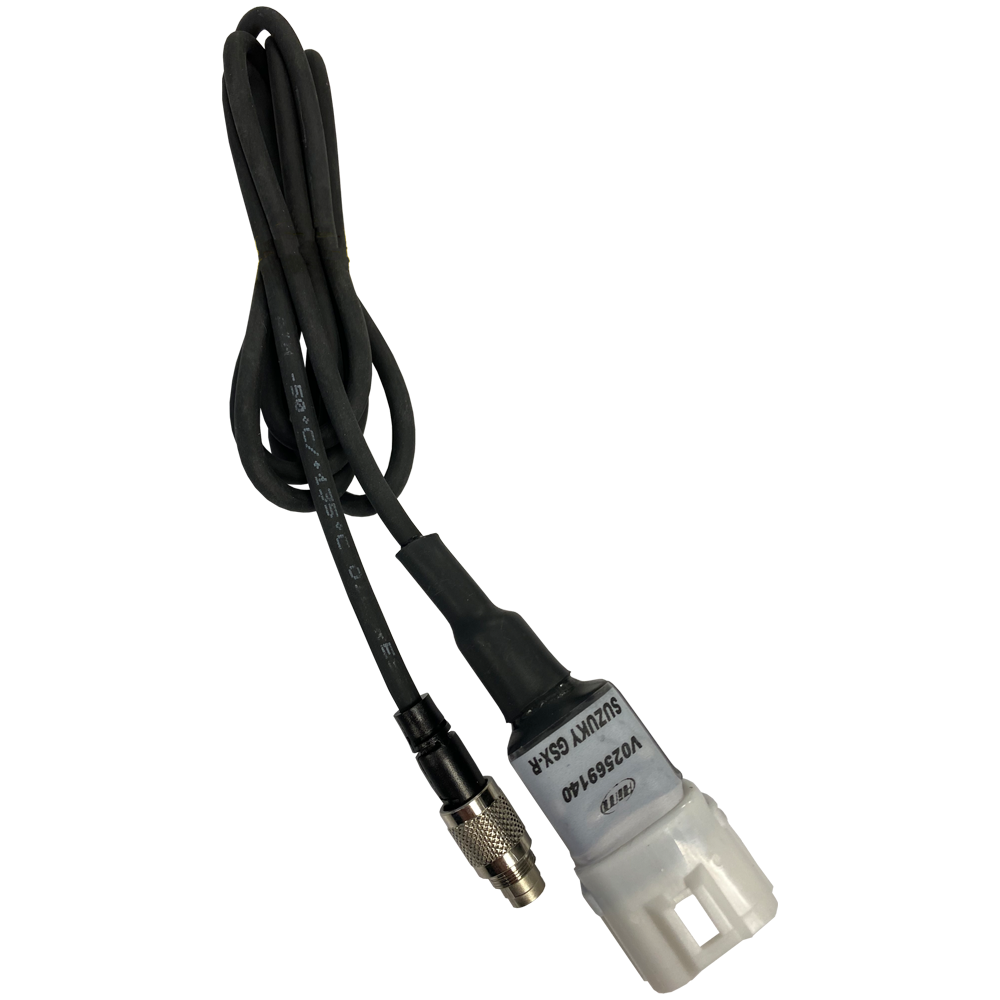

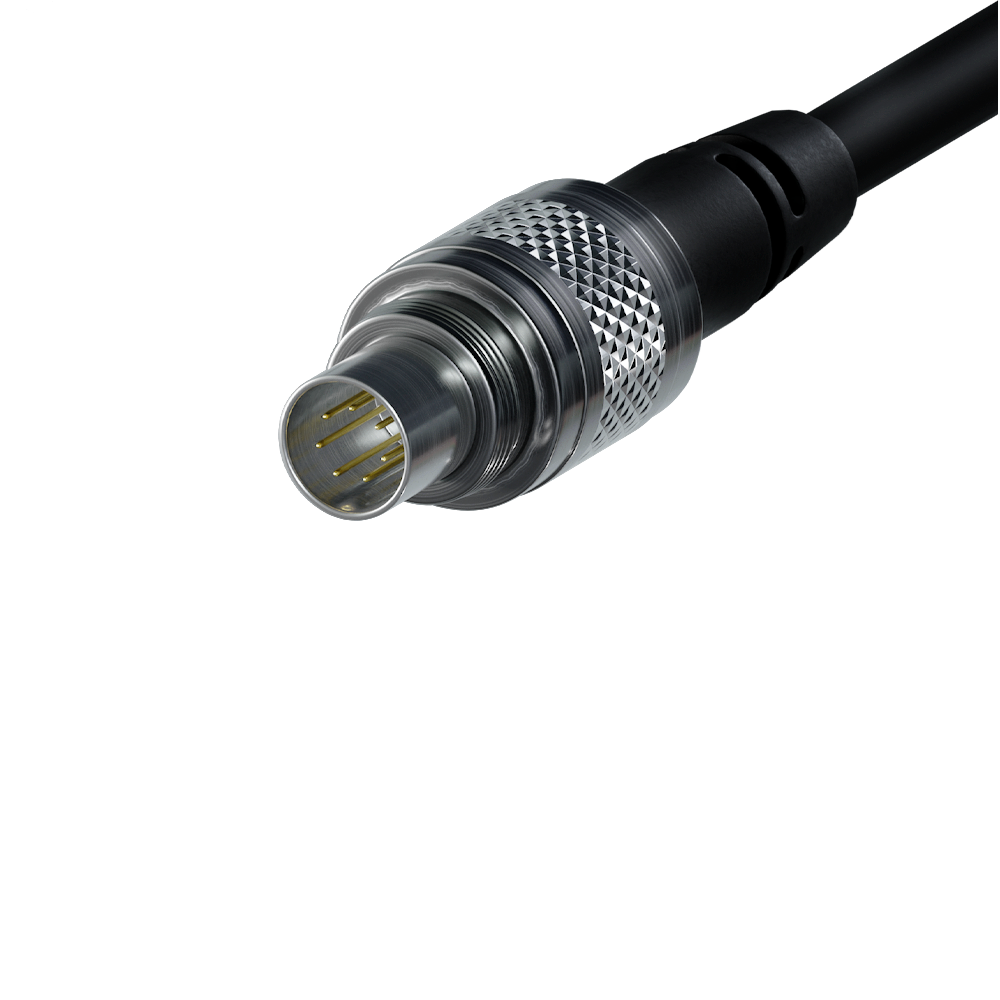

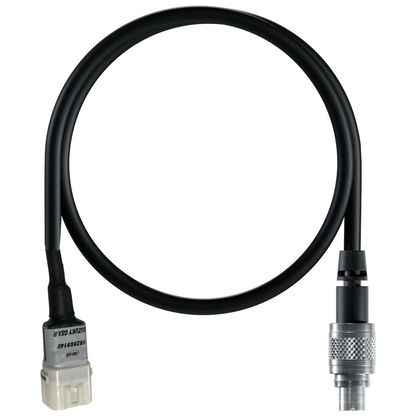

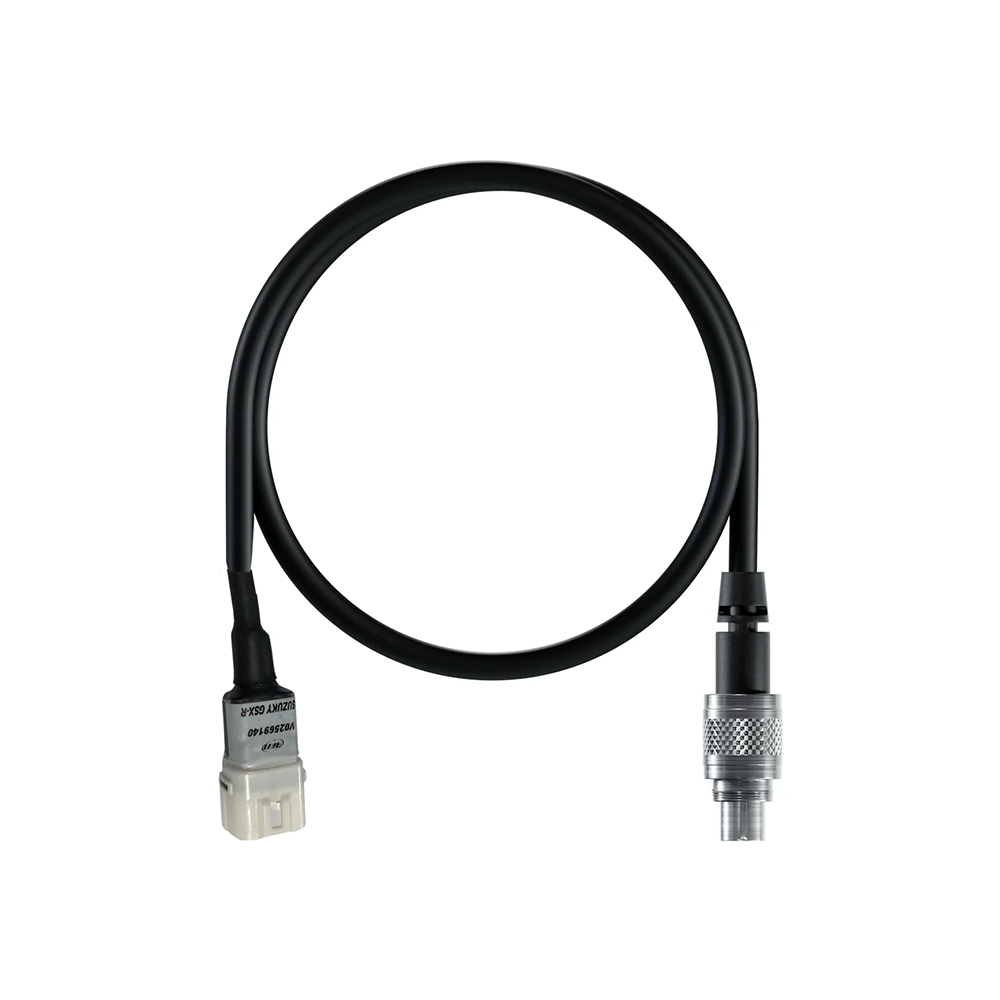

The Suzuki ECU Plug & Play Cable allows you to connect Aim Data Loggers, such as the Solo 2 DL, ECULog, XLog or EVO4S, to the Suzuki-specific connector. The Suzuki ECU Cable provides an easy plug & play connection to the motorcycle's ECU on one end, and uses a metal 712 screw-on binder connector with 7-pins on the other end, allowing ECU data to be logged.
Plug & Play Cable
The plug & play cable has been specifically designed for the following Suzuki motorcycle models and years:
- Suzuki GSX-R 600 – 2004-2023
- Suzuki GSX-R 750 – 2004-2017
- Suzuki GSX-R 1000 – 2005-2023
- Suzuki GSX-R 1000 L7 – From 2017
- Suzuki GSX-R 1300 Hayabusa Gen.2 – 2008-2016
If you are unsure whether this cable will fit your motorcycle, don't hesitate to contact our team, either by email, phone or online chat.
Example Data Protocols
Example data protocols sampled can include RPM, gear, throttle position, intake air temperature, battery voltage and many more. Refer to the user guide in the Downloads tab for a full protocol list.
Please Note: For these models/years, Aim recommends not to remove the stock dash. Doing so will disable some of the motorcycle's functions or safety controls.
Technical Information
Technical Specs

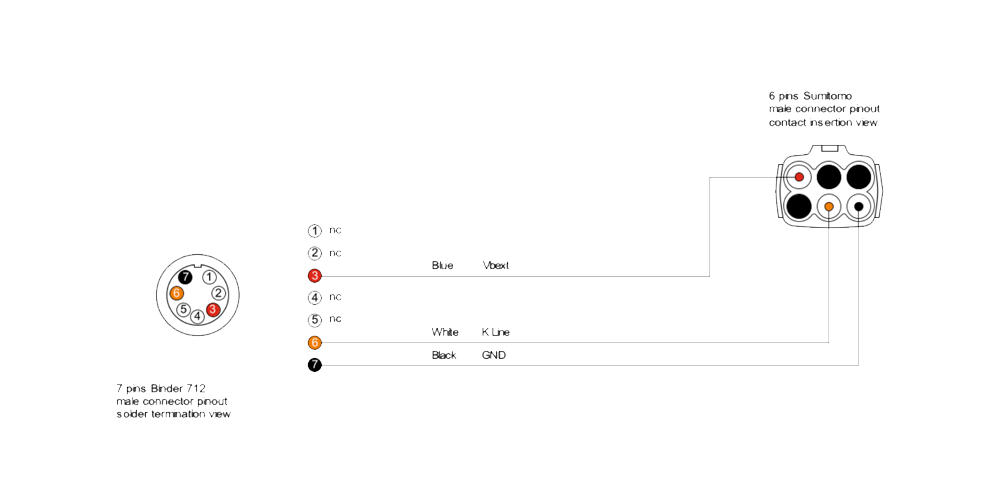

Pinout
Included in the Box
Suzuki Solo 2 DL Plug & Play Cable
-
Free Aim Software
Downloads
