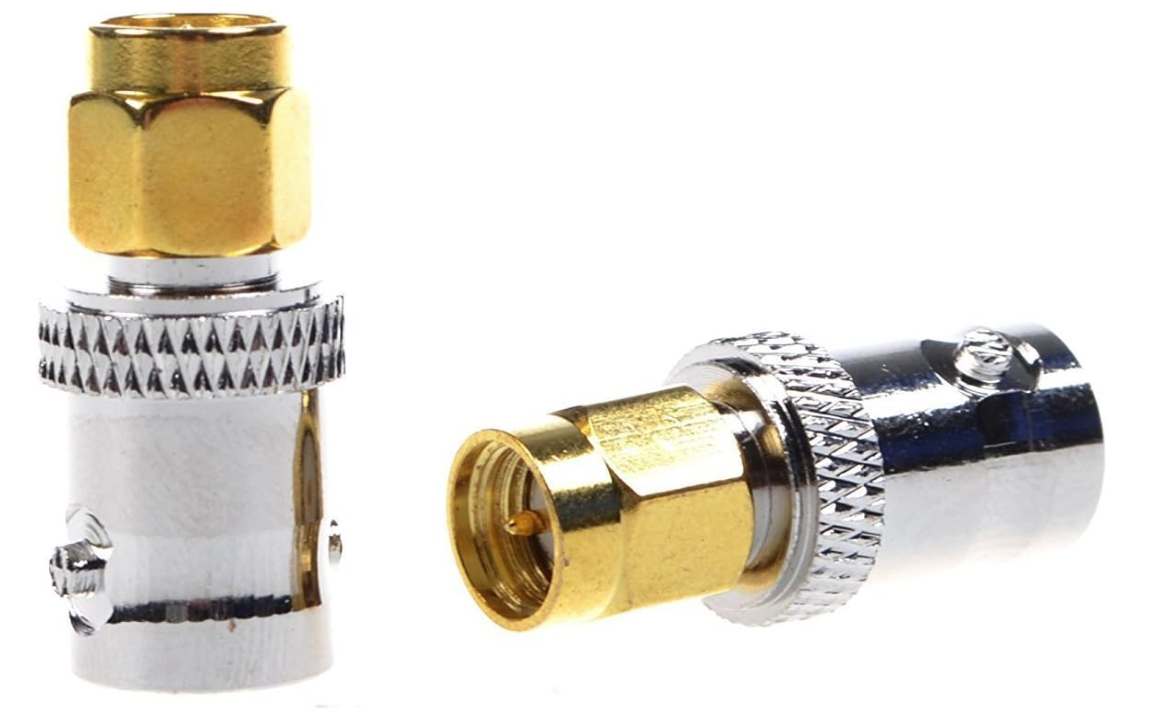

This adaptor converts the SDI output connector of a SmartyCam 3 GP HD or SmartyCam3 Dual into A BNC female connector. This makes it easy to connect to industry standard connections of live streaming video equipment.

We can also make a BNC cable if required at your desired length.

Characteristics Impedance 50 Ω
Dielectric withstand voltage 2500V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Connector Type SMA Male – BNC Female
Durability Mating Cycle ≥500
Electrial & Mechanical Specs.
Material and Plating
Body Brass / Nickel plating
`Insulator PTFE
Center Contact (pin) Beryllium , Brass / Gold platin
