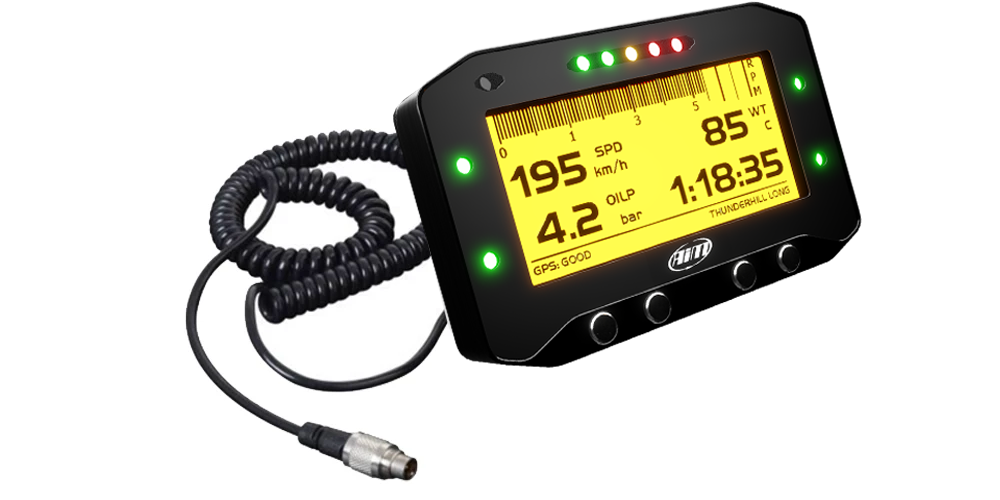

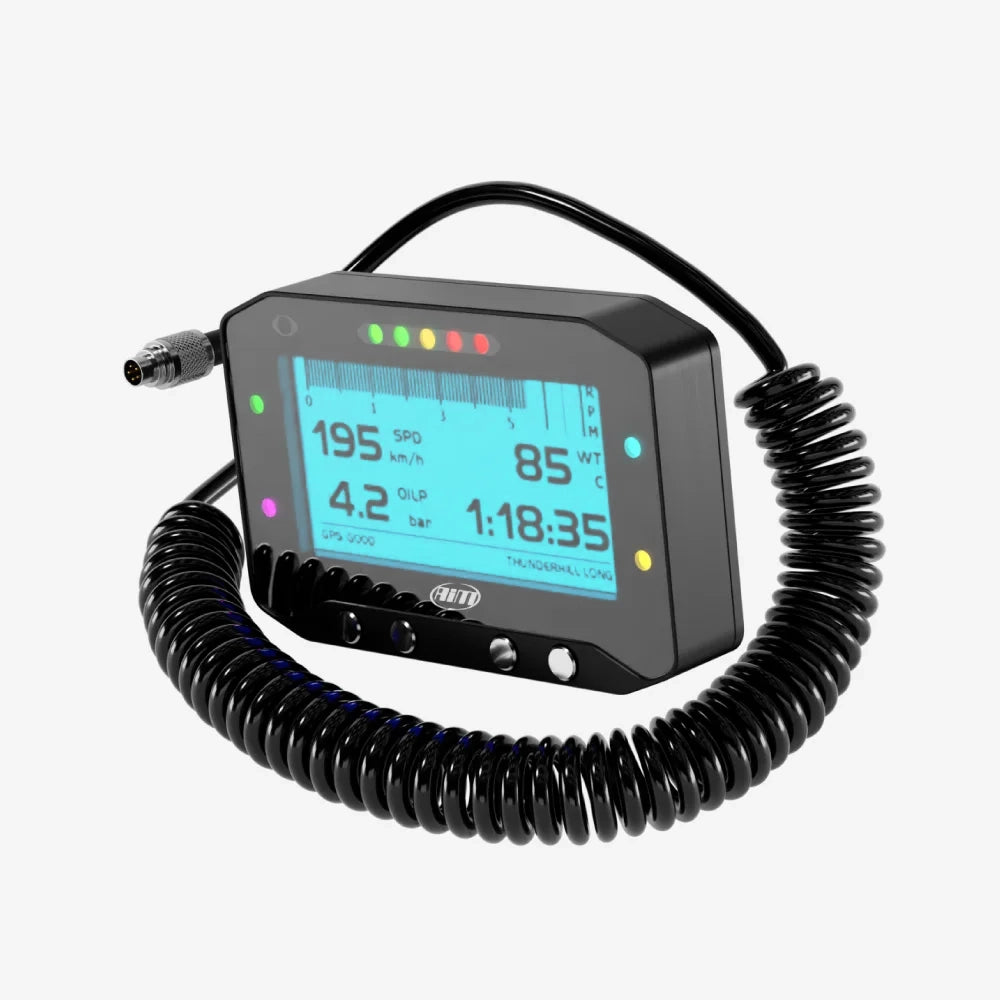

Aim GS-Dash Car Racing Dash Display

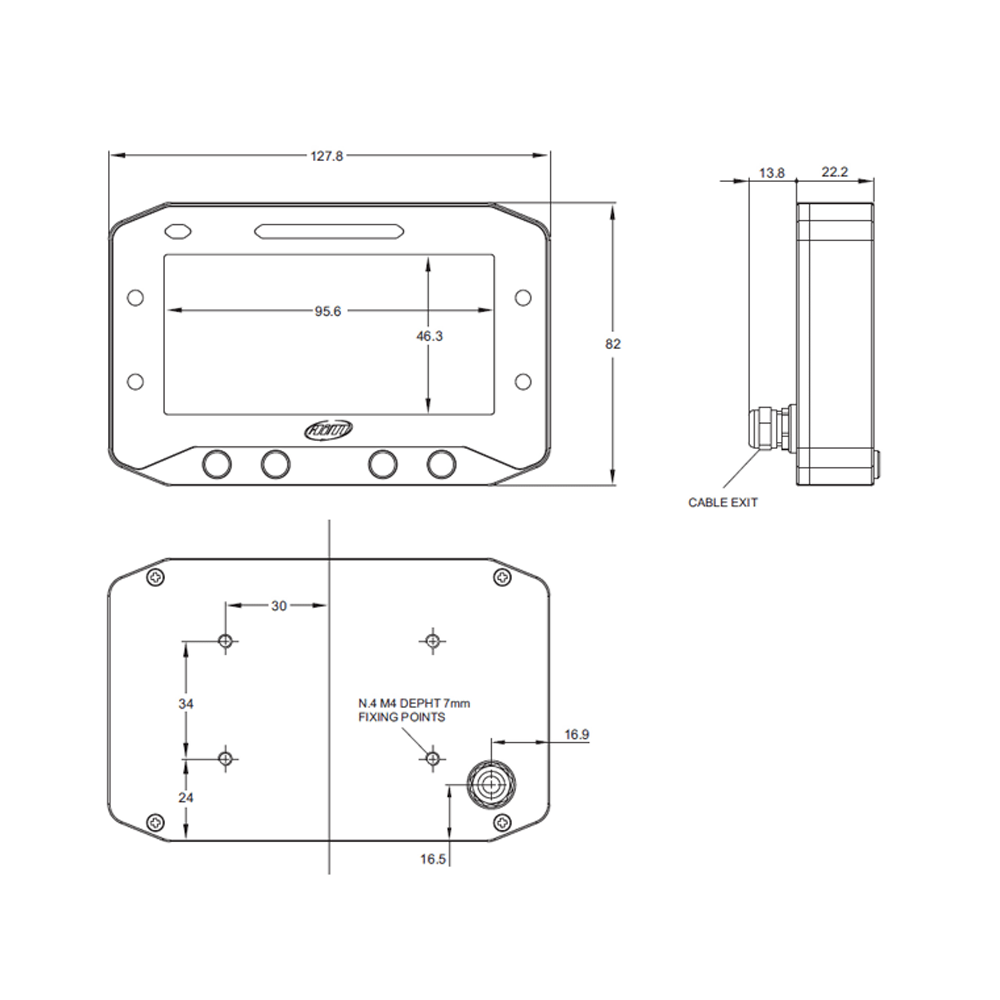

The compact dimensions of the GS-Dash make it particularly suitable for small cockpit installations, such as formula cars and kit cars. Manufactured in aluminium with edge-to-edge glass and metallic push buttons, the Aim GS-Dash is robust and fully waterproof.

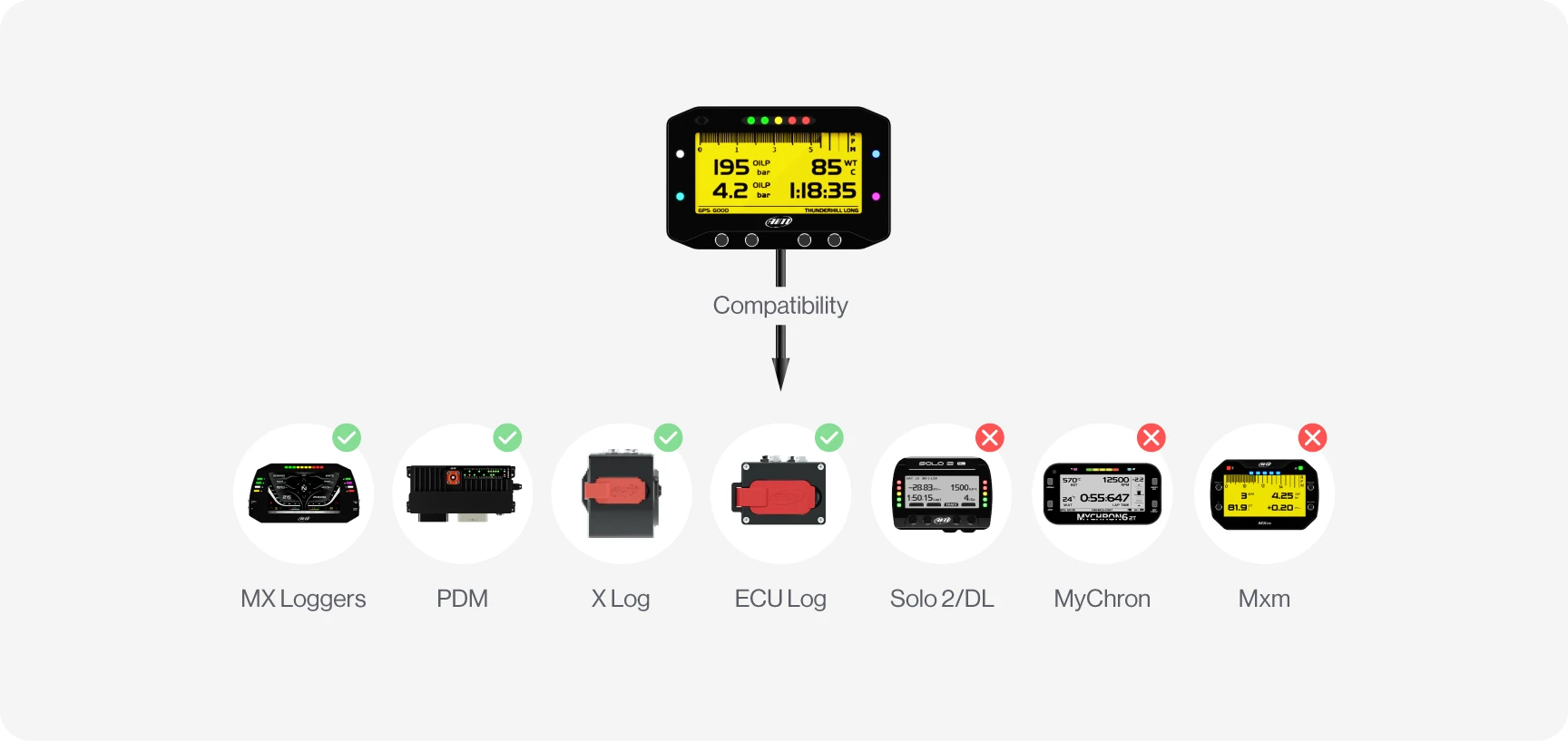

It displays racing data from the car’s ECU, from the accelerometers, GPS and any custom sensors, and it features connectivity with the X Log, EVO4S or EVO5 with minimum effort.

Please Note: The GS-Dash is not compatible with EVO4.

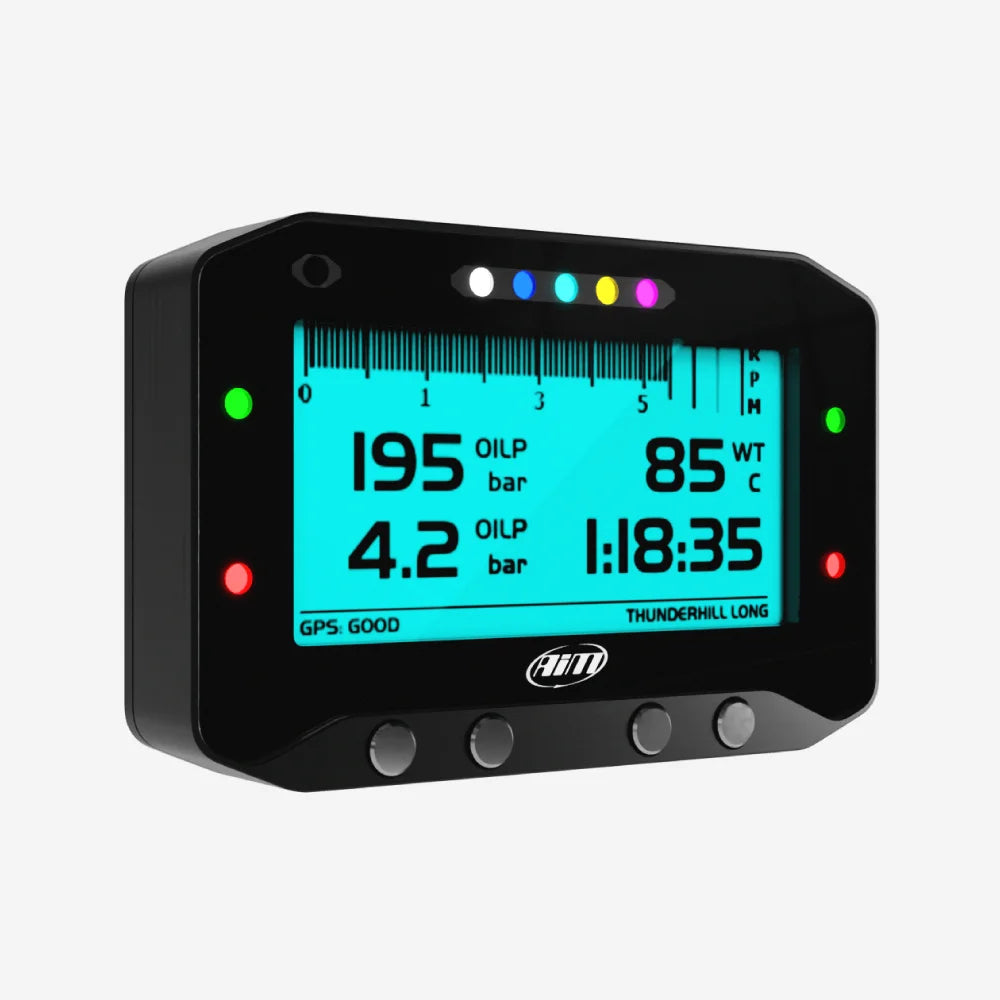

The GS-Dash is compact in structure and features a wide 268 x 128-pixel display. It can be backlit in one of seven available colours, and it also features an ambient light sensor that makes brightness and contrast ideal for differing light conditions.

The GS-Dash also has customisable pages showing lap times and data; you decide what data is displayed and how the pages look. Rolling time, static and predictive lap time are also available to view.

The GS-Dash features five RGB shift lights which can be individually configured for each gear, choosing LED colour and RPM threshold values for their activation.

Alarm LEDs are managed in a very flexible way. You can choose the situation that generates the alarm, the LED behaviour (blinking frequency and colour) when the alarm appears and the conditions for switching off; a warning message can also be shown.

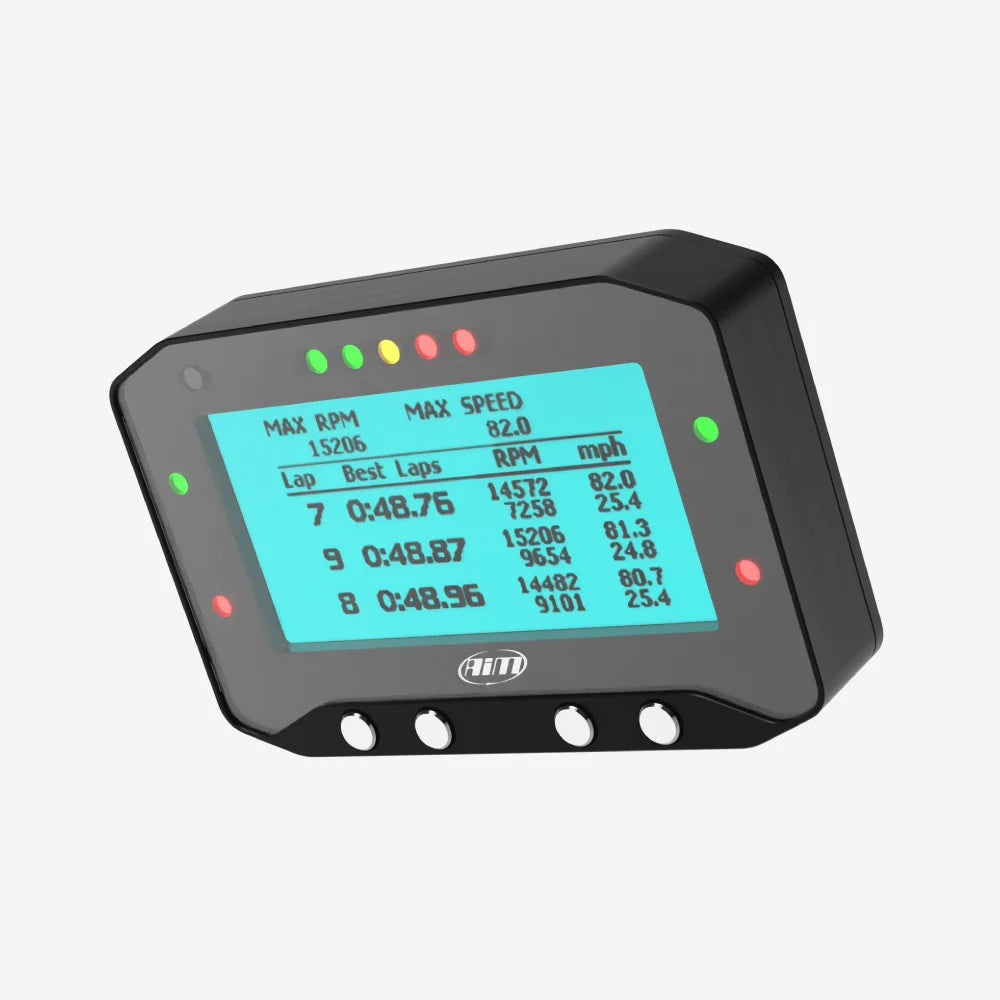

When your session is over, you can easily recall your sampled data using your data logger. A key summary is available at the end of each session, the best laps of the session with their times, min/max speed and min/max RPMs.

The GS-Dash can perform some operations via the pop-up keyboard. These include:

• Enabling/disabling the backlight
• Selecting the nearest track to race
• Checking GS-Dash firmware version
• Deleting the data stored on EVO4S & EVO5
