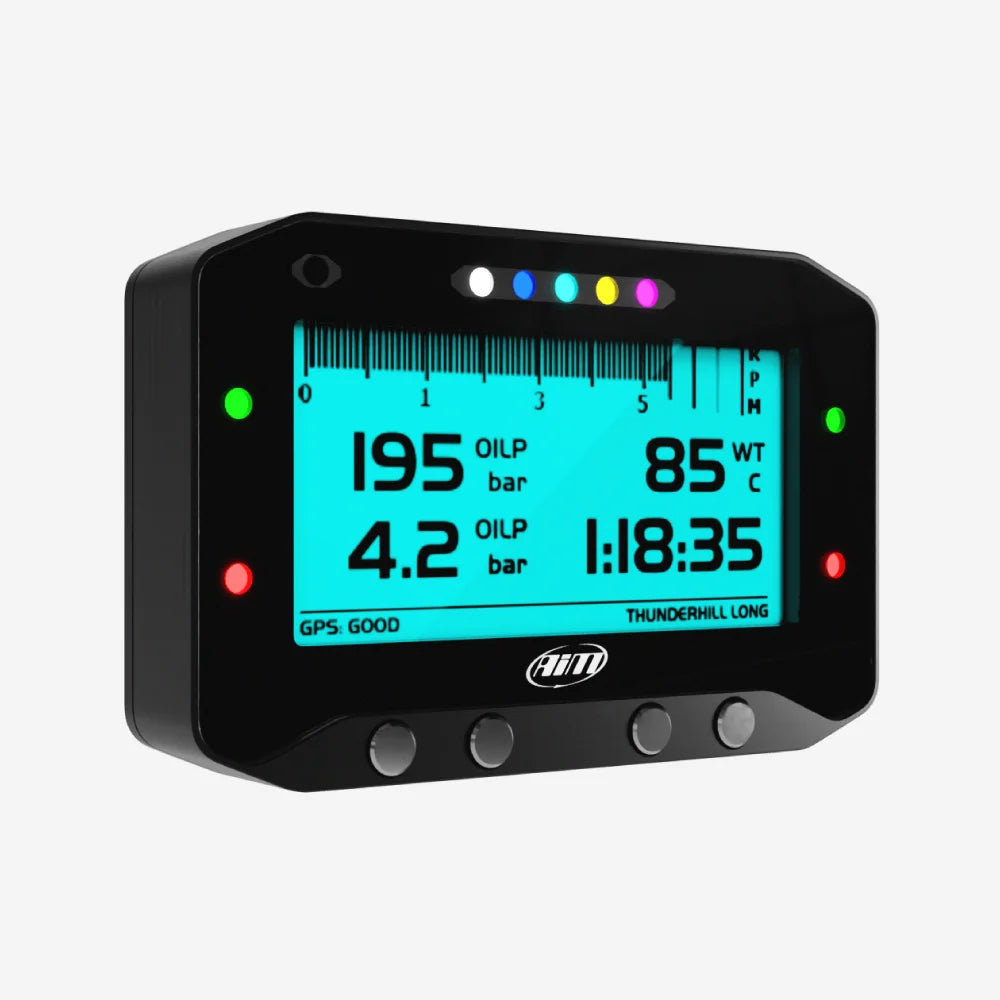

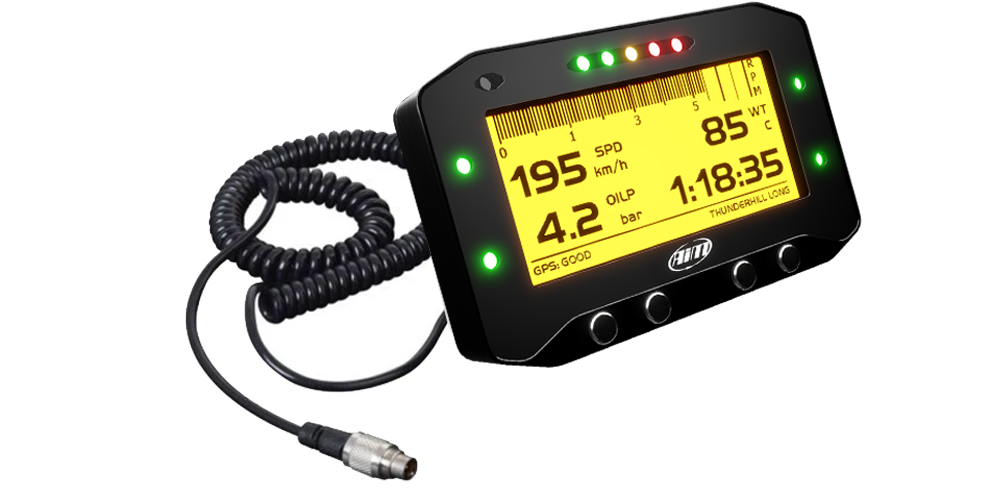

AiM GS-Dash Car Racing Dash Display

SKU: GS-DASH

Vanlig pris
£445.00
Vanlig pris
Salgs pris
£445.00

+ MVA (kun Storbritannia)

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
Powered by Shopify Planet

Compact. Flexible. Configurable

The AiM GS-Dash has been designed to show data sampled by EVO4S and EVO5 loggers.
Its small dimension makes it particularly suitable for small cockpit installations, such as formula cars and kit cars. Manufactured in aluminium with edge to edge glass and metallic push buttons the Aim GS Dash is robust and fully waterproof.

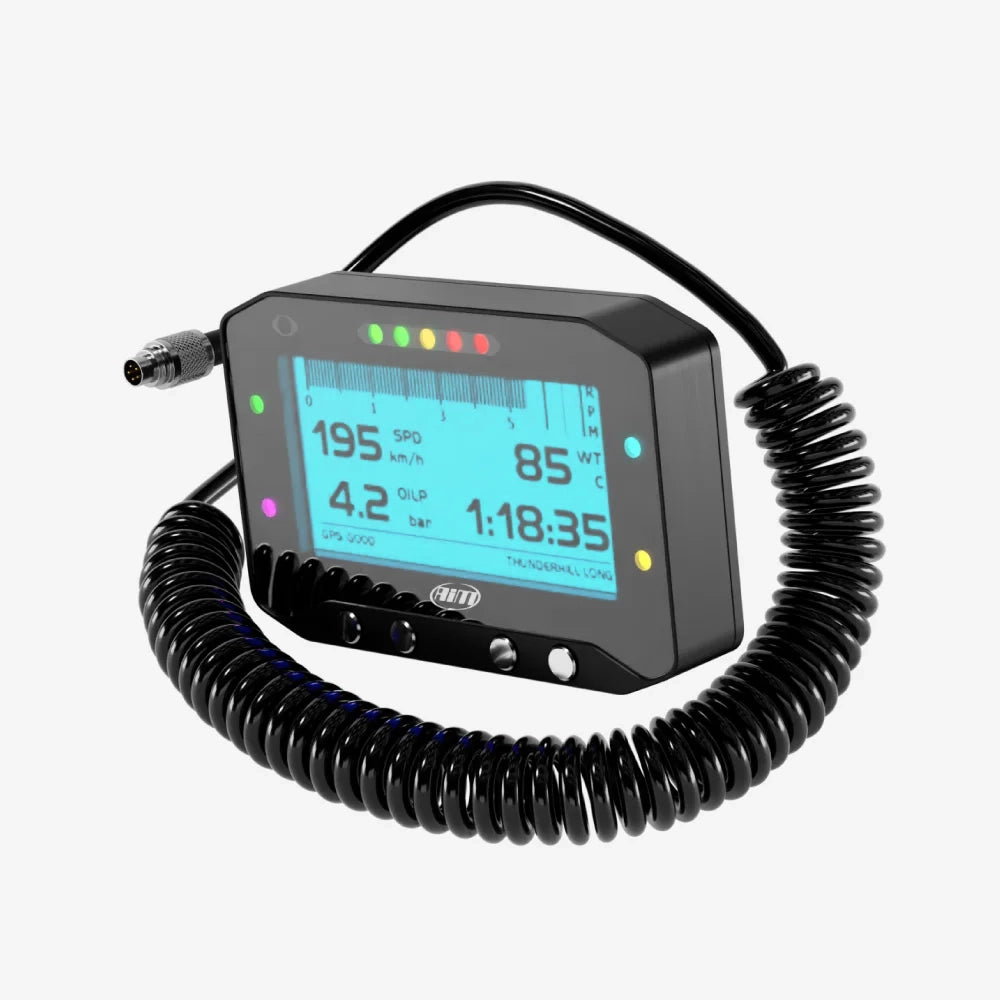

It displays racing data from the vehicle ECU, from the accelerometers, GPS and any custom sensors.  It features a 5 pin binder 712 male spiral cable which will enable you to connect your EVO4S or EVO5 with minimum effort.
Please Note: The GS-Dash is not compatible with EVO4.

Display

The GS-Dash can be backlit in one of seven available colours, it also features an ambient light sensor that makes brightness and contrast ideal for differing light conditions.

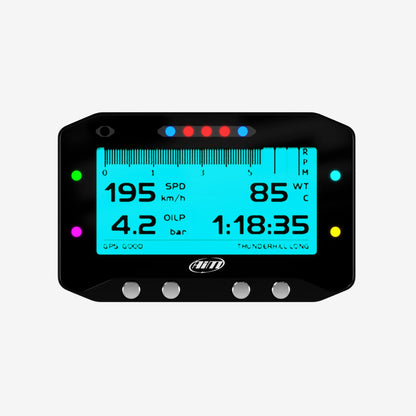

The GS-Dash is compact in structure and features a wide 268x128 pixel display .

Configurable Pages & Lap Times

The GS-Dash can swap among pages showing lap times and data and is fully customizable.  Choice of data available and a choice of display pages to create and personalise.
Rolling time, static, and predictive lap time are also available to view.

Configurable Shift Lights & Alarms

The GS-Dash features five RGB shift lights which can be individually configured for each gear, choosing LED colour and RPM threshold values for their activation.
Alarm LEDs are managed in a very flexible way. You can choose the situation that generates the alarm, the LED behaviour (blinking frequency and colour) when the alarm appears and the conditions for its switch off. A warning message can also be shown.
When your session is over you can easily recall your sampled data by your EVO4S or EVO5 data logger.

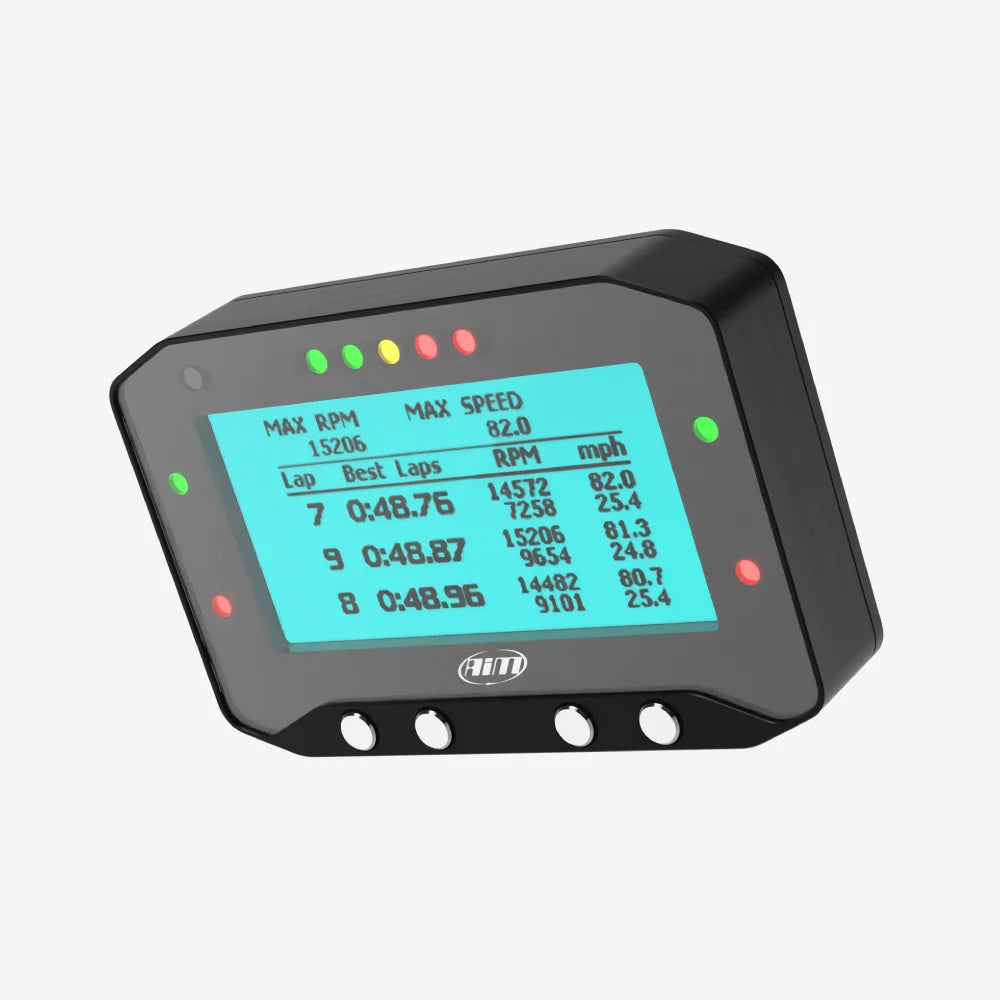

A key summary is available at the end of each session, the best laps of the session with their times, min/max speed and min/max RPMs.

Keyboard Operations

The GS-Dash can perform some operations via the pop-up keyboard.
Enabling/disabling the backlight
Selecting the nearest track you are racing
Checking GS-Dash firmware version
Deleting the data stored on EVO4S & EVO5

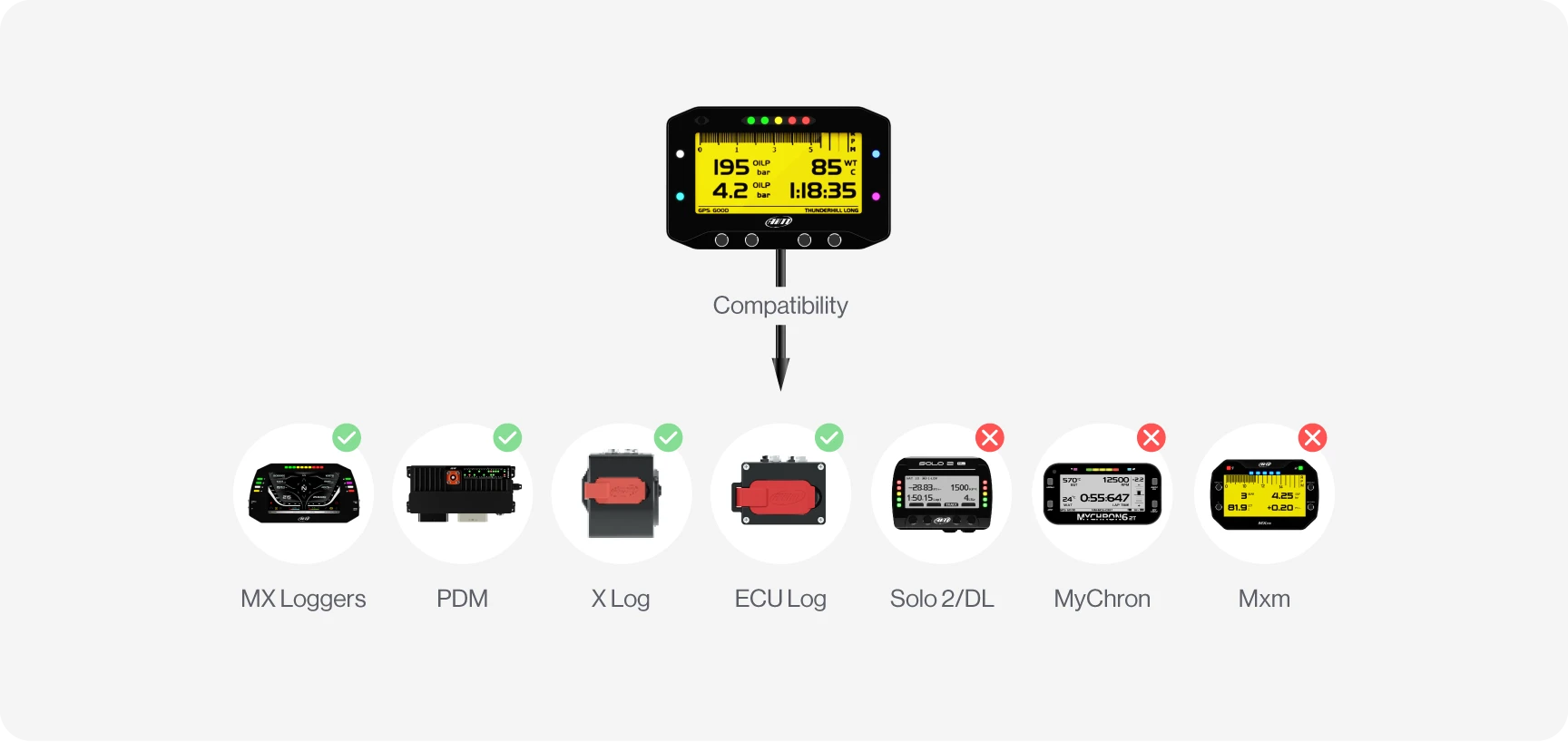

Expand Your System
These are only some of the items that can be added to our GS-Dash for increasing the the performance and the data acquired.

Configure & Analyse with Race Studio 3

Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Analysis
With Race Studio 3 you can also analyse all data recorded by GS-Dash and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM GS-Dash Car Racing Dash Display

  • Display Resolution: 268 x 128 pixels
  • Backlight: 7 configurable RGB colours
  • Ambient Light Sensor: Yes
  • Shift Lights: 5 configurable RGB LEDs
  • Alarm LEDs: 4 configurable RGB LEDs
  • Display Pages: Fully configurable
  • Body: Aluminium
  • Pushbuttons: Metallic

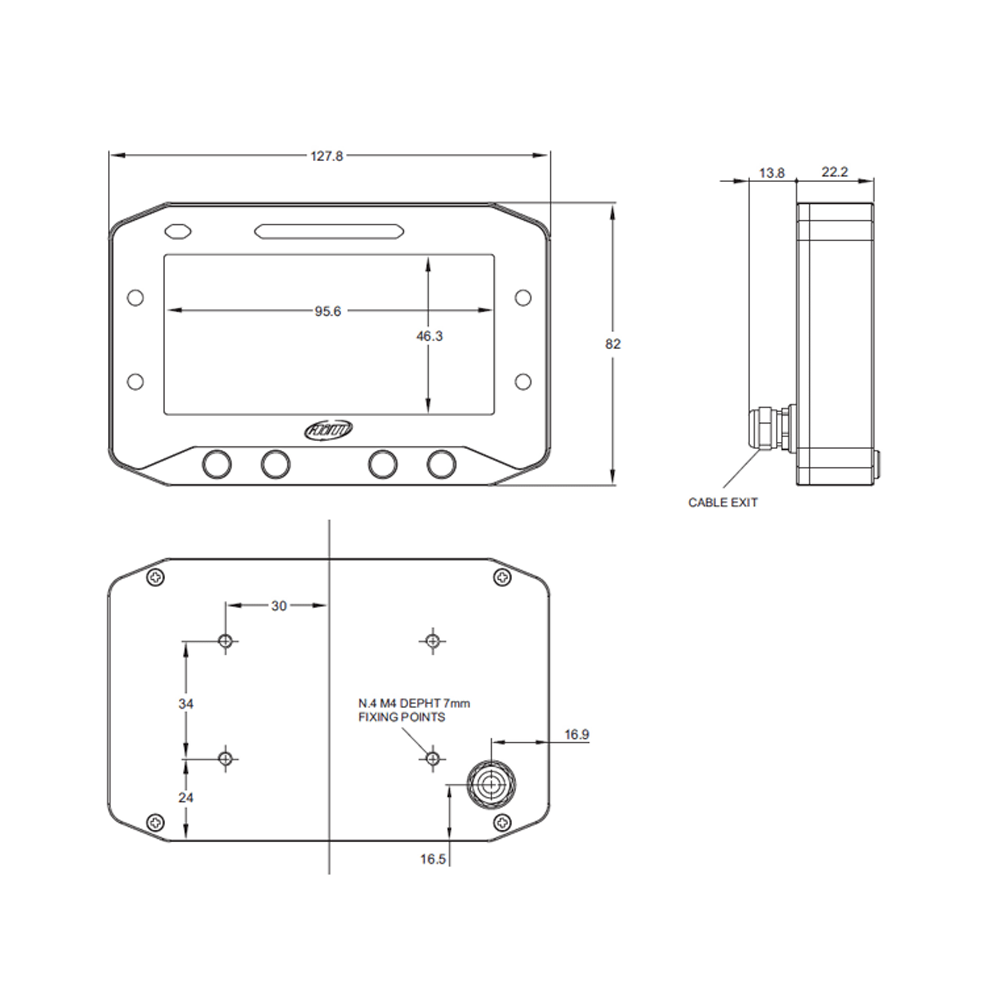

  • Dimensions: 127.8 x 82 x 22.2mm
  • Weight: 380g
  • Waterproof: IP65



AiM GS-Dash Car Racing Dash Display

  • GS-Dash with spiral cable
  • AiM sticker
