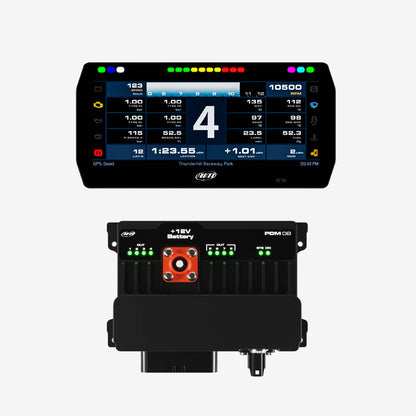

Aim PDM08 & PDM Dash Display with Race Icons

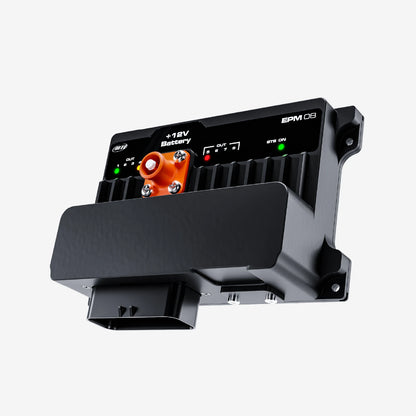

The Aim PDM08 is an 8-channel advanced power distribution module designed to power a multitude of vehicle circuits, removing the need for traditional fuse boxes and relays. It allows for a simplified wiring harness with increased reliability and control functions. Paired with a TFT Display with Race Icons, a fully configurable display with a range of layouts to choose from, and an optional GPS Module that provides easy lap timing and lap position for track mapping, the PDM08 kit is the ultimate setup for full vehicle control and performance improvement.

The PDM08 features 8 high-side outputs: 1x with series diode rated up to 20A, 1x rated up to 25A, and 6x rated up to 15A, with a total continuous max current of 100A. Each output provides feedback to the data logger to provide vital information such as open circuits, short circuits, high/low voltage, and the number of fault retires. The time between the retires is user-definable. All outputs can be configured as PWMs for a soft start/stop. All of the PDM circuits can be set up and monitored via the Race Studio 3 software.

The PDM also features 6 analogue/digital inputs and 2x speed inputs, and can receive and record data from the following sources:

• ECU: Over 1000 protocols available
• Digital/analogue inputs
• Internal nine-axis EMU
• GPS: For lap time and position

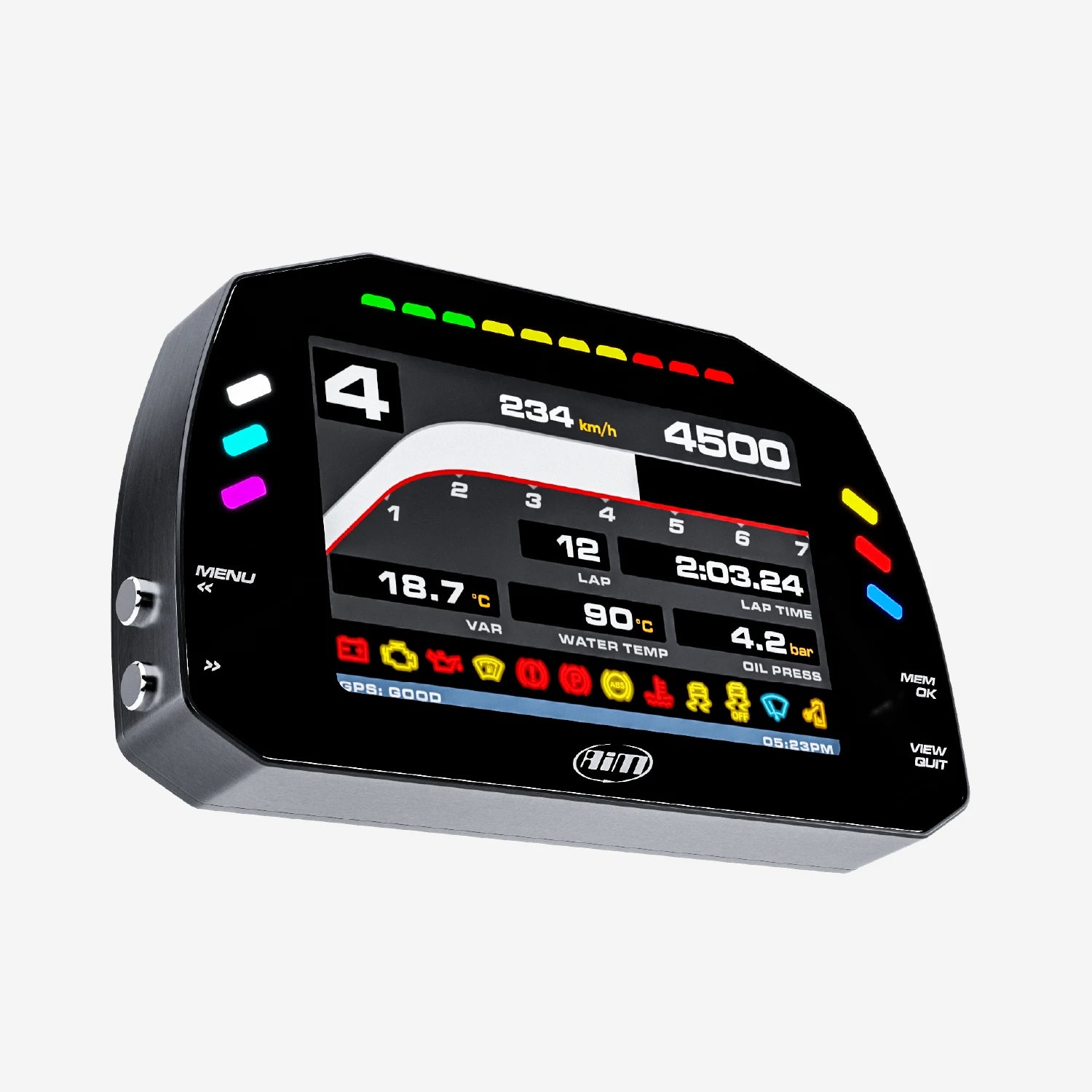

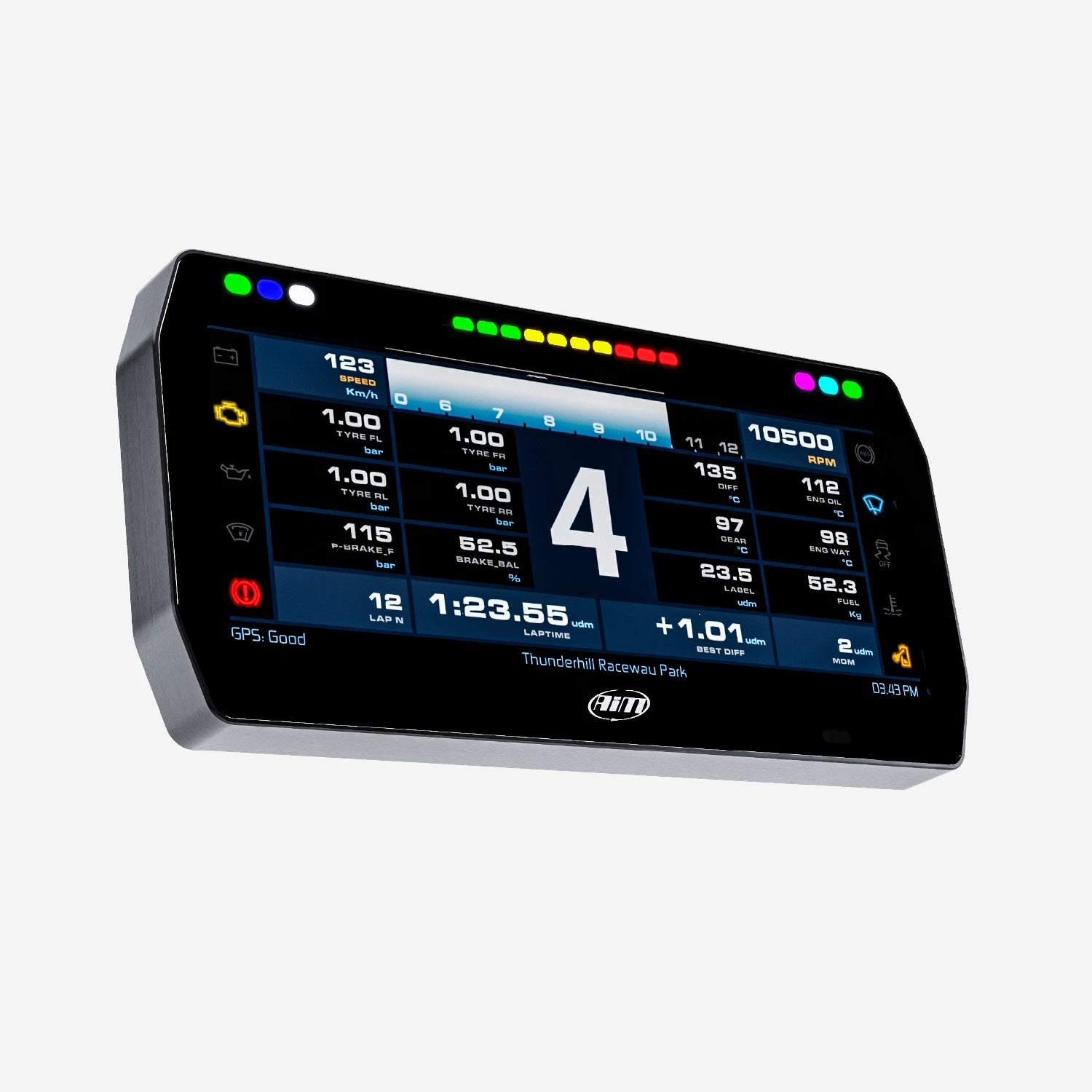

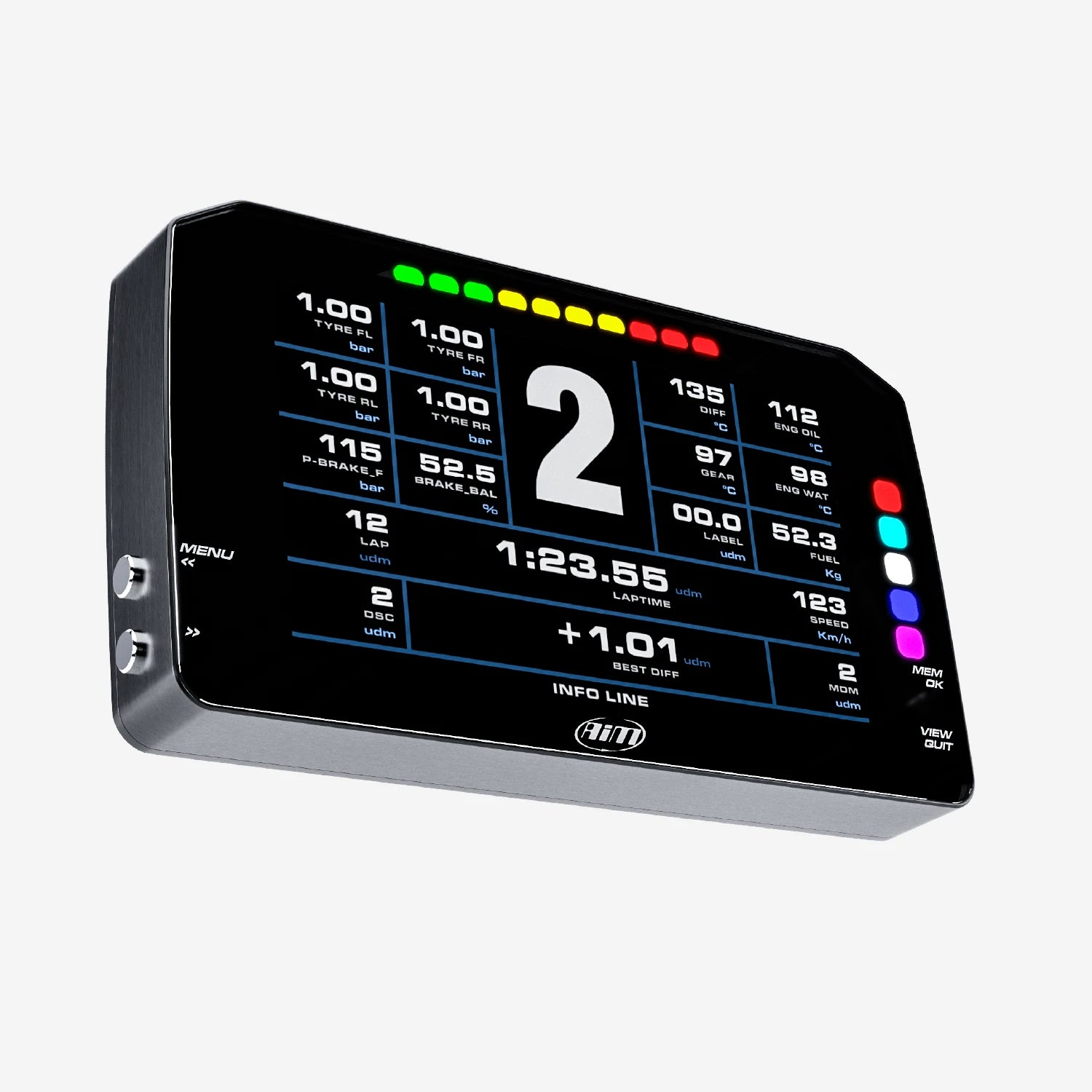

Aim PDM Displays are suitable for use as replacement units for those supplied with the Aim PDM kits, or as an upgrade for PDM kits that do not include a dash display. The dashes range from 5", 6" or 10” (MXS, MXP or MXT) TFT high-contrast colour displays. The visual quality is optimised by the ambient light sensor, which keeps the backlight at the best brightness levels.

All versions have fully user-configurable displays and offer a range of layouts, and are available with "Road" or "Race" icons. Race icons with this particular kit allow you to apply conditions to the LED icons.

The GPS09 Module provides easy lap timing and lap position for track mapping. The PDM has over 4,000 racetracks in the database, so once you arrive at the track, the system already knows the timing points so that you can arrive and drive.

Note: The GPS09 Module is available with cable lengths of 0.5m, 1.3m, 2m or 4m to suit different applications. We also have an option for a roof-mounted version which is available with 2m or 4m length cables. Both versions come with a 5-pin 712 male binder connector.

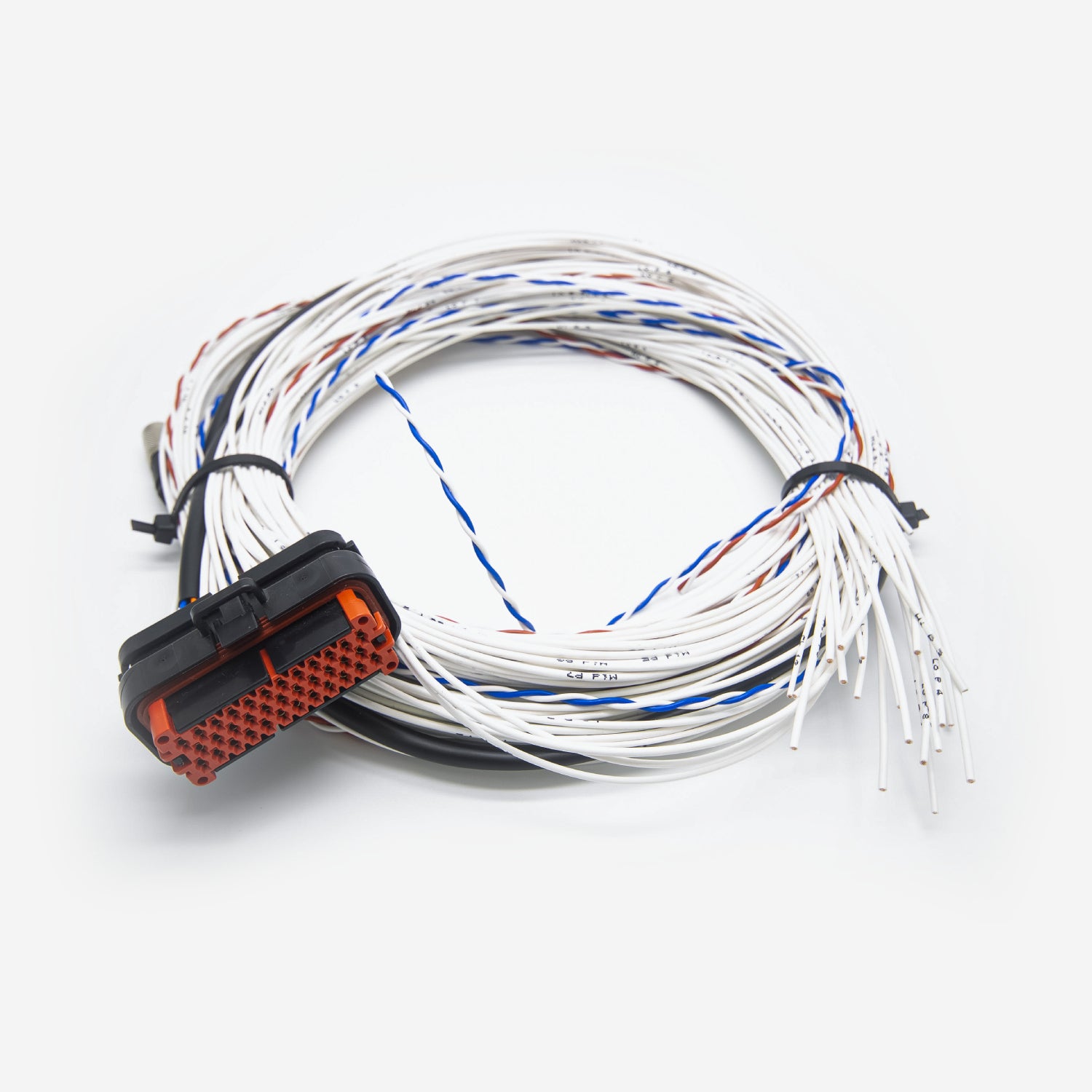

A pre-assembled harness is available for a more straightforward wiring solution, colour-coded and tagged to provide the easiest installations.
