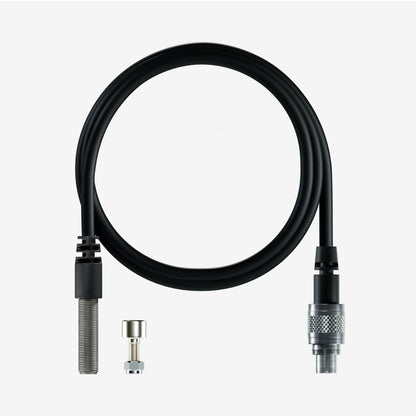

AiM Axle Rear Speed Pickup Sensor

SKU: S-S-K-R - X05SNVB301

£70.00
£70.00

+ VAT (UK Only)


Order before 3pm - For same day dispatch *

*Same day dispatch dependant on current stock levels.

Rear Speed Pick Up Sensor


The AiM wheel speed non-contact sensor for MyChron4 & MyChron5 S.


Key Features:

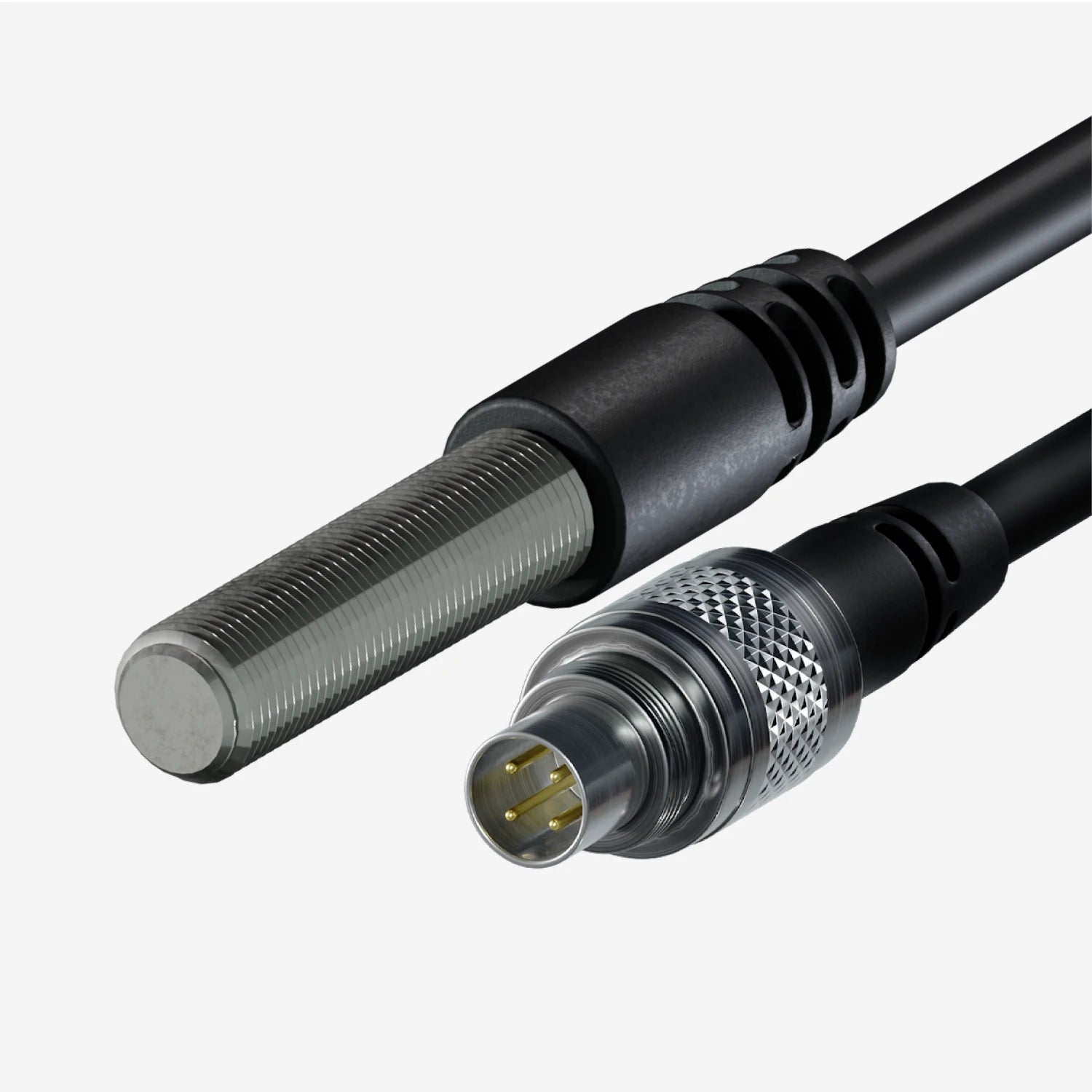

  • 712 4 pin male connector
  • Speed Sensor
  • Magnetic
  • Free race studio 3 download


Rear Speed Wheel Sensor

The AiM Axle rear speed pickup sensor is suitable for use with the MyChron5 S and MyChron5 S 2T, also including our older models MyChron5 and MyChron4 Kart Dash / Data Loggers.
The rear axle speed sensor has an M10 thread and is supplied with nuts to be mounted on a bracket (not supplied).

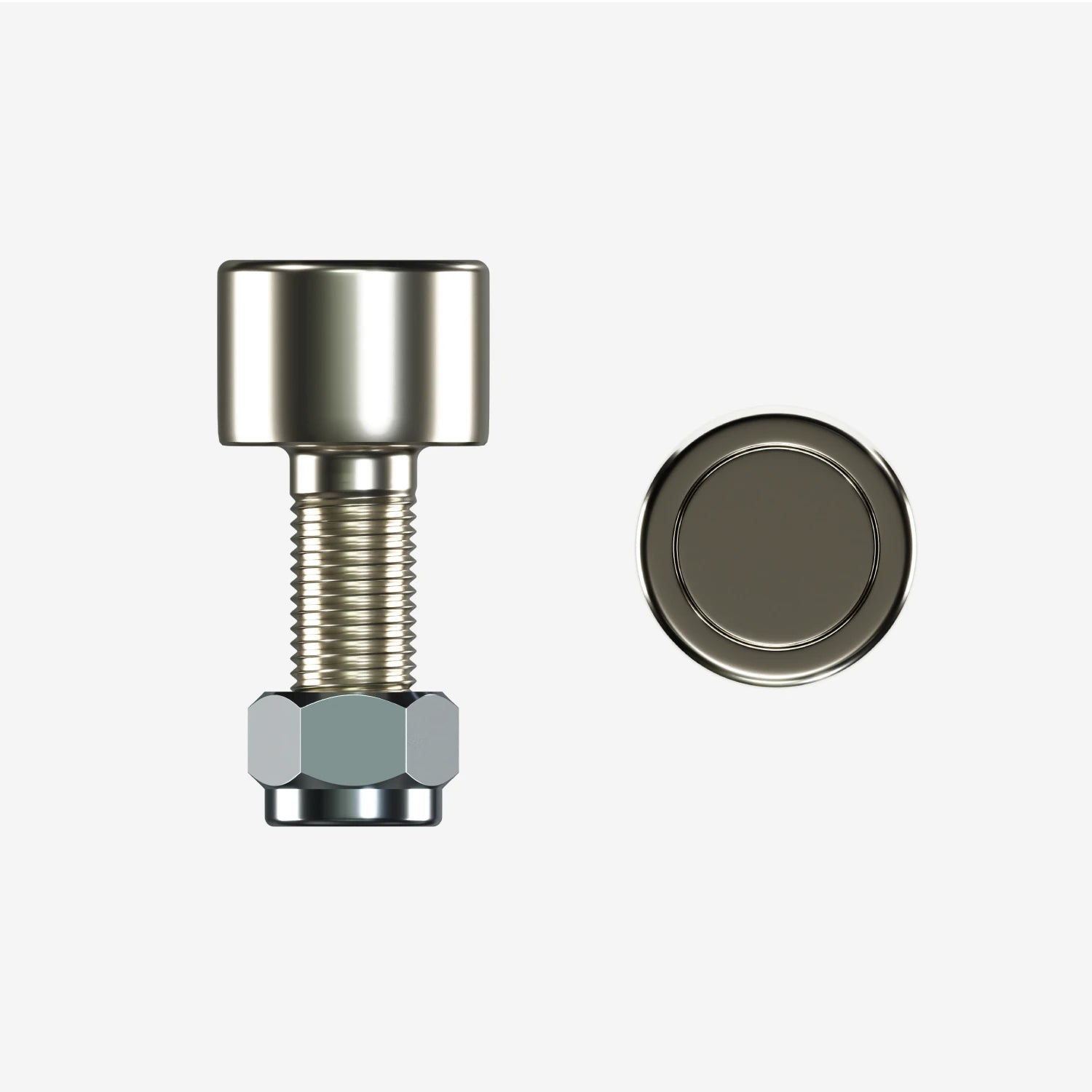

It is supplied with a magnetic trigger bolt and is to be installed at 3.5mm from the magnet.



AiM Technologies are committed to supplying, professional engineers with quality Motorsport products. Our cables and accessories are well-engineered and designed for demanding motorsport applications and the demands that racing puts on components. Which makes ours amongst the best in the marketplace today.



Unlock your potential

Our mission is to help educate you and enable you to get the most out of your AiM data equipment… whether you are new to racing or a seasoned professional, there is always something new to learn.


    AiM Axle Rear Speed Pickup Sensor

    Sensor Electrical Characteristics:

    • Power Tension: 6-24 VDC
    • Power Supply: 13.5 mA
    • Output Signal Type: Pulse 0-5 volt
    • Max Current Output: 20 mA
    • Max Operating Frequency: 100kHz
    • Max Sensibility Distance: 20mm
    • Recommended Distance: 10mm
    • Number of Pulses for Wheel Revolution: 1

    Sensor Mechanical Characteristics:

    • Operating Temperature Range: From -20 to +85° C
    • Cable Length: 1700mm





    AiM Axle Rear Speed Pickup Sensor

    • Rear Speed Wheel Sensor
    • 3 Nuts
    • 1 Screw








    FAQ Centre

    Description

    Rear Speed Pick Up Sensor


    The AiM wheel speed non-contact sensor for MyChron4 & MyChron5 S.



    Key Features:



    • 712 4 pin male connector
    • Speed Sensor
    • Magnetic
    • Free race studio 3 download


    Rear Speed Wheel Sensor

    The AiM Axle rear speed pickup sensor is suitable for use with the MyChron5 S and MyChron5 S 2T, also including our older models MyChron5 and MyChron4 Kart Dash / Data Loggers.
    The rear axle speed sensor has an M10 thread and is supplied with nuts to be mounted on a bracket (not supplied).
    It is supplied with a magnetic trigger bolt and is to be installed at 3.5mm from the magnet.


    AiM Technologies are committed to supplying, professional engineers with quality Motorsport products. Our cables and accessories are well-engineered and designed for demanding motorsport applications and the demands that racing puts on components. Which makes ours amongst the best in the marketplace today.



    Unlock your potential

    Our mission is to help educate you and enable you to get the most out of your AiM data equipment… whether you are new to racing or a seasoned professional, there is always something new to learn.




      Technical

      AiM Axle Rear Speed Pickup Sensor

      Sensor Electrical Characteristics:

      • Power Tension: 6-24 VDC
      • Power Supply: 13.5 mA
      • Output Signal Type: Pulse 0-5 volt
      • Max Current Output: 20 mA
      • Max Operating Frequency: 100kHz
      • Max Sensibility Distance: 20mm
      • Recommended Distance: 10mm
      • Number of Pulses for Wheel Revolution: 1

      Sensor Mechanical Characteristics:

      • Operating Temperature Range: From -20 to +85° C
      • Cable Length: 1700mm





      Whats In The Box

      AiM Axle Rear Speed Pickup Sensor

      • Rear Speed Wheel Sensor
      • 3 Nuts
      • 1 Screw
