AiM Brake Pressure Sensor Kit - To suit OTK Kart

£195.00

+ VAT (UK Only)

Order before 3pm - For same day dispatch *

AiM Brake Pressure Sensor Kit - To suit OTK Kart

The AiM M10-10 Bar pressure sensor is suitable for oil and fuel pressure readings and able to read pressures up to 10 bars.

Key Features :

Suitable for OTK karts with M10 threads 0-100 bar pressure
Compatible with MyChron 4 & 5 712 - 719 4 pins patch lead


AiM Brake Pressure Sensor Kit - To suit OTK Kart

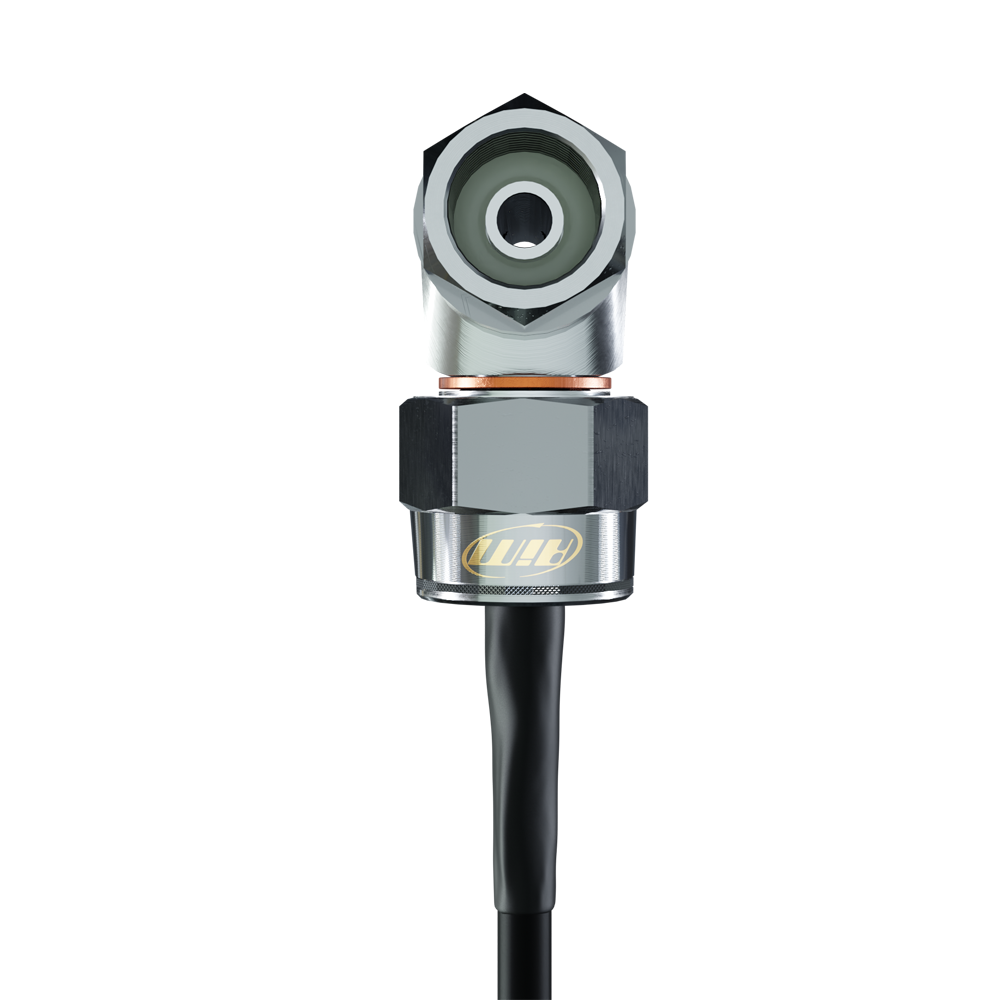

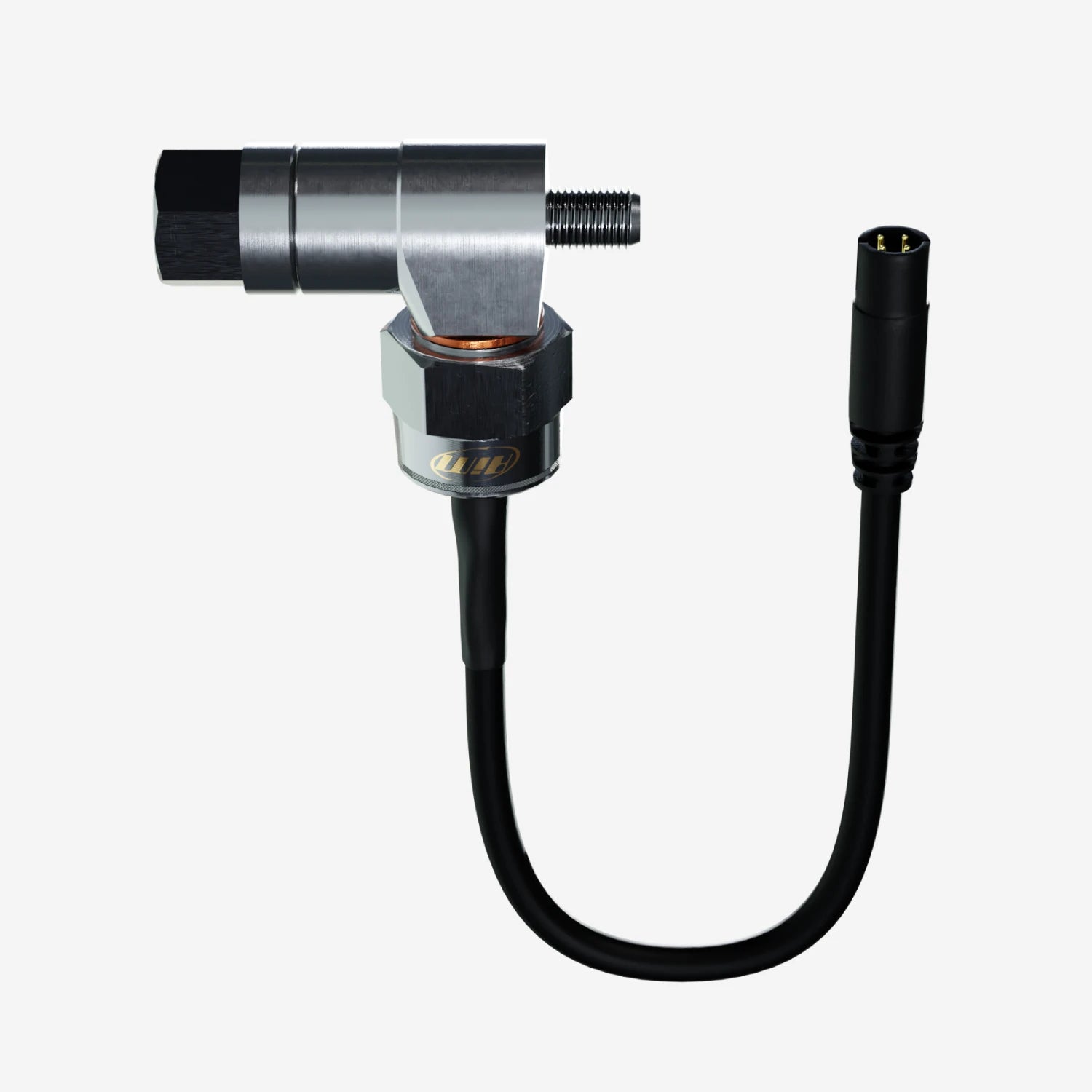

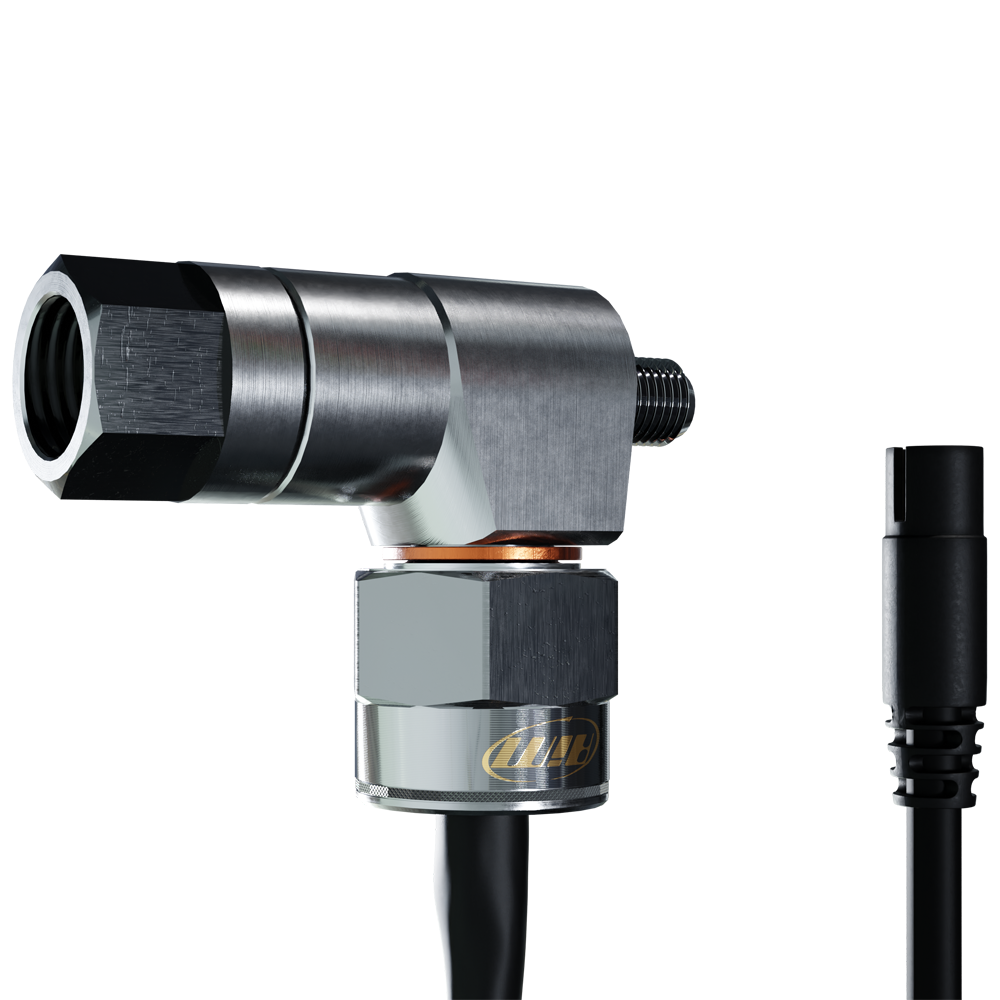

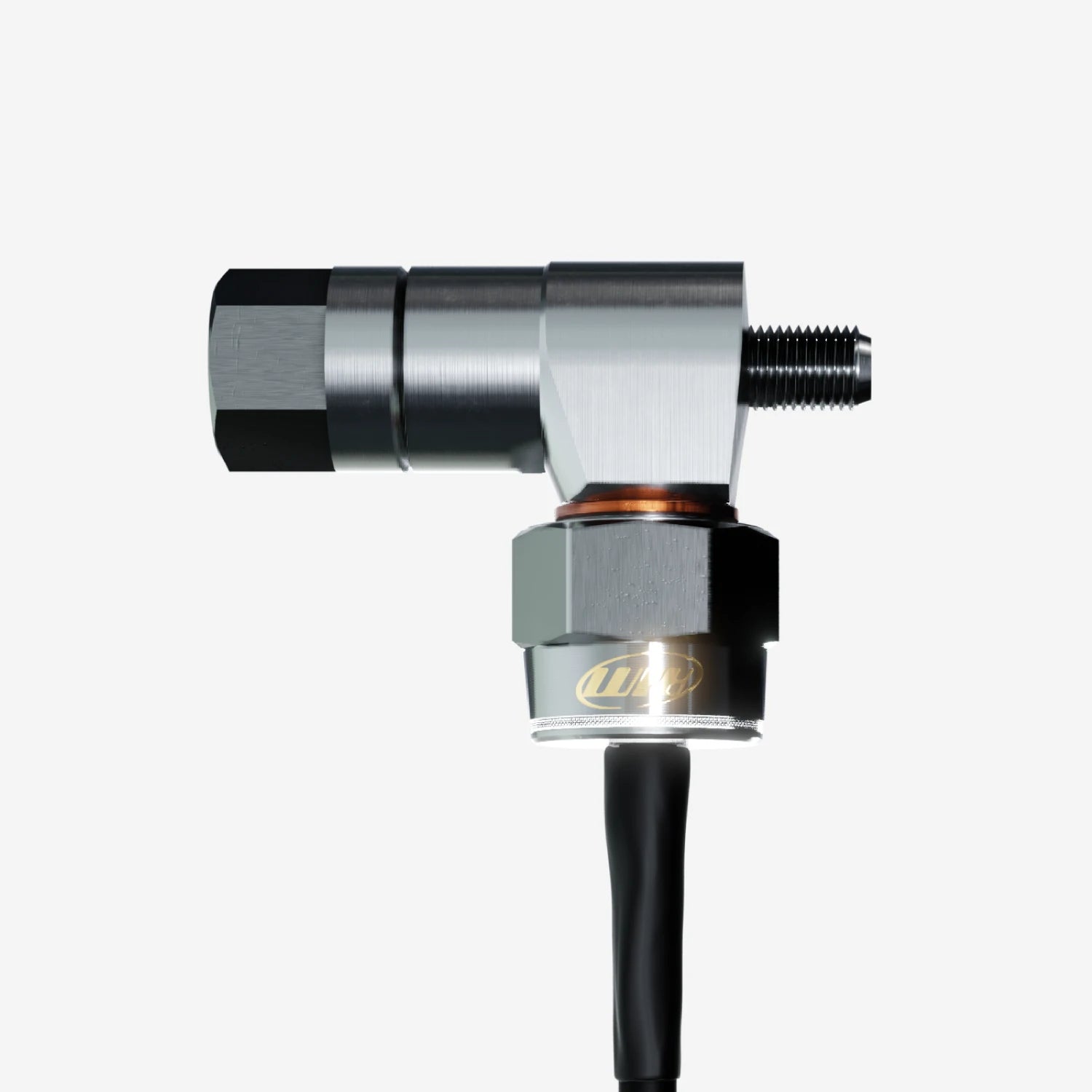

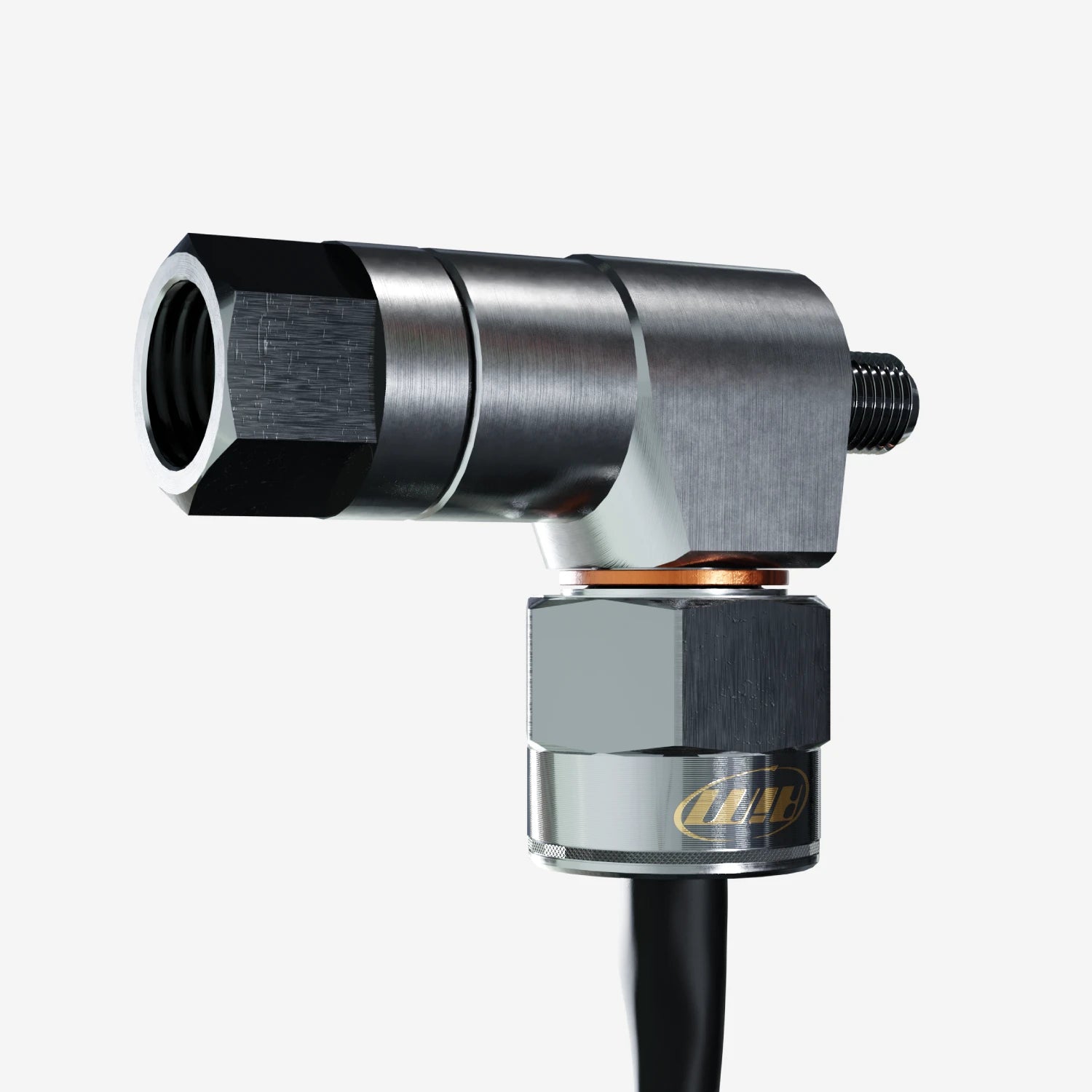

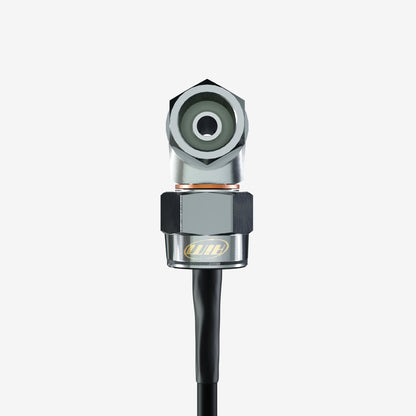

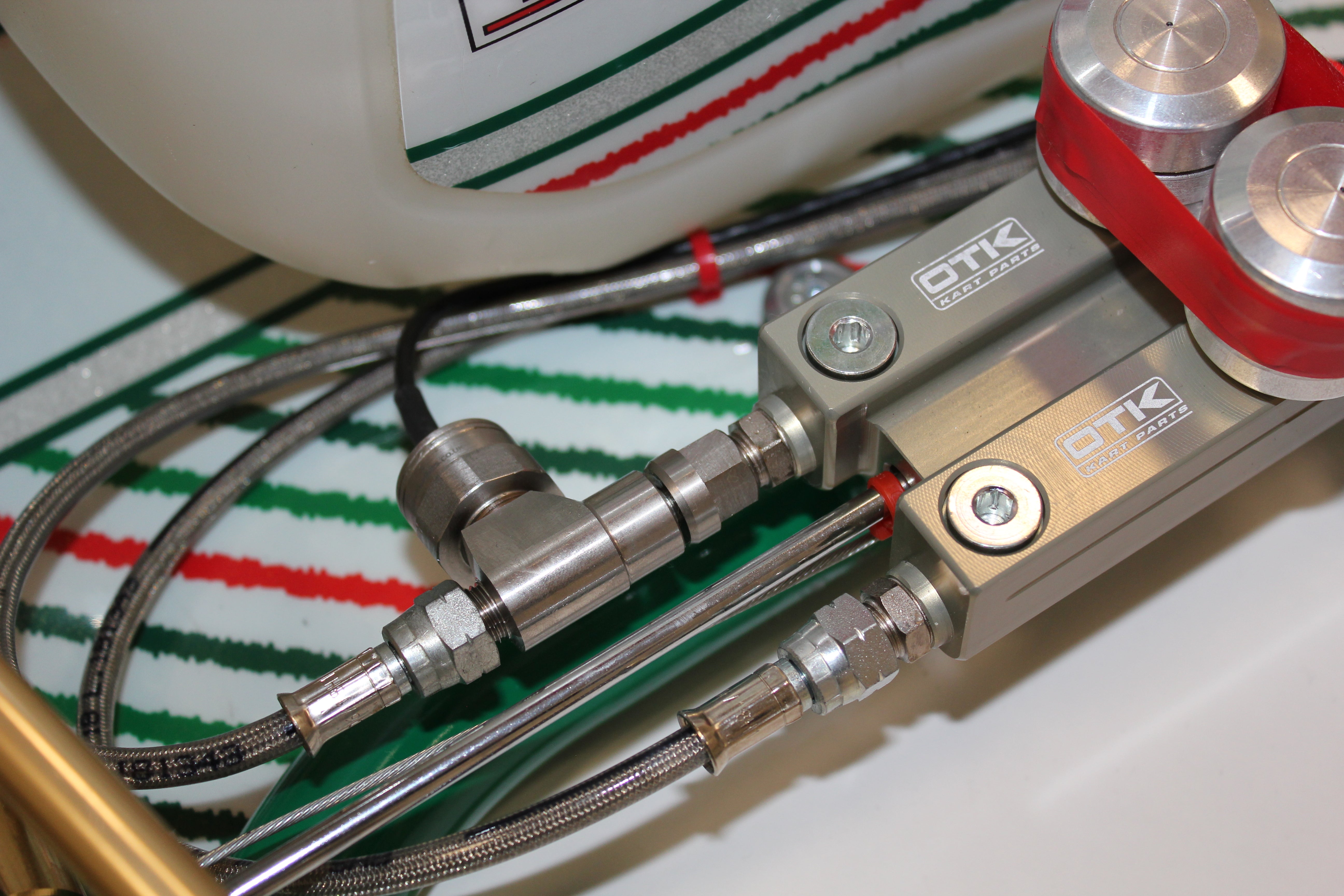

AiM brake pressure sensor kit to suit OTK Kart measures how much pressure passes through a karts brake pedal. The kit has a stainless steel inline T piece and is suitable for all OTK karts with M10 threads.

The recorded data can be analysed after a session using race studio three software, where you can view different sessions data or use it compared to another driver's braking performance.

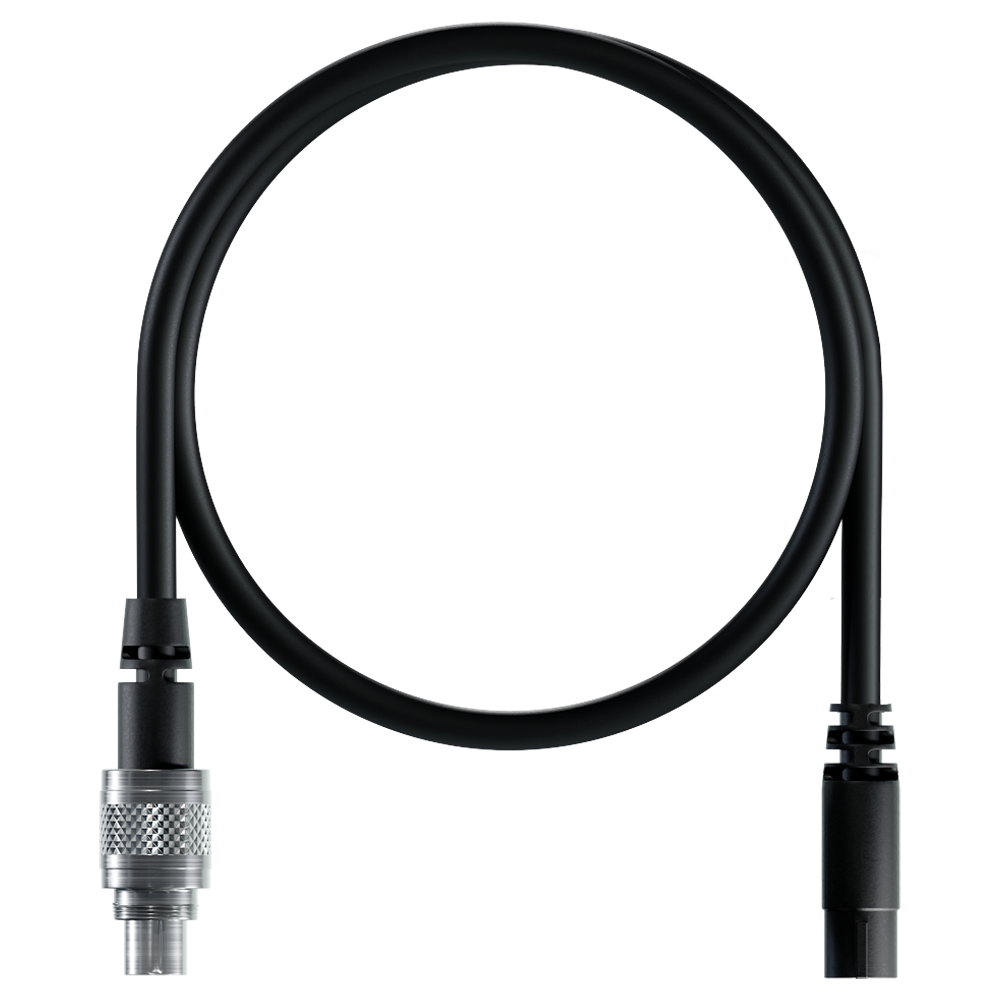

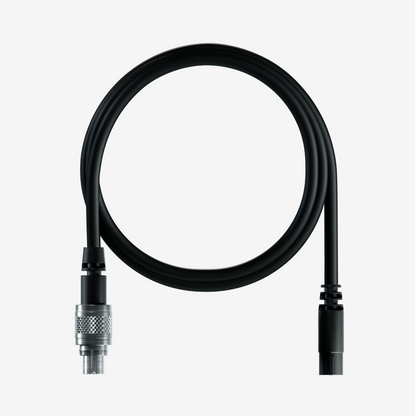

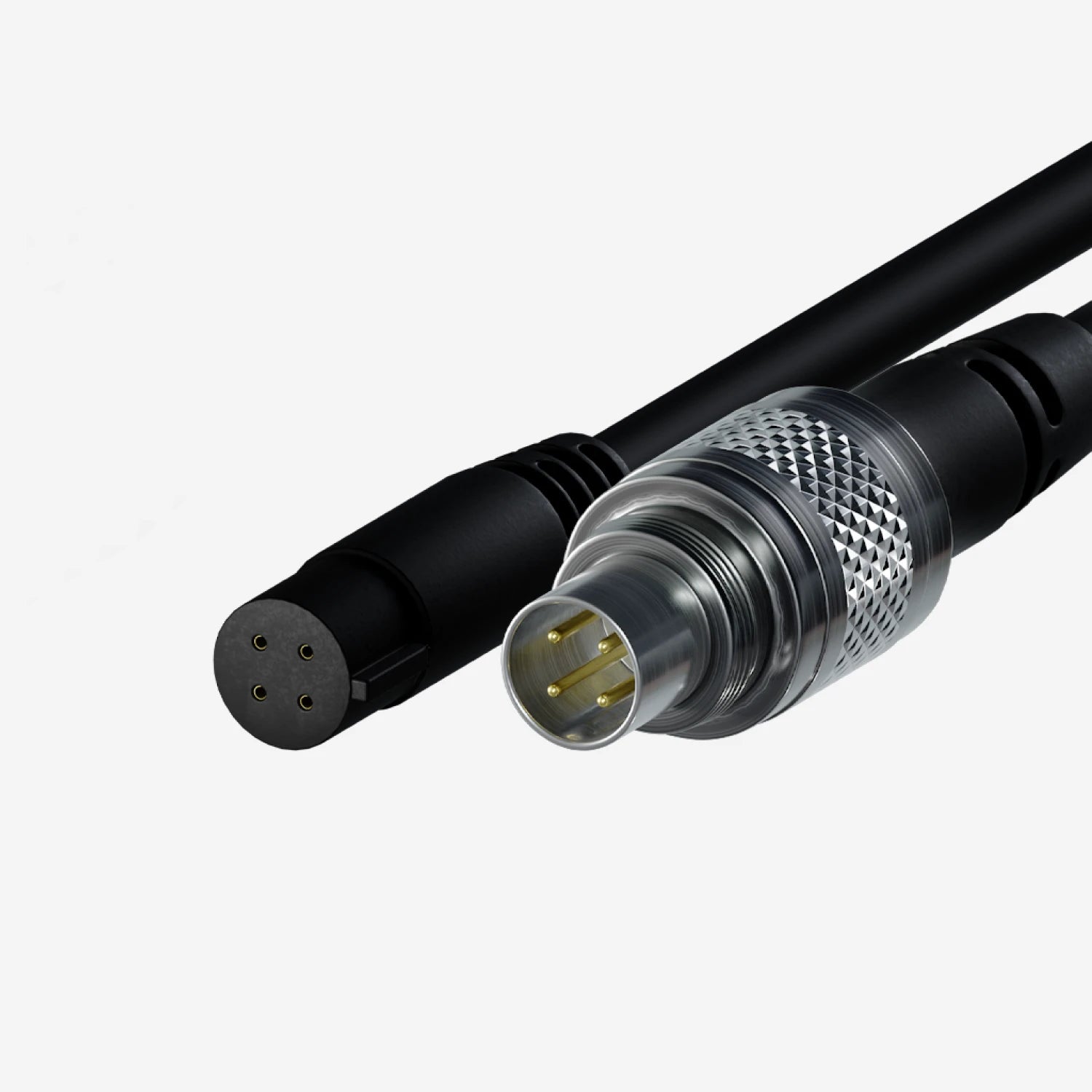

The OTK Sensor also comes with a 712 - 719 4 pin patch lead.

The brake pressure sensor will measure pressure from 0-100 Bars.
It will help the driver understand how much pressure they are applying to the pedal under braking and will help the driver improve their braking performance.


Connections

Suitable for use with the MyChron4, MyChron5, MyChron4 2T, MyChron5 2T, MyChron5 S, MyChron5 S 2T Kart Dash / Data Loggers. The sensor comes with the patch lead required to connect the sensor to the MyChron Expansion box, connecting it to your system.

Below shows how you can expand your system to help enhance your racing performance.




Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM Brake Pressure Sensor Kit - To suit OTK Kart

  • Supply: 8-16V
  • Accuracy: < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
  • Characterisation: 500 mV/ 0 bar 4500 mV/ 10 bar
  • Consumption: < 10 mA
  • Temperature working range: from -20°C to 135°C
  • Sealing: IP66
  • Housing: 316 stainless steel
  • Weight: 30g
  • Cable Length: 400mm
  • Thread: M10
  • Patch Lead: 712 - 719 4 pin binder



AiM Brake Pressure Sensor Kit - To suit OTK Kart

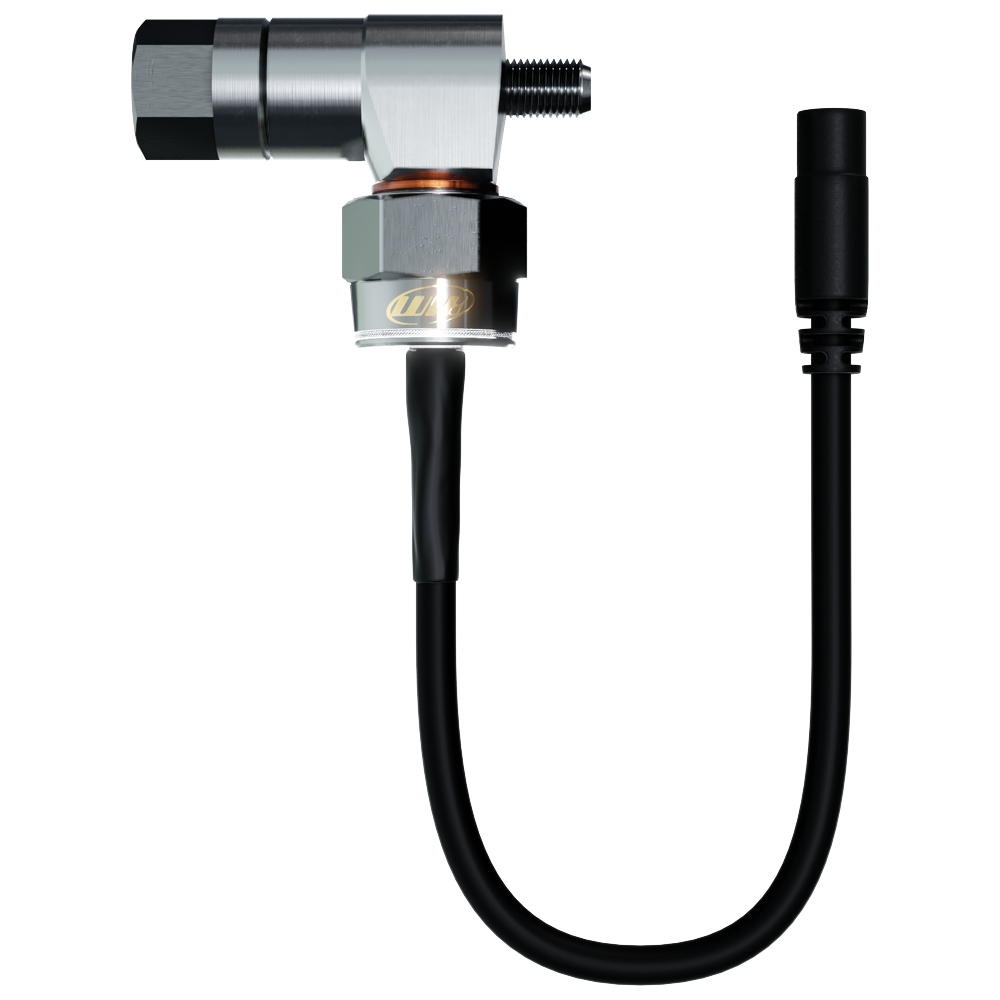

  • AiM Brake Pressure Sensor M10 0-100 Bar
  • Stainless Steel T Piece with M10 threads
  • Copper sealing washer
  • 712 - 719 patch lead
