AiM Front Wheel Hub Speed Pickup Sensor

£62

Front Wheel Speed Sensor. The AiM sensor can measure the front wheel speed using a non-contact sensor. Key...

Front Wheel Speed Sensor.


The AiM sensor can measure the front wheel speed using a non-contact sensor.


Key Features:


  • Speed sensor
  • 4 pin 712 connection
  • Magnetic trigger
  • Free race studio 3 download

Front Hub Speed Pick Up Sensor


This AiM device can measure the Karts front wheel speed using a non-contact sensor that needs a magnetic metallic trigger to pass in front of it.

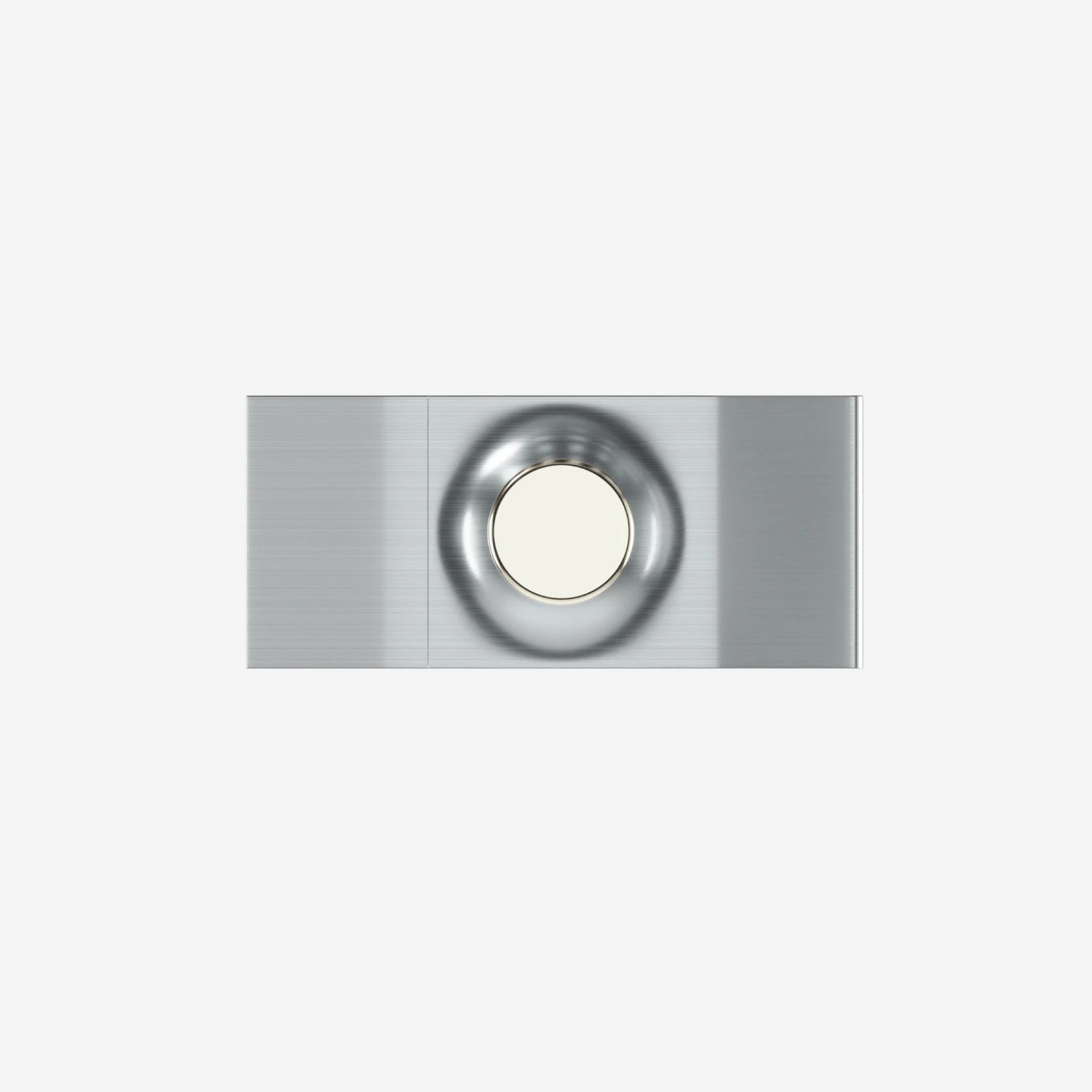

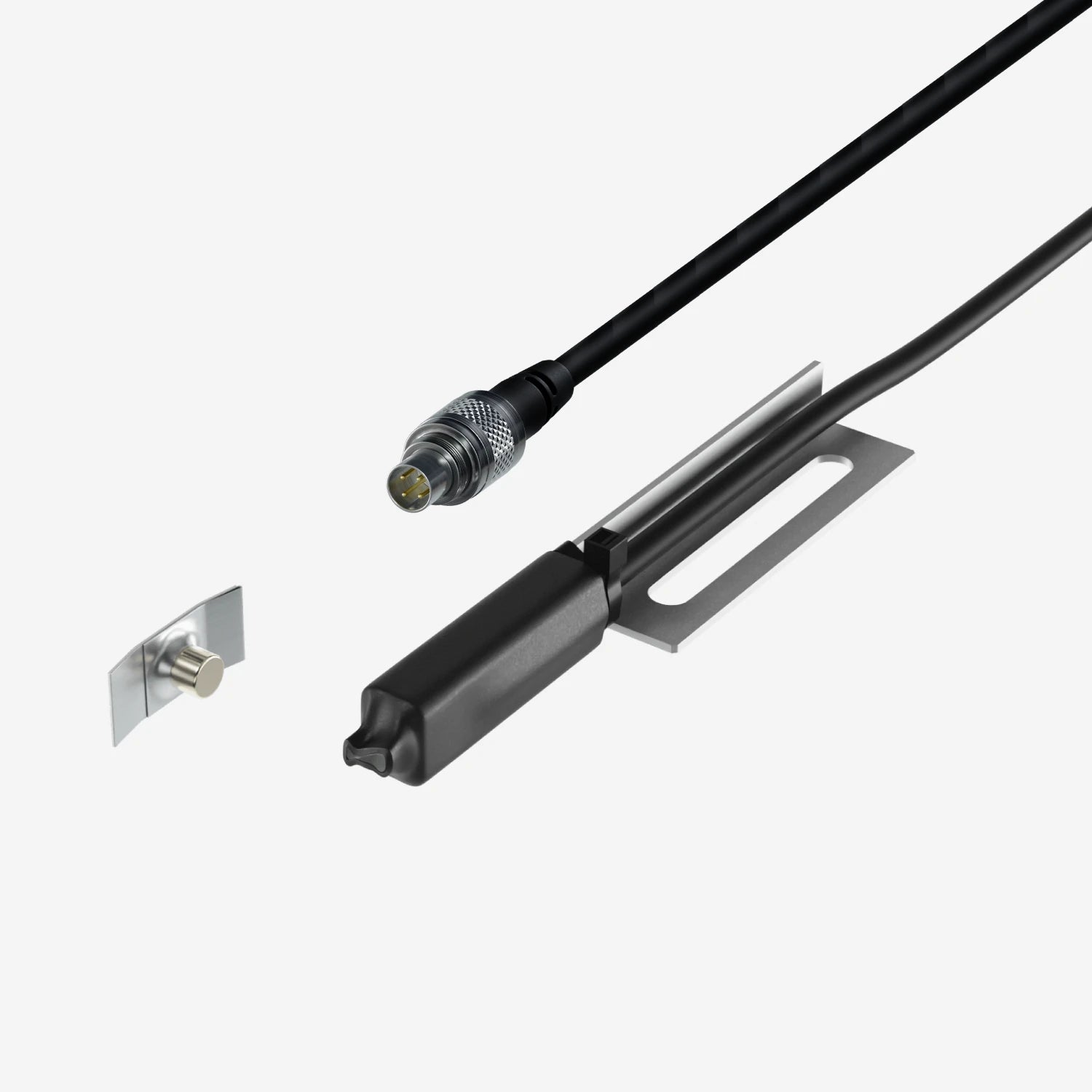

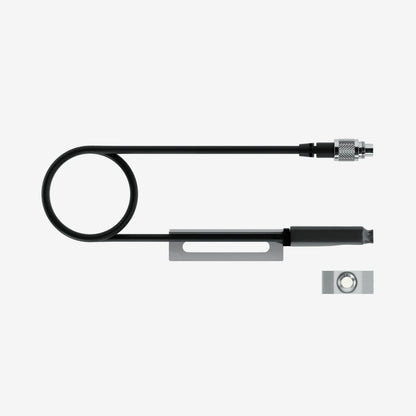

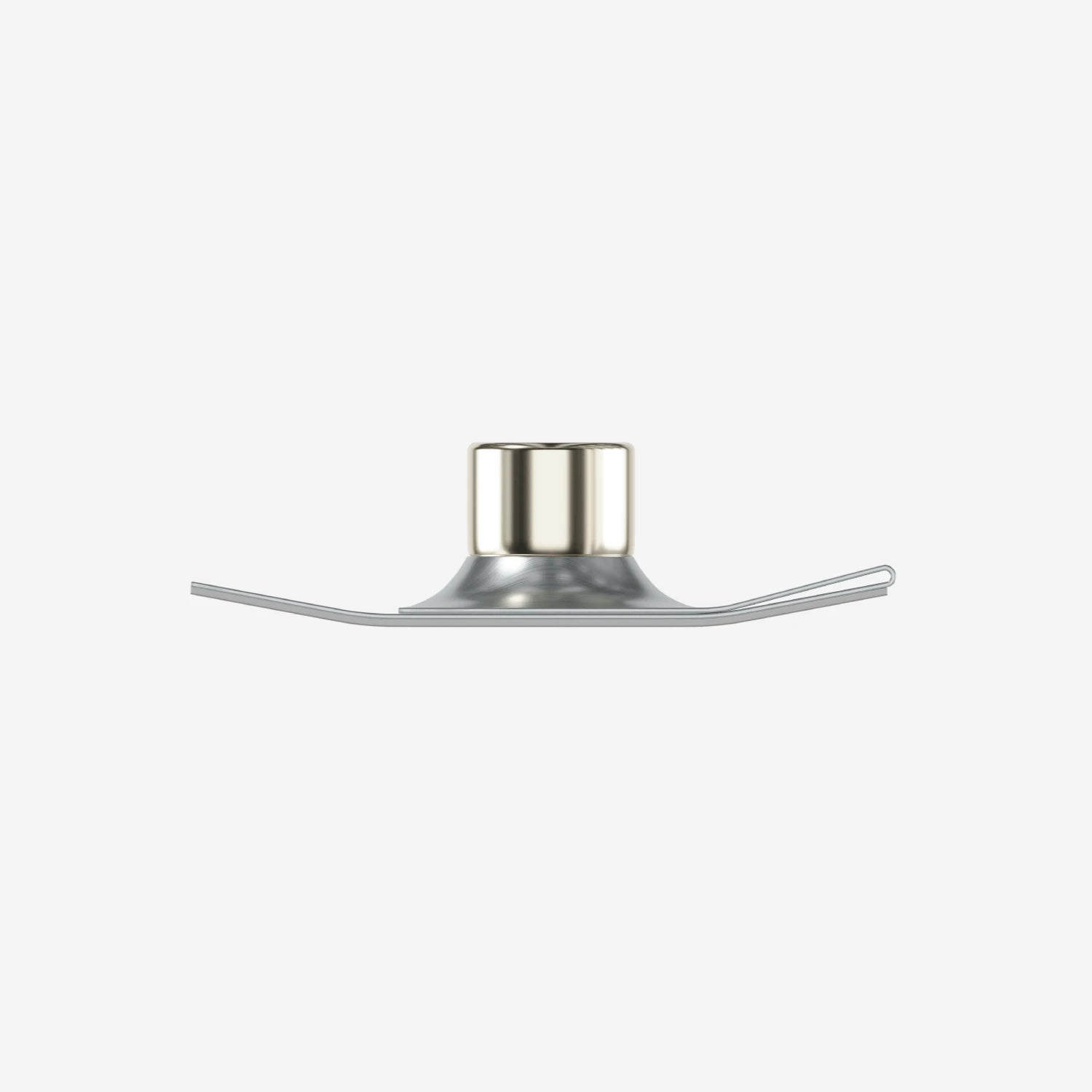

The sensor kit includes a metal plate with a magnetic cylinder and a metallic bracket the sensor is welded to.



Easy Installation


Install the magnetic plate on the front wheel rim.

Install the bracket on to the steering arm, if the steering arm is solid make a hole with a 6mm drill bit.

When mounting the bracket ensure that the sensitive part passes in front of the cylinder at a 3-5mm distance.

Firmly fix the bracket to the steering arm to avoid sensor movements due to the strong vibrations of the Kart front wheel.

Ensure the bracket does not get in contact with the metallic plate when steering.














Prepare to unlock your potential



Our mission is to help educate you and enable you to get the most out of your AiM data equipment… whether you are new to racing or a seasoned professional, there is always something new to learn.


AiM Product Video

Subscribe to our YouTube channel for Product information, Software training and so much more.

AiM Shop Youtube Channel Product Videos - AiM Technologies - AiM Academy


    AiM Front Wheel Hub Speed Pickup Sensor

     The Sensor Electrical Characteristics are:

    • Sensing Distance: From 3-5mm
    • Number of pulses for wheel revolution: 1

    AiM Front Wheel Hub Speed Pickup Sensor

    • 1 Front Wheel Speed Sensor
