AiM MX UTV LCD Dash Logger with Temperature Sensor

The AiM MX UTV is a dash logger that has been specifically designed for off-road racing. Using your vehicles ECU to acquire all the data you need to improve your racing performance.

Key Features :

Integrated GPS Temperature sensor
5 configurable shift RGB LEDs 2 configurable alarm RGB LEDs
CAN connection 8 configurable backlights
Wi-Fi connection 3 binder connectors

AiM MX UTV LCD Dash Logger with Temperature Sensor

The AiM MX UTV Dash Logger has been specifically designed for the off-road world of racing. It has been engineered to offer the best technology to racers who crave the pff-road experience.
The integrated GPS receiver has been tuned specifically for the UTV vehicle and designed to cope with vibrations, direction changes and all the lateral and longitude accelerations that are thrown at it.
To compute lap times the MX UTV Dash Logger uses GPS and Glonass data to the precision of 1/100 second. If the track your at is not already on the database it will automatically recognise it and locate the start and finish line position.

The MX UTV acquires data coming from your vehicle's ECU. Also due to transmission belt temperature being one of the main concerns for UTV drivers the infrared temperature sensor included in this kit makes it possible to constantly check the temperature by reading it directly on the display screen.


Display

The MX UTV Dash Logger features a wide LCD screen offering a choice of eight configurable RGB backlights. Also featured is an ambient light sensor that automatically switches the backlight on when encountering low light conditions. The 4.3" screen is wide enough and bright enough to see all the data you what to see while your racing.


Transmission Belt Temperature

Transmission belt temperature is one of the main concerns for UTV drivers. The infrared temperature sensor in this kit makes it possible to constantly check the temperature on your display screen while your racing.
Also, the configurable RGB LEDs at the top of the Dash Logger will turn on when the temperature gets to the critical level.


Configurable RGB LEDs

The top of the MV UTV features five LEDs. These can be configured to be used for two different functions, gear shift light or predictive lap time.
If you configure the LEDs for gear shift lights and this will help you choose the best instant to shift gear.
If you configure the LEDs as the predictive lap time, they will give you a constant idea of how you are improving your lap times.

While allowing RPM monitoring at a glance, the alarms are flexible too, you can configure the situation that generates the alarm, the LED behaviour (blinking frequency and colour) when the alarm appears and the conditions for its switch off.


Integrated GPS

The MX UTV features integrated GPS which enables the MX UTV to automatically recognise the track your racing on, it will calculate lap times and your position on the track, and locate the start and finish line position. All your data is stored in the 4GB memory which can log your data for several thousand hours.

Wi-Fi Connection

You can download your data to a PC effortlessly and wirelessly offering a practical solution to transferring track day sessions.

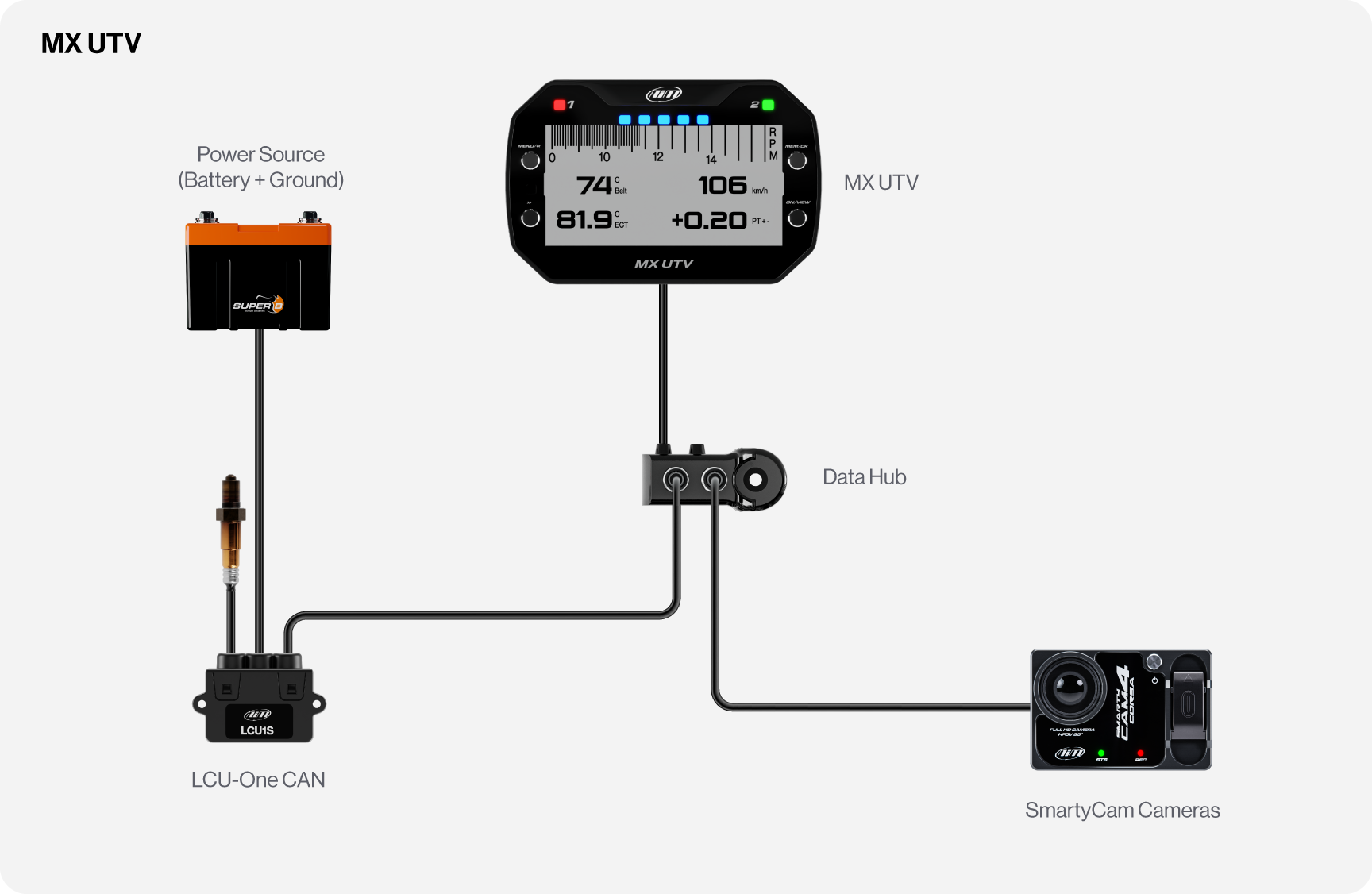

Expand Your System

These are only some of the items that can be added to our MX UTV for incrementing the performance and the data acquired.


Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by MXL2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM MX UTV LCD Dash Logger with Temperature Sensor

  • Display Resolution: 268 x 128 pixels
  • Backlight: 8 configurable RGB colours
  • Ambient Light Sensor: Yes
  • Shift Lights: 5 configurable RGB LEDs
  • Alarm LEDs: 2 configurable RGB LEDs
  • CAN Connection: Yes
  • GPS: Integrated
  • External Modules: Lambda Controller, SmartyCam HD
  • Analog Input: 1
  • WI-Fi Connection: Yes
  • Internal Memory: 4GB
  • Body: Glass Fibre Reinforced Nylon
  • Pushbuttons: Metallic
  • Connectors: 3 Binder Connectors
  • Dimensions: 137 x 88.4 x 31.9mm
  • Weight: 330g
  • Waterproof: IP65
  • ECU CONNECTION, MODELS AND CHANNELS
  • Polaris RZR non-turbo: Speed, RPM, Gear, ECT, TPS, BrakeSW, Fuel Rate
  • Polaris RZR turbo: Speed, RPM, Gear, ECT, TPS, BrakeSW, Fuel Rate, Boost pressure, Charge Air temp (from request(
  • CAN-AM non-turbo: Speed, RPM, Gear, ECT, TPS, BrakeSW, instant fuel flow
  • CAN-AM turbo: Speed, RPM, Gear, ECT, TPS, BrakeSW, Instant Fuel consumed, Boost Pressure, Intake Air temp
  • Yamaha YXZ 2016: Speed, RPM, Gear, ECT
  • Yamaha YXZ 2017: Speed, RPM, Gear, ECT, TPS, BrakeSW
  • Arctic Cat Wildcat: Speed, RPM, Gear, ECT, TPS, BrakeSW




AiM MX UTV LCD Dash Logger with Temperature Sensor

  • MX UTV Dash Logger
  • CAN & Power Cable
  • Single Point Belt Temperature Sensor with Fixing Kit
  • Sensor Extension Cable
  • Aim Sticker
