Highly-precise GPS lap timer with ECU connectivity for motorsport vehicles. It provides accurate speed, lap timing and engine metrics, with Wi-Fi data transfer and Race Studio 3 for performance analysis

The Most Precise & Easy Way To Get Lap Times

Upgrade your track day setup with one of the best motorsport lap timers in the industry — the Solo 2 DL GPS Lap Timer. Equipped with an integrated GPS, ECU connection, built-in gyro, user-friendly interface and compatibility with session performance analysis software, the Solo 2 DL provides precise lap times and detailed telemetry for amateur and professional drivers to optimise their performance and achieve their motorsport goals.

Why Choose The Track Day Solo 2 DL With ECU Connection

The Track Day Solo 2 Lap Timer includes a high-precision GPS and receives data from GPS and GLONASS satellite constellations. This allows the Solo 2 Lap Timer to display instant speed, timing splits, live data and predictive lap times on its high-contrast display with an accuracy of up to two-hundredths of a second.

Building on the features of the Solo 2 model, the Solo 2 DL connects directly to the vehicle's ECU to record vital engine data, without the need for complex wiring. Compatible with a wide range of motorsport applications and vehicle ECUs, the Solo 2 DL is a versatile tool for helping motorsport professionals monitor and improve their performance in any motorsport discipline.

Predictive Lap Timer

The GPS technology provides better reliability from the predictive lap timing function, so you can see in real time how your current lap compares to your best lap. The LEDs are also configurable to give a visual indication of whether you are quicker or slower. You can also build the layout of the display to show the data you want to see.

Advanced Display

The Solo 2 DL has a sharp, high-contrast display which helps drivers easily identify the data displayed on the screen. The Solo 2 DL also features a selection of 8 different backlight colours, which you can select to suit your requirements.

Easy Connection

The Solo 2 DL can be connected to the vehicle's ECU to obtain various data from the sensors you have fitted to your vehicle. Solo 2 DL manages all the hardware ECU connections and all the communication lines: depending on whether you want to connect to the ECU using the OBDII port or directly to the ECU through the CAN/RS232 channel. If the ECU protocol is not supported, connection to the Solo 2 DL via a coil RPM will provide a digital input delivered from square wave signals or pulse signals.

The sampled data you record depends on the actual ECU. Typically it includes RPM, engine load, throttle position (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear and lambda value (air/fuel). The list of ECUs is constantly updated.

Data Recall On Screen

Solo 2 DL can be used for circuit racing and point to point or regularity events and performance tests such as 0-60mph. And just like the circuit racing mode, all the data is recorded and can be reviewed immediately after each race or test session.

Solo 2 DL Track Database

The Solo 2 DL Lap Timer includes valuable information about the track. Thanks to the thousands of pre-loaded track maps worldwide, the lap timer automatically recognises your position on the track as soon as it's switched on. Once you start to drive, it automatically recognises the start line coordinates of the track and starts sampling lap times every time you go past.

Whether it's used for point-to-point runs for rallying or a closed-loop track, the Solo 2 DL allows you to create a new temporary or permanent track layout too. Even if there is no track already, the device will create one for you.

Important: Import your track performance to Race Studio 3 Software to analyse racing lines, cornering speeds and braking points to improve your lap times.

Accurate Lap Timer

The Aim Solo 2 DL GPS Lap Timer is equipped with a high-precision GPS receiver that can track your position on the track with accuracy. It is considered one of the best track day lap timers in the industry as it calculates, shows and records lap times, sector times, position & vehicle speed, with a sampling rate of up to 25 Hz, and 3D acceleration & gyro. This allows you to see your exact racing line, compare it to optimal lines for faster lap times, track the vehicle's movements and provide detailed data on acceleration, braking, and cornering forces.

Wi-Fi Communication With The PC

The Solo 2 DL has integrated Wi-Fi. If you want to review your data in more depth, you can transfer your data securely and quickly onto a laptop or computer up to 50m away without the need for connectors and cables. You can then import the data into the Race Studio 3 software.

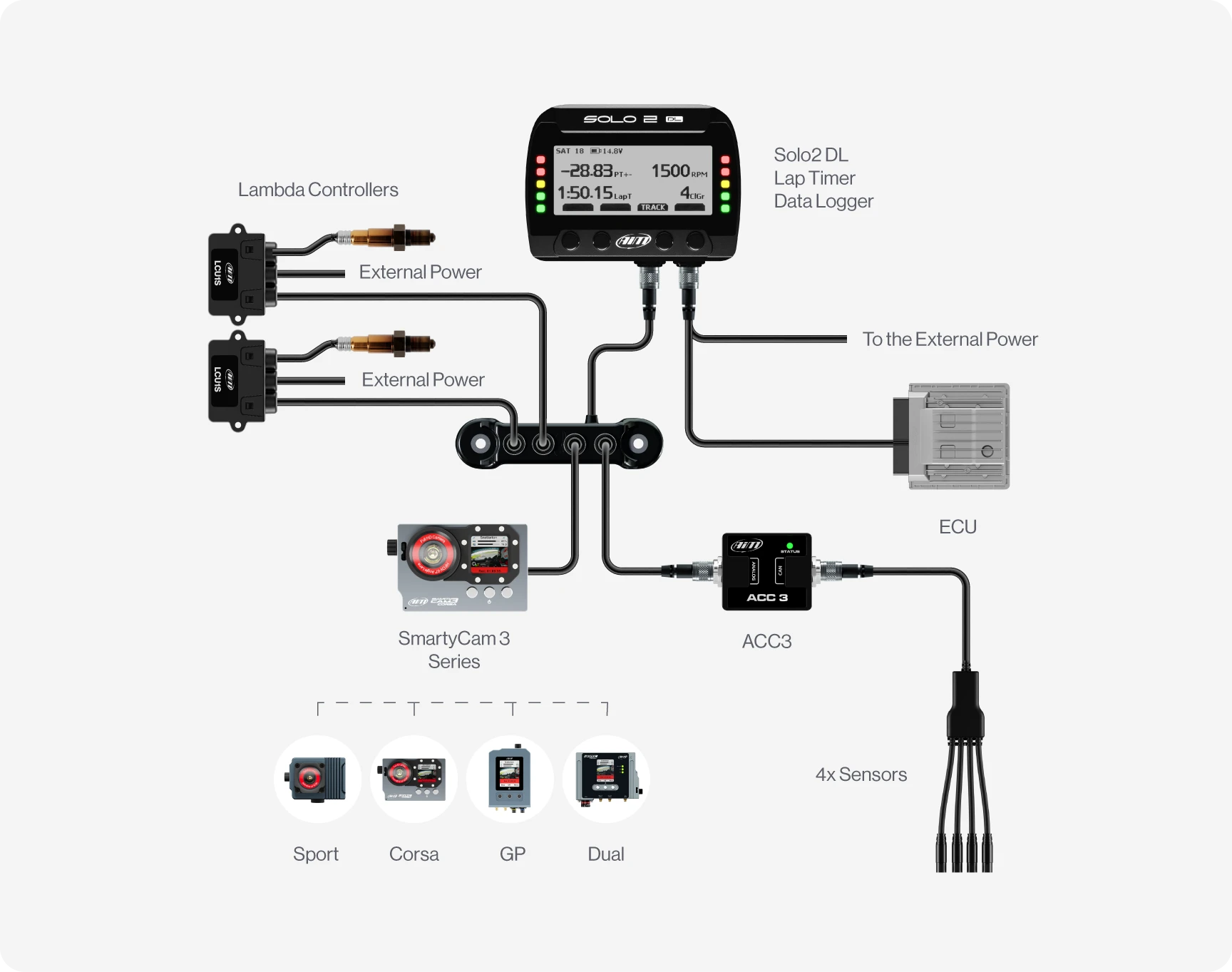

Expand Your System

Add SmartyCams and a Lambda Control Unit to increase your data performance.

Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3, you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You can also manage the map of all your racing tracks and compare two laps by watching the video recorded by the SmartyCam HD camera.

Analysis

Race Studio 3 also allows you to download and analyse all data recorded by your Solo 2 DL to your laptop/PC. With graphs, histograms and tables, you can study your lap and sector times to refine racing lines and braking points to enhance your racing performance.

Aim Solo 2 DL Lap Timer GPS + ECU Racing Dash Logger

• Display: Graphical LCD
• Display Resolution : 238 x 99 pixels
• Display Pages: Up to 8 freely configurable
• Backlight: 8 configurable RGB colours
• Shift lights/alarm LEDs : 10 configurable RGB LEDs
• Integrated track database: Yes
• Inertial platform : Internal 3 axis +5G accelerometer + 3 axis gyro
• Wi-Fi connection: Yes
• GPS: 25 Hz
• ECU connection: CAN, RS232 or K-Line to thousands of industry-leading ECUs
• External power: 9-15 V
• Connectors: 1 socket (binder) 712, 5 pins, 1 socket (binder) 712, 8 pins
• Memory: 4 GB
• Battery type: Rechargeable Lithium
• Pushbuttons: Metallic
• Dimensions : 98.0 x 73.7 x 30.2mm
• Weight: 240g, battery included
• Waterproof: IP65

Aim Solo 2 DL Lap Timer GPS + ECU Racing Dash Logger

• Solo 2 DL
• Power cable with AC adapter
• Mounting bracket with screws
• User manual
• Aim Sticker
• Choice of power leads available as selected at checkout. Only One Supplied
• CAN/K-Line external power cable with OBDII connector
• CAN/RS232 external power cable
• RPM external power cable (if your vehicle has no ECU)
