AiM Solo2 DL LCD World SSP300 FIM Kit

£520.00

+ VAT (UK Only)

Order before 3pm - For same day despatch *

AiM Solo2 DL LCD World SSP300 FIM Kit

AiM has developed a specific connection cable for WorldSSP300 bikes ECU for the Solo 2 DL. The cable reads the transmitted data from the ECU via CAN connection.

Key Features :

Predictive lap timing Direct ECU logging
Improved GPS speed & accuracy Up to 8 configurable display pages
10 configurable RGB LEDs 7 different coloured backlights
Integrated GPS Automatic track recognition

AiM Solo2 DL LCD World SSP300 FIM Kit

AiM has designed a specific connection cable to the WorldSSP 300 bikes ECU for the Solo 2 DL.

This connection cable will allow you to read transmitted data from the ECU via CAN, while at the same time power up the system.

This kit is compatible with:

World SSP 300 Bikes (with MecTronic MKE5 ECU)

Please Note: If you are unsure this connection cable will fit your bike don't hesitate to contact our team. Either by Email, phone or our online chat.


Solo 2 DL LCD World SSP300 FIM Kit

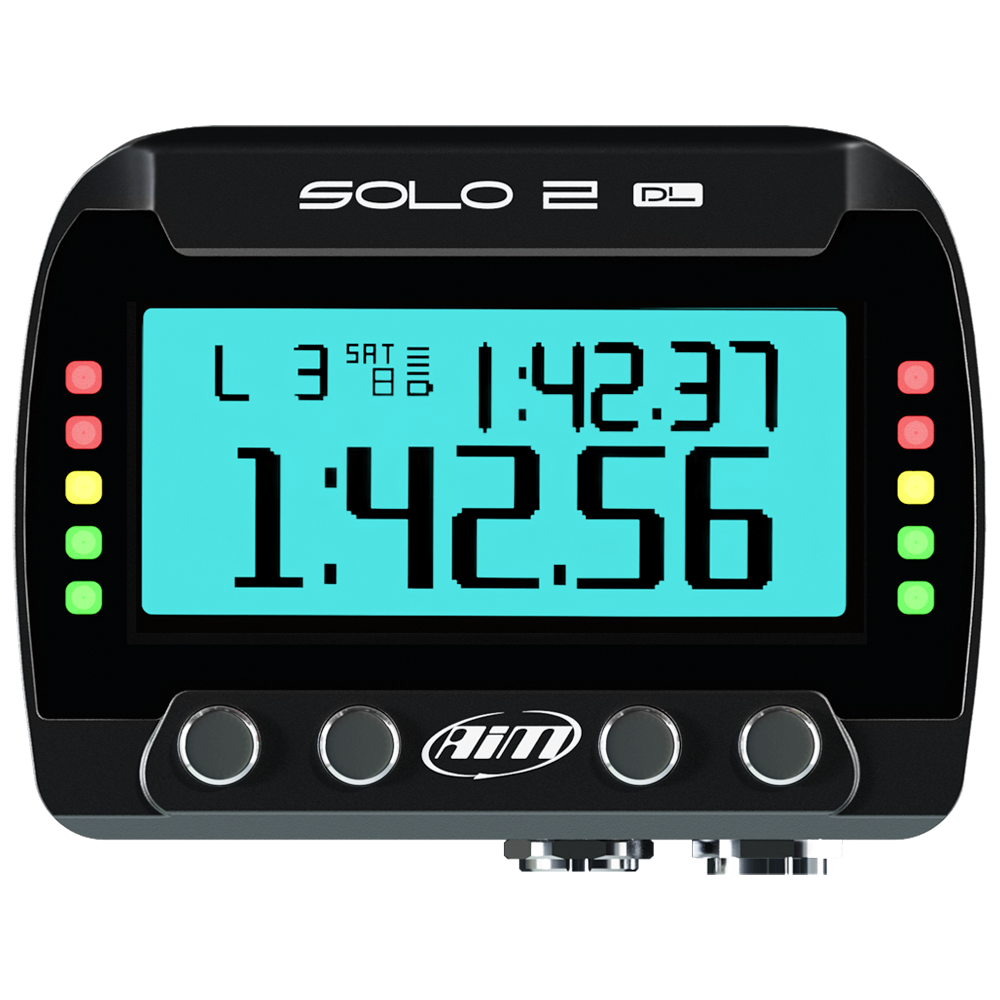

AiM Solo 2 DL raises the bar for GPS lap timers. It can be connected to your bikes ECU to obtain various data from the sensors fitted on your bike.

The GPS technology used receives data from three satellite constellations, GPS, Glonass and Galileo, making a vast improvement in data and position precision. Meaning your start time is reduced to a matter of seconds and your lap times are accurate.

The Solo 2 DL is already pre-loaded with a database of over 4,000 tracks from around the world and is constantly growing.

As soon as the Solo 2 DL is switched on it identifies its position and loads the starting line coordinates ready to begin recording lap times.

If the track your at isn't on the database, the Solo 2 DL will automatically enter an auto-learning mode and begin to build the track layout based on your bikes position and record lap times.

The Solo 2 DL provides better reliability from the predictive lap timing function so you can see, in real-time, how your current lap compares to your best lap.

The LEDs are also configurable to give you a visual indication of whether you are quicker or slower.


Predictive Lap Timer

The GPS technology provides better reliability from the predictive lap timing function so you can see in real-time how your current lap compares to your best lap. The LEDs are also configurable to give a visual indication of whether you are quicker or slower. You can custom build the layout of the display to show the data you want to see.


Data Recall On Screen

Solo 2 DL is not just restricted to circuit racing, it can also be used for point to point or regularity events as well as performance tests such as 0-60mph etc. And just like the circuit racing mode, all the data is recorded and can be reviewed immediately after each race or test session.


Wi-Fi Communication with PC

The Solo 2 DL has integrated Wi-Fi, so if you want to review your data in more depth simply transfer your data securely and quickly onto a laptop or computer up to 50m away without the need for connectors and cables. You can then import the data into the Race Studio 3 software.




Expand Your System

These are only some of the items that can be added to our Solo2 DL for incrementing the performance and the data acquired.


Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by Solo2 DL and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM Solo2 DL LCD World SSP300 FIM Kit

  • Display: Graphical
  • Display Resolution: 238 x 99 pixels
  • Display Pages: Up to 8 freely configurable
  • Backlight: 7 configurable RGB colours
  • Shift Lights/alarm LEDs: 10 configurable RGB LEDs
  • Integrated Track Database: Yes
  • Inertial Platform: Internal 3 axis +5G accelerometer + 3 axis gyro + 3 axis magnetometer
  • Wi-Fi Connection: Yes
  • GPS: 10Hz
  • ECU Connection: Yes
  • External Power: 12V

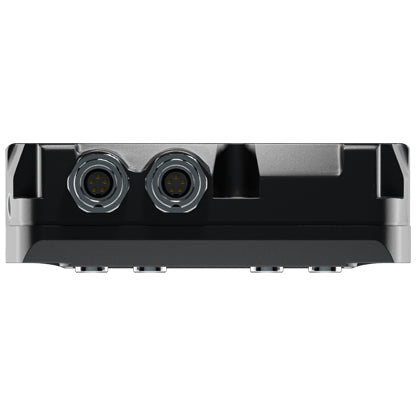

  • Connectors: 1 socket (binder) 712, 5 pins, 1 socket (binder) 712, 8 pins
  • Memory: 4 GB
  • Battery Type: Rechargeable Lithium
  • Pushbuttons: Metallic
  • Dimensions: 98.0 x 73.7 x 30.2mm
  • Weight: 240g, battery included
  • Waterproof: IP67


AiM Solo2 DL LCD World SSP300 FIM Kit

  • Solo 2 DL
  • Connection Cable for World SSP300 Bike (V02589100)
  • Power Cable with AC Adapter
  • Mounting Bracket with screws
  • AiM Sticker
