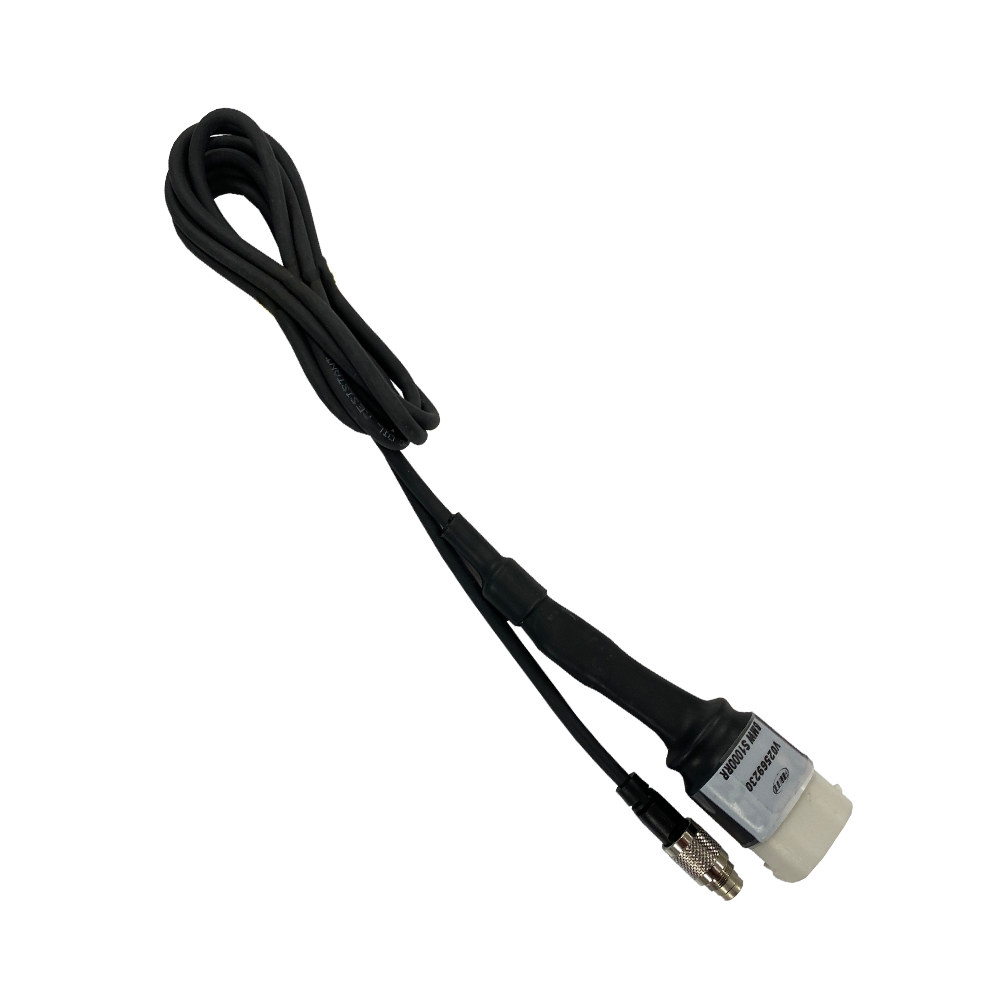

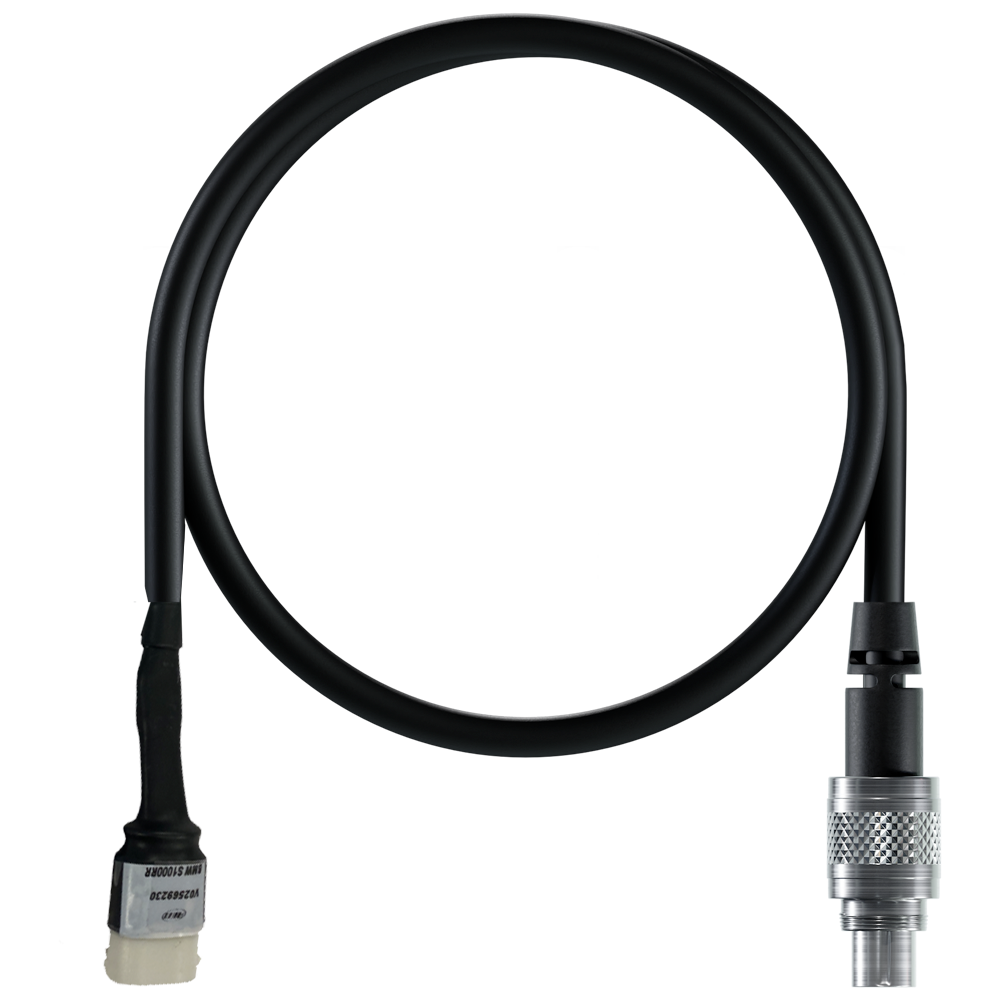

BMW S1000RR & HP4 Solo 2 DL Plug & Play Cable with 7 Pin Male 712 Connector

BMW S1000RR & HP4 Solo 2 DL Plug & Play Cable with 7 Pin Male 712 Connector
Filter

BMW S1000RR & HP4 Solo 2 DL Plug & Play Cable with 7 Pin Male 712 Connector

+ VAT (UK Only)

£50

BMW S1000 RR & HP4 Solo 2 DL Plug & Play Cable. The BMW ECU Interface cable is...
Compare Wishlist
Description

BMW S1000 RR & HP4 Solo 2 DL Plug & Play Cable.


The BMW ECU Interface cable is a specific cable which allows easy installation and connection of the AiM Solo 2 DL lap timer or EVO4S data logger.


Key Features:


  • Plug & Play Interface Cable
  • Simple Wiring
  • Receive Data
  • 7 Pin

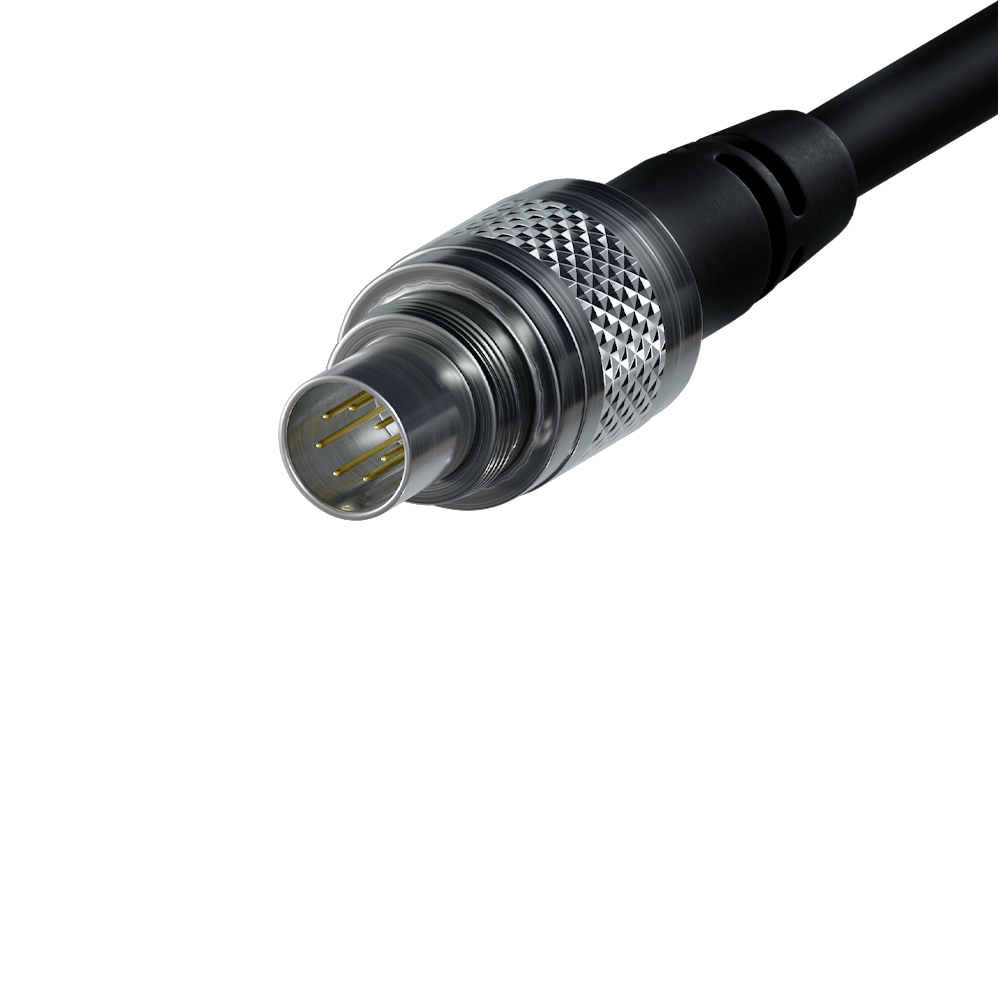

  • 712 Male Connector
  • Free race studio 3 download


BMW Solo 2 DL Plug & Play Cable Available For:
  • BMW S1000RR - 2009-2014
  • BMW S1000RR - 2015-2020
  • BMW S1000RR HP4 - 2013-2014


Examples of Protocols Below


RPM, Throttle position, Engaged gear, Neutral sensor, Front wheel speed, Rear wheel speed, Engine coolant temperature, Selected map, Engine check, Manual throttle, Intake air temperature, Yawing rate, Rolling rate, Horizontal accelerometer, Vertical accelerometer, Longitudinal acceleration, Traction control intervention, Clutch switch, Side stand, Front brake, Rear brake, Oil pressure switch.

Please Note: For this model/year AiM recommends not to remove the stock dash. Doing so will disable some of the bike functions or safety controls. AiM will not be held responsible for any consequences that may result from the replacement of the original instrumentation cluster.




Not Enough Check Out Our Solo 2 DL & SmartyCams









Prepare to unlock your potential

Our mission is to help educate you and enable you to get the most out of your AiM data equipment… whether you are new to racing or a seasoned professional, there is always something new to learn.


    Technical Specs



    BMW S1000RR & HP4 Solo 2 DL Plug & Play Cable with 7 Pin Male 712 Connector









    Whats In The Box

    BMW S1000RR & HP4 Solo 2 DL Plug & Play Cable with 7 Pin Male 712 Connector



    Downloads




    User Guide
    Technical sheet
    Race Studio 3
