The AiM non-contact brake position sensor kit for OTK kart is used to measure the brake pedal travel to see if the driver is pressing the pedal to its total capacity.

Key Features :

AiM Complete OTK Kart Non-Contact Brake Position Sensor Kit

The AiM non-contact brake position sensor kit for OTK kart is used to measure the brake pedal travel to see if the driver is pressing the pedal to its total capacity.

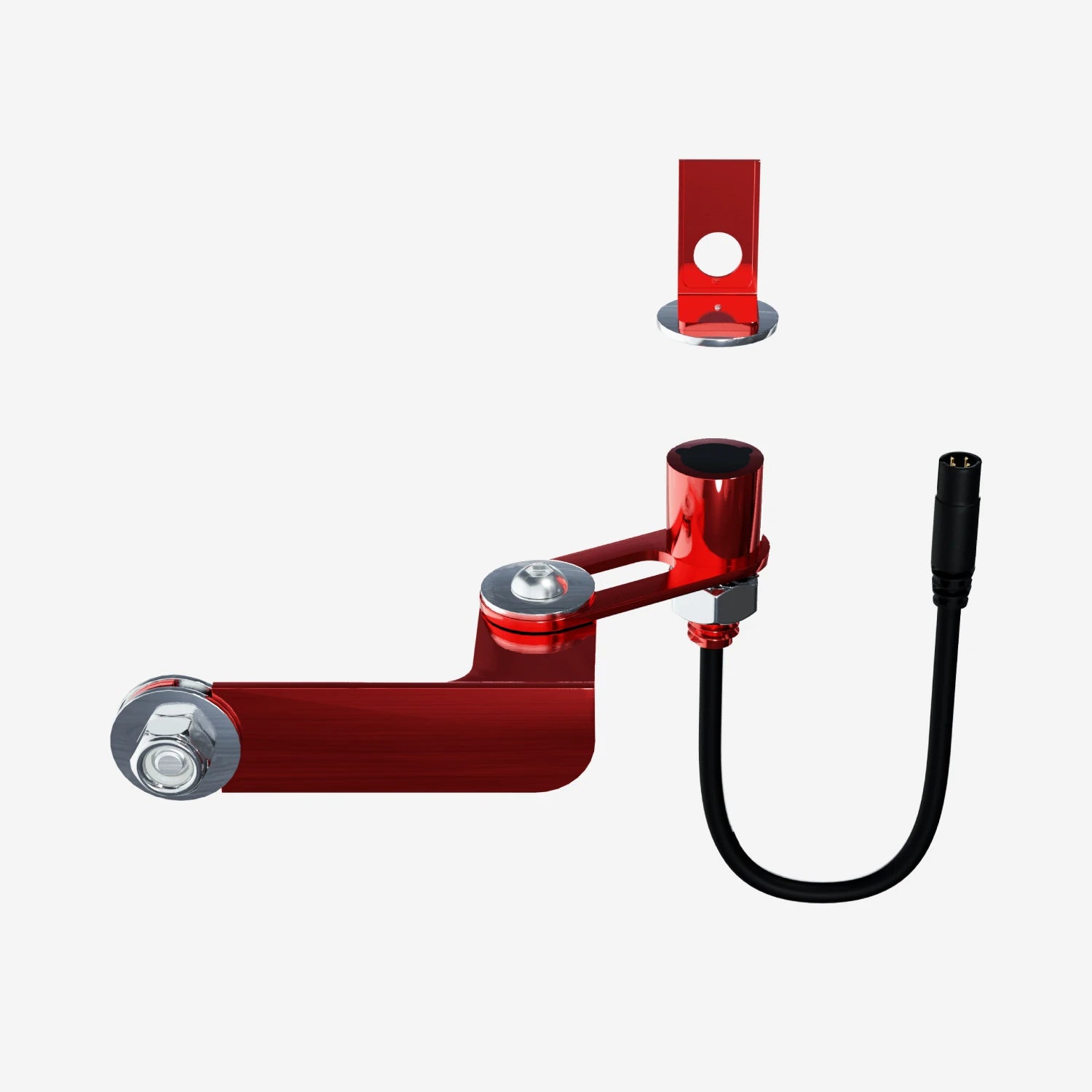

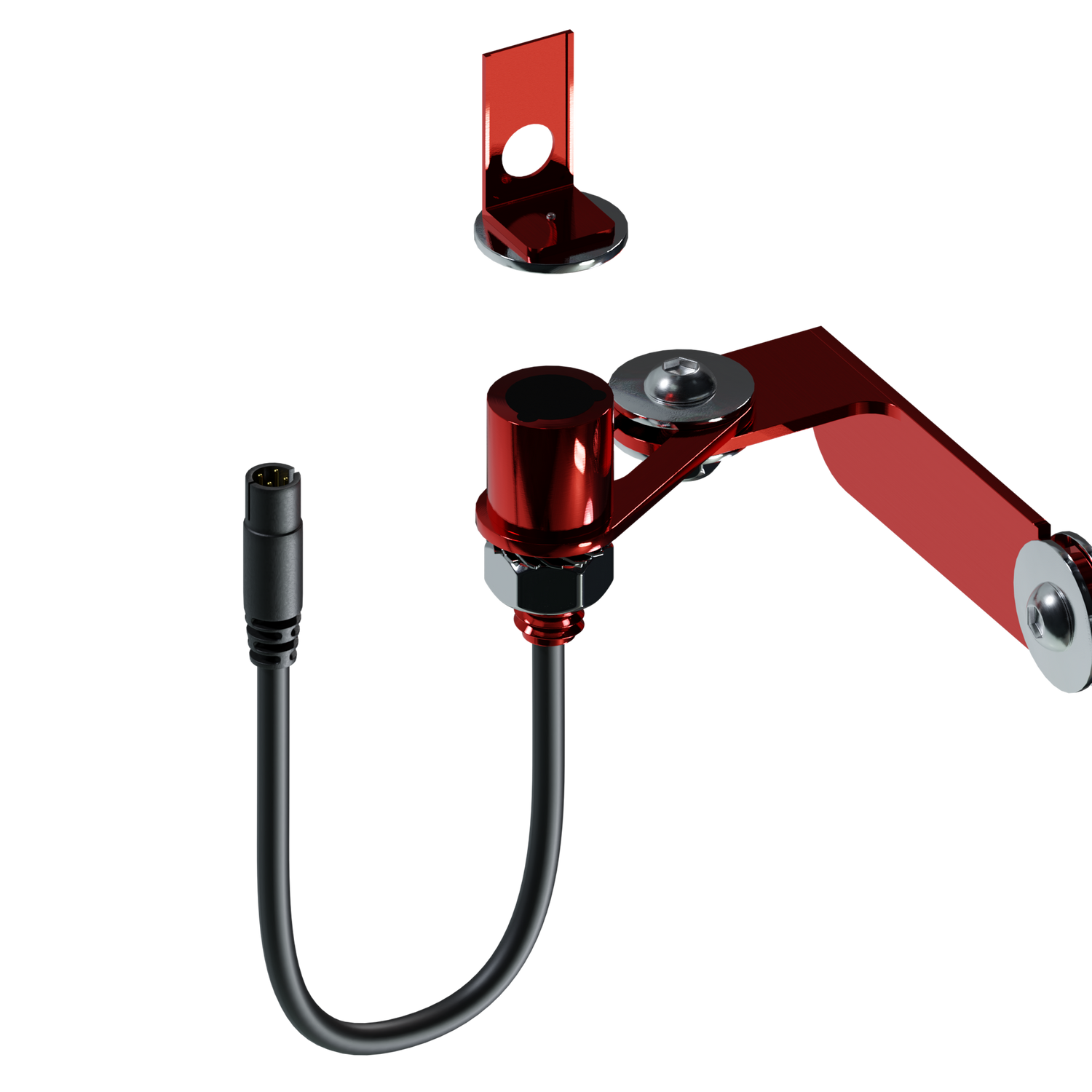

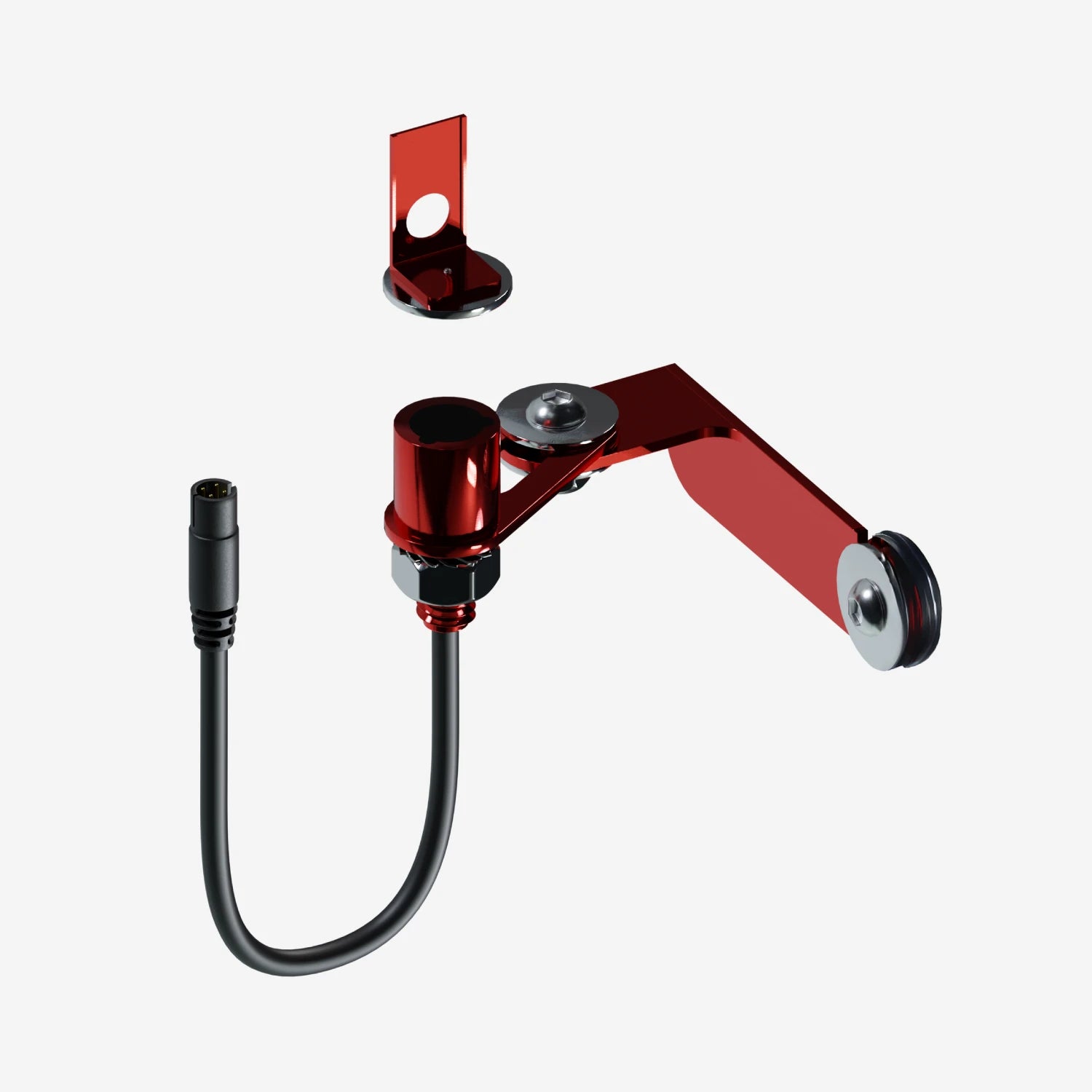

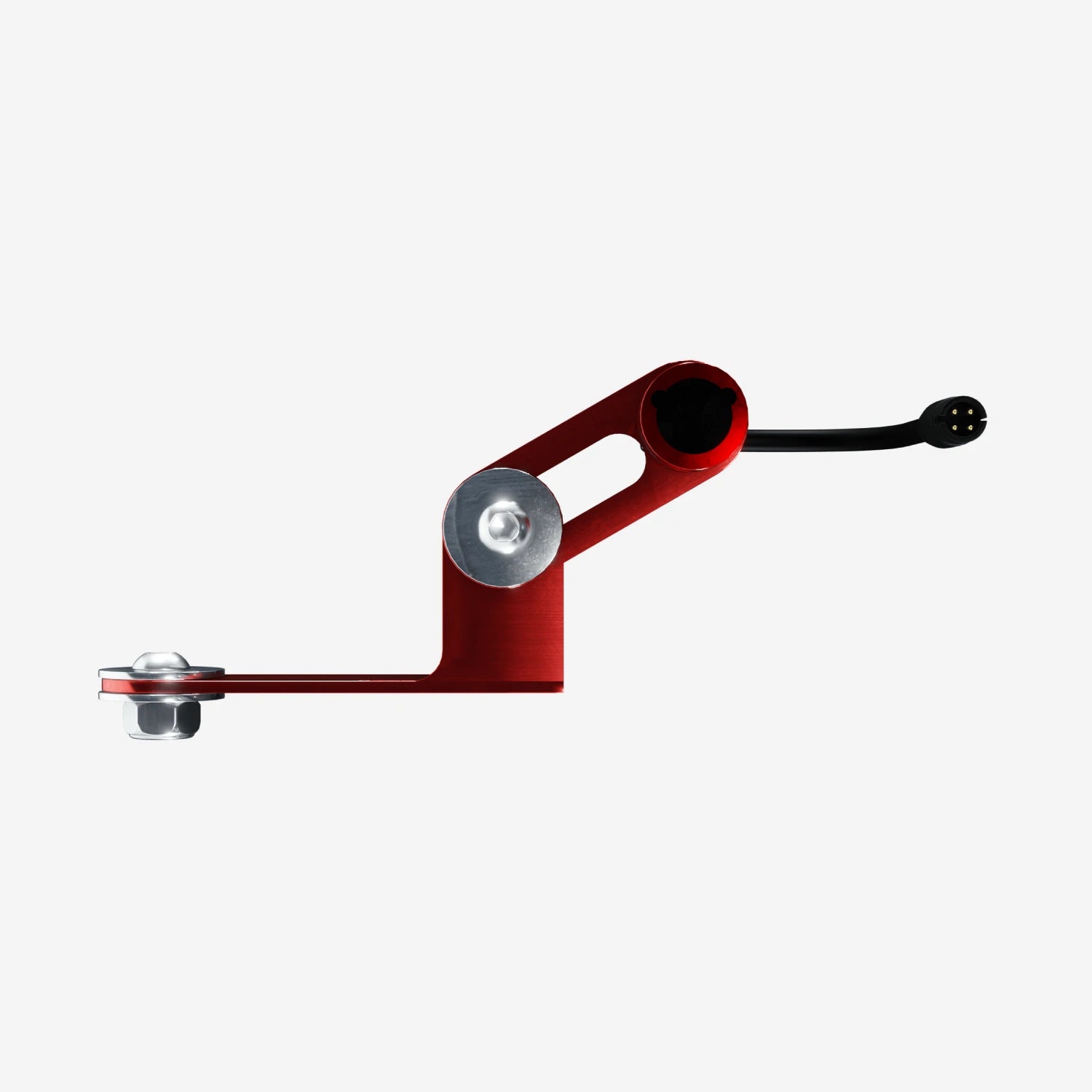

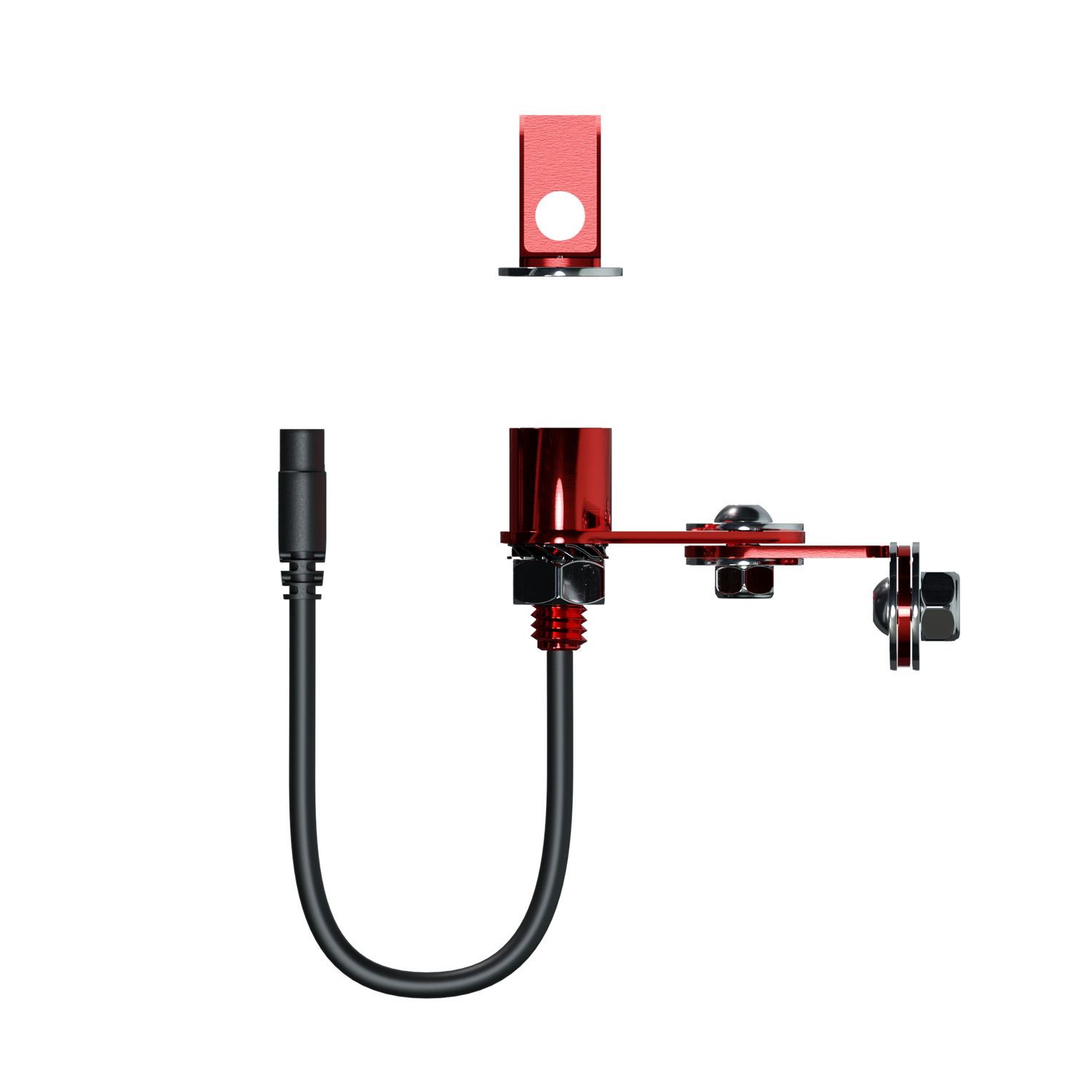

The kit has been designed specifically to fit all OTK karts and comes complete with all the necessary brackets making installation very easy.

Main Functions

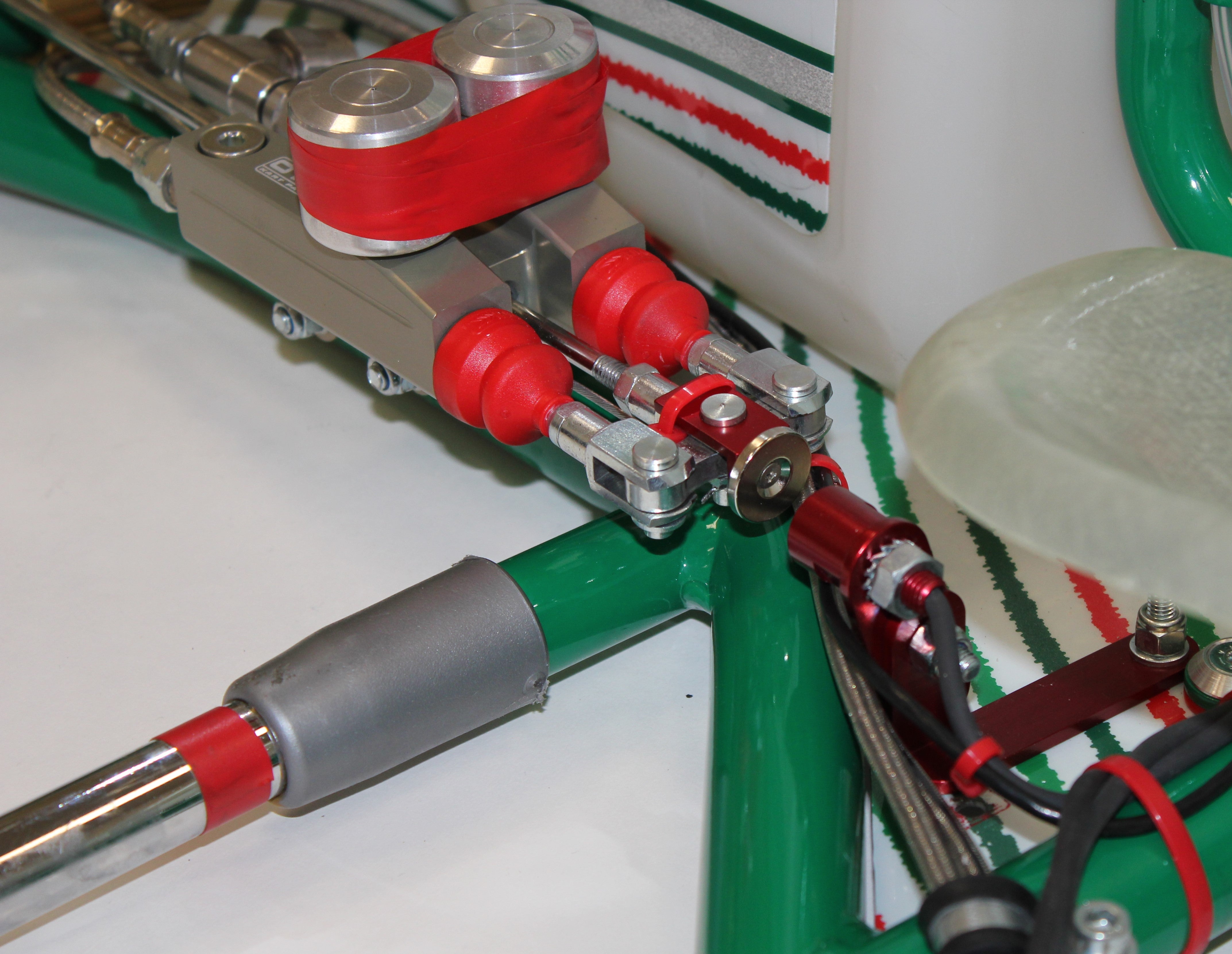

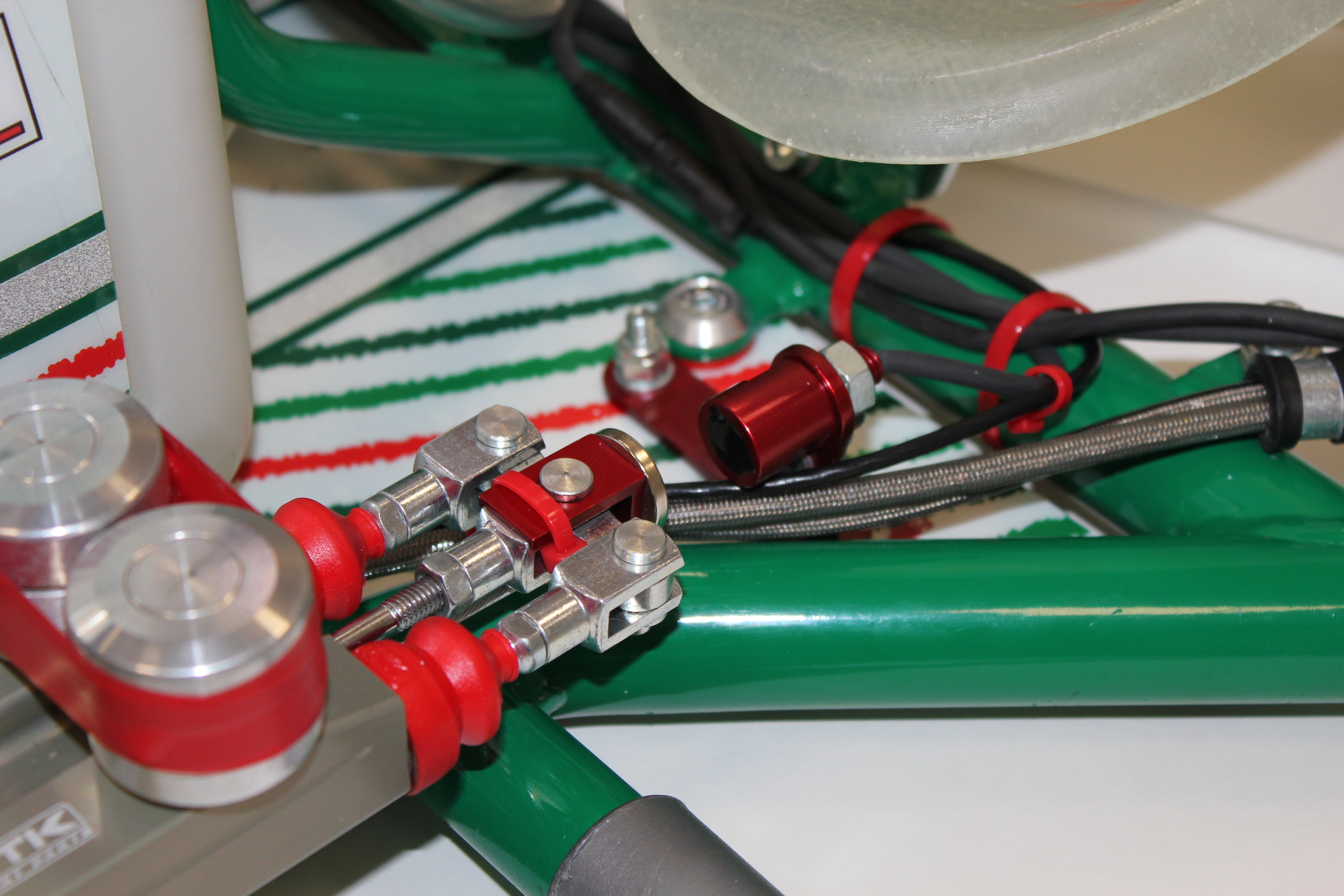

The magnet mounts to the pedal and the sensor to the kart, with no messy wires getting in the way.

It gives an exact indication of the pedal position, measures its travel and shows all values in percentage in a 0 to 100 range.

A straightforward way to evaluate a drivers behaviour and improve their performance.

Suitable for use with the AIM MyChron4, MyChron5, MyChron4 2T and MyChron5 2T Kart Dash / Data Loggers. The sensor is complete with the patch lead required to connect the sensor to the MyChron Expansion box, connecting it to your system.

For images on how to fit the sensor please refer to the Technical Tab.

AiM Complete OTK Kart Non-Contact Brake Position Sensor Kit

• The sensor comes with a 25cm patch lead with a 4 pins Binder 719 male connector
• Binder Connection Pin:
• 1 - Analogue signal 0-5V
• 2 - GND
• 3 - Not Connected
• 4 - V reference (4.5V)

AiM Complete OTK Kart Non-Contact Brake Position Sensor Kit

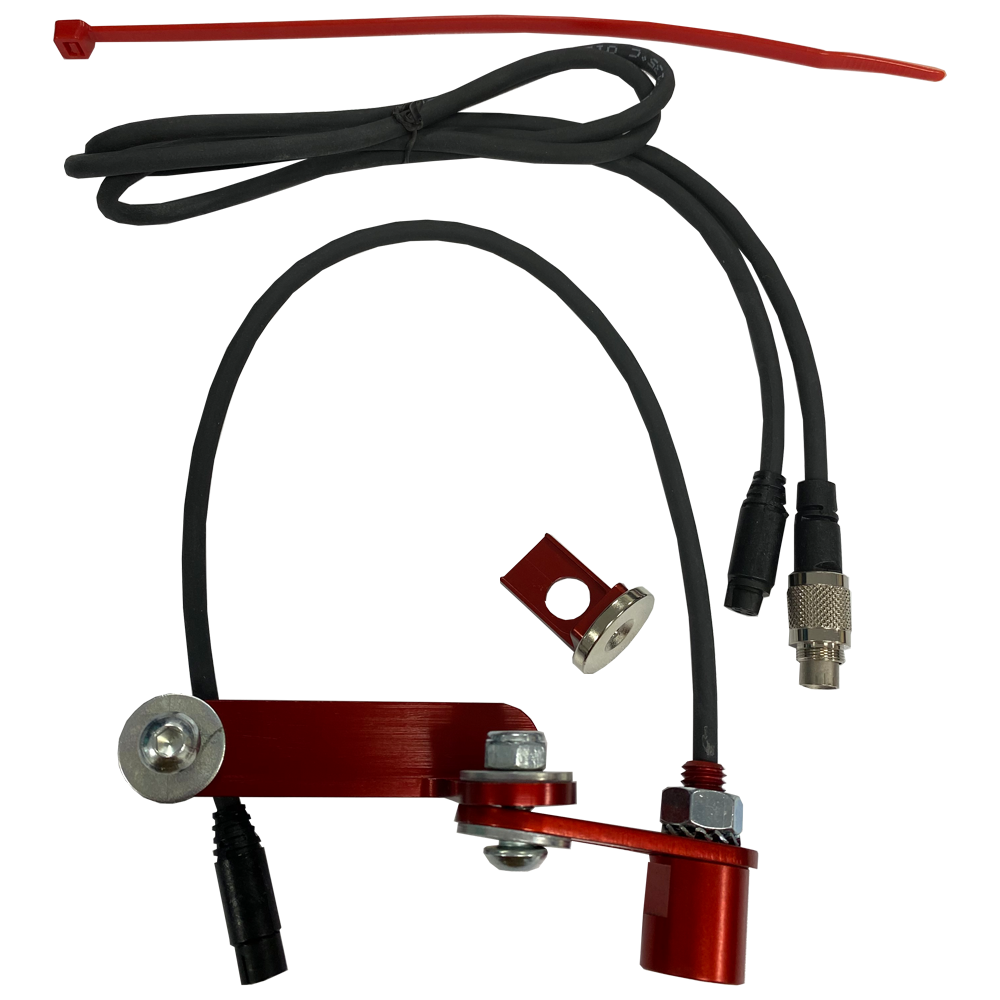

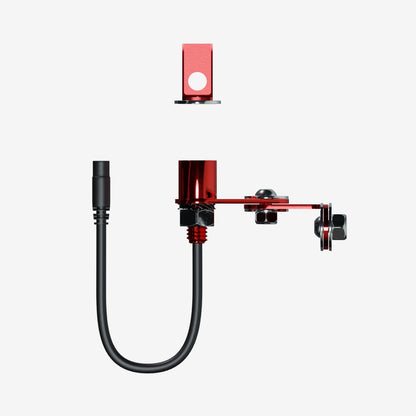

• OTK Sensor with patch lead
