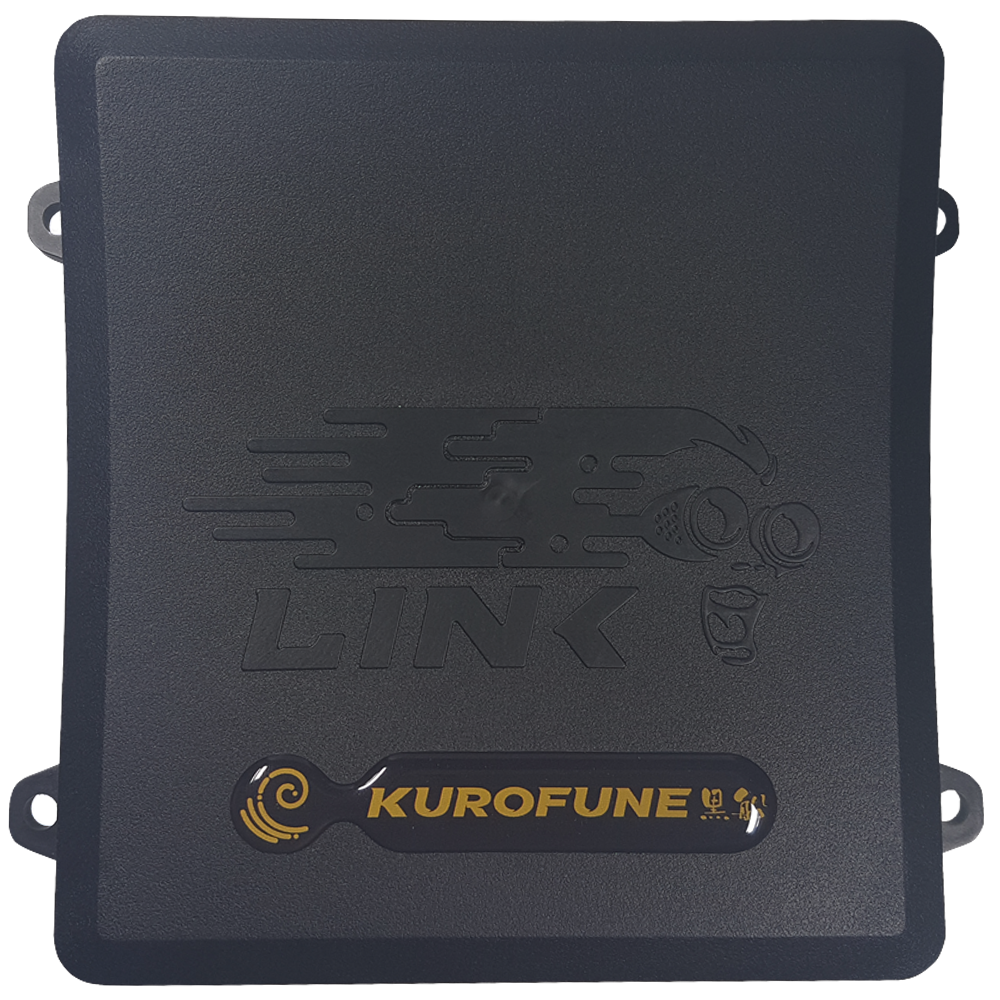

Link G4+ Kurofune WireIn ECU

The Kurofune is Link’s first G4+ ECU built to run off adapter looms.

The Kurofune is a direct replacement for a common aftermarket Japanese ECU, but with significantly more functionality and user configurability than the ECU, it replaces. Sharing the same connector footprint and pinout to this ECU means there is already a host of aftermarket adapter looms that will allow the Kurofune to plug straight in.
Special hardware features included in the Kurofune, such as differential trigger inputs and analogue outputs which can be used to emulate a MAF or oxygen sensor, make it Link's most suitable ECU for “piggyback” type installs.


Inputs

10 x Digital Inputs
3 x Temperature Inputs
9 x Analog Inputs
2 x Differential Trigger Inputs
2 x Knock Inputs


Outputs

8 x Injection Drives
8 x Ignition Drivers
10 x Auxiliary Outputs
4 x Analog Outputs
+5V Sensor Power Supply


Communications

1x CAN bus
1x USB tuning connection


Physical

Dimensions: 140mm(L) x 150mm(W) x 33mm(H) (without looms)
Mass: 300 grams


Advanced features not found on the Storm:

30 general-purpose tables (up from 20)
All Motorsport features including full gear shift control, anti-lag, traction and launch control.




Link G4+ Kurofune ECU

  • G4+ Kurofune ECU
  • USB Tuning Cable
