Easy to install. Affordable. Reliable.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential of your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

The N300X ECU is Designed to suit the VG30DET engine.

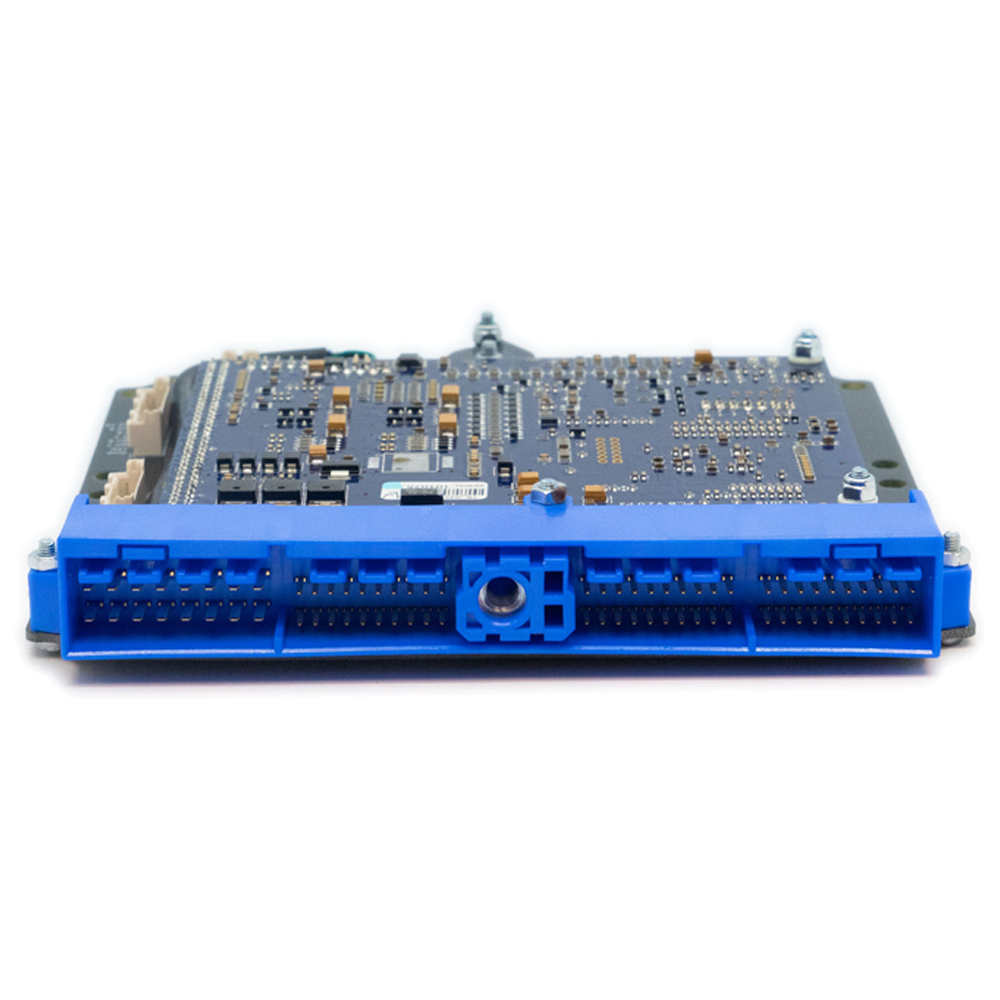

Please check your connector matches the header in the listed photo before purchasing.
This ECU works for manual transmissions only.
Includes an onboard 4 bar or 7 bar MAP sensor.
Most factory features are supported.
It is highly recommended to fit an IAT sensor with this model.

Suitable Applications:

Z32 300ZX VG30DE
Z32 300ZX VG30DETT

PlugIn Key Features:

Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cams, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - anti-lag, launch, flat shift
Continuous barometric correction (onboard)
CAN port
QuickTime - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real-time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 megabytes data logging memory
Staged injection
Knock with "windowing"

I/O Expansion Options:

The following expansion connector inputs/outputs are provided:
Expansion connector 1

+5V Out Low Current +5V Supply
DI 5 Digital Input
DI 6 Digital Input
Volt 8 Analog Volt Input
Volt 7 Analog Volt Input
Temp 3 Analog Temp Input
Temp 4 Analog Temp Input

Expansion connector 2

Gnd Sensor Ground Only
+5V Out Low Current +5V Supply
Ign 7 Ignition 7 Auxiliary Output
Ign 8 Ignition 8 Auxiliary Output
DI 7 Digital Input
DI 8 Digital Input
An Volt 9 Analog 0-5V input
An Volt 10 Analog 0-5V input

Link Nissan 300Link - #N300X

• G4X PlugIn ECU
• Wiring and Installation Instructions
• Stickers
