This SmartyCam 3 Sport camera with 67º lens comes back to us as a trade-in, fully equipped and ready to take on its second life. The camera is in full working order and has been meticulously checked by our technicians.
Capture. Replay. Overlay. Analyse.
Full HD recording. Crystal Clear Video. TFT Colour display. Automatic Start/Stop. Real-time overlay videos. Configurable. Choice of lens and can cable. Wave & Wobble eliminated. Waterproof.
Please Note: The SmartyCam 3 Sport must be powered and connected to another Aim device such as the Solo 2 DL, MXM, or an MX-Series Data Logger/Strada Logger, in order to receive all CAN information. Please also be aware that the camera MUST be externally powered by any of these products as the internal battery is only competent for initial configuration.
The SmartyCam 3 Sport saves all your data to a supported micro-SD card for up to 2TB of data. This includes speed, RPM, lap number, gear shifts and many more features. With a built-in data logger running on an external power of 9-15 volts, the new SmartyCam 3 automatically powers on and off in-sync with your engine and will auto start/stop recording, the parameters of this being personalised by the user.
Analyse your data from a vast range of sources such as ECU information, GPS information, track map, vehicle position, speed, lap & split times. Video format is at H.264 1920x1080 pixels, 30 FPS, and the display resolution of 128x128 pixels gives your footage crisp condition. Our quality doesn’t falter, even under the pressure of extreme motorsport conditions such as poor weather, strong vibrations, continuous rain, and high/low temperatures as extreme as -10°C to + 50°C. Our camera is also waterproof (IP65) for extra protection.
Sync & Analyse Your Data and Video Like Never Before
With the built-in data logger, you can view all the channels displayed on the video footage and review them with our new Race Studio 3 analysis software. Such channels include RPM, throttle, engaged gears, acceleration, temperatures, and pressures including a tri-axis accelerometer.
Quality
The SmartyCam 3 Sport includes a global shutter CMOS sensor and a low distortion lens with a field of view of 67° covering all areas. Its lightweight 200g (battery included) framework is infallible in providing you with smooth and effortless footage.
Anatomy
The SmartyCam 3 Sport contains a rechargeable lithium battery confined inside its 79.9x54x6.5mm body and has a 1 x 712 5 pin female binder connector that the camera can be directly connected to with any of our supported dashes, lap timers and loggers that supply the camera with power and CAN information directly from your vehicle.
Finished with a sleek new look, the SmartyCam 3 is assured to add efficiency, informational data, productivity, and style to your racing. Aim SmartyCam 3 Sport is lighter, sleeker and even better than ever. Here at Aim, we provide only the best innovations and are constantly and consistently working to better your racing experience.
Higher Storage Capacity
Generic HD cameras focus too much on pixel numbers resulting in large file sizes. The SmartyCam 3 footage has the same quality as other FHD cameras with smaller files due to H.264 compression system parameters being optimised to a perfect balance between video quality and file size. Choose between three file quality levels: One hour recording = 4GB (High Quality), 2GB (Normal Quality) or 1.5GB (Lower quality).
The SD card housing is 100% protected from air and weathering.
SD cards sold separately.
Expand Your System
The SmartyCam 3 Sport can be connected through the CAN network to our Aim Loggers, MX Series, MXL2, MyChron, Solo 2 DL, EVO5 and ECU Bridge.
You can connect more SmartyCam 3 cameras on the same CAN network. The SmartyCam has its configuration and automatically retrieves the data it needs from the network without interfering with the others. You can also synchronise your video and data with the Loggers using Race Studio 3 software.
Configure & Analyse with Race Studio Analysis 3
Configuration
With Race Studio 3, you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps by watching the video recorded by SmartyCam cameras.
Analysis
With Race Studio 3, you can also analyse all data recorded by the SmartyCam and download it to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performance.
Technical Specifications
-
Video format: H.264 1920 x1080 pixels @ 30 fps
-
Display resolution: 128 x 128 pixels
-
Lens: Low distortion camera lens
-
CMOS sensor: Global Shutter
-
Field of view: 67°
-
Internal battery: Rechargeable lithium battery
-
External power: 9-15 Volt
-
Support microSD card: Up to 2 TB
-
Accelerometer: Three-axial ± 16G
-
Connectors: 1 Binder 712 female
-
Usage temperatures: -10°C/+50°C
-
Auto Power ON: Yes
-
Auto Power OFF: Yes
-
Auto Start/Stop Recording: Yes
-
Dimensions: 79.9 x 54 x 46.5 mm
-
Weight: 200g, battery included
-
Waterproof: IP65

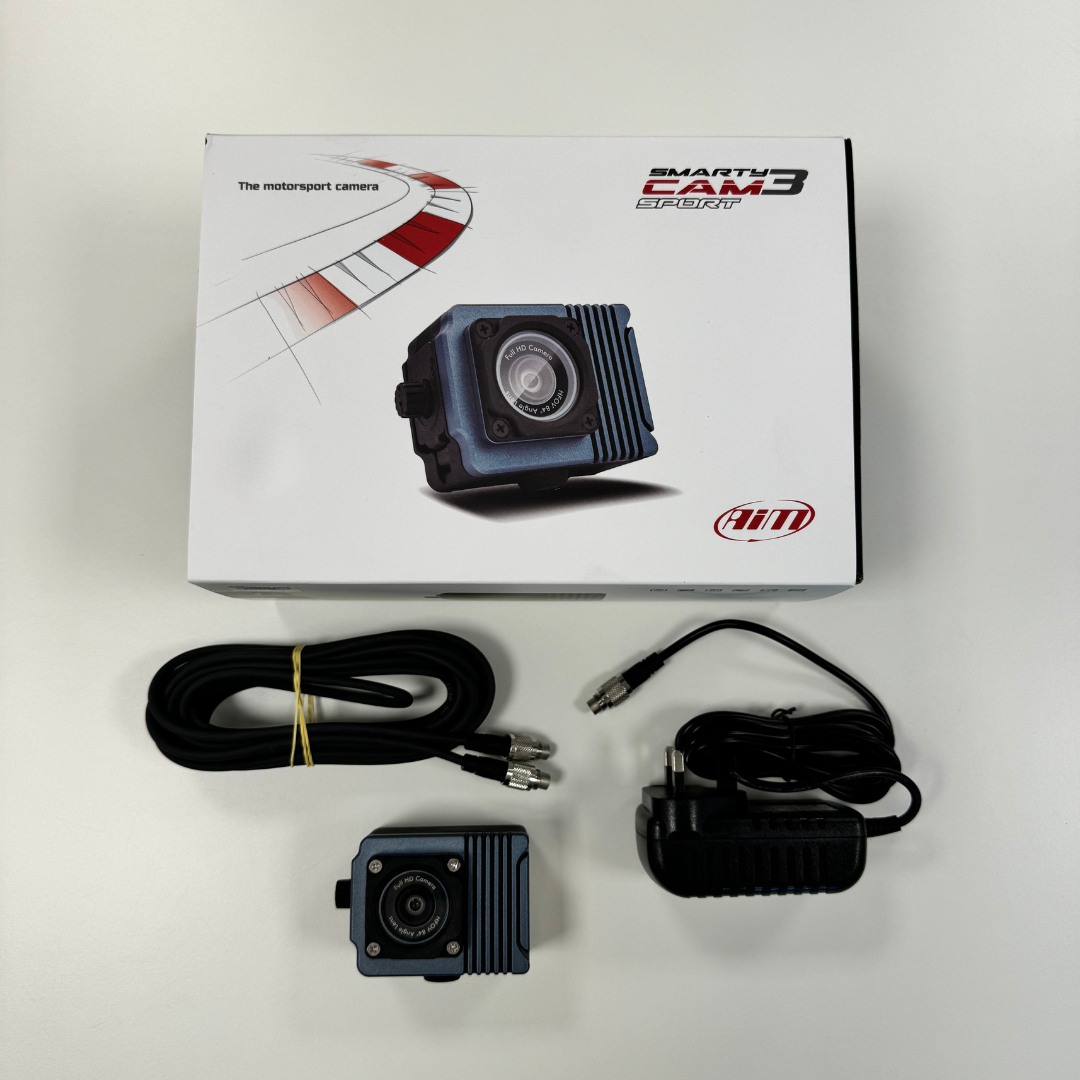

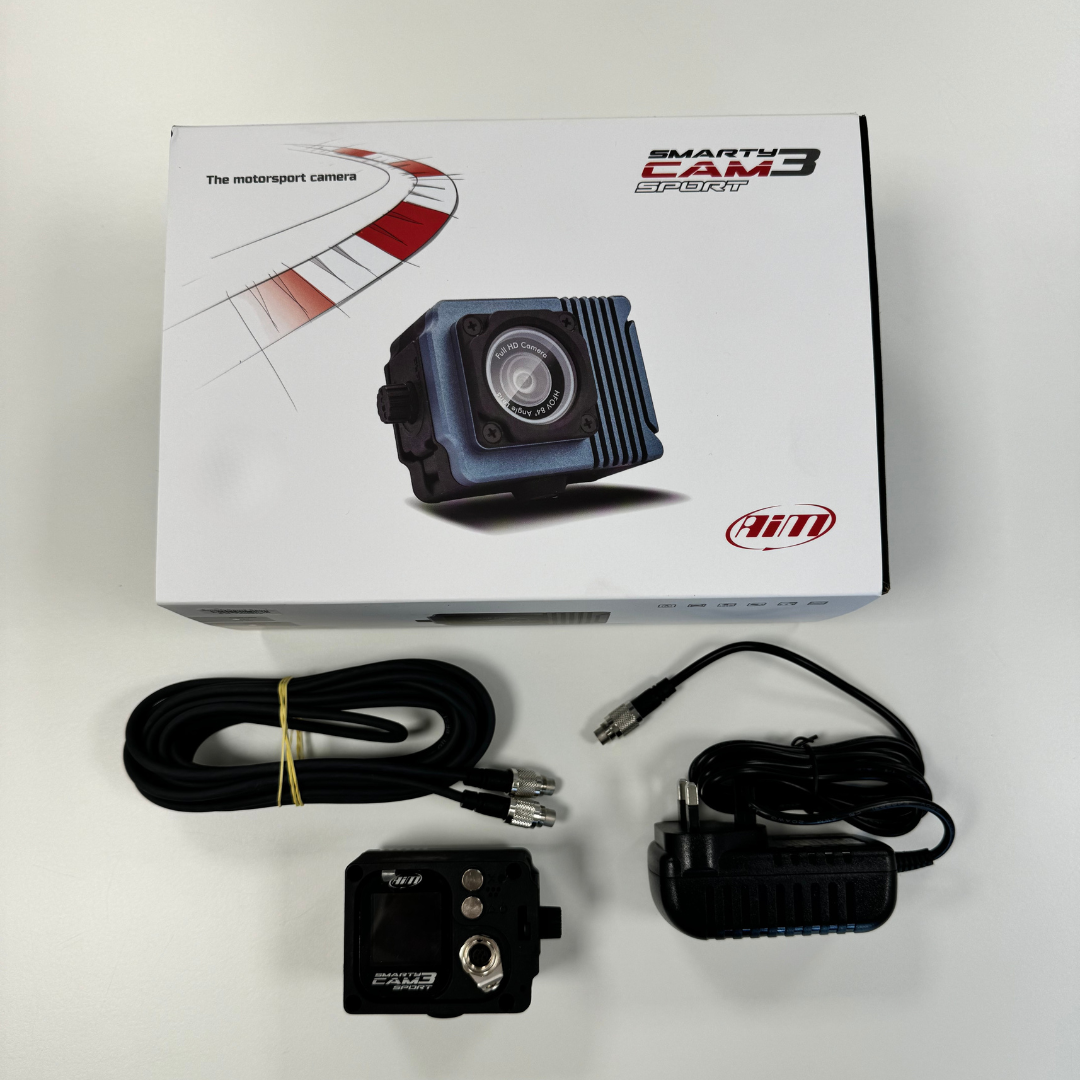

Whats in The Box
- SmartyCam 3 Sport
- Data Hub (Optional)
- 12v Mains Charger
- 2m / 4m CAN Cable
