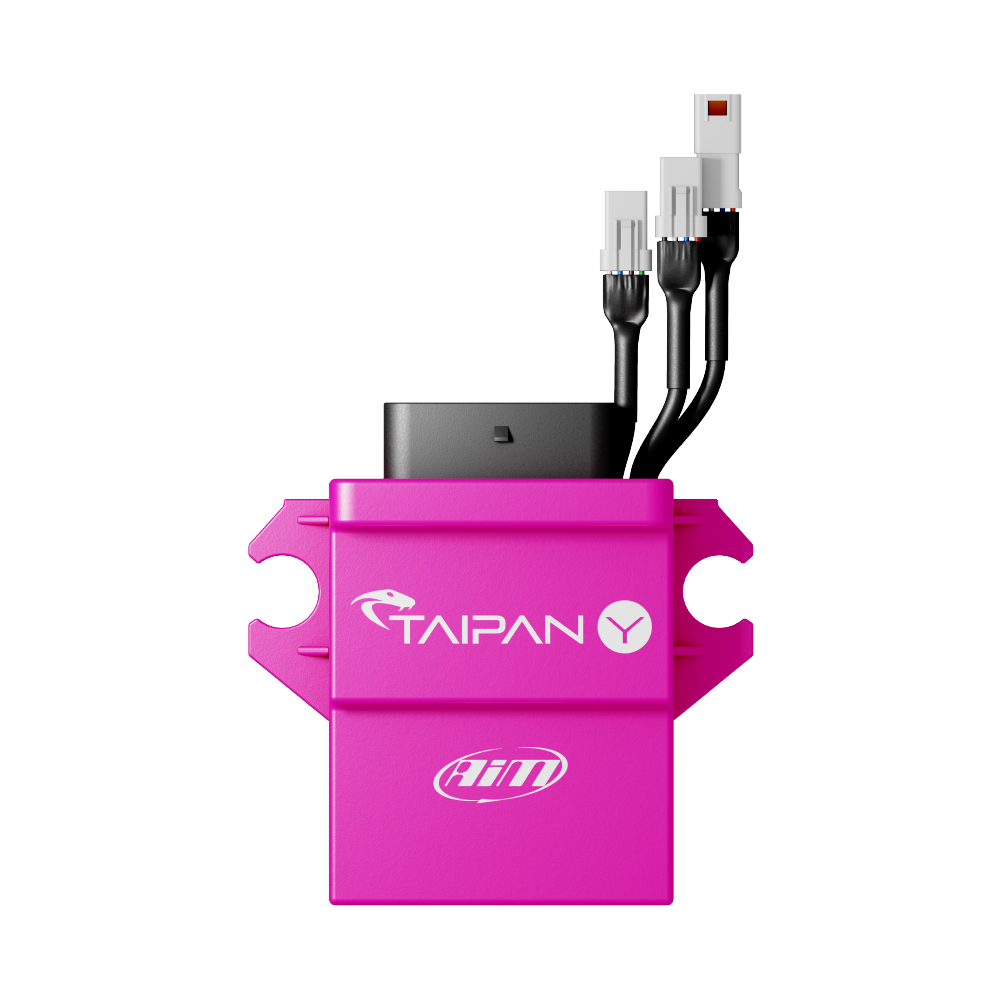

Aim Taipan Y Plug & Play ECU For Yamaha Bikes

The Aim Taipan ECU is the latest plug & play engine control unit, designed exclusively for Yamaha motocross bikes. Engineered with cutting-edge 32-bit technology, it offers unmatched precision, delivering improved performance without compromising reliability. With advanced fuel mapping and ignition strategies, the Taipan ECU provides superior control over your engine's behaviour for optimised power delivery and throttle response.

Why Choose the Aim Taipan ECU?

The Aim Taipan ECU is designed to give riders complete control over their motocross bike’s performance. With highly accurate ignition timing and fuel injection control, this ECU ensures the smoothest power delivery, maximising acceleration and traction in all conditions. Whether you're on the track or the trails, the Taipan ECU provides a fully customisable racing experience tailored to your riding style.

Advanced Engine Control Strategies

Precision & High-Speed 32-Bit Core Processing

At 20,000 RPM, the Aim Taipan ECU ensures ignition precision within 1/10 of a degree, equating to an accuracy of 0.8 microseconds for turning the spark on. This precision guarantees:

• A highly consistent engine rotation
• The ability to conduct repeatable performance tests
• Instant response to map changes, delivering optimised power at the wheel

UC Bridge - Optional Extra

We have 2 types of UC Bridges that serve different purposes. The UC Bridge Tuner is required to configure the unprogrammed Aim Taipan ECU and includes a Tuner Lisence, while the UC Bridge acts as a basic connection between the ECU’s CAN bus and your PC’s USB port for diagnostics and transferring maps.

Tuner License:

The UC Bridge Tuner is required to configure the unprogrammed Aim Taipan ECU and acts as a connection between the ECU’s CAN bus and your PC, allowing for custom tuning to create and modify maps, adjust configurations and refine strategies specific to your bike setup.

Please Note: For information regarding the UC Bridge Tuner, please contact our technical team for further information.

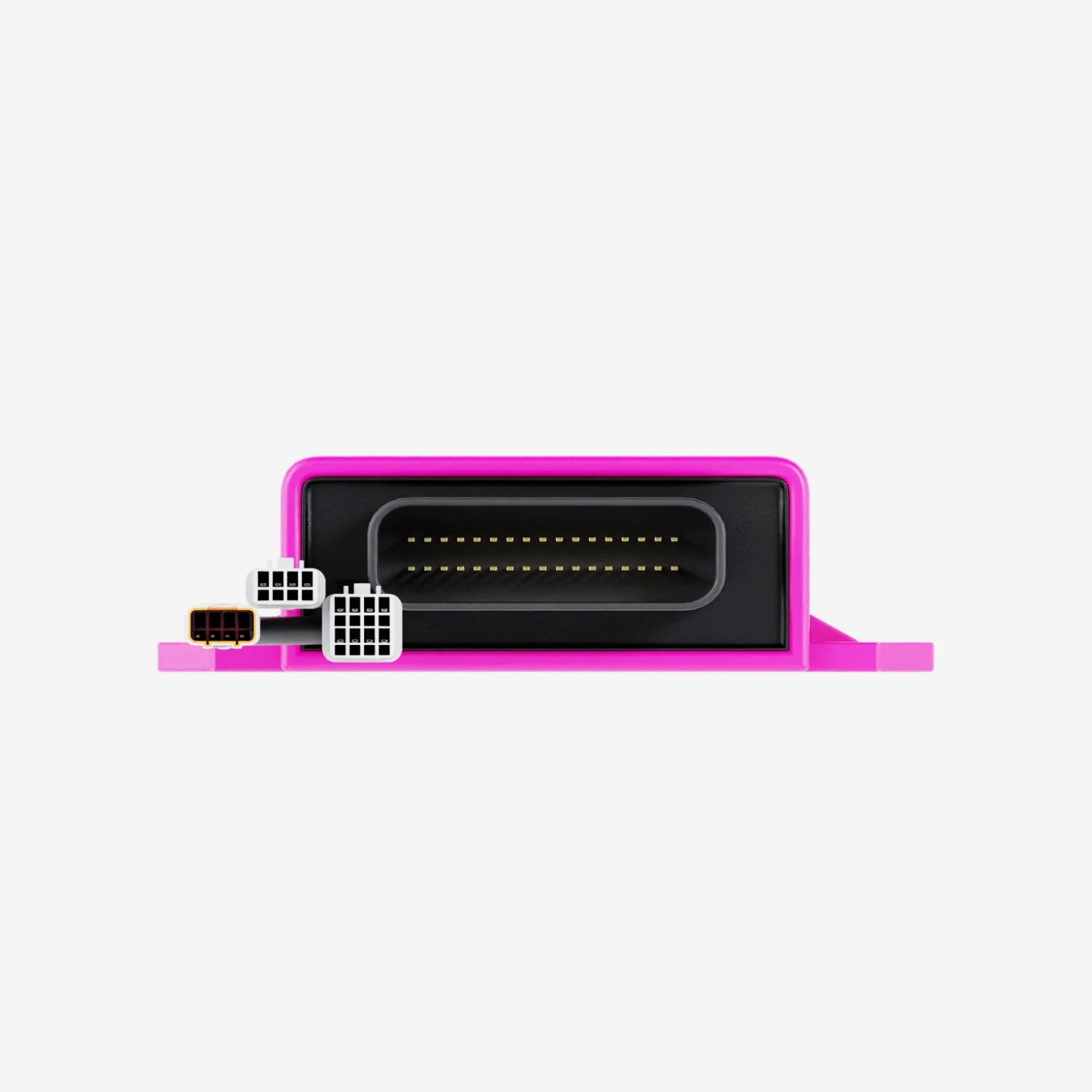

Taipan ECU Connections

The Aim Taipan ECU features four connectors:

• Main Connector – Compatible with most Yamaha motocross bikes
• CAN Connector – Links to the Handlebar Switch and Data Logger
• 2nd CAN Connector – Connects to the UC Bridge for PC communication
• 3rd Connector – Provides spare analogue inputs and supports a secondary injector

Aim Handlebar Switch - Optional Extra

The Aim Handlebar Switch enables on-the-fly adjustments, featuring 2 pushbuttons and 10 LEDs for controlling:

• Up to 5 selectable engine maps
• Real time fuel corrections
• Traction control activation
• Launch control activation
• Shift light functionality

Enhance Your Setup with Aim Accessories

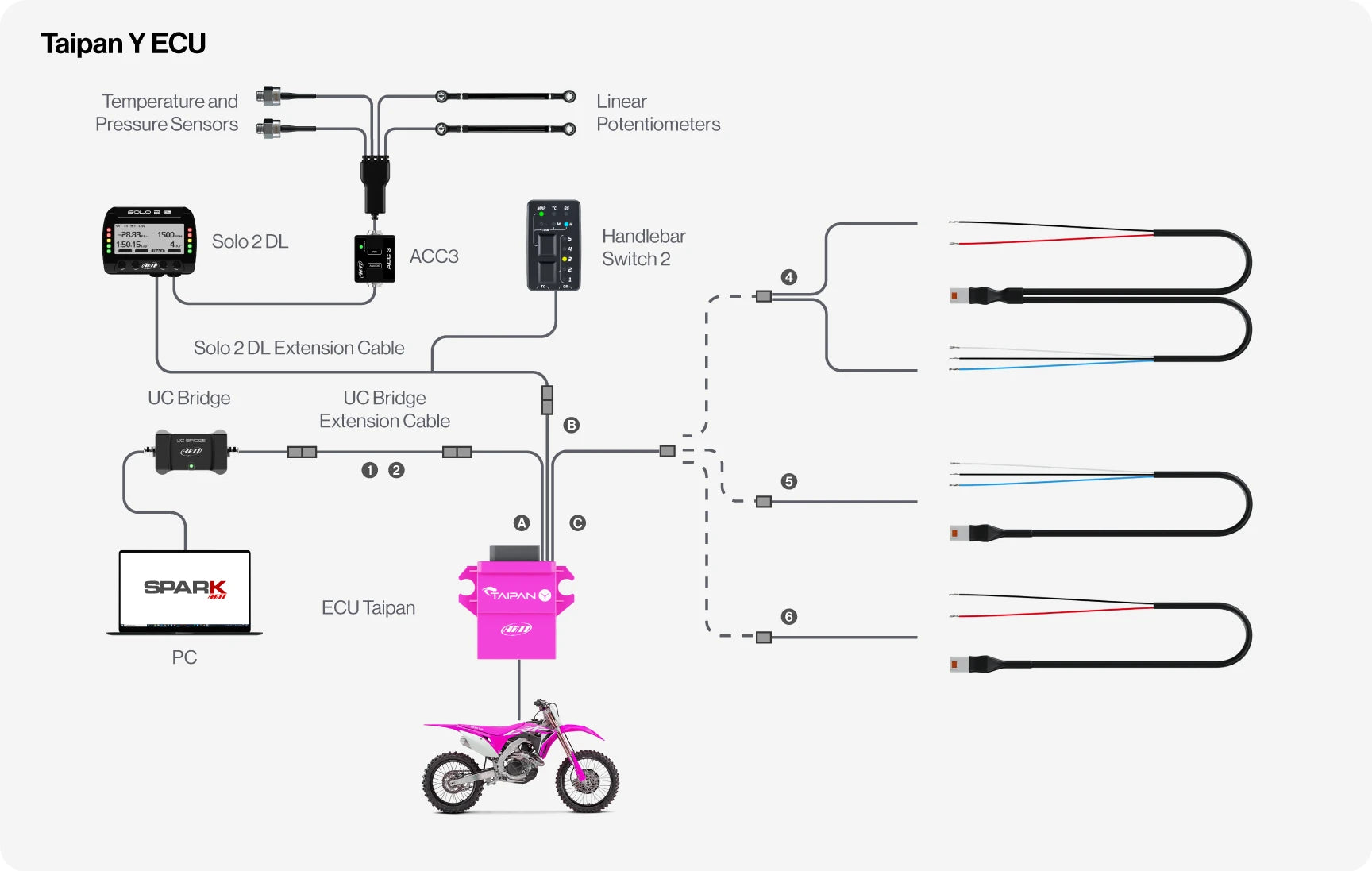

Below is a functional diagram of products compatible with the Aim Taipan ECU:

Aim Taipan ECU Plug & Play Engine Control Unit

• Two 0-5V analogue inputs sampled @ 1,000 Hz each, could be alternatively used as a switch to ground
• Second injector driver for high impedance saturated injectors (12Ω)
• One low side driver (1 A)
• Two CAN Bus, one for calibration purposes, one for expansions - (Aim handlebar switch, dataloggers, dash etc
• Three JST JWPF waterproof auxiliary connector
• Power consumption 150 mA
• Connectors: n. 1 JST 04T-JWPF-VSLE-S Connector
• n. 1 JST 08R-JWPF-VSLE-D Connector
• n. 1 JST 04R-JWPF-VSLE-S Connector
• n. 1 33 pin male Connector
• Body: PA6 + 30% glass fiber
• Dimensions: 89.4 x 75.4 x 29.3mm
• Waterproof: IP67
• Weight: 260g

Aim Taipan ECU Plug & Play Engine Control Unit

• ECU Taipan Control Unit
