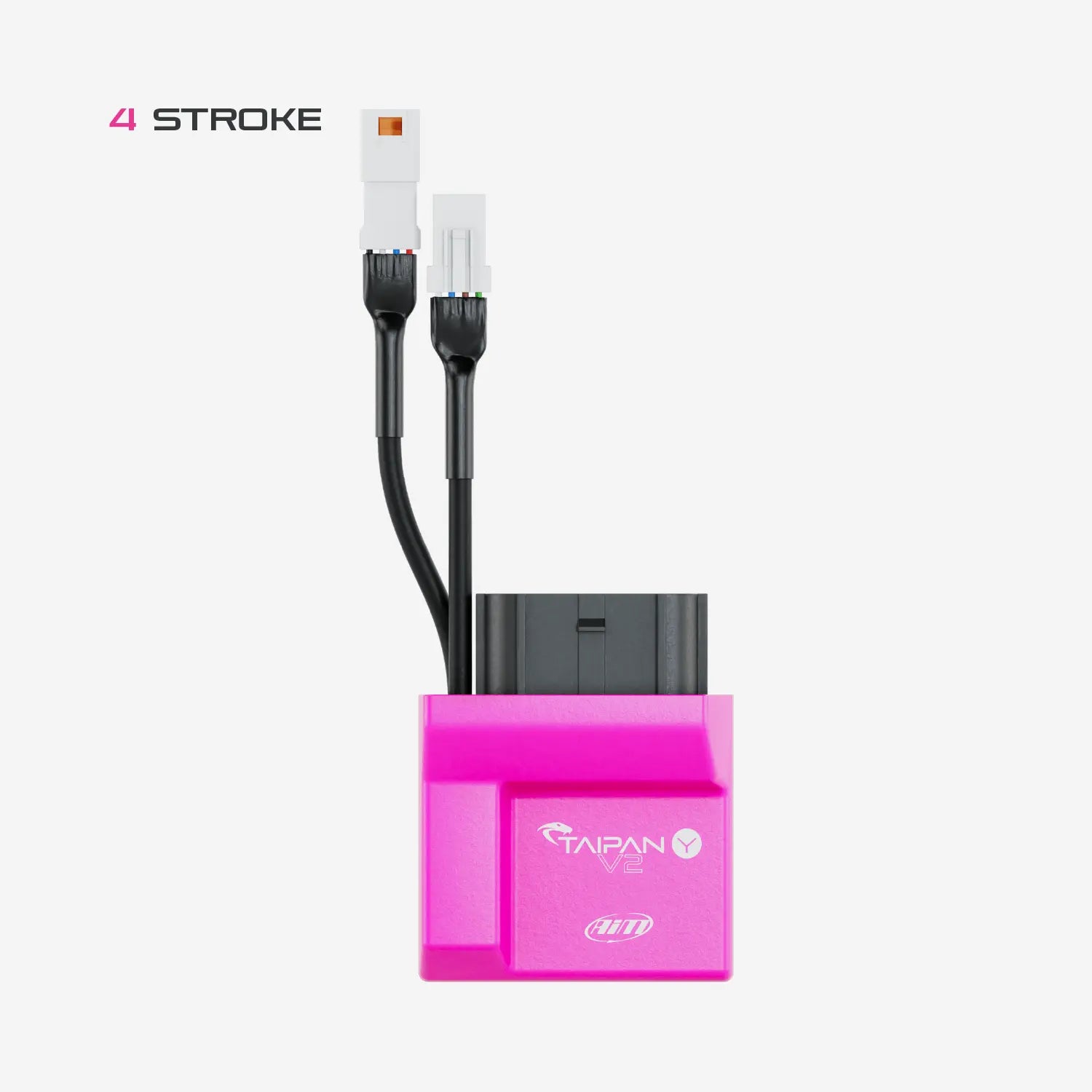

Yamaha AiM Taipan Y V2 Motocross ECU Plug & Play

SKU:

Regular price
£480.00
Regular price
Sale price
£480.00

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders

a

Aim Taipan Y V2 ECU

Plug & Play Engine Control Unit

Taipan, Taipan Y, and our brand new variant Taipan Y V2, are the aftermarket plug & play ECUs created by Aim, exclusively designed for off-road bikes.
Thanks to their high technology 32-bit core, they represent an important step forward to improve the performances of your bikes, without sacrificing reliability and smoothness

The ECU designed and developed
for the motocross, Enduro, and
Supermoto world

High technology 32-bit core

Engine control requires precision. At 20,000 RPM the Taipan ECU guarantees a precision of 1/10 of degree: this means an accuracy within 0.8 µsec for turning the spark ON!

  • A very consistent engine rotation
  • The possibility to repeat dozens of tests at the bench, always obtaining the same exact result
  • More power at the wheel
Advanced
Base Map

Up to 5 selectable maps

Taipan can manage up to five maps that can be selected both by OEM switches (Honda, Husqvarna, KTM) or even more easily by the AiM Handle Bar Switch.

Fully plug & play with most
motocross motorcycles

COMPATIBLE MODELS

Optional Extras

UC Bridge Tuner

Using our UC Bridge Tuner, you can create different maps, configurations and strategies designed specifically for your bike. Tuner License: This is the Tuner that is required to configure the unprogrammed Taipan ECU.*
The tuner can then flash them directly onto the ECU or send them via email to allow you to download and install them in the ECU.
*For information regarding the UC-Bridge Tuner, please contact our technical team for further information.

Handlebar Switch

The Aim Handlebar Switch is the best way for changing the behaviour of your bike; it features 2 pushbuttons, 10 LEDs and manages the following settings:
Up to 5 selectable maps
Activate traction control
Apply fuel corrections
Activate launch control
The handlebar switch can also be used as a shift light module!

Traction Control

For each map, the ECU has a dedicated traction control main table controlling the power delivered to the rear wheel. Thus, it simply controls the rotational speed of the rear wheel. This drastically reduces the chances of drifting.

Launch Control

For each map, the ECU has a dedicated launch control main table. Launch control is used to help maintain better traction and reduce wheel spin from standing starts. It works by limiting the RPM to a user set amount by retarding the ignition timing as well as cutting ignition events.

Taipan Y V2 Key Features & Advanced Strategies

Injection main alpha-n
Injection main speed-density
Injection crank correction
Pre-injection
Injection BAP Correction
Injection EWT Correction
Injection IAT Correction
Injector Battery Correction
Injector 2
Ignition BAP Correction
Ignition EWT Correction
Ignition IAT Correction
Ignition Opening Transient Correction
Ignition Closing Transient Correction
Launch Control
Injection Launch Control Main Table
Ignition Launch Control Main Table
Quick Shift
Traction Control


Traction Control Strategy

For each map, the ECU has a dedicated traction control main table.

Launch Control

For each map, the ECU has a dedicated launch control main table.



Pinout


Below shows a functional diagram of products that can be added to the Taipan ECU:


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM Taipan Y V2 ECU Plug & Play Engine Control Unit

  • Two 0-5V analogue inputs sampled @ 1,000 Hz each, could be alternatively used as a switch to ground
  • Second injector driver for high impedance saturated injectors (12Ω)
  • One low side driver (1A)
  • Two CAN Bus, one for calibration purposes, one for expansions - (AiM handlebar switch, dataloggers, dash etc
  • Two JST JWPF waterproof auxiliary connector
  • Power consumption 150 mA
  • Connectors: n. 1 JST 04T-JWPF-VSLE-S Connector
  • n. 1 JST 08R-JWPF-VSLE-D Connector
  • n. 1 33 pin male Connector
  • Body: PA6 + 30% glass fibre
  • Dimensions: 64.5 x 59 x 29.5mm
  • Waterproof: IP67
  • Weight: 150g


AiM Taipan Y V2ECU Plug & Play Engine Control Unit

  • ECU Taipan Y V2 Control Unit
