Deutsch Harness with 1 Thermocouple

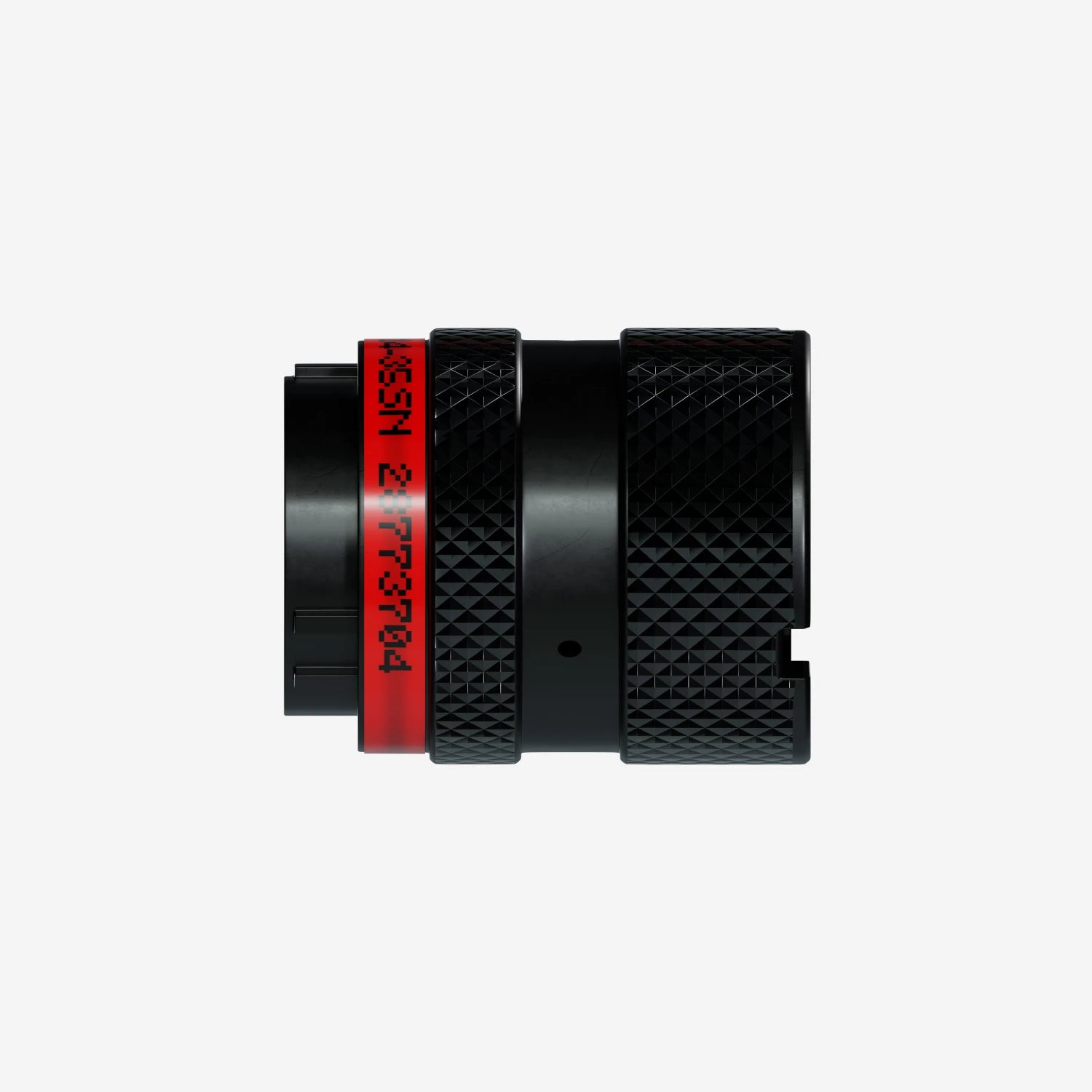

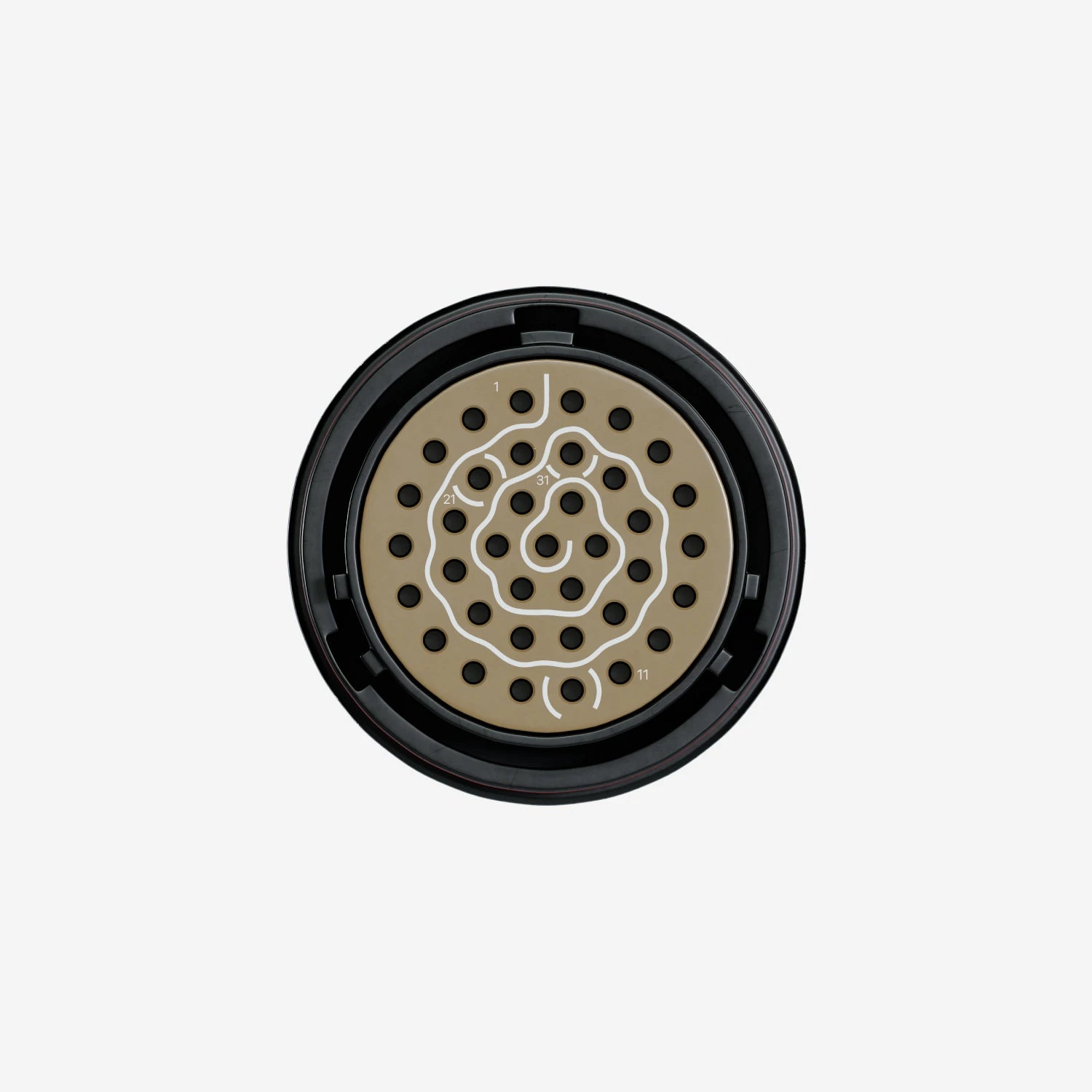

The Aim 37-Pin Deutsch Harness is the standard harness that comes with Aim MX Loggers. The 37-Pin Deutsch Harness includes a 37-pin Deutsch female flying connector, one female TC Yellow connector, 4-pin 719 female binders and 5-pin 712 female binders. It connects into the 37-pin socket on your MX Data Logger, giving you access to analogue sensor channels (2-4), digital wheel speed sensor input, CAN expansion, Power+, Ground-, CAN ECU connection, K-Line and a channel (1) to connect one K-Type thermocouple sensor.
Why Choose the Aim 37-Pin Deutsch Harness with Thermocouple
The Aim 37-Pin Deutsch Harness is designed to work with Aim MX Display Loggers in race or track vehicles. When combined with the optional 22-Pin Deutsch Harness, both harnesses can offer additional analogue channels and advanced functions in a compact, motorsport-ready package.
The standard 37-Pin Harness that comes with the logger supports 4 primary analogue channels, including water temperature, oil temperature, oil pressure and brake pressure. By upgrading to the 37-Pin Deutsch Harness with 1 Thermocouple connector, you can also measure things like exhaust gas temperature (EGT) directly from the harness for more data insights.
Compatible Thermocouple Sensors
We have a choice of K-Type thermocouple sensors that can be added to your setup:
Technical Information
Technical Specs

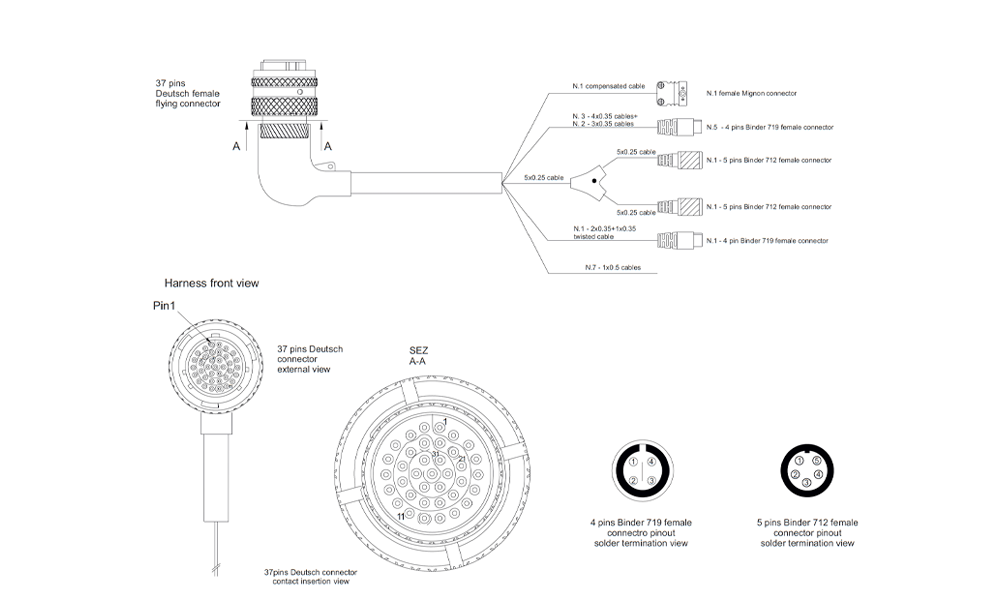

Pinout
Included in the Box

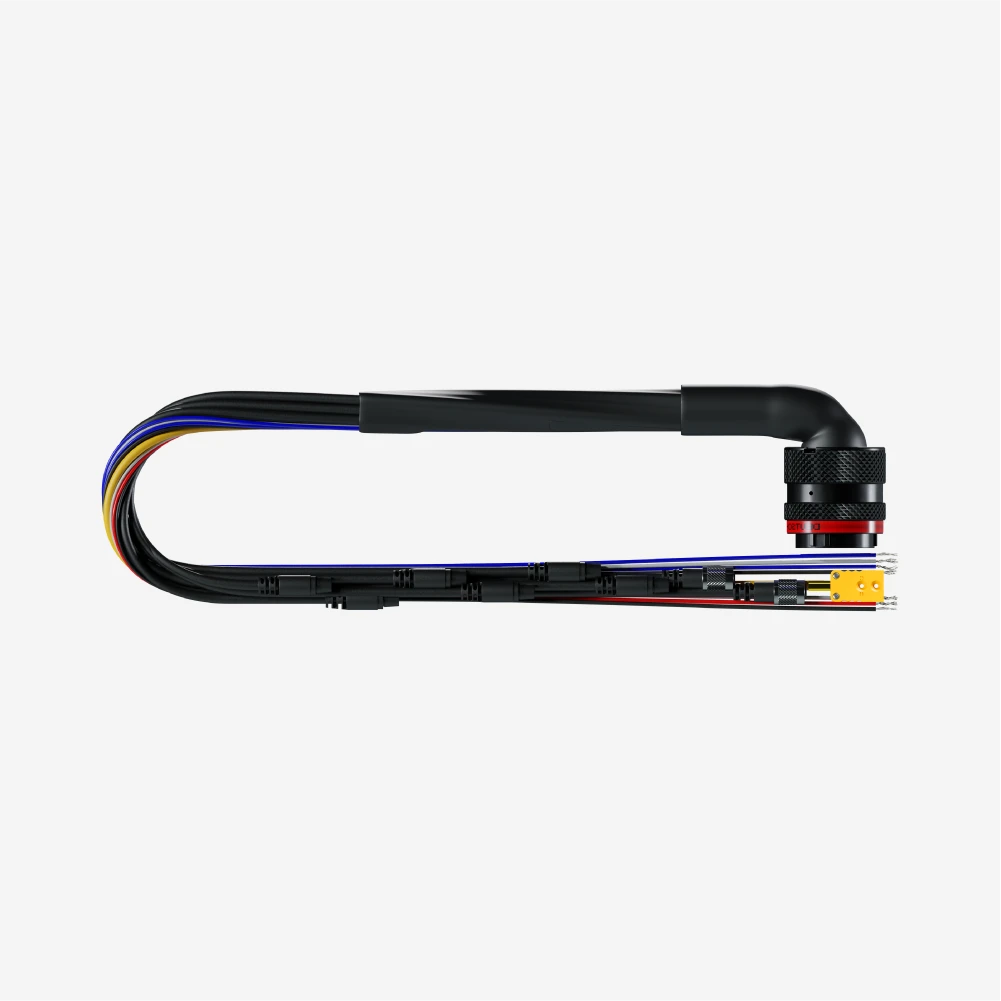

37-Pin MX Logger Harness with 1 TC Port
-
