Deutsch Harness with 1 Thermocouple

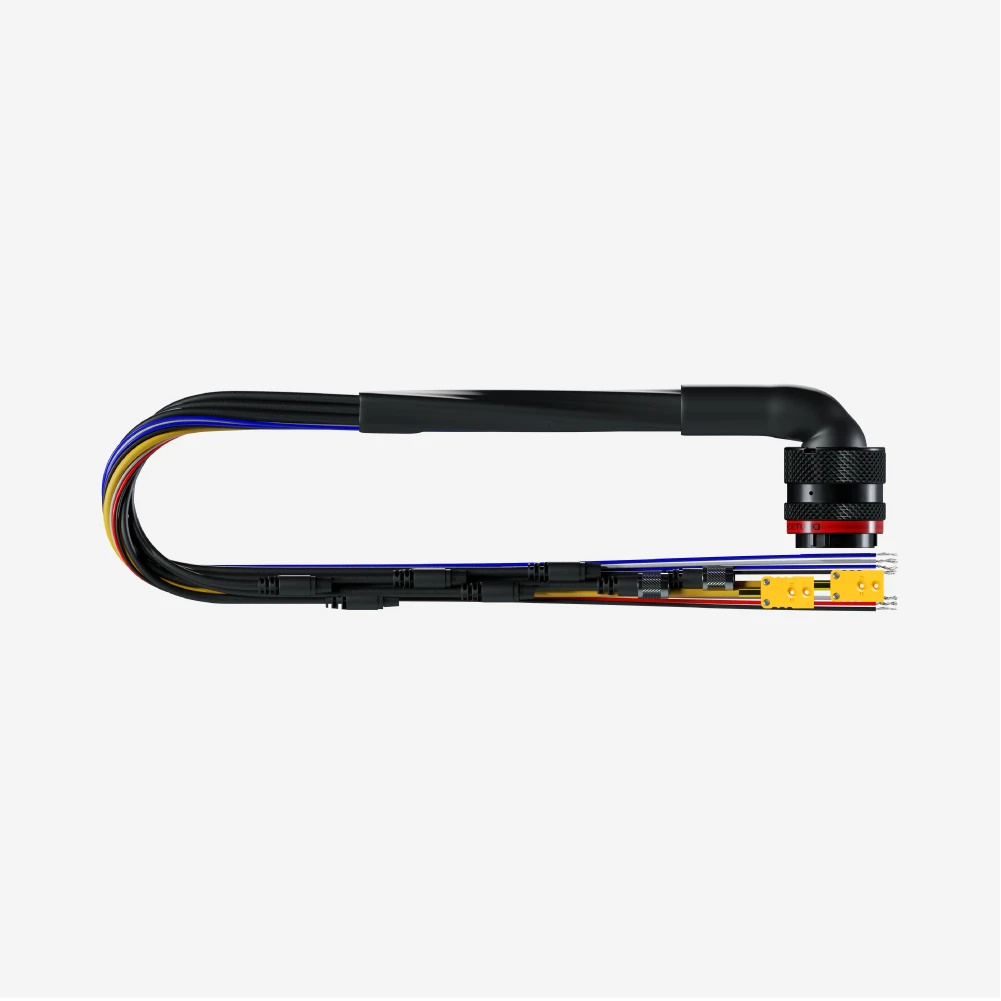

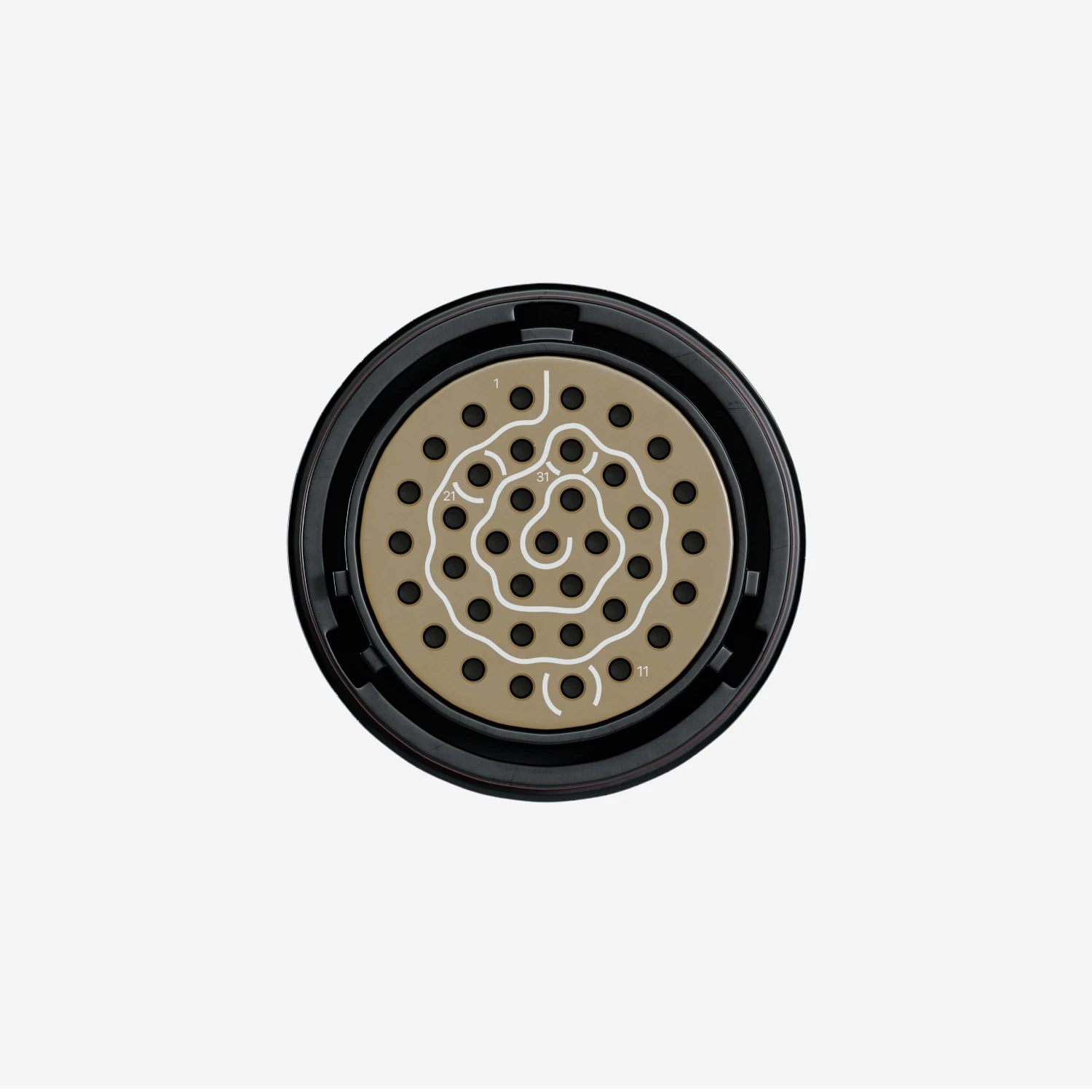

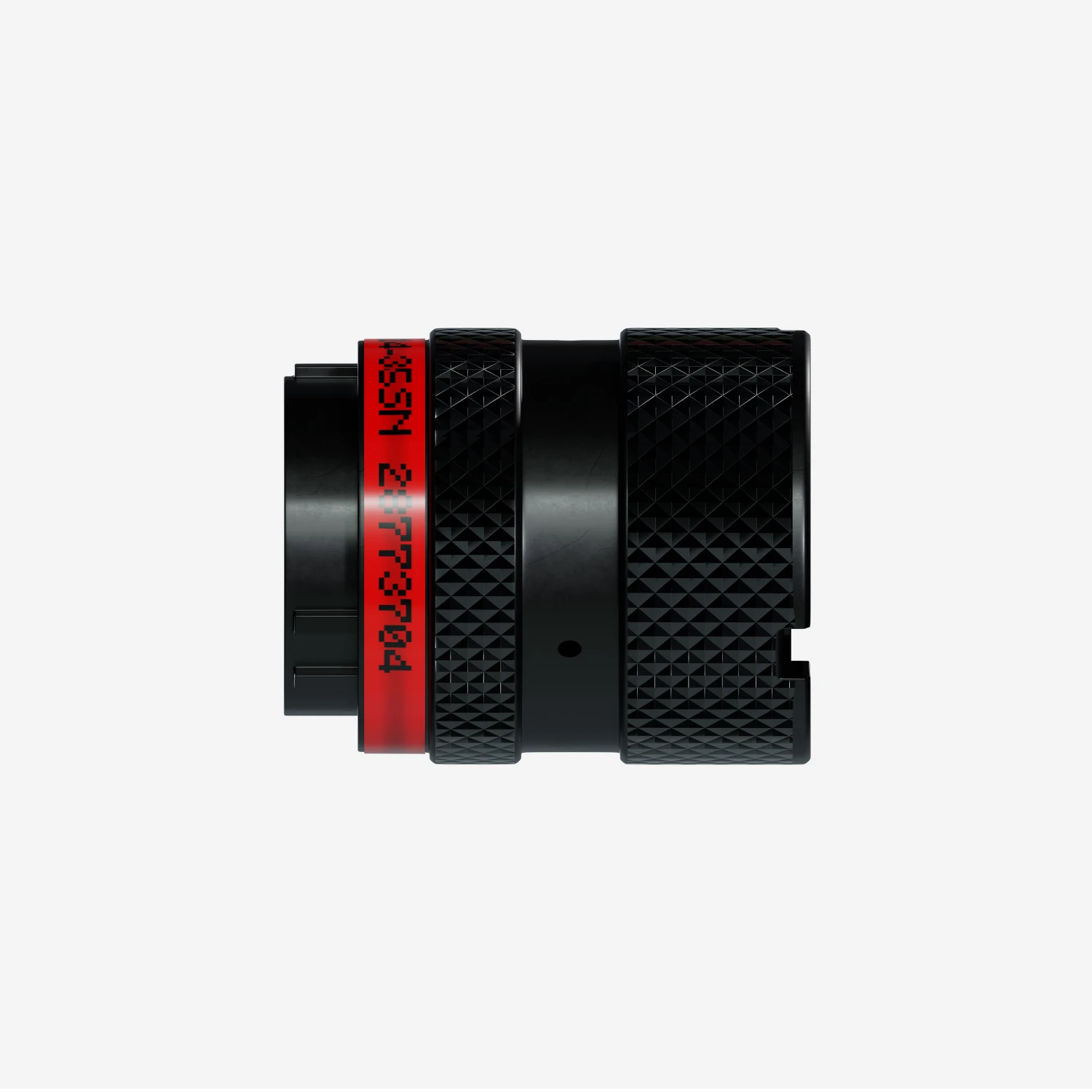

The Aim 37-Pin Deutsch Harness is the standard harness that comes with Aim MX Loggers. The 37-Pin Deutsch Harness includes a 37-pin Deutsch female flying connector, two female TC Yellow connectors, 4-pin 719 female binders and 5-pin 712 female binders. It connects into the 37-pin socket on your MX Data Logger, giving you access to analogue sensor channels (3-4), digital wheel speed sensor input, CAN expansion, Power+, Ground-, CAN ECU connection, K-Line and channels (1-2) to connect two K-Type thermocouple sensors.
Why Choose the Aim 37-Pin Deutsch Harness with Thermocouple
The Aim 37-Pin Deutsch Harness is designed to work with Aim MX Display Loggers in race or track vehicles. When combined with the optional 22-Pin Deutsch Harness, both harnesses can offer additional analogue channels and advanced functions in a compact, motorsport-ready package.
The standard 37-Pin Harness that comes with the logger supports 4 primary analogue channels, including water temperature, oil temperature, oil pressure and brake pressure. By upgrading to the 37-Pin Deutsch Harness with 2 Thermocouple connectors, you can also measure things like exhaust gas temperature (EGT) directly from the harness for more data insights.
Compatible Thermocouple Sensors
We have a choice of K-Type thermocouple sensors that can be added to your setup:
Technical Information
Technical Specs

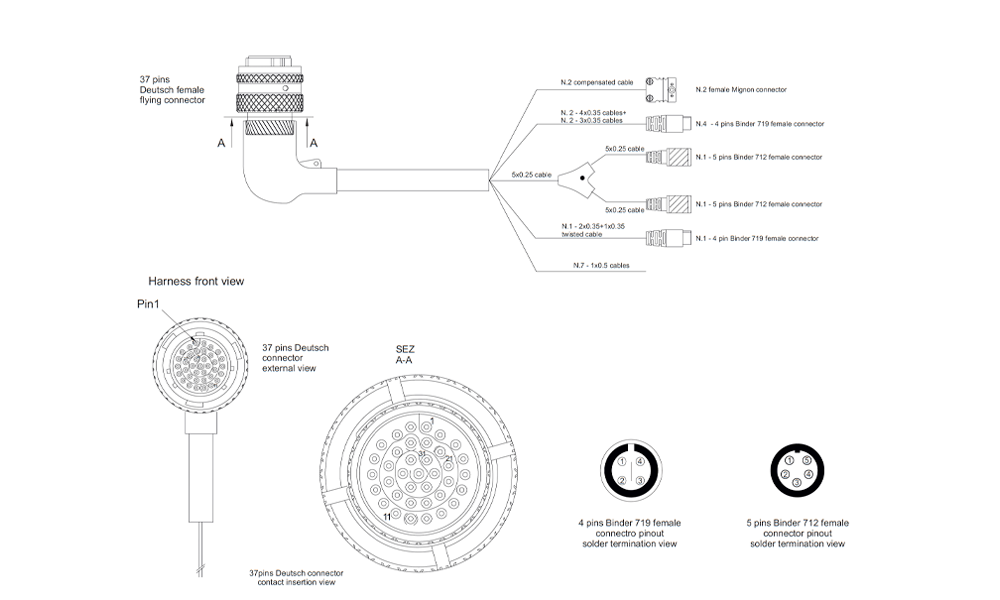

Pinout
Included in the Box
37-Pin MX Logger Harness with 2 TC Ports
-
