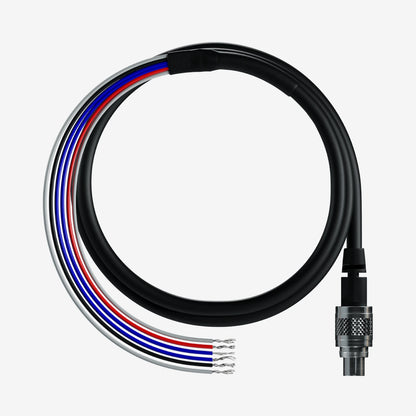

Aim Solo 2 DL CAN / RS232 2m External Power Cable

Aim Solo 2 DL CAN / RS232 2m External Power Cable

The Aim CAN/RS232 2m external power cable connects your Solo 2 DL to your ECU wiring.

Key Features:

RS232/CAN External Power Cable

The Aim RS232/CAN 2m external power cable connects your Solo 2 DL to your ECU.

This is one of the connection cables available for the Solo 2 DL. Others are the OBDII and the RPM cable.

Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.

Technical

Aim Solo 2 DL CAN / RS232 2m External Power Cable

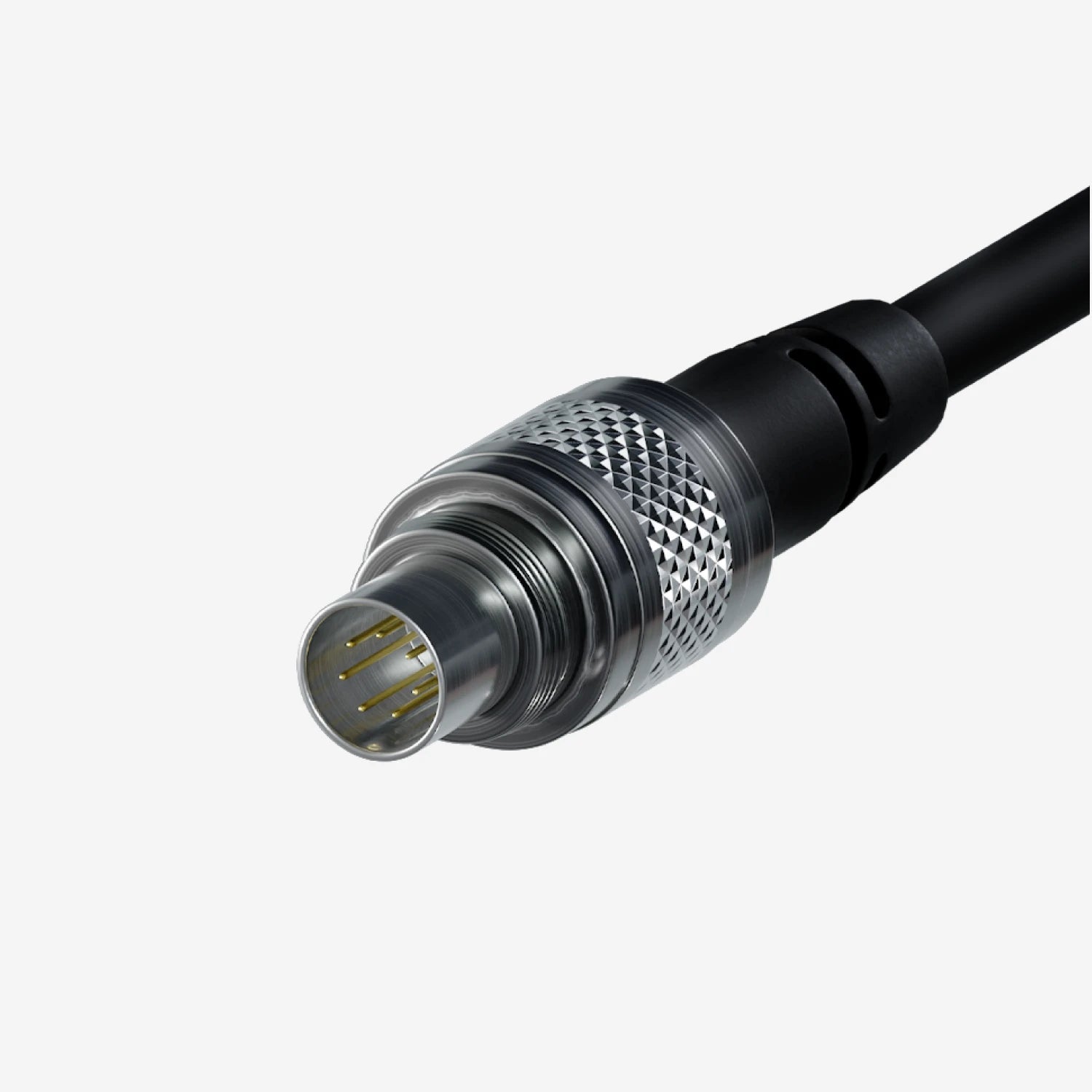

• 7 pin - 712 male binder connection
• 2m length cable

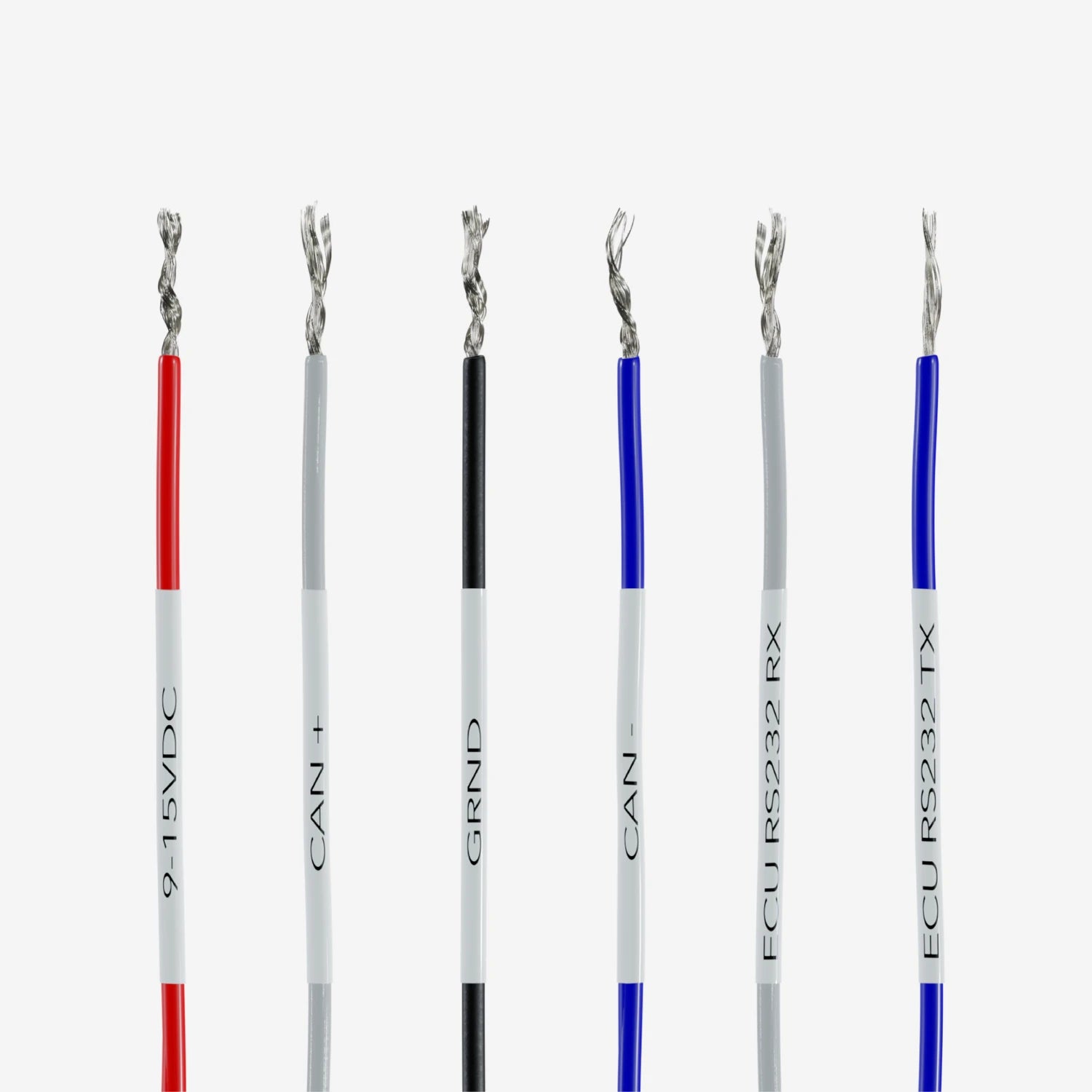

• Free cables:
• White - CAN+
• Blue - CAN-
• Red - 9-15DC
• Blue - ECU RS232 TX
• White - ECU RS232 RX
• Black - GND
• Both blue wires have a tag identifier, stating the connection type.

What's in The Box

Aim Solo 2 DL CAN / RS232 2m External Power Cable

• Solo 2 DL RS232/CAN External Power Cable

Downloads

	Technical sheet	Race Studio 3
