OBDII Connector
Suitable For Solo 2 DL
External Power Cable
7-Pin 712 Male Binder

Aim Solo 2 DL OBDII External Power Connector Cable

In magazzino, pronto per la spedizione
£43.00

Pairs well with
OBDII Connector
Suitable For Solo 2 DL
External Power Cable
7-Pin 712 Male Binder
shipping
Order within 7 hrs 18 mins 45 secs

Same Day Shipping

When you order before 15:00 BST

Monday - Friday

Worldwide Shipping

Worldwide Shipping

Free Shipping Above £50

Free Shipping Above £50

All Orders are Carbon-Neutral

All Orders are Carbon-Neutral

  • Apple Pay
  • Google Pay
  • Mastercard
  • Paypal
  • Shop Pay
Product Image

Quality Solo 2 DL Power Connector

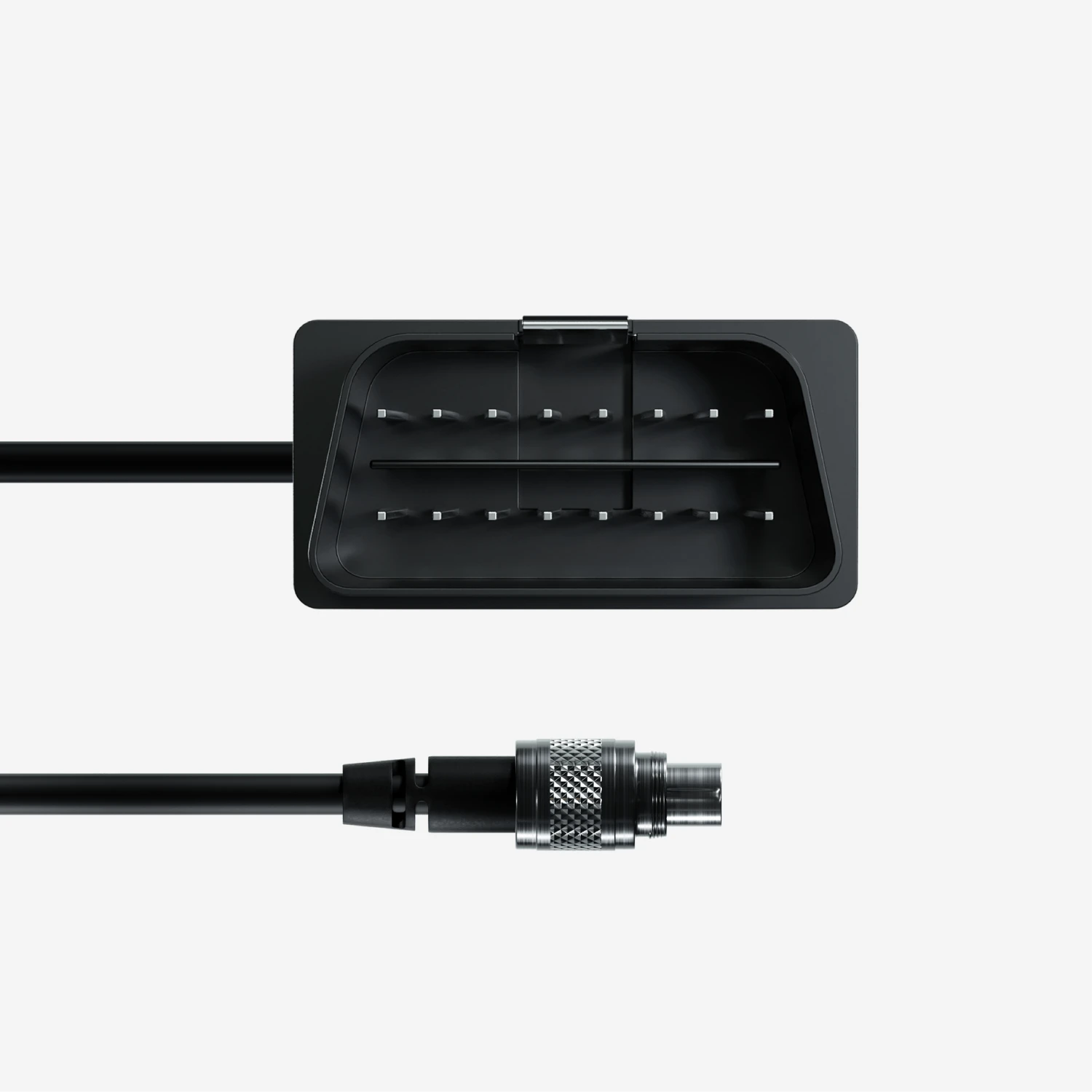

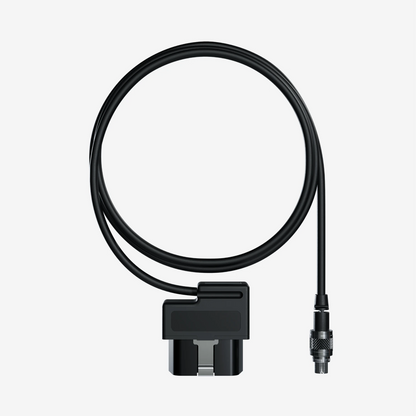

The Aim OBDII 2m external power cable connects your Solo 2 DL to your ECU wiring.

This is one of the connection cables available for the Solo 2 DL. Others are the RS232/CAN and the RPM cable.

Some of the OBDII protocol channels received are RPM, vehicle speed, fuel level, and throttle position. For an extended list of protocols, please see the technical data sheet in the free downloads tab.

Technical Information

Technical Specs

Technical

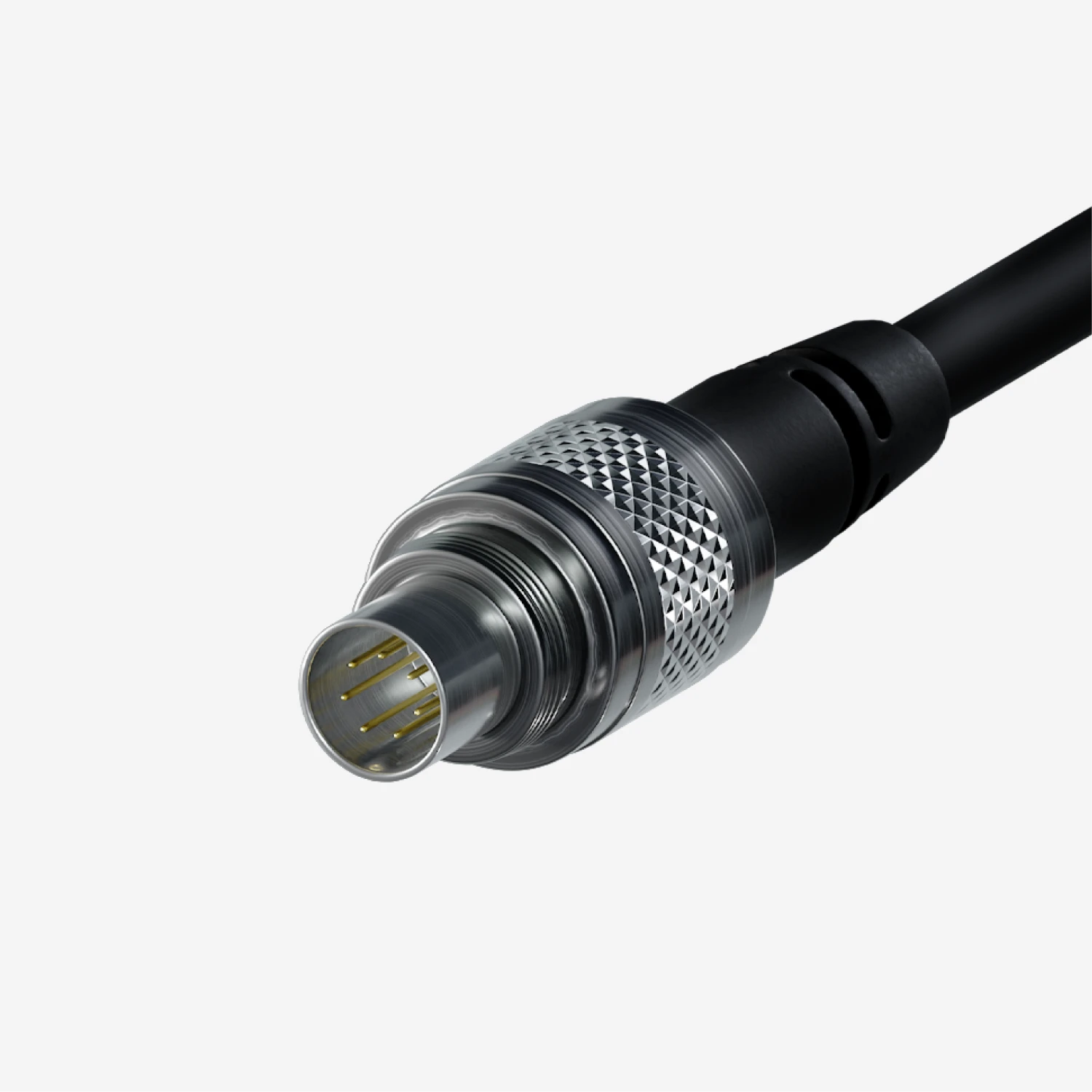

  • 7-pin 712 male binder connection
  • 2m cable

OBDII Connector Pin

  • 2 - Positive bus line - SAE J1850 protocol: not supported by Aim devices
  • 4 - Chassis GND
  • 5 - GND signal
  • 6 - CAN high - ISO 15765-4 and SAE J2234 protocols
  • 7 -  K-Line - ISO 9141-2 and ISO 14230-4 protocols
  • 10 - Negative bus line - SAE J18050 protocol: not supported by Aim devices
  • 14 - CAN low - ISO 15765 and SAE J2234 protocols
  • 15 - L line - ISO 9141-2 and ISO 14230-4 protocols
  • 16 - Battery supply

SKU: SOLO-K2-L

Included in the Box

Downloads

Solo 2 DL Power Cable User Guide
Race Studio 3 Download Icon
Race Studio 3
