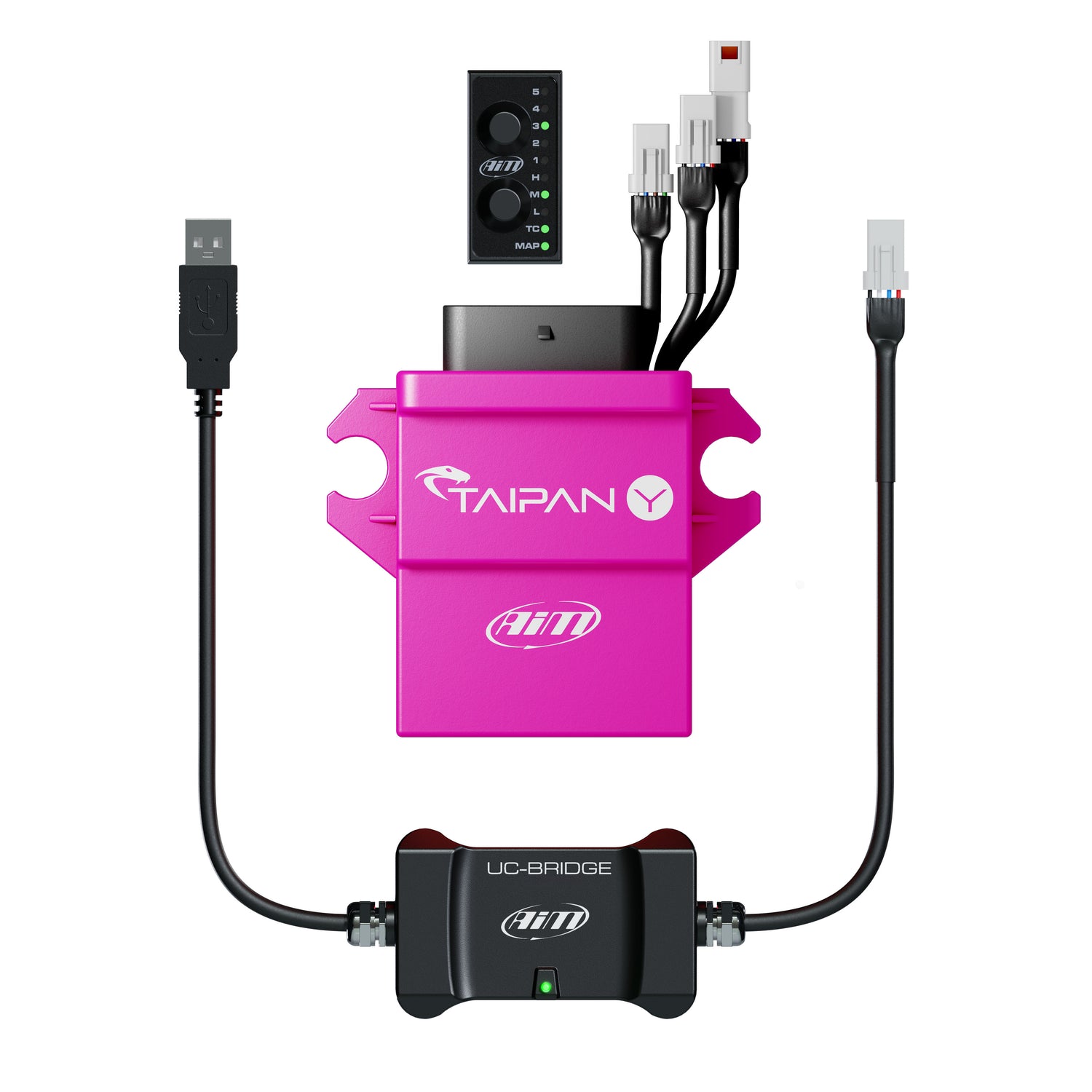

Yamaha Plug & Play AiM Taipan Y Motocross ECU Kit
SKU: C-ECU-YAM-250F-19
- Prezzo regolare
- £635.00
- Prezzo regolare
-
- Prezzo di vendita
- £635.00
- Prezzo unitario
- per
AiM Taipan Y ECU Plug & Play Kit For Yamaha Motocross Bikes
Taipan Y is the brand-new aftermarket plug & play ECU created by AiM, exclusively designed for off-road bikes. Thanks to its high technology 32-bit core, it represents an important step forward to improve the performance of your bike, without sacrificing reliability and smoothness.
It provides the ultimate control in feeling, ignition, ignition phase, start maps, launch control, traction control with altitude and engine temperature corrections.
Taipan Y Key Features & Advanced Strategies
Injection main alpha-n | Injection main speed-density |
Injection crank correction | Pre-injection |
Injection BAP Correction | Injection EWT Correction |
Injection IAT Correction | Injector Battery Correction |
Injector 2 | Ignition BAP Correction |
Ignition EWT Correction | Ignition IAT Correction |
Ignition Opening Transient Correction | Ignition Closing Transient Correction |
Launch Control | Injection Launch Control Main Table |
Ignition Launch Control Main Table | Quick Shift |
Traction Control |
Traction Control Strategy
For each map, the ECU has a dedicated traction control main table.
Launch Control
For each map, the ECU has a dedicated launch control main table.
High Technology 32-bit Core
Engine control requires precision. At 20,000 RPM the Taipan Y ECU guarantees a precision of 1/10 of degree: this means an accuracy within 0.8 usec for turning the spark ON!
This precision is the key to guarantee :
A very consistent engine rotation.
The possibility to repeat dozens of tests at the bench, always obtaining the same exact result.
A perfect reactivity at every minimum change of any point of a map, resulting in more power at the wheel.
Advanced Base Maps For Your Yamaha
Aim Taipan Y ECU includes a base map that immediately offers improved performance over the OEM control units.
Plug & Play
Taipan Y ECU currently fits the following Yamaha motocross bikes :
UC Bridge
The UC Bridge is the connection between the CAN bus of the ECCU and the USB port of your PC. It is available in 2 different licenses :
User License : A Taipan Y ECU comes with some basic maps that already give you better performance than the stock maps. Highly professional tuners all over the world offer specific maps that better fit your requirements, managing, for example, different exhaust, two injectors etc.
The UC Bridge is required for two functions :
- Transfer new and different maps to your ECU through the User License UC Bridge.
- Receiving diagnostic information from the Taipan Y ECU.
Tuner License :
With this license, the tuner can create different maps, configurations and strategies designed for the rider's bike. The tuner can then flash them directly onto the ECU or send them via email to allow the rider to download and install them in the ECU.
*Please Note: For information regarding the UC-Bridge Tuner, Please contact one of our AiM technical team for further information.
Taipan Y ECU Connections
The Taipan Y ECU has 4 connectors :
Main Connector - Compatible with most off-road bikes.
CAN Connector - Connects to the Handlebar Switch and Data Logger.
2nd CAN Connector - Connect to the UC Bridge, in order to communicate with the PC.
3rd Connector - Connect to spare analogue inputs and to a possible second injector.

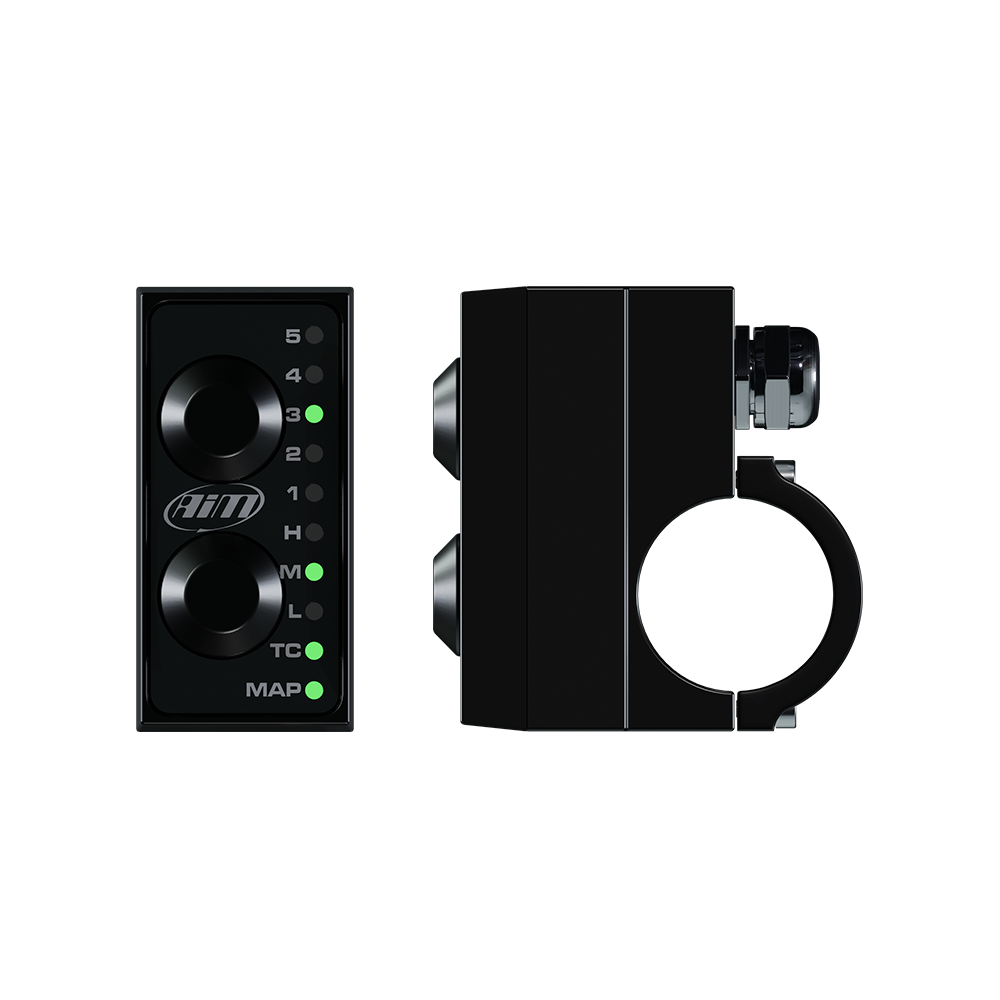

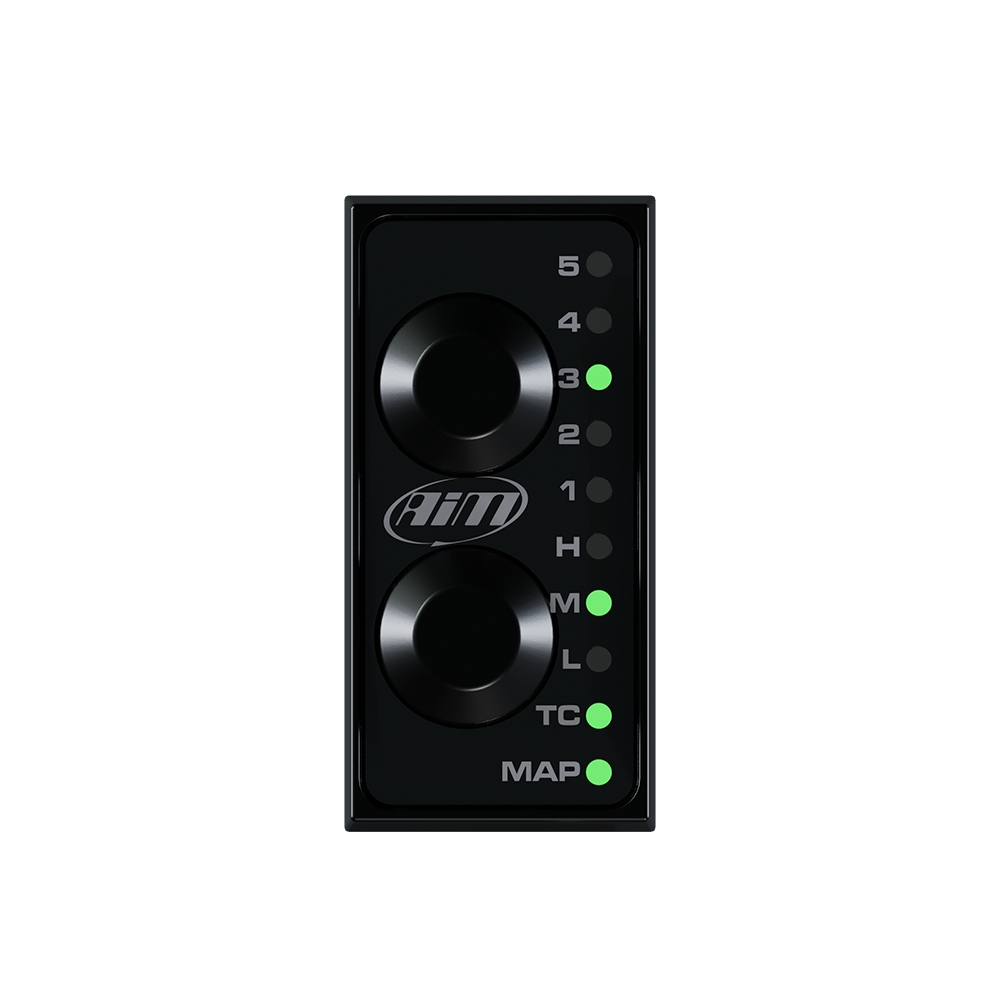

Aim Handlebar Switch
The Aim Handlebar Switch is the best way for changing the behaviour of your bike; it features 2 pushbuttons, 10 LEDs and manages the following settings :
Up to 5 selectable maps | Apply fuel corrections |
Activate traction control | Activate launch control |
The handlebar switch can also be used as a shift light module.
Below shows a functional diagram of products that can be added to the Taipan Y ECU:
AiM Taipan Y ECU Plug & Play Kit for Yamaha
- Two 0-5V analogue inputs sampled @ 1,000 Hz each, could be alternatively used as a switch to ground
- Second injector driver for high impedance saturated injectors (12Ω)
- One low side driver (1 A)
- Two CAN Bus, one for calibration purposes, one for expansions - (AiM handlebar switch, dataloggers, dash etc
- Three JST JWPF waterproof auxiliary connector
- Power consumption 150 mA
- Connectors: n. 1 JST 04T-JWPF-VSLE-S Connector
- n. 1 JST 08R-JWPF-VSLE-D Connector
- n. 1 JST 04R-JWPF-VSLE-S Connector
- n. 1 33 pin male Connector
- Body: PA6 + 30% glass fiber
- Dimensions: 89.4 x 75.4 x 29.3mm
- Waterproof: IP67
- Weight: 260g
AiM Taipan Y ECU Plug & Play Kit for Yamaha
- Plug & Play ECU for Yamaha
Description
AiM Taipan Y ECU Plug & Play Kit For Yamaha Motocross Bikes
Taipan Y is the brand-new aftermarket plug & play ECU created by AiM, exclusively designed for off-road bikes. Thanks to its high technology 32-bit core, it represents an important step forward to improve the performance of your bike, without sacrificing reliability and smoothness.It provides the ultimate control in feeling, ignition, ignition phase, start maps, launch control, traction control with altitude and engine temperature corrections.
Taipan Y Key Features & Advanced Strategies
Injection main alpha-n | Injection main speed-density |
Injection crank correction | Pre-injection |
Injection BAP Correction | Injection EWT Correction |
Injection IAT Correction | Injector Battery Correction |
Injector 2 | Ignition BAP Correction |
Ignition EWT Correction | Ignition IAT Correction |
Ignition Opening Transient Correction | Ignition Closing Transient Correction |
Launch Control | Injection Launch Control Main Table |
Ignition Launch Control Main Table | Quick Shift |
Traction Control |
Traction Control Strategy
For each map, the ECU has a dedicated traction control main table.Launch Control
For each map, the ECU has a dedicated launch control main table.High Technology 32-bit Core
Engine control requires precision. At 20,000 RPM the Taipan Y ECU guarantees a precision of 1/10 of degree: this means an accuracy within 0.8 usec for turning the spark ON!
This precision is the key to guarantee :
A very consistent engine rotation.
The possibility to repeat dozens of tests at the bench, always obtaining the same exact result.
A perfect reactivity at every minimum change of any point of a map, resulting in more power at the wheel.
Advanced Base Maps For Your Yamaha
Aim Taipan Y ECU includes a base map that immediately offers improved performance over the OEM control units.Plug & Play
Taipan Y ECU currently fits the following Yamaha motocross bikes :UC Bridge
The UC Bridge is the connection between the CAN bus of the ECCU and the USB port of your PC. It is available in 2 different licenses :
User License : A Taipan Y ECU comes with some basic maps that already give you better performance than the stock maps. Highly professional tuners all over the world offer specific maps that better fit your requirements, managing, for example, different exhaust, two injectors etc.
The UC Bridge is required for two functions :
- Transfer new and different maps to your ECU through the User License UC Bridge.
- Receiving diagnostic information from the Taipan Y ECU.
Tuner License :
With this license, the tuner can create different maps, configurations and strategies designed for the rider's bike. The tuner can then flash them directly onto the ECU or send them via email to allow the rider to download and install them in the ECU.
*Please Note: For information regarding the UC-Bridge Tuner, Please contact one of our AiM technical team for further information.
Taipan Y ECU Connections
The Taipan Y ECU has 4 connectors :
Main Connector - Compatible with most off-road bikes.
CAN Connector - Connects to the Handlebar Switch and Data Logger.
2nd CAN Connector - Connect to the UC Bridge, in order to communicate with the PC.
3rd Connector - Connect to spare analogue inputs and to a possible second injector.
Aim Handlebar Switch
The Aim Handlebar Switch is the best way for changing the behaviour of your bike; it features 2 pushbuttons, 10 LEDs and manages the following settings :
Up to 5 selectable maps | Apply fuel corrections |
Activate traction control | Activate launch control |
The handlebar switch can also be used as a shift light module.
Below shows a functional diagram of products that can be added to the Taipan Y ECU:
Technical
AiM Taipan Y ECU Plug & Play Kit for Yamaha
- Two 0-5V analogue inputs sampled @ 1,000 Hz each, could be alternatively used as a switch to ground
- Second injector driver for high impedance saturated injectors (12Ω)
- One low side driver (1 A)
- Two CAN Bus, one for calibration purposes, one for expansions - (AiM handlebar switch, dataloggers, dash etc
- Three JST JWPF waterproof auxiliary connector
- Power consumption 150 mA
- Connectors: n. 1 JST 04T-JWPF-VSLE-S Connector
- n. 1 JST 08R-JWPF-VSLE-D Connector
- n. 1 JST 04R-JWPF-VSLE-S Connector
- n. 1 33 pin male Connector
- Body: PA6 + 30% glass fiber
- Dimensions: 89.4 x 75.4 x 29.3mm
- Waterproof: IP67
- Weight: 260g
What's in The Box
AiM Taipan Y ECU Plug & Play Kit for Yamaha
- Plug & Play ECU for Yamaha
