Aim MXP 1.3 6" TFT Car Dash Display Logger

Connecting the MXP 1.3 dash to your car's ECU is simple. You can sample dozens of channels straight from the ECU. This is usually the quickest and easiest setup, needing only a cable connection to the ECU instead of multiple connections and analogue sensors.

The sampled data will depend on your actual ECU, but typically includes RPM, engine load, throttle position (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear and lambda value (air/fuel ratio). The list of available ECU drivers is constantly updated and upgraded, and includes over 1,000 different ECUs.

The MXP car dash display logger features two digital outputs. Each of them can give an output of 1 amp at 12 volts. They can be configured to be turned on/off depending on the value of the analogue or digital inputs. They permit automatic running of external systems such as switching on/off additional lights, activating/deactivating a cooling fan or circulation pumps when a certain event happens.

With the CAN output, you can also send messages directly to an existing CAN network to improve the range of vehicle control possibilities.

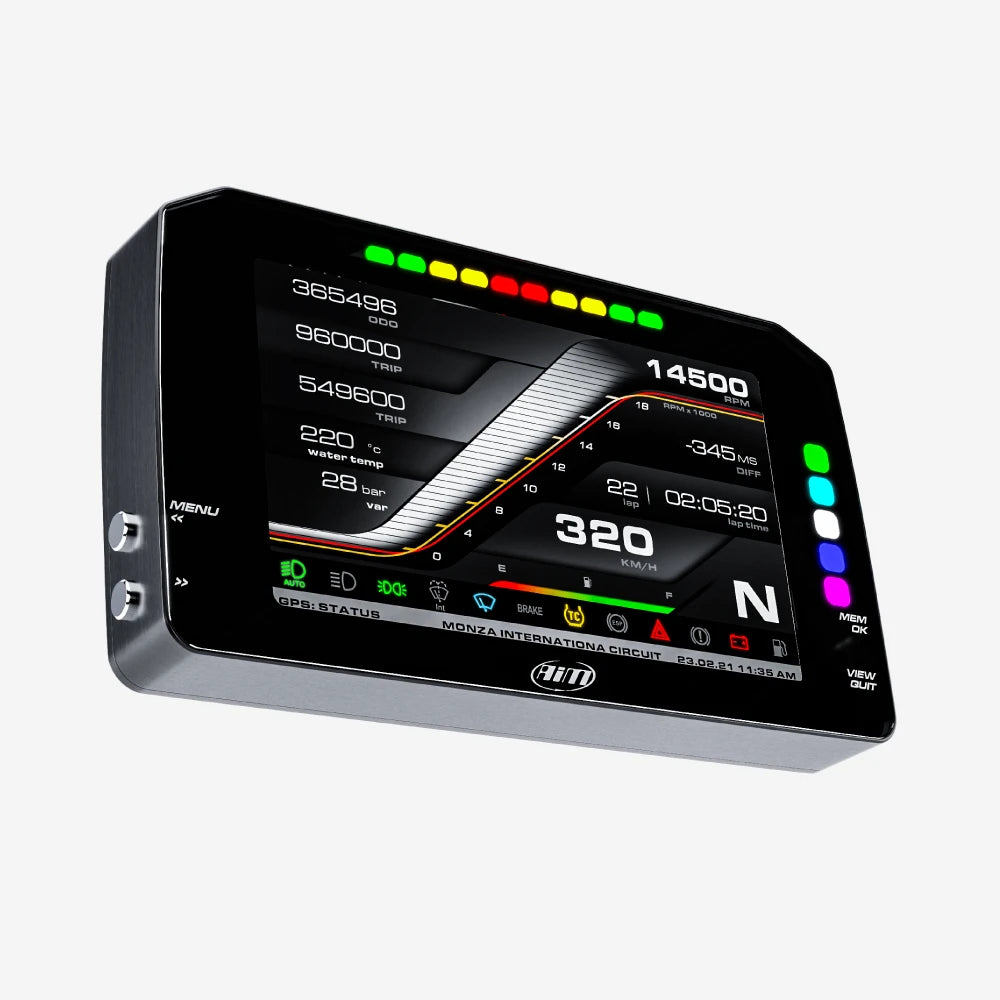

With a high contrast 6" TFT display, which is fully configurable, you can create and customise pages/displays to suit your requirements. Swapping pages can be managed by pushing one or two push buttons. An ambient light sensor adjusts the backlight for optimal brightness, ensuring clear visibility in all lighting conditions.

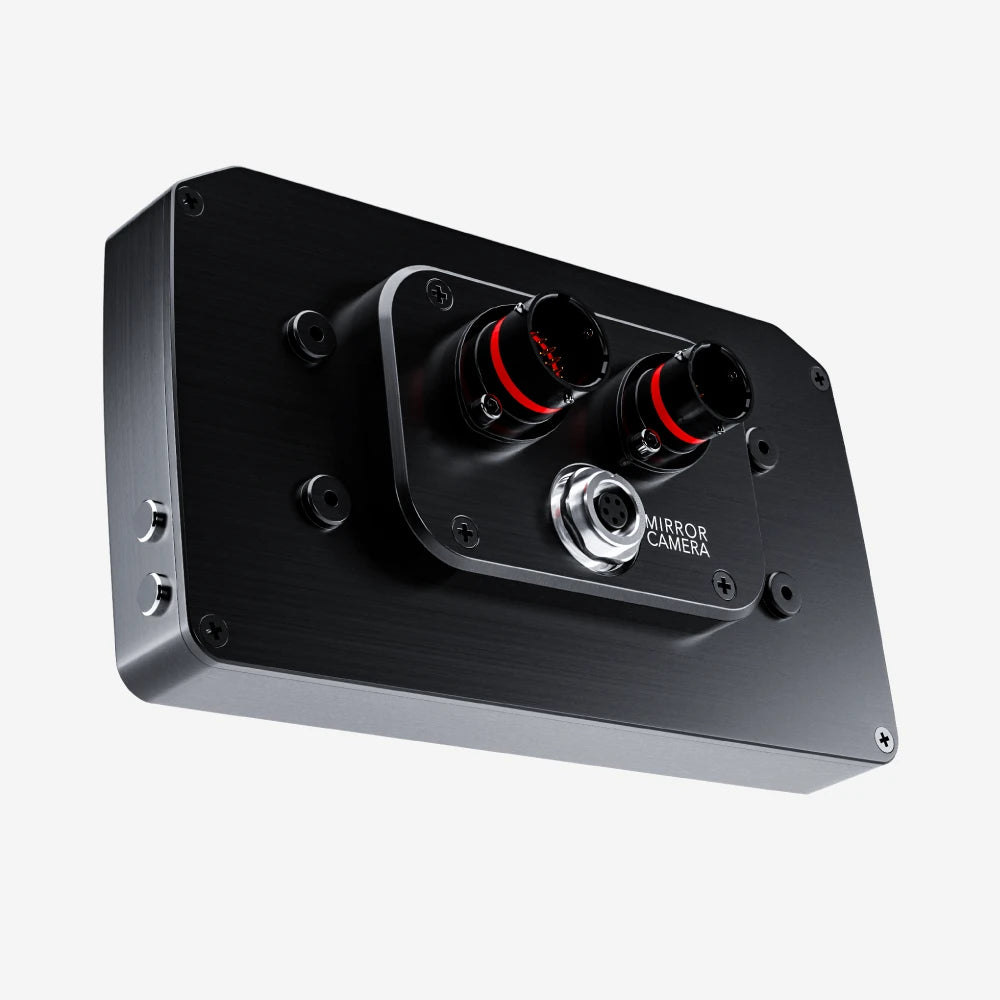

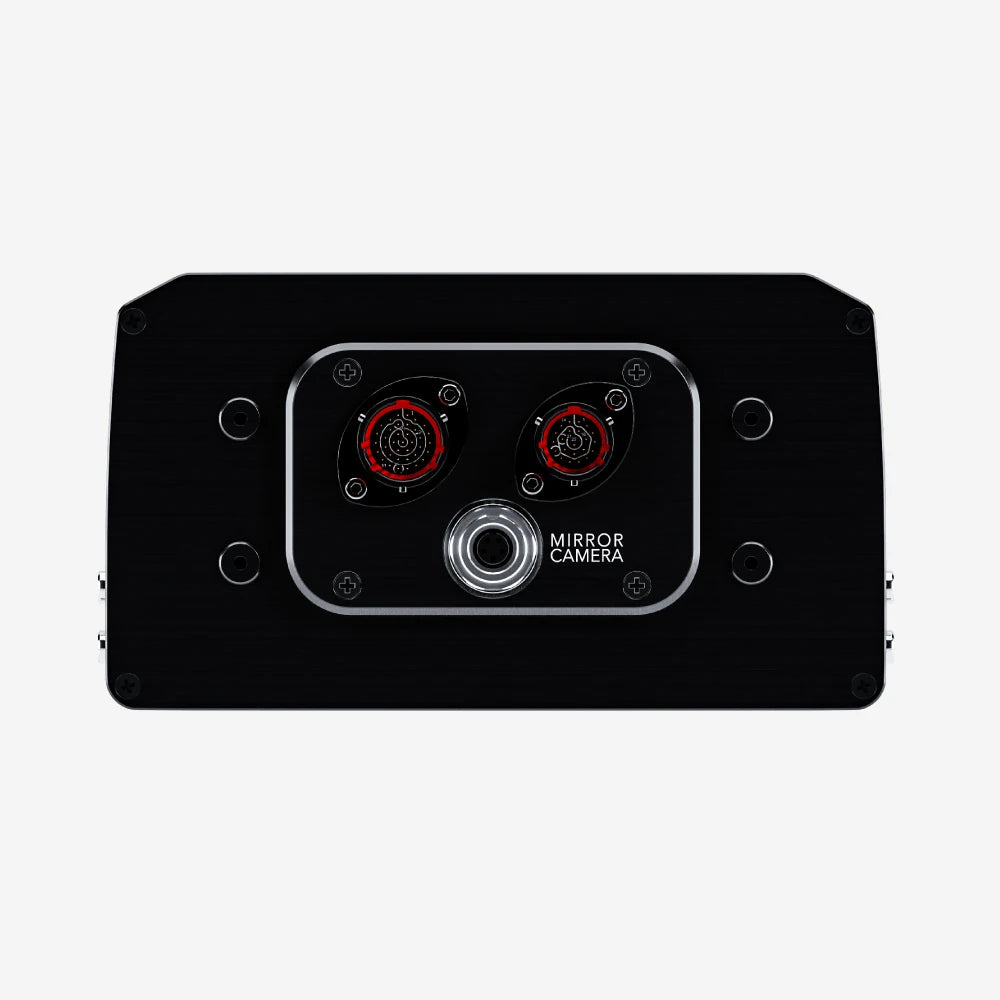

Two analogue camera inputs are available to switch your display into a mirror camera, through a push button command or event management. The camera is sold separately.

The MXP car dash display logger has 6 configurable RGB LEDs. You can choose the conditions and colours. Select a solid alarm or flashing one, and the flashing frequency. You can choose to have an accompanying text message and set the alarm priorities.

With integrated shift lights, you can choose from a host of advanced multi-coloured RGB shift light patterns that can be customised to suit your requirements, and for each unique gear when required.

The included GPS09 module connected via CAN to the MXP dash logger makes lap time calculations and track position analysis easy. With 4,000+ worldwide tracks already stored with the start and finish line coordinates, you will have no problem when you're on the track.

As soon as the MXP is turned on, the GPS module will locate its position, identify track line coordinates and start immediately sampling lap and split time. If the track is not in the database, you can easily add the start/finish line coordinates to the MXP using our Race Studio 3 software.

The GPS Module is available with cable lengths of 50cm, 1.3m, 2m or 4m, or a roof version with 2m or 4m length cables.

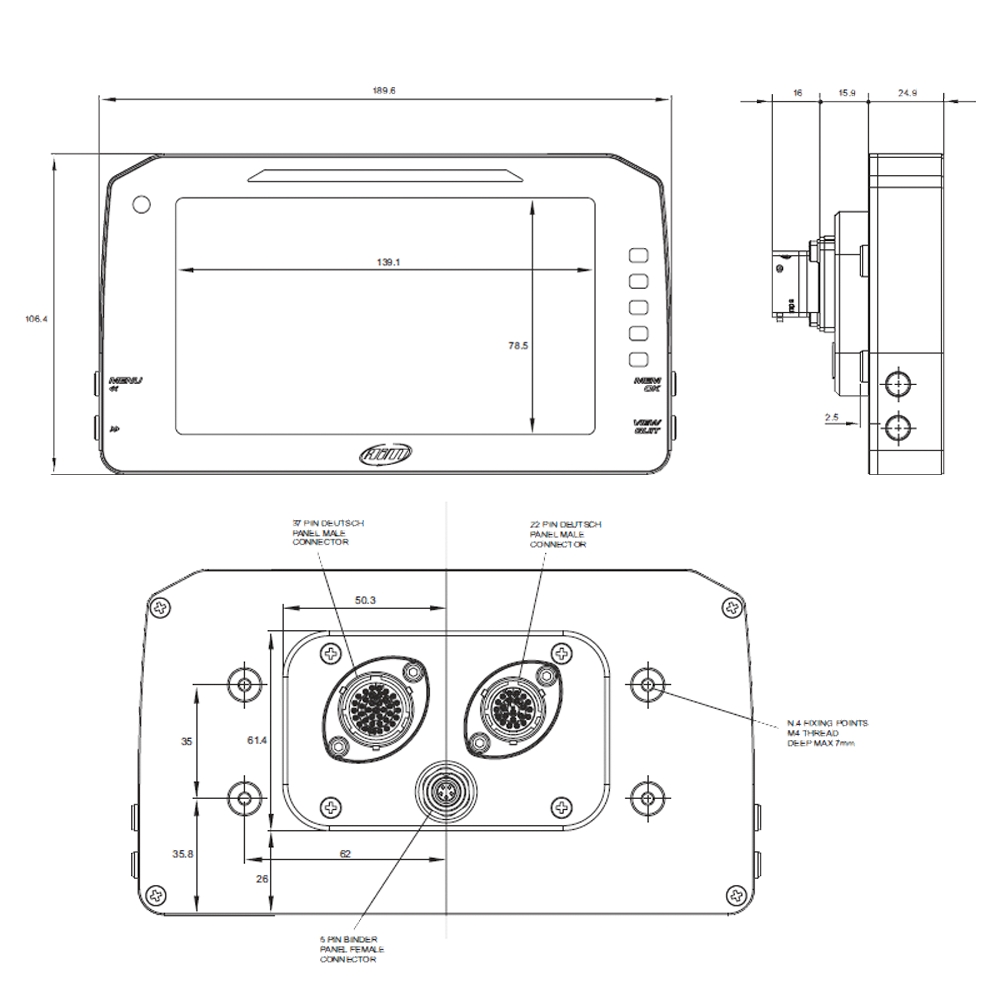

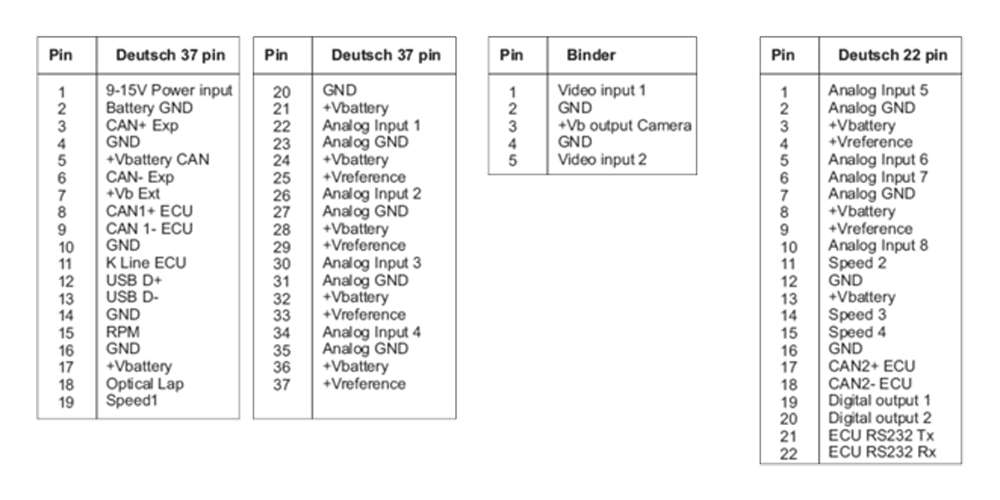

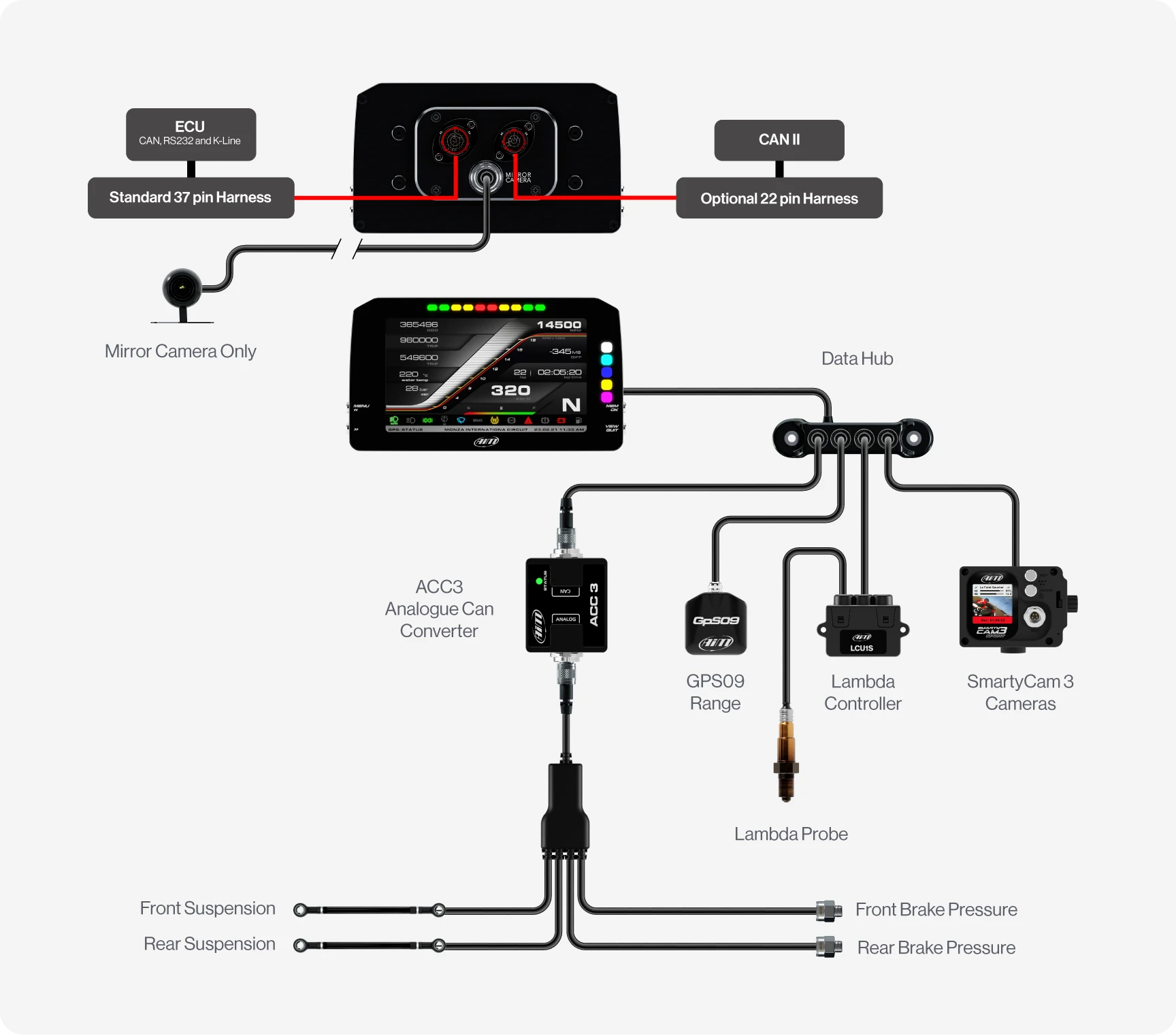

Please Note: A 37 pin harness comes standard in the kit. Should you need more data, you can add our 22 pin harness as an optional extra.
