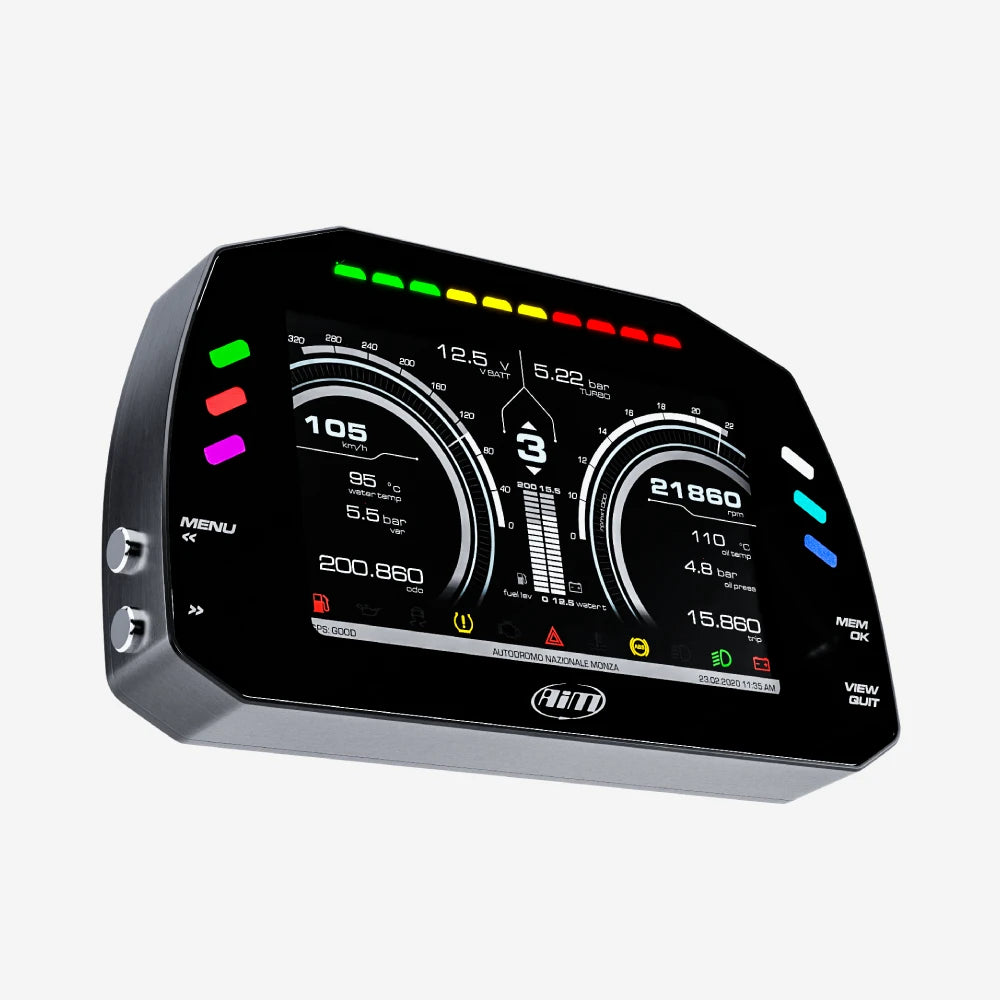

The Aim MXS 5" Compact Powerboat Dash Data Logger is specifically designed to be small and compact to acquire and display data from your powerboat engine ECU.This includes data from the internal accelerometer, gyro and from the GPS Module included in the kit.
A Wide Range of Data Sources
Aim MXS is the new dash logger designed to acquire and display data coming from your engine ECU, the internal accelerometer, gyro, and from the GPS Module included in the kit. Analogue/digital inputs and predefined math channels.
Performance and data acquired can also be incremented adding up to eight expansion modules. The only difference between the two is the MXS is a compact 5″ display and MXG is a 7″ display, a better fit for wide cockpit installations.
MXS ECU Connections
Aim MXS acquires data from the ECU of your vehicle.The list of available ECU drivers is constantly updated and upgraded and is published in our support site which include over 1000 different ECU’s, either Stock and Racing. They are sorted by manufacturer/vehicle model and for each ECU, you will find the proprietary communication protocols, including the standard OBDII ones.
From a hardware point of view, MXS manages the following data lines:
MXS Analog Digital Inputs
MXS has eight analog inputs, recorded up to 1000 times per second each. You can connect and monitor all kinds of sensors, like:
- Ratiometric potentiometers
- Pressure sensors
- K-type thermocouple and many others, all your custom sensors included.
MXS also features six digital inputs
MXS GPS Module
- Four speed signals – MXS can receive the speed signal from the ECU, from the GPS and from the four wheel sensors.
- RPM – MXS can receive the RPM signal from the ECU or from a digital input connected to a square wave signal (8 to 50 V) or to a low voltage (from 150 to 400 V) of the coil.
- Lap signal – Lap and split times are sampled by the GPS (included in the kit) or via optical receiver/transmitter.
The GPS08 Module (included in the kit) connected via CAN to the MXS makes lap time calculation and track position analysis very easy. Each Aim MXS memory stores more than 200 world tracks start/finish line coordinates: as soon as Aim MXS is switched on, the GPS08 Module will locate its position, identify track-line coordinates and start immediately sampling lap and split time.If the track is not included in the database, it is always possible to add the start/finish line coordinates to the Aim MXS via PC before going to the track, using the Race Studio 3 – Track Manager software.
MXS Second CAN
An innovative MXS feature is its CAN 2 line, managing data coming from your additional modules (i.e. ABS, traction control, infrared temperature sensors and more. This feature meets the requirements of a growing number of racers, as the use of additional modules is becoming quite common in a number of series.MXS Internal Accelerometer and Gyro
The internal three-axial accelerometer and the gyroscope provide the MXS a very powerful array of information. These force and motion sensors enable you to quantify the dynamic characteristics of your vehicle. Measuring acceleration forces and gyro rates can assist in determining how to improve your vehicle performances.
MXS Math Channels
With MXS you immediately get Math Channels values. The dash logger can be configured to display those values (i.e. brake bias, calculated gear) in real time.

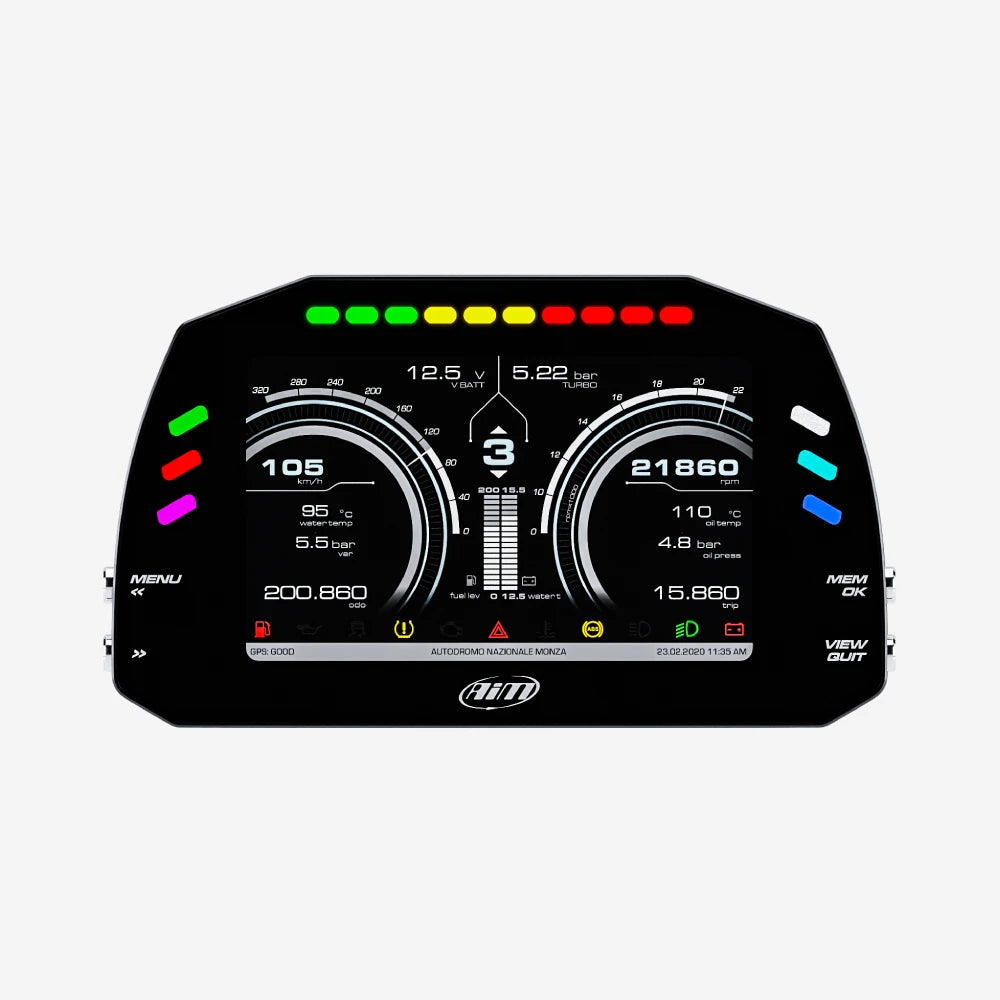

Extra Wide, High Contrast 7″ TFT display
The MXS display features a high contrast TFT display identifies MXS at the first glance. An ambient light sensor keeps the back light at optimum brightness levels.
Freely Configurable Pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.Flexible Alarms
MXS has Eight configurable RGB alarm LED’s. You choose the conditions, you choose the colours. Select a solid alarm or flashing one and the flashing frequency then choose to have an accompanying text message and set the alarm priorities.
Two Digital Outputs
Aim MXS features two digital outputs. Each of them can give an output of 1 amp at 12 volts: they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Integrated Light Shift Array

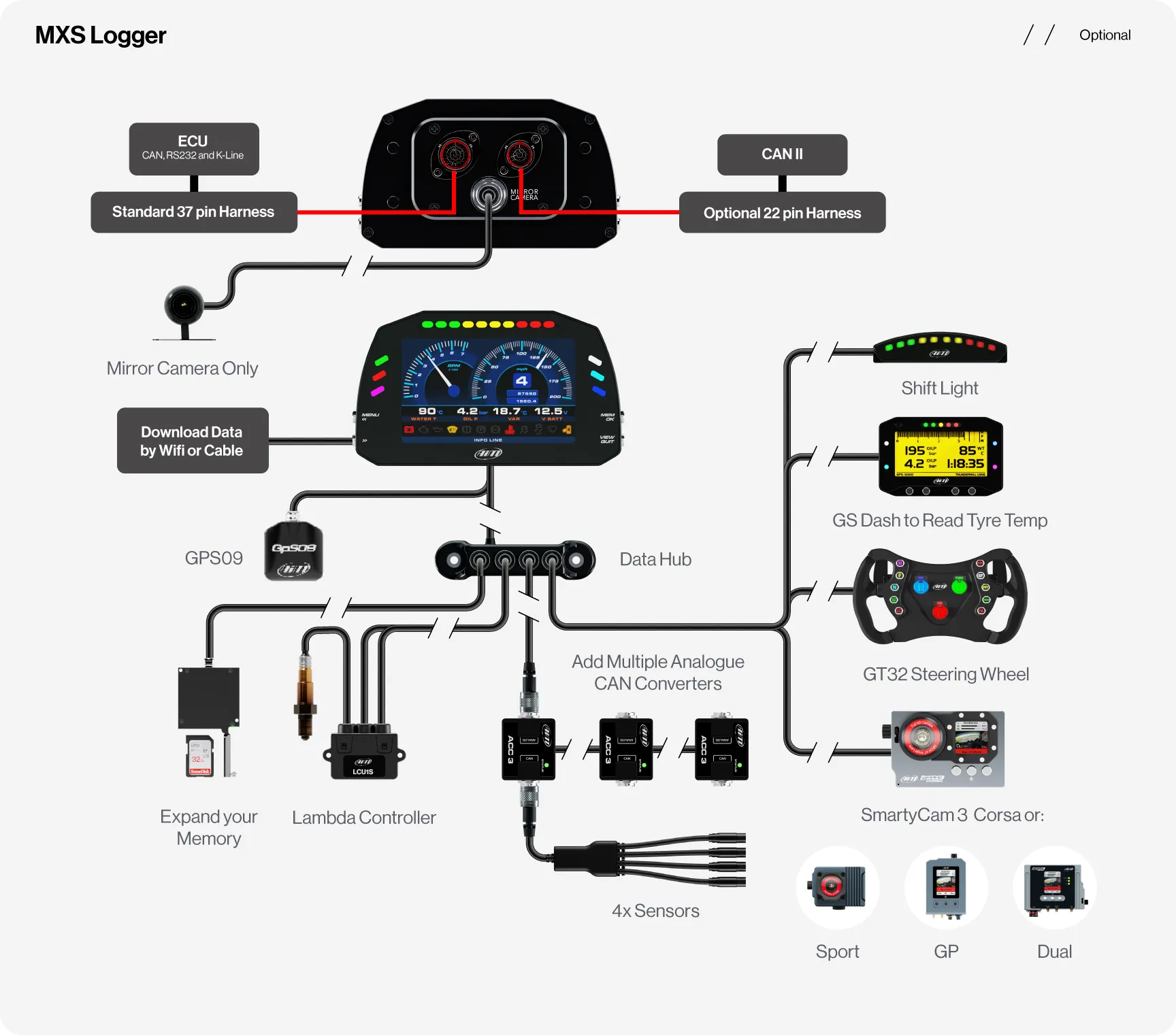

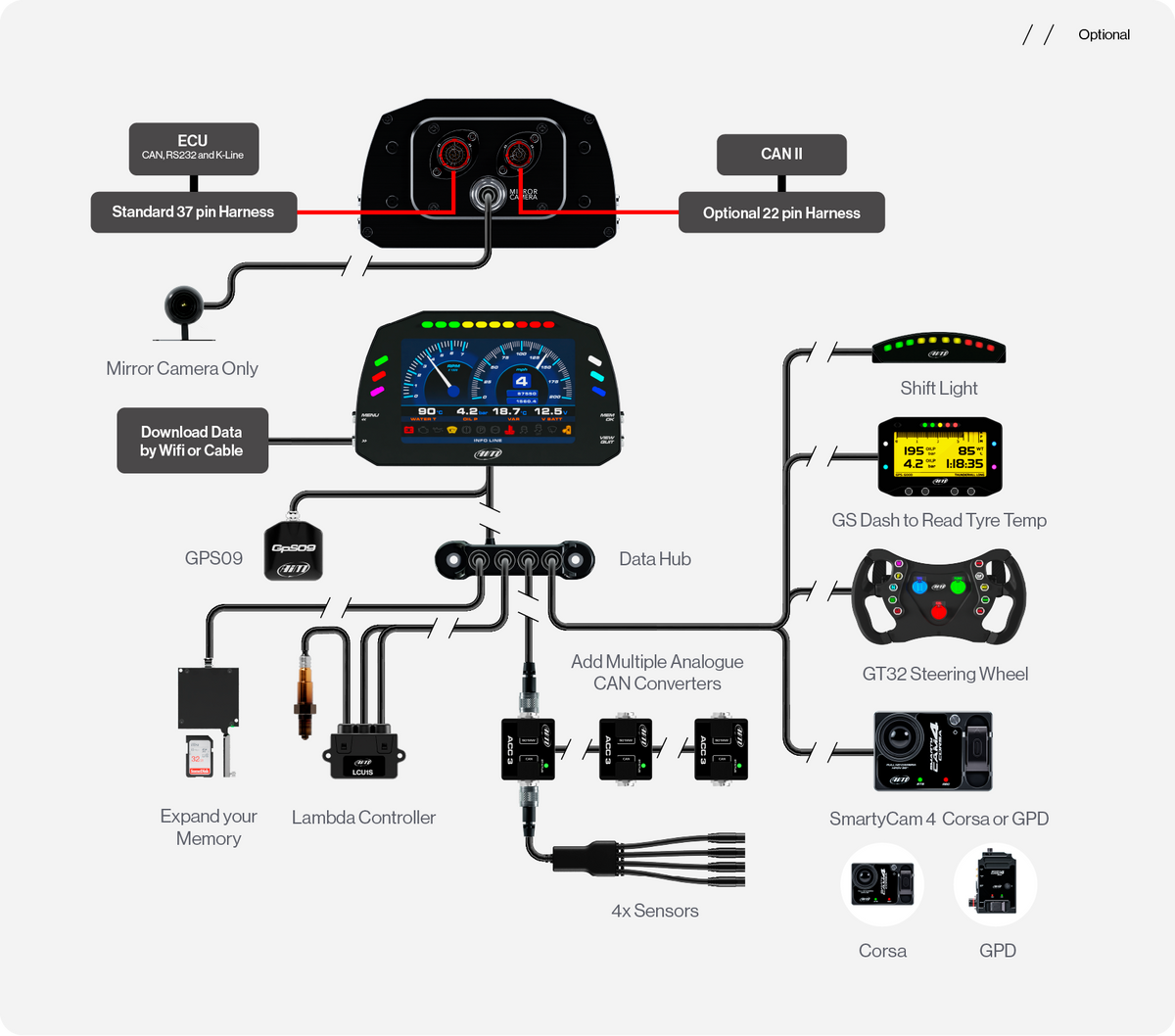

Choose from a host of advanced multicoloured RGB shift light patterns that can be customised to your liking, and for each unique gear when required. Using the built-in CAN bus, you can add expansion modules to the Aim MXS to increment the performance and the data acquired:
Race Studio 3
Race Studio 3 is the heart of your MXS, managing all your racing activities. The Race Studio 3 can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Display MXS: 5” TFT
Resolution 800x480 pixels
Contrast MXS: 600:1
Brightness 700cd/m2 - 1,100 Lumen
Ambient light sensor Yes
Alarm LEDs MXS: 6 RGB freely configurable
MXG: 8 RGB freely configurable
Shift lights 10 integrated freely configurable RGB LEDs
CAN connections 3
ECU connections CAN, RS232 or K-Line
ECU compatibility + 700 industry leading ECUs
Expansion CAN connection GPS, Channel Expansion, Thermocouple Expansions, Lambda Controller,
Analog inputs 8 fully configurable, max 1,000 Hz each
Digital inputs 4 Speed inputs, lap signal, coil RPM input
Digital outputs 2 (1 Amp max each)
Accelerometer Internal Three-axial ± 5G + Three-axial Gyroscope
Internal memory 4 GB
Body Anodized Aluminum

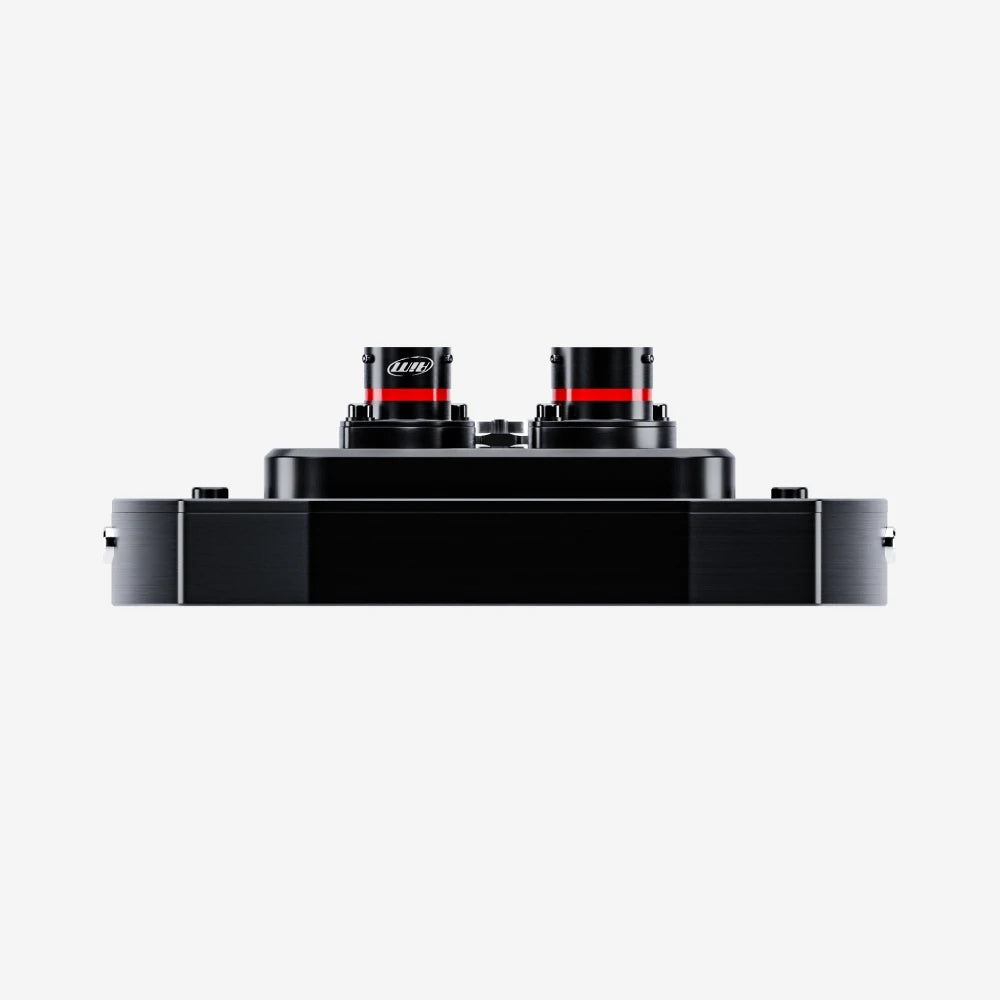

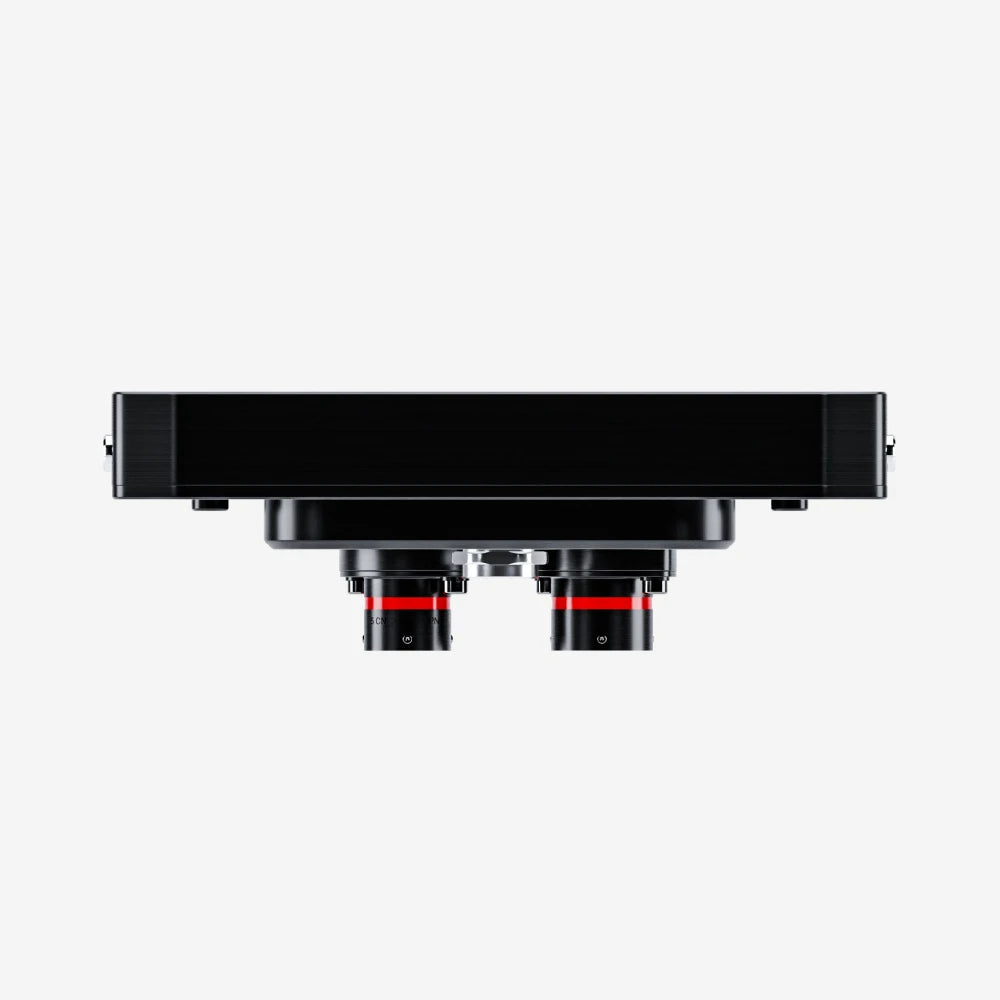

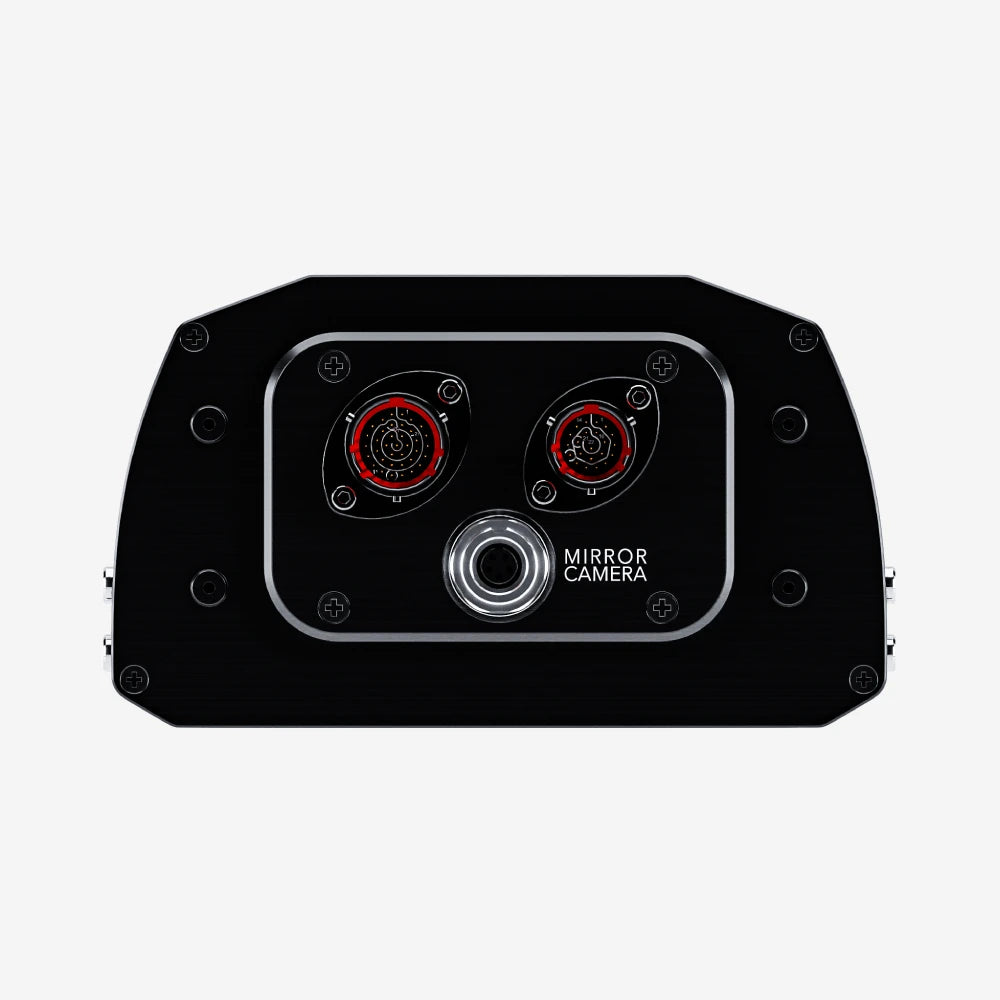

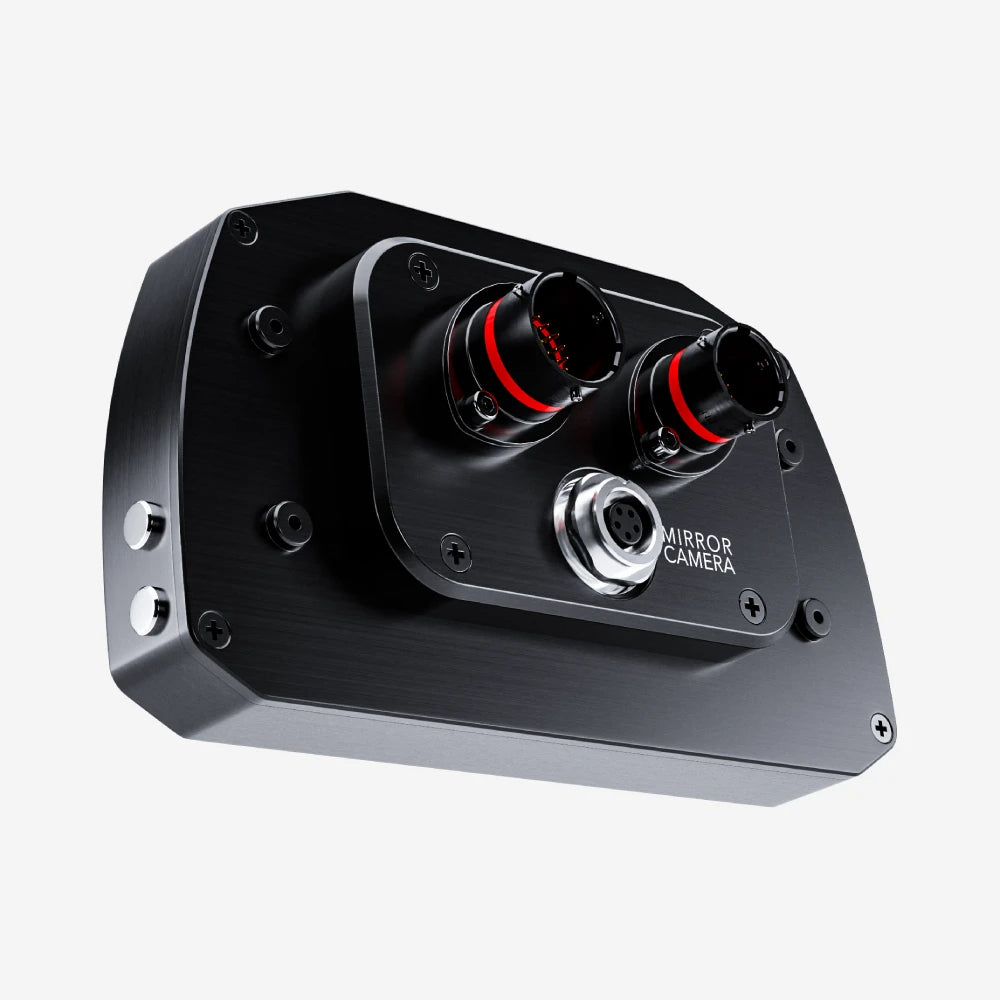

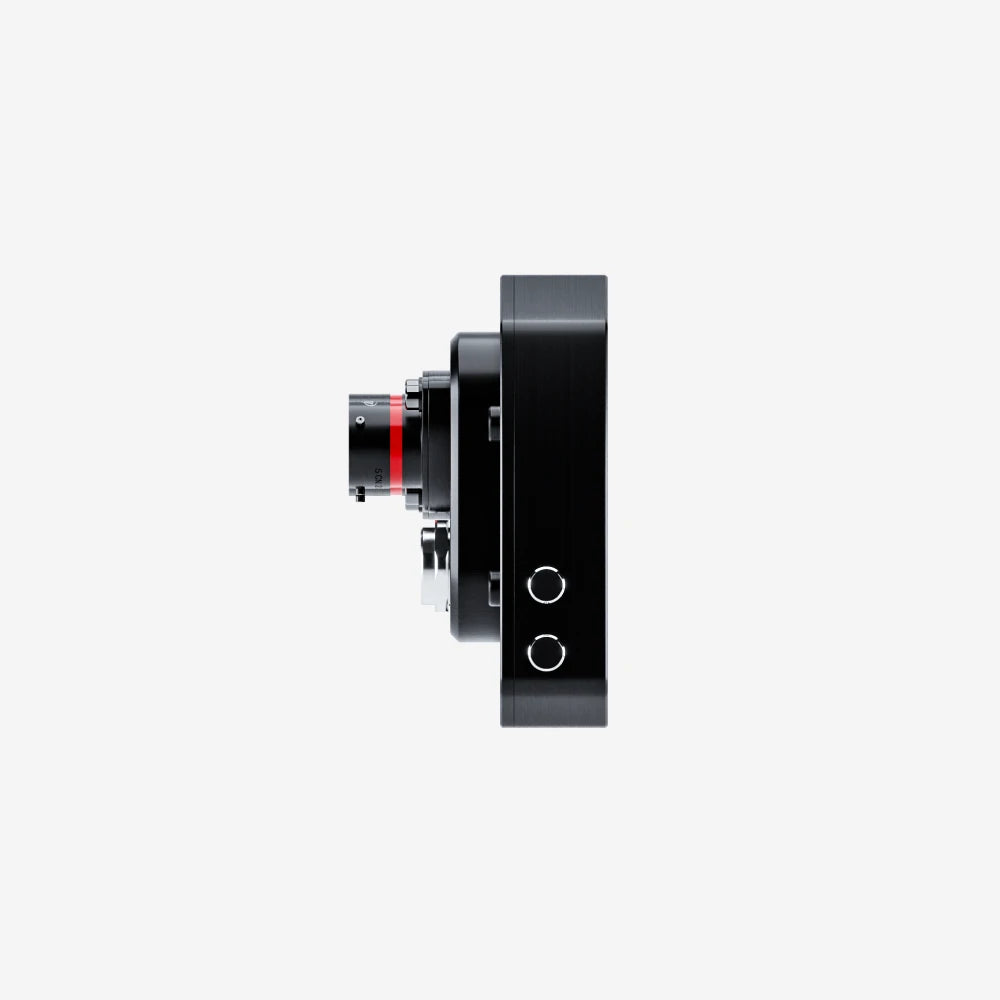

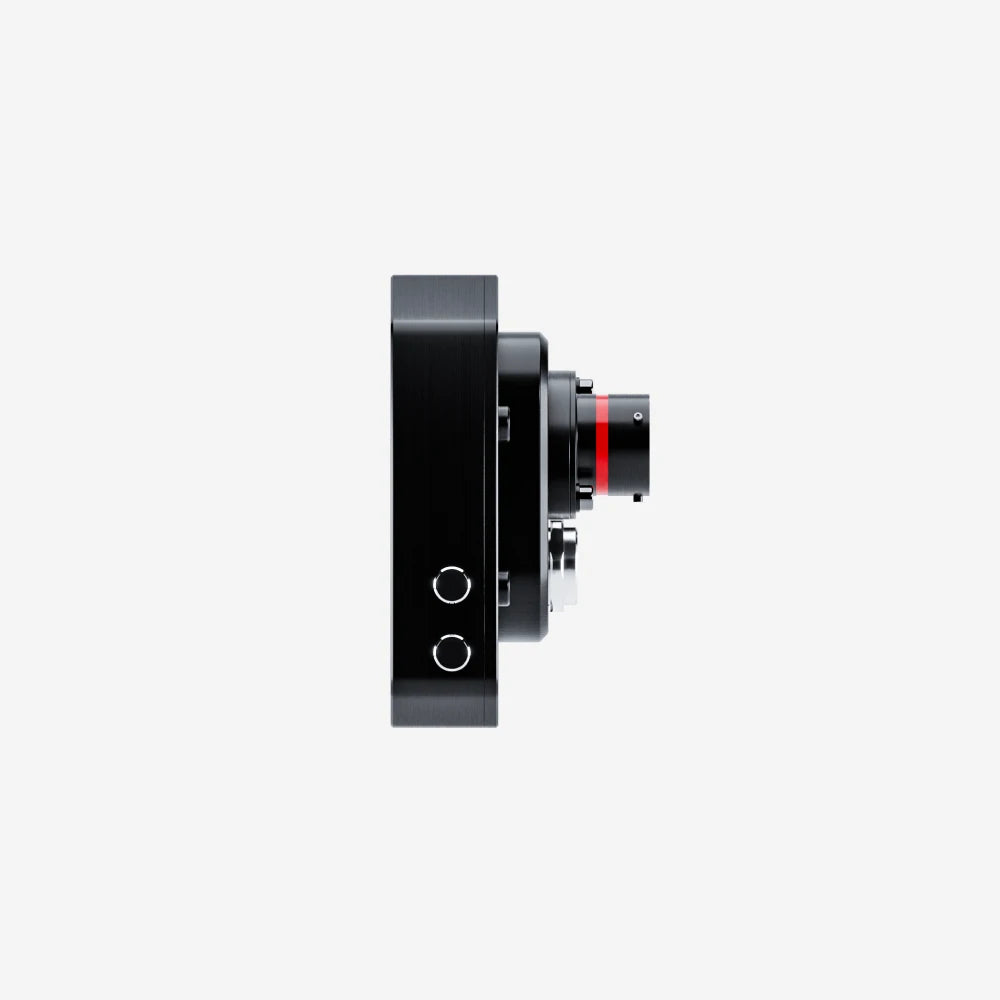

Connectors 2 Motorsport connectors
Dimensions MXS: 169.4x97x23 mm
MXG: 237x127.6x26 mm
Weight MXS: 530 g
MXG: 950 g
Power consumption 400 mA
In the Box
- Aim MXS Motorcycle 5" Dash Logger
- 37 Pin Standard Harness
- GPS Module with Cable
- USB Cable
- Software Installation CD
Documents & Manuals
Download the User Manual here
Technical sheet and product history ver. 1.07
Harness for MXL2/MXG/MXS ver. 1.06
Harness of 22 pins Deutsch connector with 1 thermocouple for MXL2/MXG/MXS ver. 1.00
Harness of 22 pins Deutsch connector with 2 thermocouples for MXL2/MXG/MXS ver. 1.00
Harness of 37 pins Deutsch connector with 1 thermocouple for MXL2/MXG/MXS ver. 1.00
Harness of 37 pins Deutsch connector with 2 thermocouples for MXL2/MXG/MXS ver. 1.00
UBS adapter for MXL2/MXG/MXS ver. 1.05
Installation template (scaled 1:1)
Digital outputs ver. 1.03
Remote buttons interface
