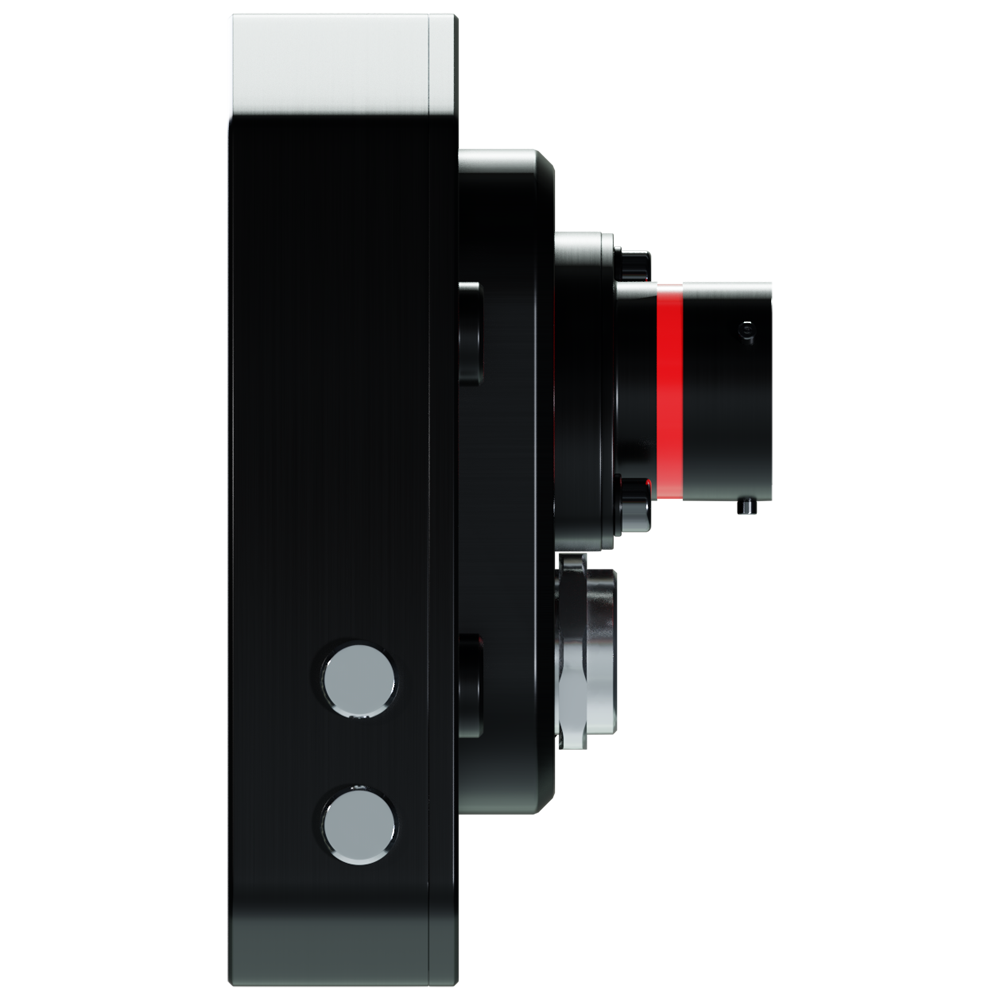

Aim MXS 1.2 Compact Motorcycle Dash Data Logger

SKU: MXS-B-GPS
Availability: 49 in stock
£1,980.00

QTY:
Trust Badge

The Aim MXS 1.2 Compact Motorcycle Dash Data Logger is the evolution of MXS, is the dash logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog / digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 5″ display has been specifically designed for installation in small cockpits.

The MXS 1.2 is also available in its STRADA version -  A dash logger for road use which is also available as an IVA approved kit. more info

MXS 1.2 is also available in its STRADA version

CAN Output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.



Freely Configurable Pages

You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.
Freely Configurable Pages

High Contrast TFT Display

A high contrast TFT display identifies MXS 1.2 at the first glance. An ambient light sensor keeps the back-light at optimum brightness levels.
High Contrast TFT Display

Flexible Alarms

MXS 1.2 Compact Motorcycle Dash Data Logger features six configurable RGB alarm LED’s. You choose the conditions, you choose the colours. Select a solid alarm or flashing alarm along the flashing frequency. Choose to have an accompanying text message and set the alarm priorities.

Flexible Alarms

Two Digital Outputs

MXS 1.2 Compact Motorcycle Dash Data Logger features two digital outputs. Each of them can give an output of 1 amp at 12 volts: they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
more info
Two Digital Outputs

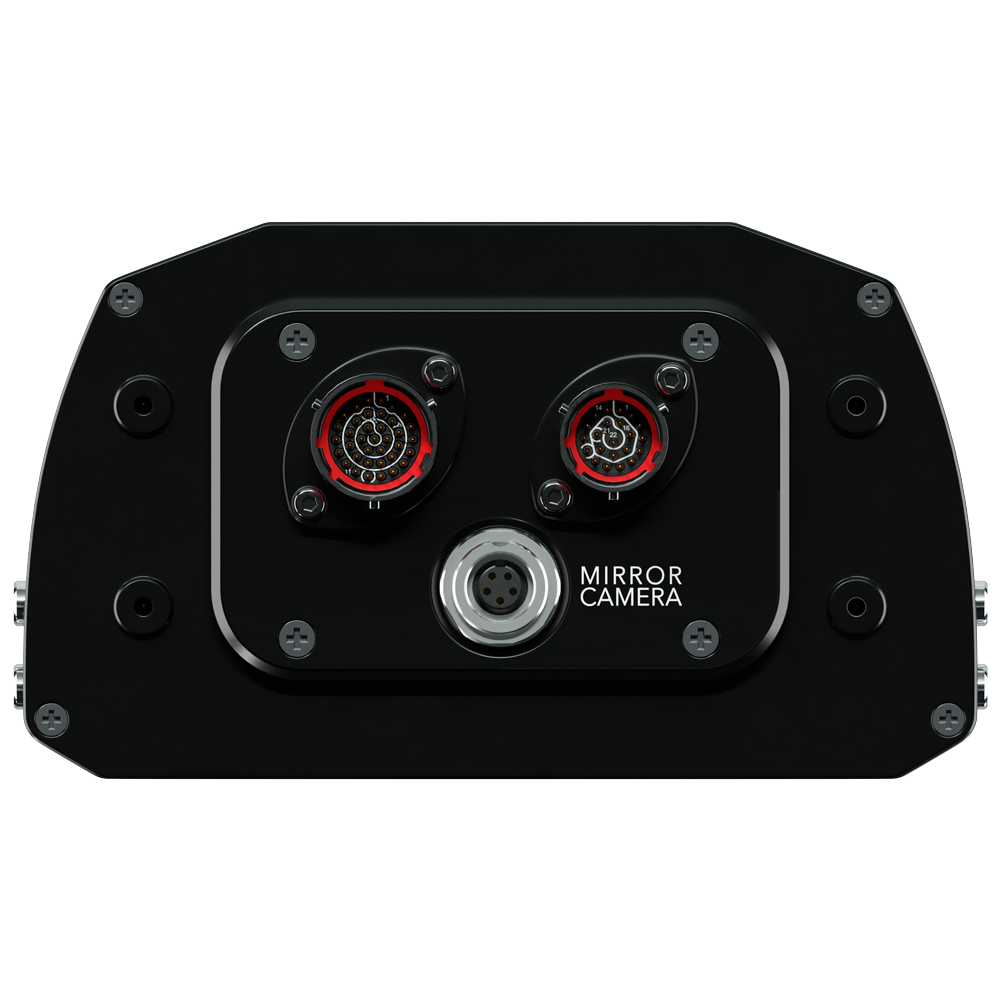

Camera inputs, also for mirror camera

Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.

Camera inputs, also for mirror camera

Integrated Light Shift Array

Choose from a host of advanced multicoloured RGB shift light patterns that can be customised to your liking, and for each unique gear when required. Using the built-in CAN bus, you can add expansion modules to the MXS 1.2 Compact Motorcycle Dash Data Logger to increment the performance and the data acquired:
Integrated Shift Light Array

Connection Example

Connection Example

A wide range of data sources

MXS 1.2 Compact Motorcycle Dash Data Logger is the dash logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7″ display makes it perfect for wide cockpits installation.

Wifi

Race Studio 3

Race Studio 3 is the heart of your MXS 1.2 Compact Motorcycle Dash Data Logger, managing all your racing activities. The Race Studio 3 can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Race Studio 3

Analysis

With Race Studio 3 you can also analyse all data recorded by MXS 1.2 Compact Motorcycle Dash Data Logger and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances

Race Studio 3

Download RS3

Get More Data, Win More Races



Technical Specifications



Display : 5” TFT
Resolution : 800×480 pixels
Contrast : 600:1
Brightness : 700cd/m2 – 1,100 Lumen
Ambient light sensor : Yes
Alarm LEDs : 6 RGB freely configurable
Shift lights : 10 integrated freely configurable RGB LEDs
CAN connections : 3
ECU connections : CAN, RS232 or K-Line
ECU compatibility : + 1,000 industry leading ECUs
Expansion CAN connection : GPS, Channel Expansion, Thermocouple Expansions, Lambda Controller, SmartyCam HD
Analog inputs : 8 fully configurable, max 1,000 Hz each
Digital inputs : 4 Speed inputs, lap signal, coil RPM input
Digital outputs : 2 (1 A max each)
Second CAN : Yes
Wi-Fi connection : Yes
Accelerometer : Internal Three-axial ± 5G + Three-axial Gyroscope
Internal memory : 4 GB
Body : Anodized Aluminum
Pushbuttons : Metallic
Connectors : 2 Motorsport connectors
Power consumption : 400 mA
Dimensions : 169.4x97x23 mm
Weight : 530 g
Waterproof : IP65

MXS 1.2 Technical Drawing



In the Box

  1. MXS 1.2 Compact Motorcycle Dash Data Logger
  2. 37 Pin Standard Harness
  3. GPS Module with Cable
  4. USB Cable
  5. Software Installation CD

MXS IN THE BOX

    Downloads

    Accessories

    22 pins harness
    Part number: V02573020
    Download the tech sheet

    22 pins harness with 1 thermocouple
    Part number: V02573080
    Download the tech sheet

    22 pins harness with 2 thermocouples
    Part number: V02573160
    Download the tech sheet

    37 pins harness with 1 thermocouple
    Part number: V02573040
    Download the tech sheet

    37 pins harness with 2 thermocouples
    Part number: V02573050
    Download the tech sheet

    Remote buttons interface
    More info

    22 pins female Deutsch connector
    Part number: 5CN822F00

    37 pins female Deutsch connector
    Part number: 5CN837F00

    SPARE PARTS

    37 pins harness
    Part number: V02573010
    Download the tech sheet

    GPS08 Module
    More info

    USB adapter
    Part number: V02573030
    Download the tech sheet

    USB cable
    Part number: X90TMPC002
