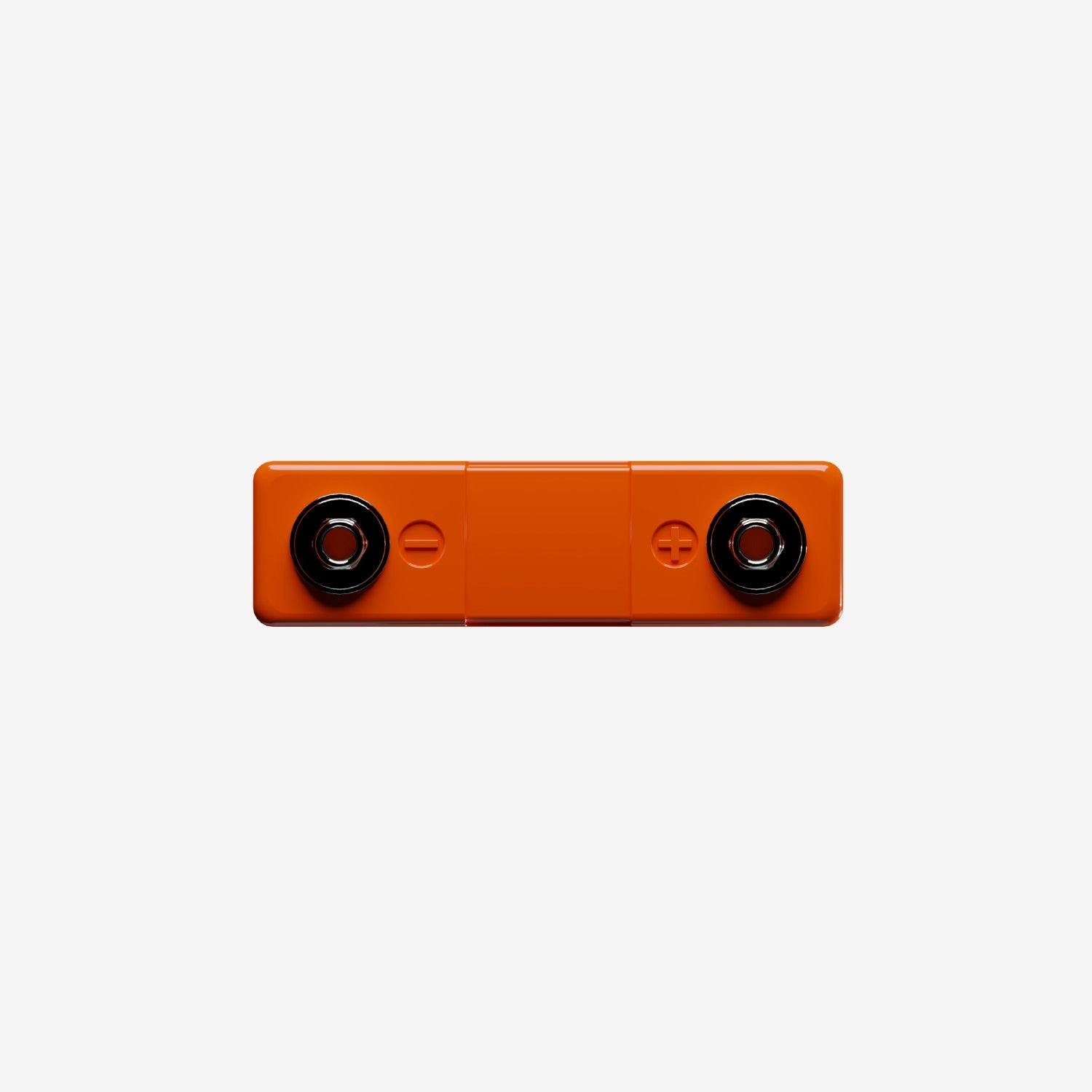

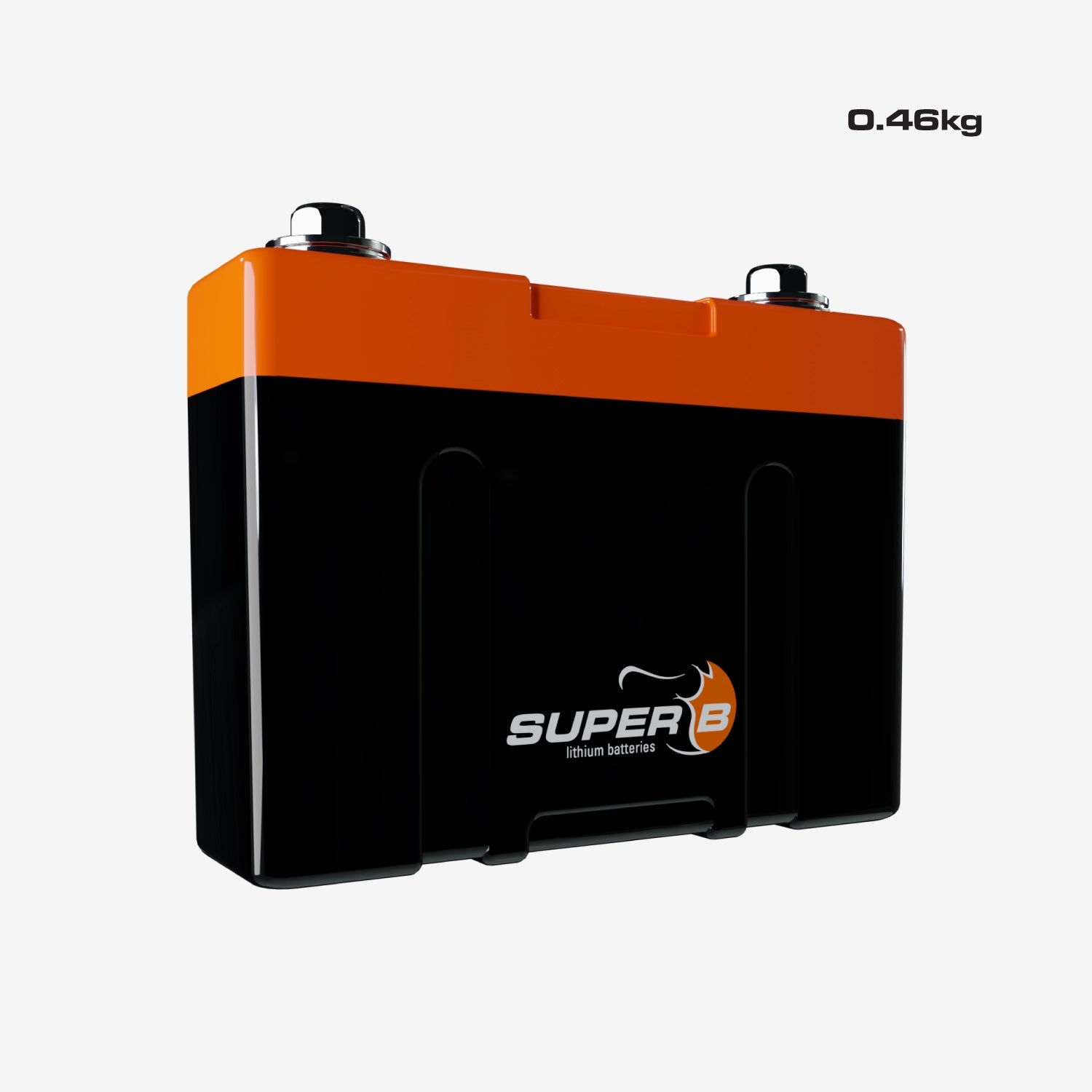

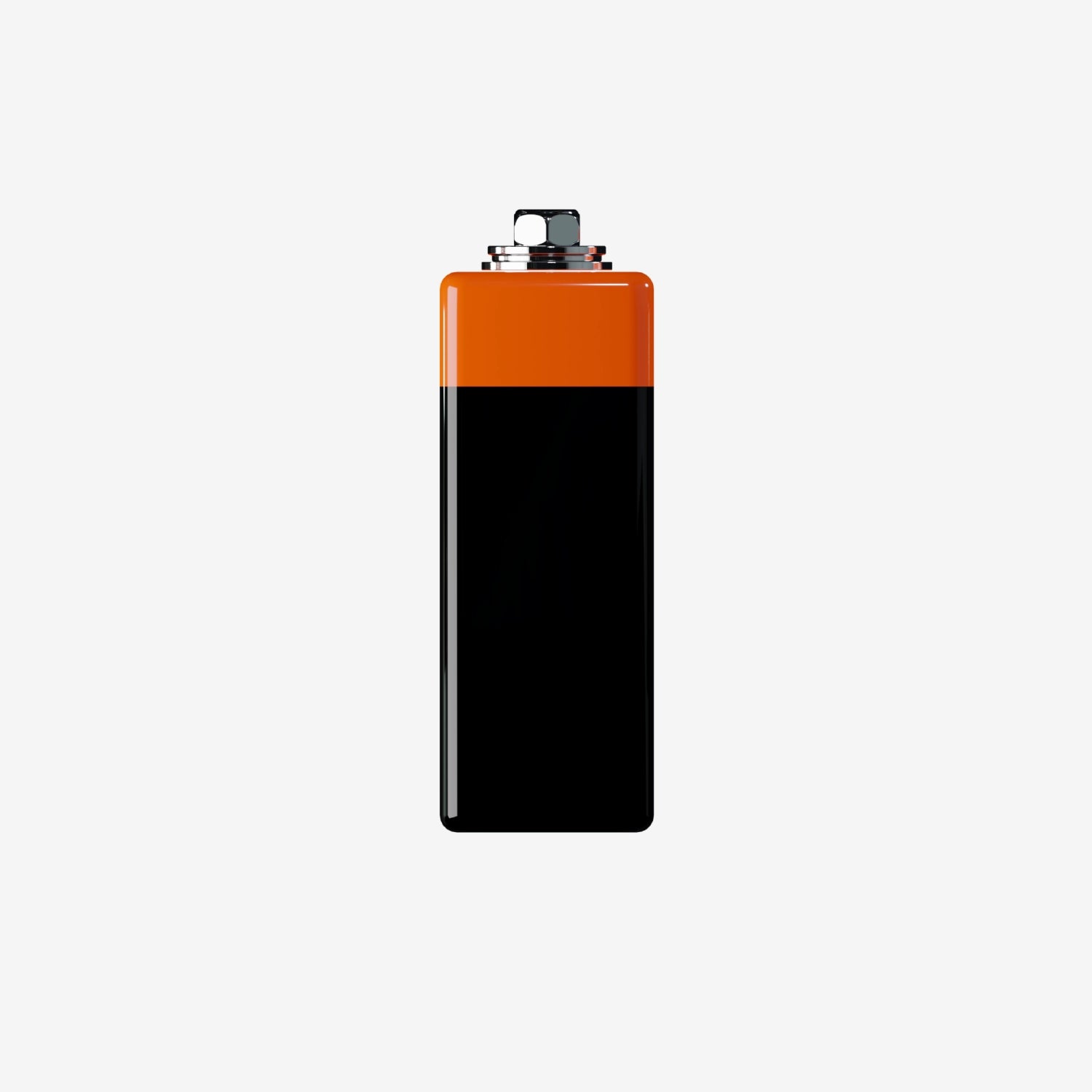

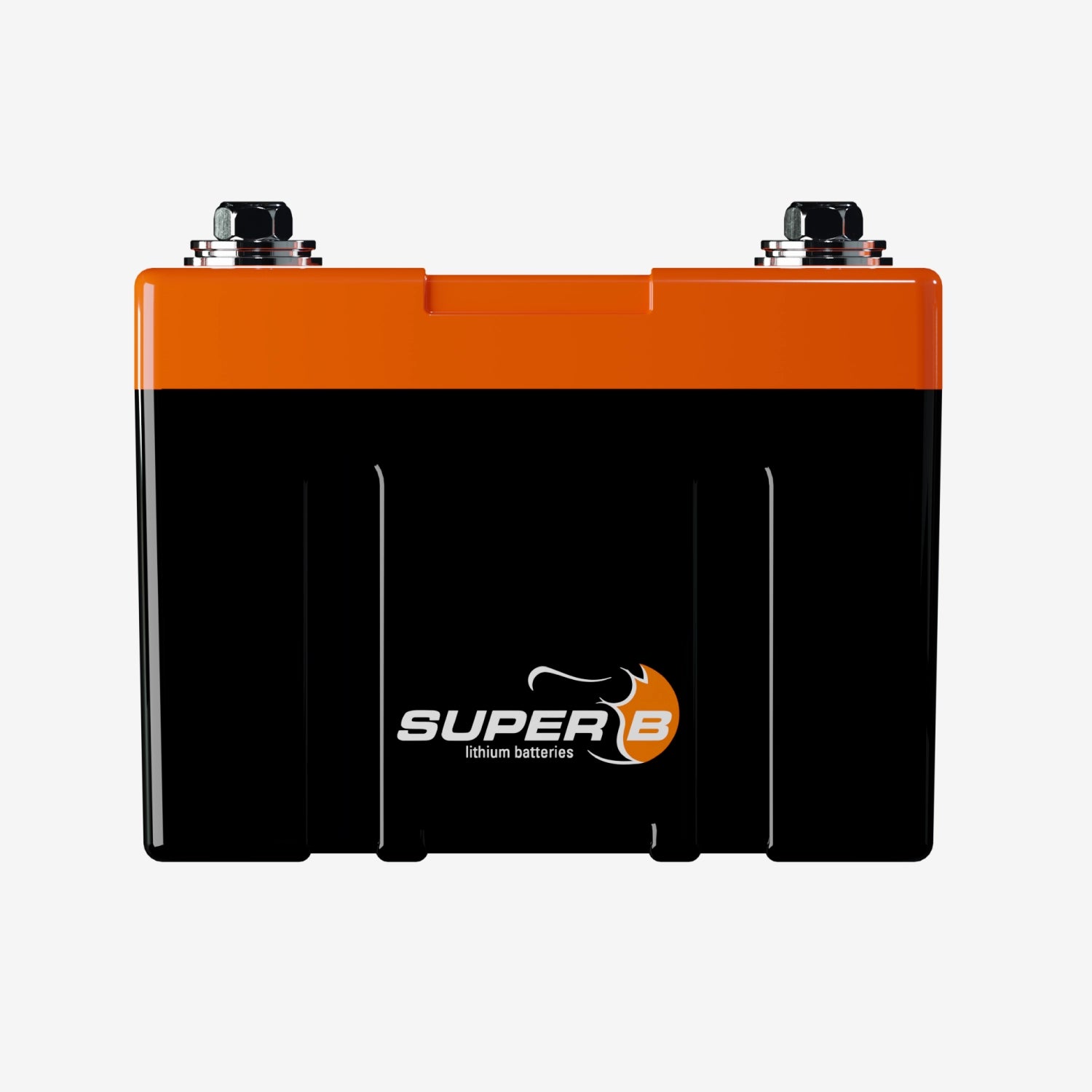

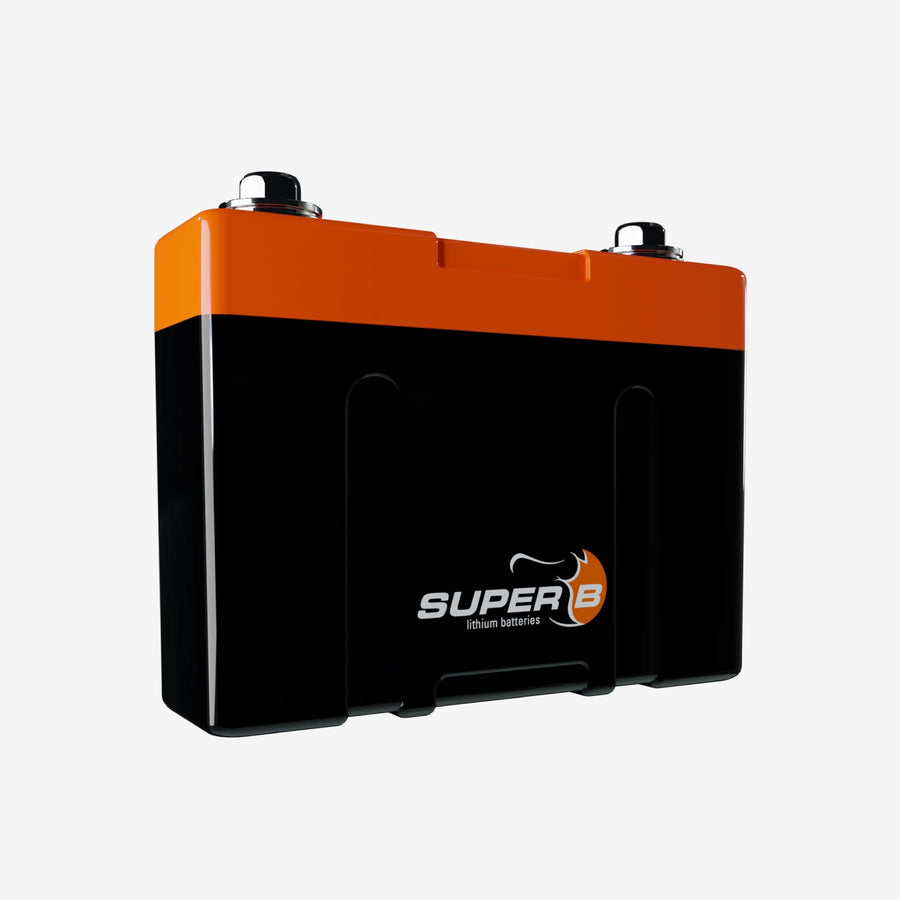

Super B Andrena 12V2.5Ah-AC Lithium Kart Battery

£125

Super B Andrena 12V2.Ah Lithium Kart Battery Lightweight & high performance lithium battery designed for motorsports, for use in...

Super B Andrena 12V2.Ah Lithium Kart Battery

Lightweight & high performance lithium battery designed for motorsports, for use in extreme environments.


Key Features:

  • Nominal Capacity - 2.5Ah
  • Nominal Voltage - 12.8V
  • Dimension (LxWxH) - 114 x 32 x 84mm / 4.49" x 1.26" x 3.30"
  • Open circuit voltage - 13.2V


Lithium Kart Battery

Light-weight, high-performance, safe and reliable lithium power battery especially developed for motorsports. This battery equals a lead-acid battery of 5 to 7AH provided the alternator's maximum current doesn't exceed the battery's maximum charge current of 10A. Designed in a standard rally casing. Suitable for 12V systems and for use in extreme environments.





Electrical Specifications:

  • Nominal capacity > 2.5Ah

  • Open circuit voltag> 13.2V

  • Self-discharge3% per month

  • Cycle life >1000 ( at 10c discharge, 100% DoD) >1000 ( at 10c discharge, 100% DoD)

  • EqPb (Equals lead acid battery)5 to 7 Ah

  • Voltage12V




Safe and Reliable

Super B batteries are based on lithium iron phosphate technology (LiFeP04). This is the safest lithium technology around today. With bespoke casing and electronics adding to the safety and durability. The battery is completely dust tight and waterproof, so can be used in the most extreme environment.

Mechanical Specifications:

  • Dimensions (LxWxH) > 114 x 32 x 84mm / 4.49" x 1.26" x 3.30"
  • Weight0.45 kg / 1.0Ibs
  • Case materialPC ABS
  • Ingress protectionIP69
  • Cell type / ChemistryCylindrical  - LiFeP04


Charge & Discharge:

  • Charge methodCCCV

  • Charge voltage14.3V - 14.6V
  • Max.charge current10A
  • End of discharge voltage8V
  • Discharge current
    continuous40A
  • Discharge pulse current135A (54C) (1 sec)

Temperature Specifications:

  • Charge temperature0°C to 45°C / 32°F to 131°F
  • Discharge temperature-20°C to 55°C / -4°F to 131°F
  • Storage temperature-20°C to 45°C / -4°F to 113°F



Compliance Specifications:

  • CertificationsCE, UN 38,3, UL 1642 (Cells)
  • Shipping classificationUN 3480
