AiM MXG IVA Compliant 7 " Plug and Play Dash Kit

MXG IVA-compliant dashes are part of a range of digital displays, specially designed for kit car drivers who need essential data visibility while on the road. They show real time data such as speed, RPM and temperatures, but they don't include data logging functionalities natively. To extend their capabilities to log data similar to the full display loggers, a Strada Logger Kit is required.

The MXG 1.3 Strada IVA display is available with a choice of connections. Choose either the OBDII or K-Line CAN, depending on whether you want to connect to the kit car's ECU or OBDII port or directly to the ECU through the CAN channel.

You can sample and display dozens of channels straight from the ECU with only 2 cable connections to the ECU instead of multiple connections to analogue sensors. The sampled data depends on the actual ECU, but will typically include RPM, throttle position, oil, air, water temperature, oil pressure, battery voltage, speed, gear, and lambda value (air/fuel ratio). The list of available ECU drivers is 1,000+ and is constantly being updated.

The MXG 1.3 Strada IVA display features a 1 AMP digital output configurable to be activated/deactivated depending on the value of the analogue/digital inputs or on the impulses coming from the ECU. This allows you to automatically run external systems, such as switching on/off additional lights, to activate/deactivate a cooling fan or circulation pumps when a certain event happens.

With CAN output, you can send messages directly to an existing CAN network to improve the range of vehicle control possibilities.

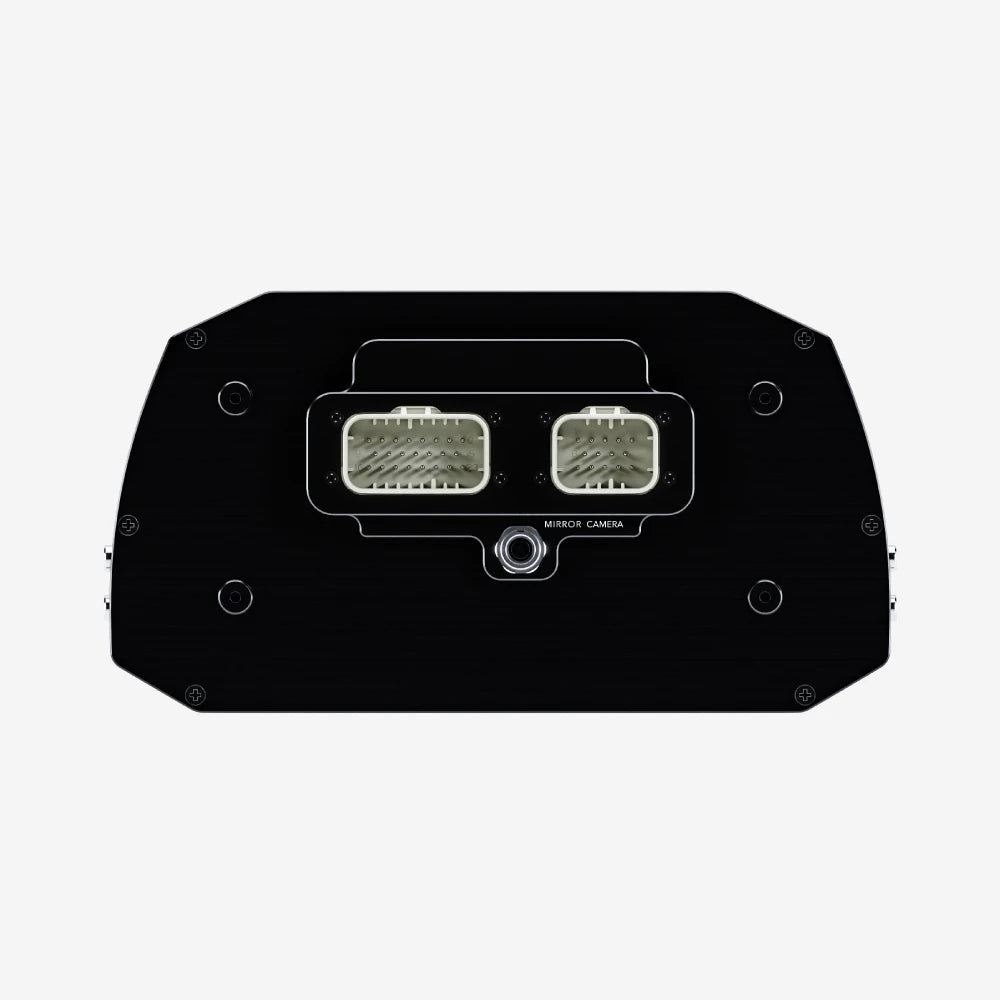

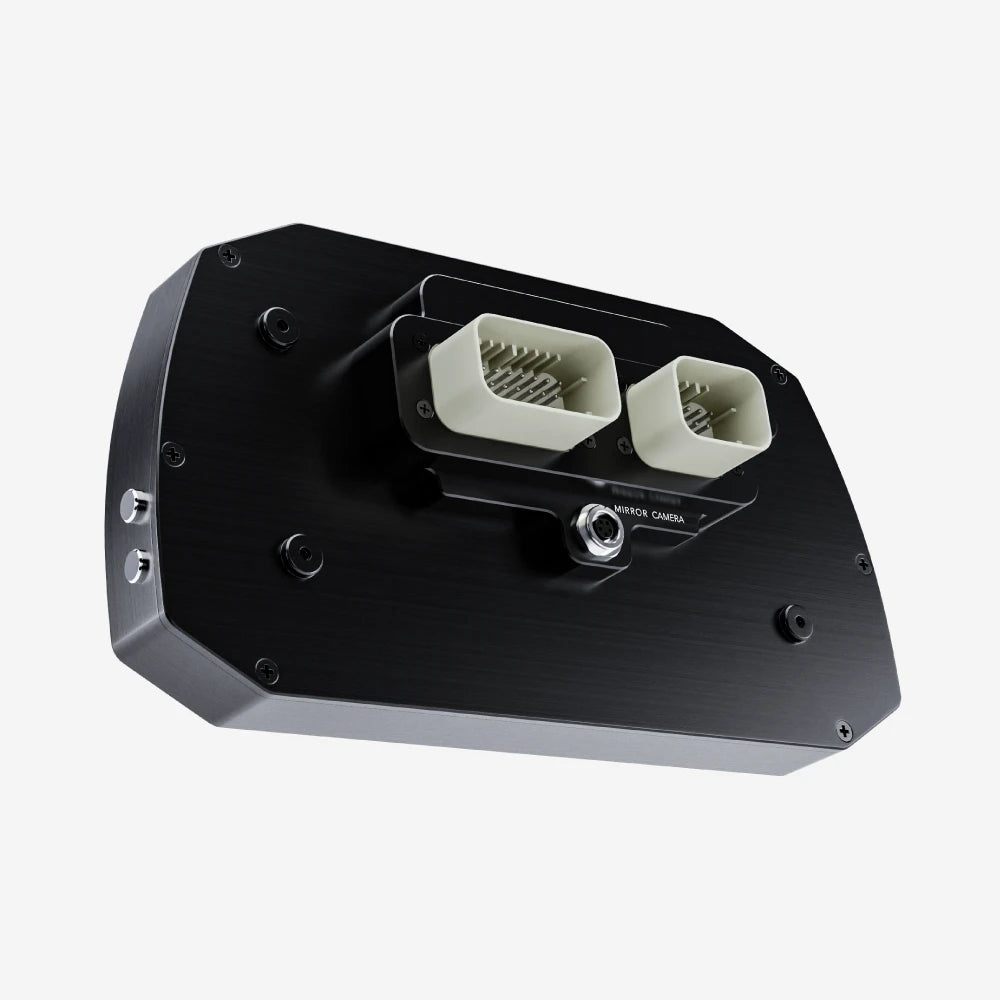

Two analogue camera inputs are also available to switch your display into a mirror camera, through a push button command or event management. The camera is sold separately.

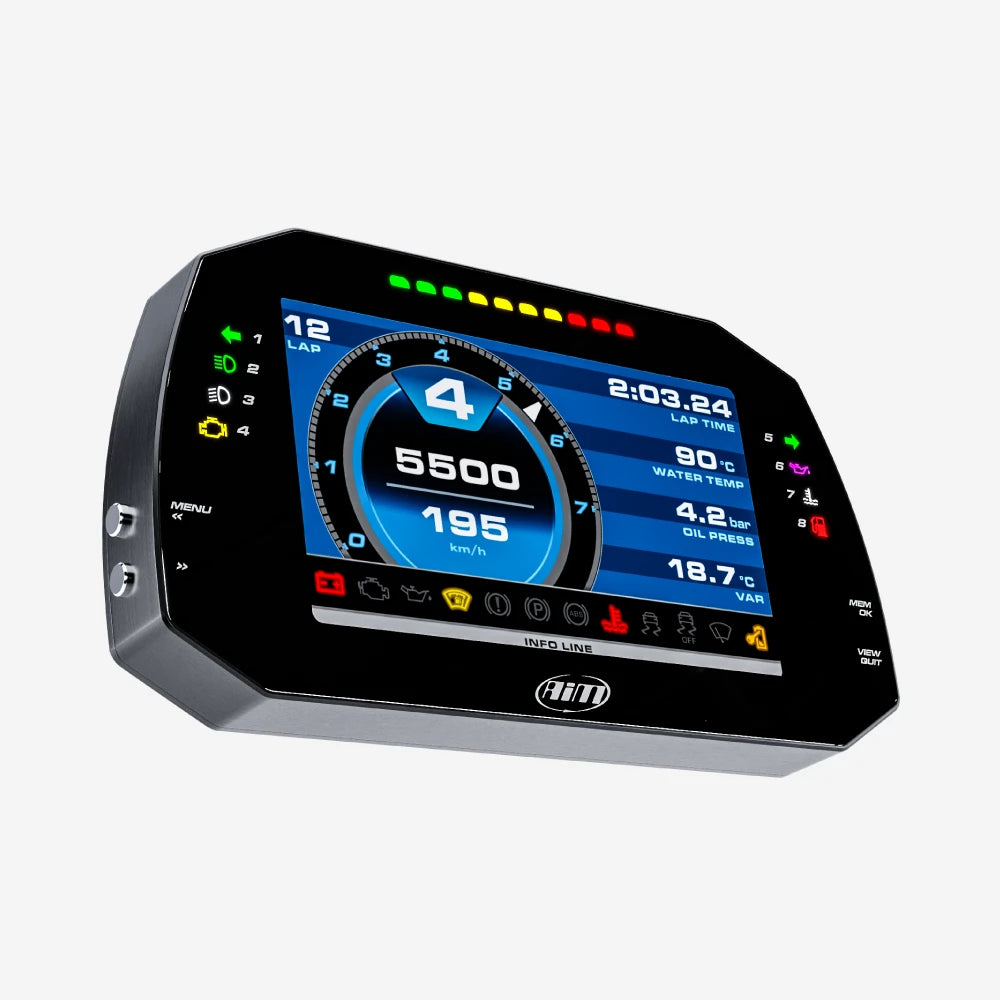

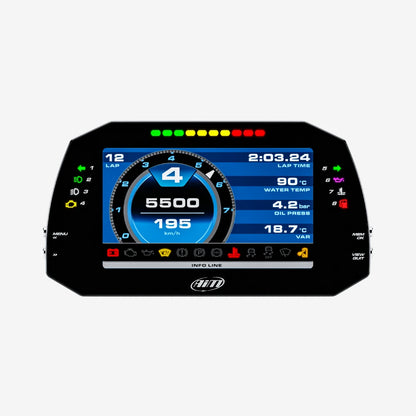

The MXG 1.3 Strada IVA-compliant dash has a 7" TFT high contrast colour display. The visual quality is optimised by the ambient light sensor, which keeps the backlight at the best brightness levels.

Road icons allow you to apply conditions to the LED icons, such as fuel, engine, oil, lights, indication and more.

The MXG 1.3 Strada IVA dash shows the RPM scale and all the data you need, like speed, water temperature and oil pressure, lap times and much more. You can customise pages to suit your requirements, including up to four additional fields. Define what data is shown with the end of scale and measure units. Swapping between the pages is easy; just use the push buttons.

The 10 multi-coloured RGB shift lights and 8 alarm RGBs can be customised to your liking, defining the RPM threshold on analogue or digital inputs, ECU values, expansion values, math channels or optional GPS option. You can choose the conditions and colours, select a solid arm or a flashing one and the flashing frequency. You can also configure an accompanying text message and set the alarm priorities.
