Aim MXG 1.3 Strada IVA Compliant TFT Kit Car Dash Display
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
IVA-Compliant Digital Dash Display
IVA-compliant displays are essential for road-legal OEM kit cars and racing vehicles in the UK, ensuring compliance with the Individual Vehicle Approval (IVA) standards.
These digital dash displays offer compliance with road legality standards, simple plug & play installation and connectivity with the kit car's ECU to enhance performance - all possible by the IVA-specific second harness that comes with the display kit.
Why Choose the Aim MXG IVA-Compliant Dash Display Kit
MXG IVA-compliant dashes are part of a range of digital displays, specially designed for kit car drivers who need essential data visibility while on the road. They show real time data such as speed, RPM and temperatures, but they don't include data logging functionalities natively. To extend their capabilities to log data similar to the full display loggers, a Strada Logger Kit is required.
Easy Connection
The MXG 1.3 Strada IVA display is available with a choice of connections. Choose either the OBDII or K-Line CAN, depending on whether you want to connect to the kit car's ECU or OBDII port or directly to the ECU through the CAN channel.
You can sample and display dozens of channels straight from the ECU with only 2 cable connections to the ECU instead of multiple connections to analogue sensors. The sampled data depends on the actual ECU, but will typically include RPM, throttle position, oil, air, water temperature, oil pressure, battery voltage, speed, gear, and lambda value (air/fuel ratio). The list of available ECU drivers is 1,000+ and is constantly being updated.
Digital Outputs
The MXG 1.3 Strada IVA display features a 1 AMP digital output configurable to be activated/deactivated depending on the value of the analogue/digital inputs or on the impulses coming from the ECU. This allows you to automatically run external systems, such as switching on/off additional lights, to activate/deactivate a cooling fan or circulation pumps when a certain event happens.
With CAN output, you can send messages directly to an existing CAN network to improve the range of vehicle control possibilities.

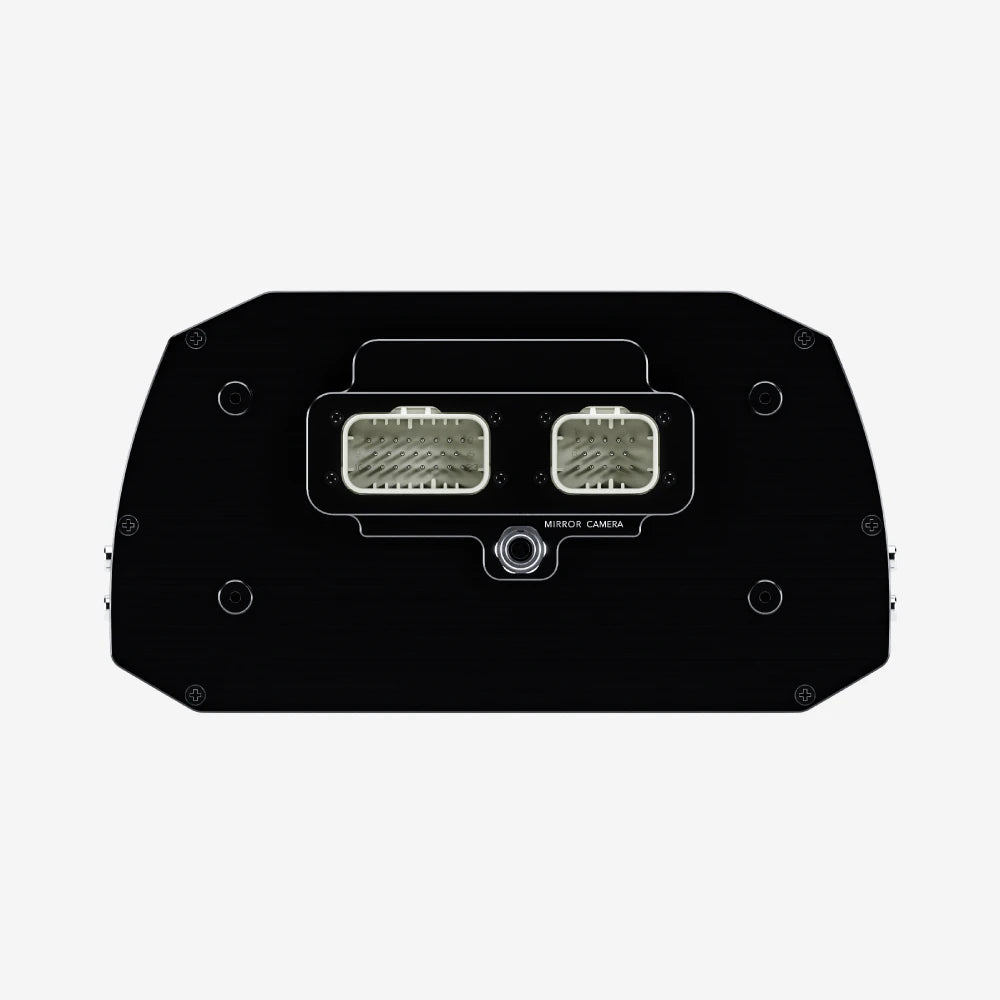

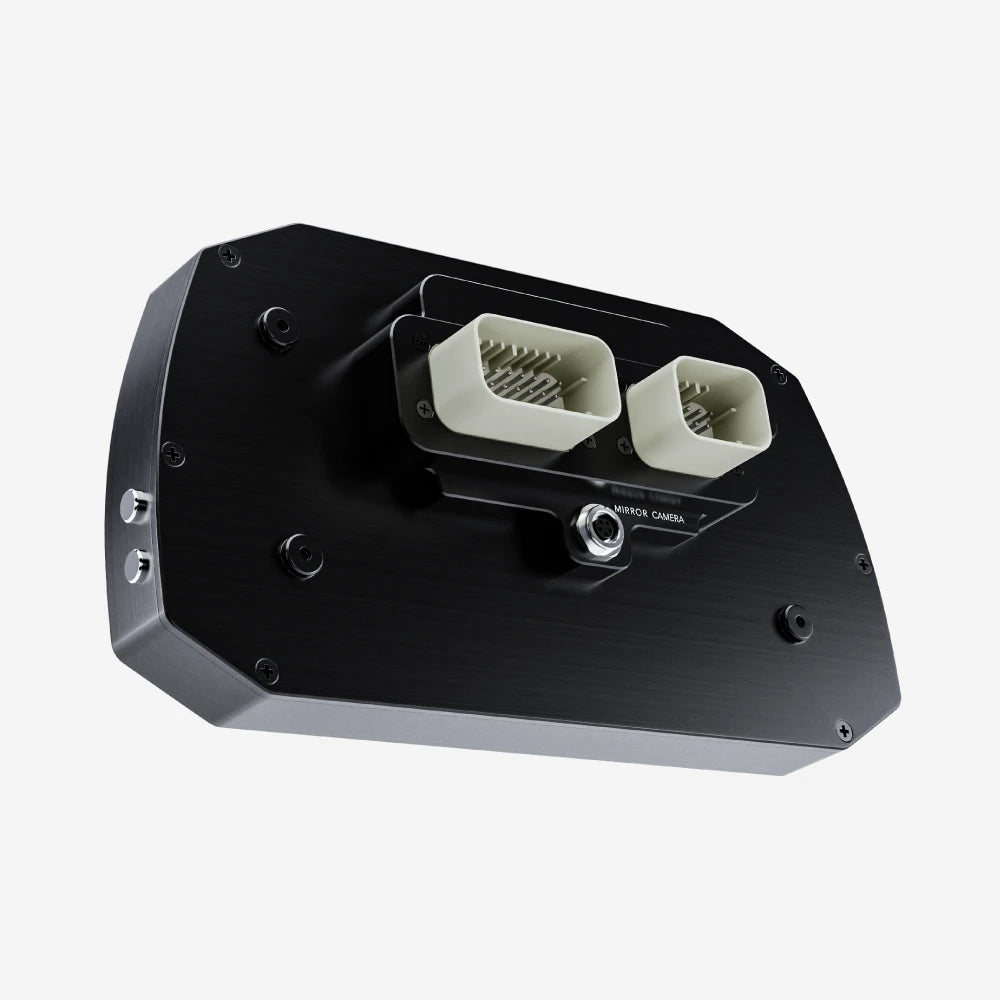

Two analogue camera inputs are also available to switch your display into a mirror camera, through a push button command or event management. The camera is sold separately.
Delta Times
The Delta Times feature provides instant feedback on your performance, showing how your current timing compares to your best.
Set a reference lap and visualise where you are gaining and losing time. The integrated lights will display green or red accordingly.
Integrated Shift Lights & Customisable Alarms
The 10 multi-coloured RGB shift lights can be customised to your liking, defining the RPM threshold on analogue or digital inputs, ECU values, expansion values, math channels or optional GPS option. You can choose the conditions and colours, select a solid arm or a flashing one and the flashing frequency. You can also configure an accompanying text message and set the alarm priorities.
Display with Road Icons

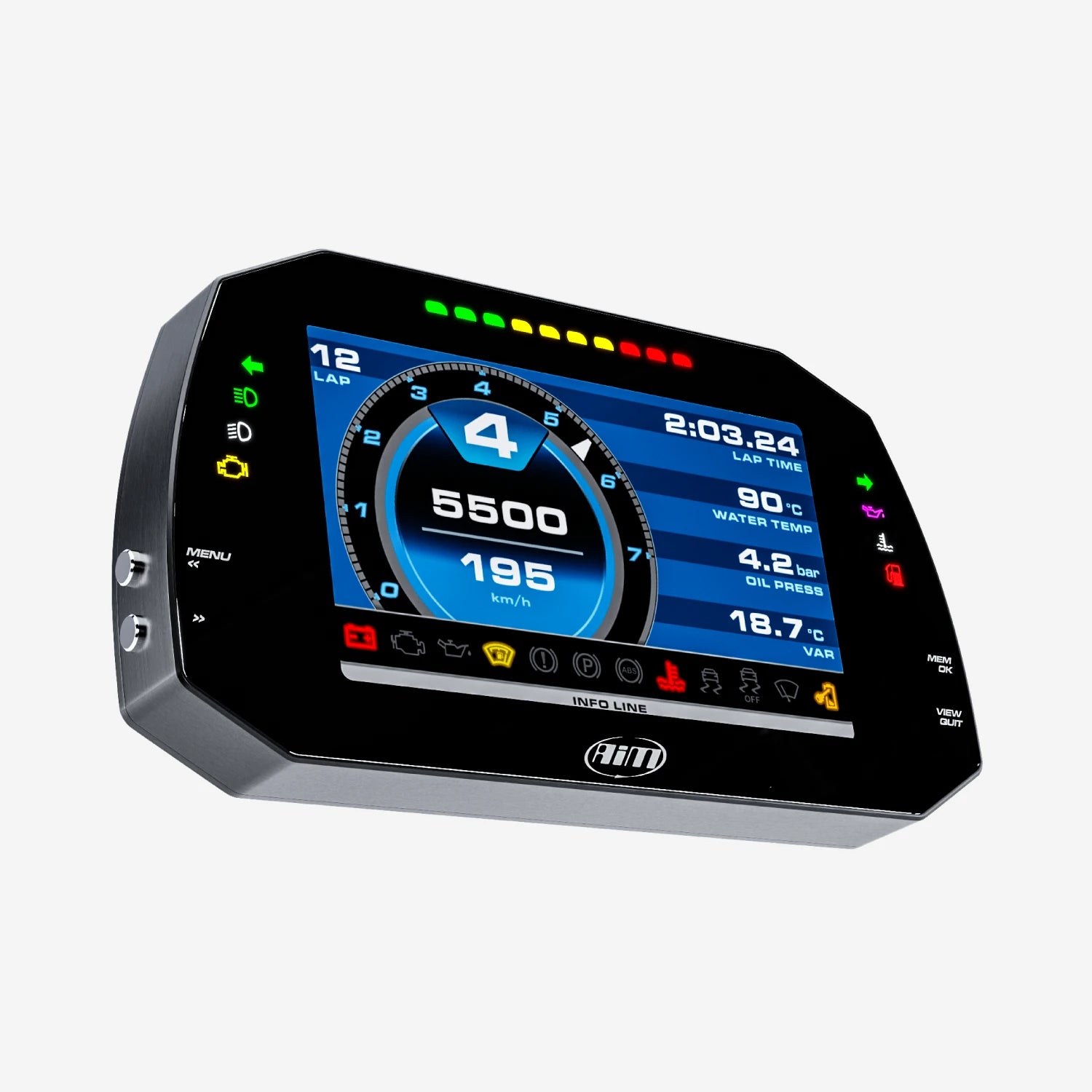

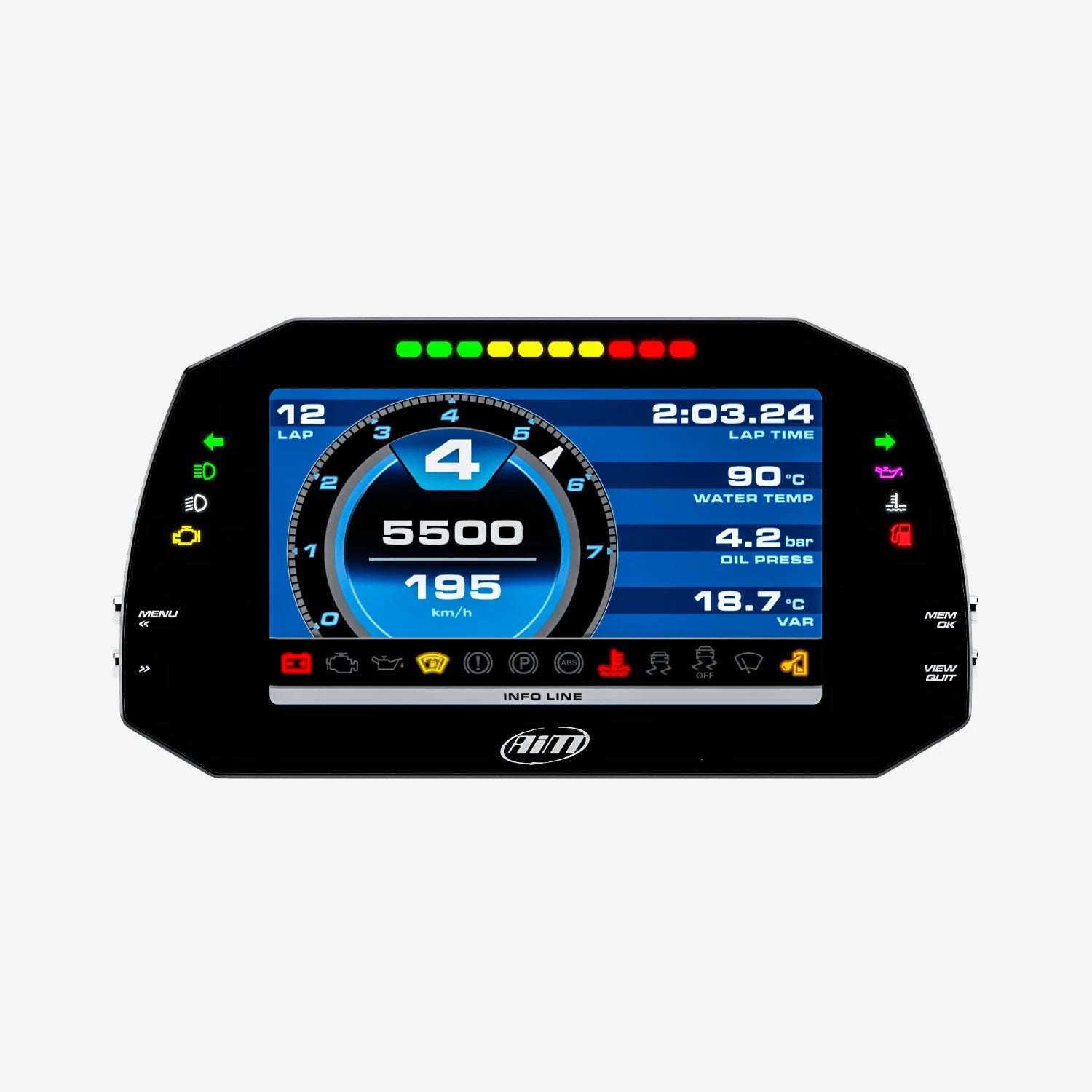

The MXG 1.3 Strada IVA-compliant dash has a 7" TFT high contrast colour display. The visual quality is optimised by the ambient light sensor, which keeps the backlight at the best brightness levels.
Road icons allow you to apply conditions to the LED icons, such as fuel, engine, oil, lights, indication and more.
Pre-Configured Pages
The MXG 1.3 Strada IVA dash shows the RPM scale and all the data you need, like speed, water temperature and oil pressure, lap times and much more. You can customise pages to suit your requirements, including up to four additional fields. Define what data is shown with the end of scale and measure units. Swapping between the pages is easy; just use the push buttons.
Free Analysis Software
By connecting an MX Strada Logger to your display - giving it the power to log your data - you can download your data and, with Race Studio 3; create, modify, delete, import and export configurations of:
- All channels
- ECU drivers
- Math channels
- Display pages
- Digital outputs
- Alarms
- Shift lights
- Expansions
Expand Your System
Turn your MX Strada IVA Dash into a complete data logging system with the MX Strada Logger, Data Hub & GPS09 Module. You can also integrate an ACC3 and convert your analogue to CAN, integrating a camera and various sensors into your setup.
Technical Information
Technical Specs
Diagram
Harness Options
Included in the Box
MXG 1.3 Strada
USB Cable
14-Pin Standard Wiring
23-Pin IVA Loom
-
Free Aim Software
Downloads
FAQs
Please read our FAQs page to find out more.
What are the differences between the MXG Strada IVA-Compliant Displays and the MXG Strada Display?
The main difference between the MXG Strada IVA-Compliant Display and the MXG Strada Display is that the IVA version has an IVA-specific second harness that comes with the display kit, providing essential road lighting indicators (turn signals, fog lights, etc.) to meet UK Individual Vehicle Approval (IVA) standards. While both have a 7" display and ECU compatibility, the IVA dash provides a plug & play solution for road-legal kit cars. For a full comparison of the MX Strada Series, take a look at the comparison tab.
What is an IVA Approved Dash Display?
IVA-compliant dashes are a range of digital displays that ensure compliance with the Individual Vehicle Approval (IVA) standards, specially designed for kit car drivers who need essential data visibility while on the road. They show real time data such as speed, RPM and temperatures, but they don't include data logging functionalities natively. To extend their capabilities to log data similar to the full display loggers, a Strada Logger kit is required.
Comparison Table
Compare models side-by-side. Swipe horizontally on mobile.
| Specs |
MXT Strada IVA Compliant
|
MXG Strada IVA Compliant
|
MXP Strada IVA Compliant
|
MXS Strada IVA Compliant
|
|---|---|---|---|---|
|
Key Features
| ||||
|
Size & Weight
| ||||
|
Waterproof
| ||||
|
In the box
| ||||
|
Technical
| ||||
|
Display
|
