AiM Taipan K Motocross-Steuergerät Plug & Play
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.

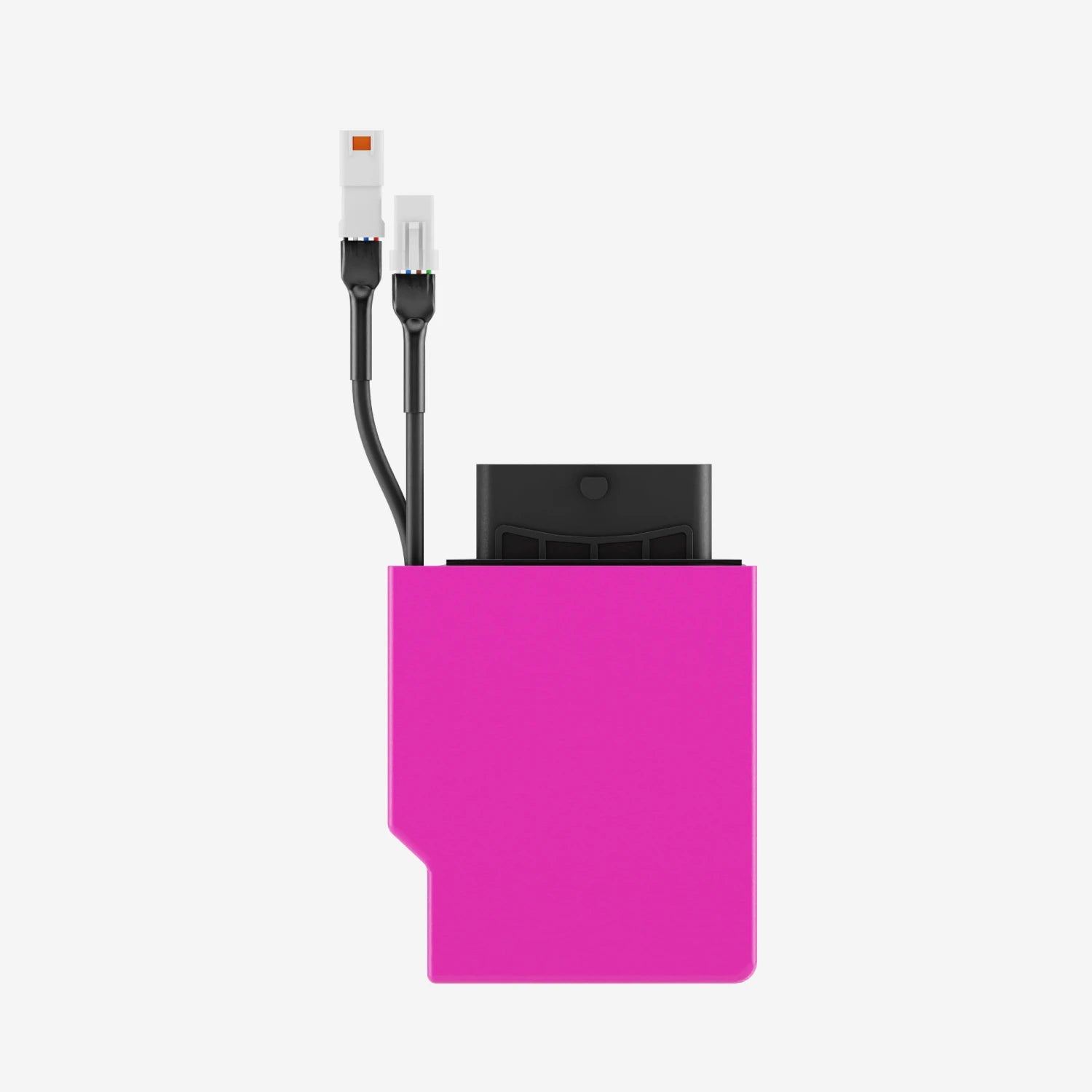

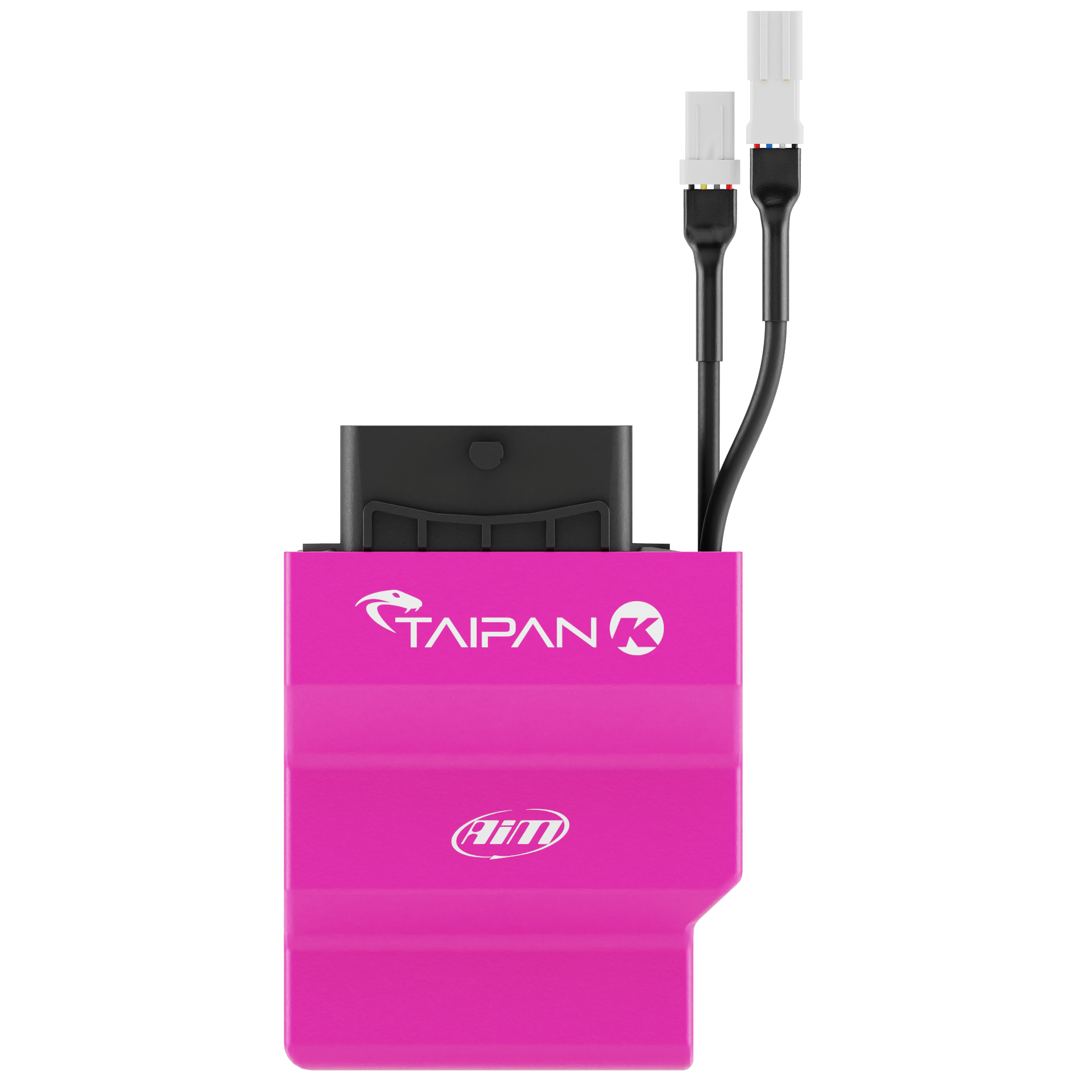

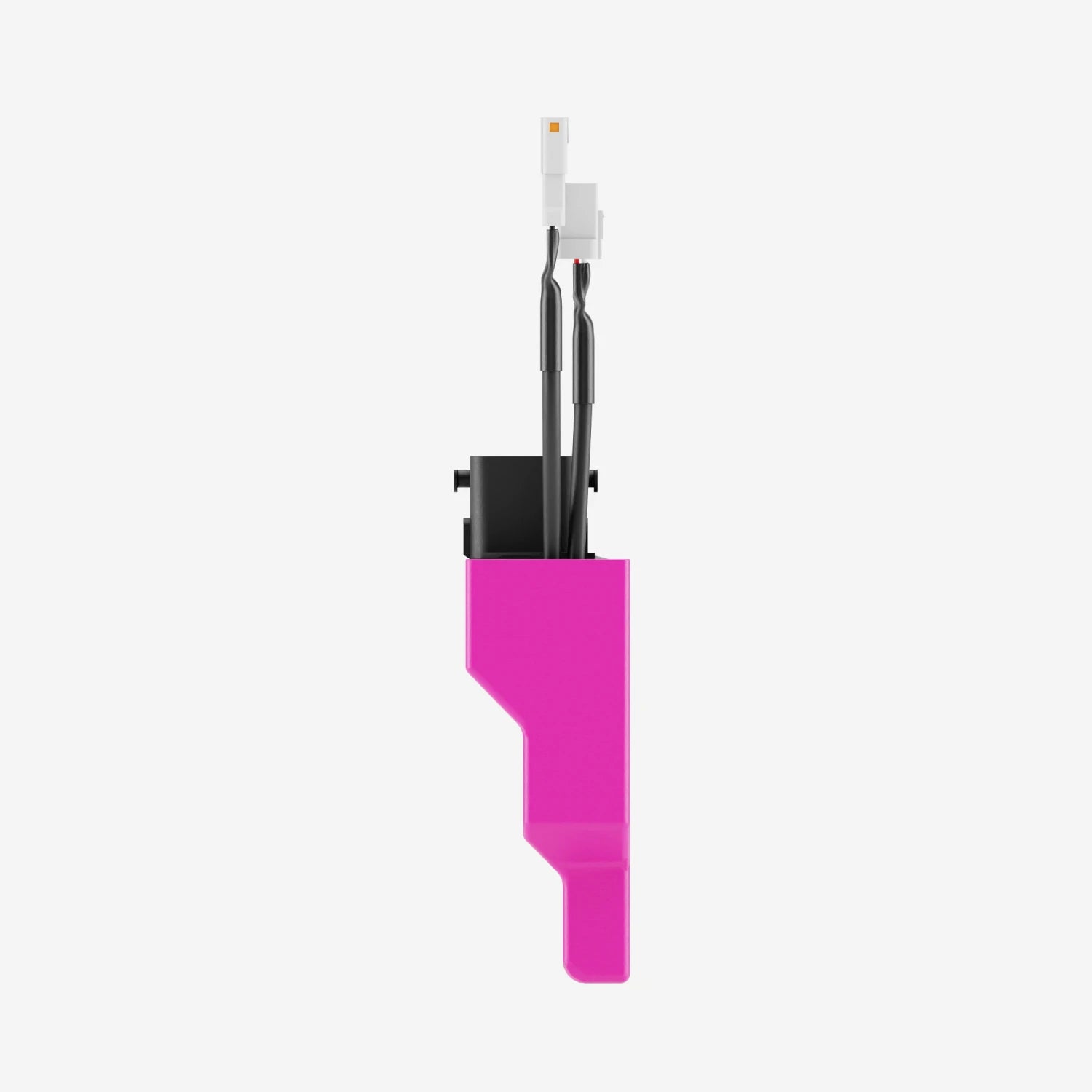

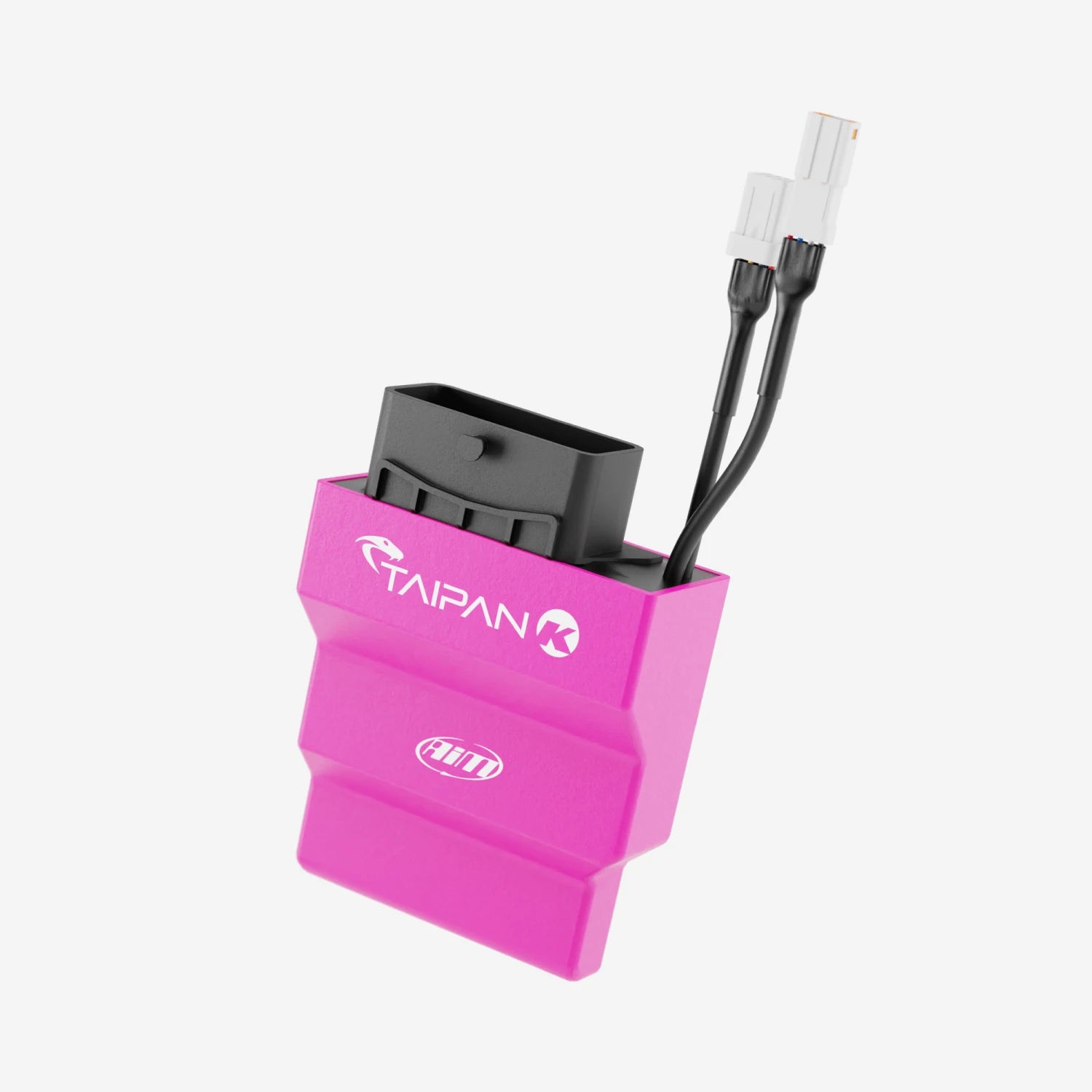

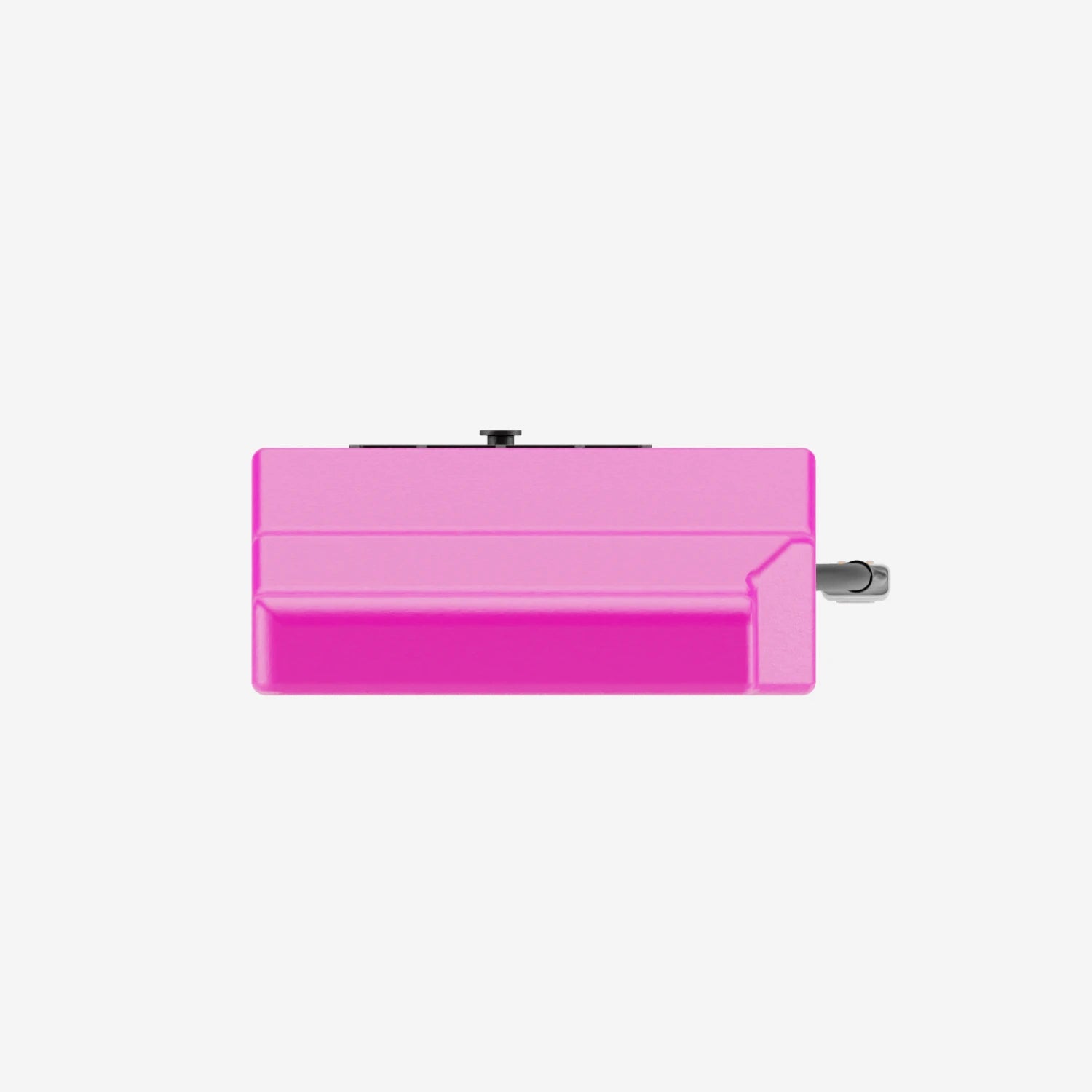

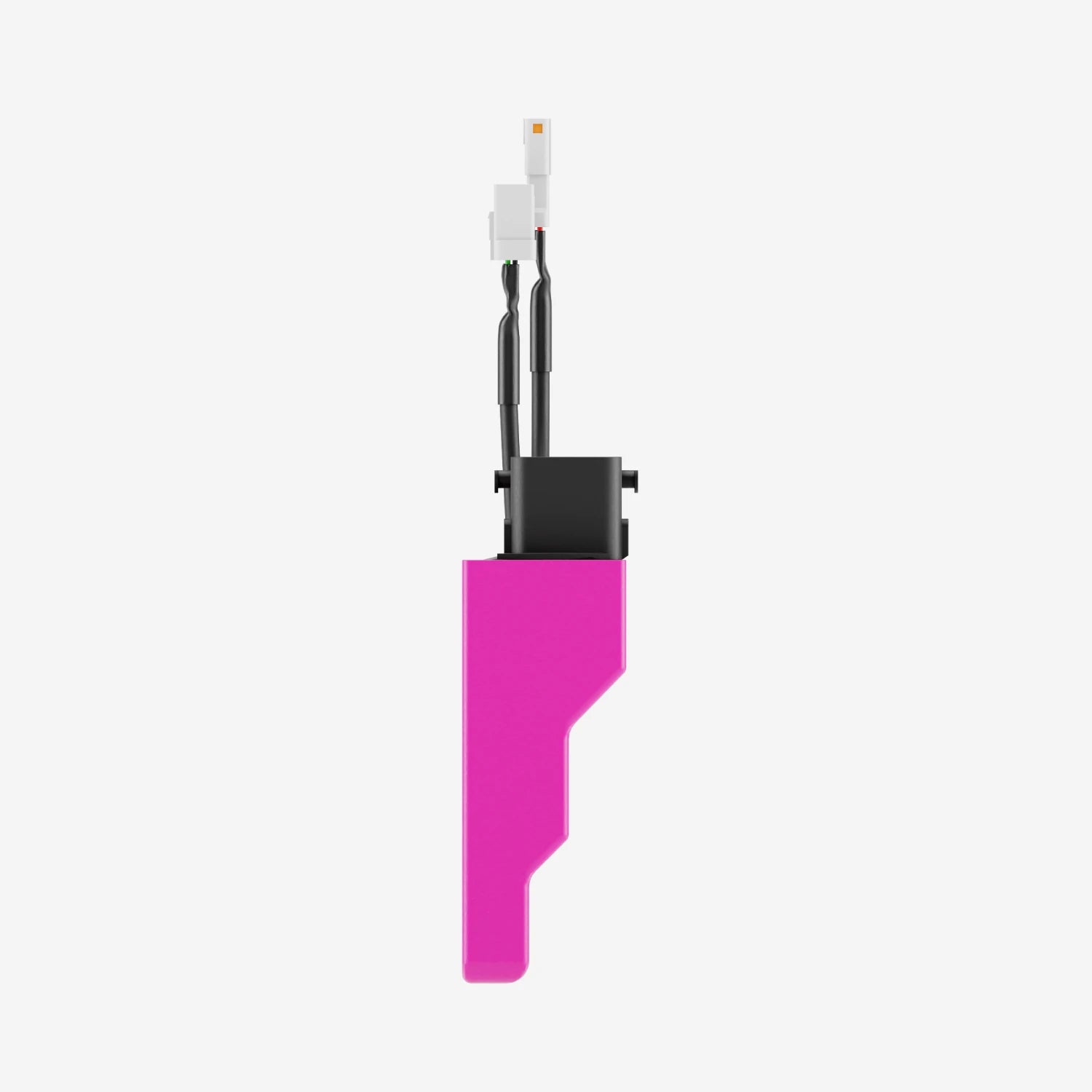

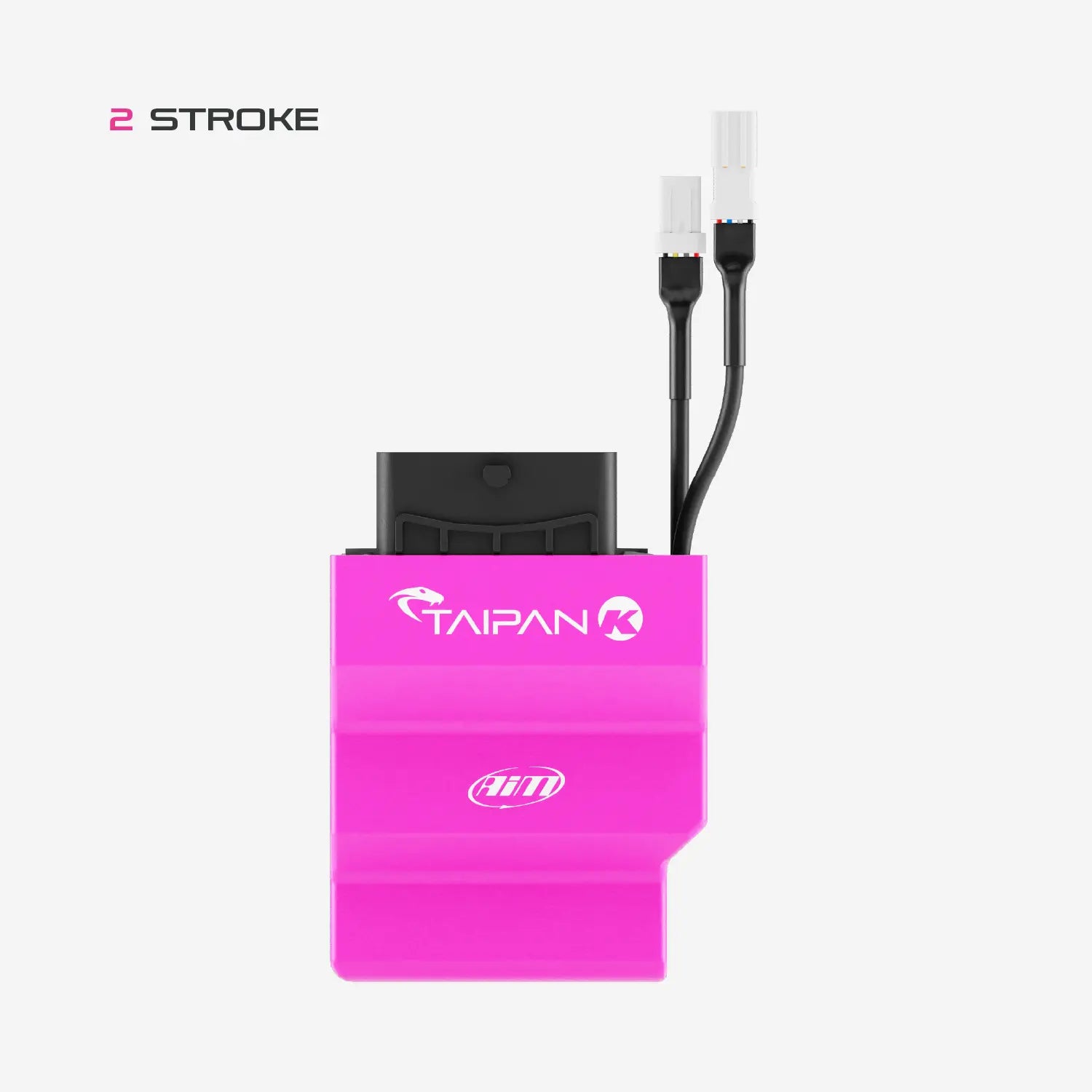

Aim Taipan K ECU Engine Control Unit
Taipan are the aftermarket plug & play ECU created by Aim, exclusively designed for plug & play installation for motocross/off-road motorcycles. The latest addition, the Taipan K, was specifically designed for 2-stroke KTM/Husqvarna/GASGAS 2024.
Why Choose the Taipan K ECU
Thanks to their high technology 32-bit core, the Taipan K ECU represents an important step forward to improve the performance of your motorcycle, without sacrificing reliability and smoothness.
The Taipan K ECU is unprogrammed and can be configured for the 2-stroke KTM/Husqvarna/GASGAS 2024. You will need the UC Bridge Tuner to enable this process.
The Taipan K ECU provides ultimate control over ignition, ignition phase, start maps, launch control, and traction control, with altitude and engine temperature corrections.
Taipan K ECU Connections
The Taipan K ECU has 3 connectors:
- Main Connector: Compatible with 2-stroke KTM/Husqvarna/GASGAS 2024.
- CAN Connector: Connects to the Handlebar Switch 2 and data logger.
- 2nd CAN Connector: Connects to the UC Bridge to communicate with the PC.
Handlebar Switch 2
You can choose from up to five selectable maps with the Handle Bar Switch 2.
The Taipan can manage up to five maps that can be selected both by OEM switches (Honda, Husqvarna, KTM) or even more easily by the Aim Handle Bar Switch 2.
HBS2 is the compact, high-performance, and built tough Handle Bar Switch.
If you're looking for a highly flexible and ergonomic switch, the model from Aim offers a great solution with 4 pushbuttons and 11 integrated LEDs.
- Map Management
- Fuel Trim
- Traction Control Management
- Launch Control Management
- Buttons Setting Memorisation
HBS2 also allows the management of quick shifting on factory-equipped bikes.
Integrate FREE Spark Software
SPARK is the intuitive software that lets you control, customise, and fine-tune your bike’s performance.
From map management to traction control, SPARK puts advanced tuning at your fingertips.
Thanks to the UC Bridge, designed to integrate Aim ECUs with the software, users can efficiently manage configurations, settings, and engine maps.
UC Bridge License Types
UC Bridge is available in two distinct license types:
User License
This license provides end users with essential functionalities, including:
- Receiving engine maps from your tuner and flashing them directly to the ECU
- Displaying system exceptions or logged issues from the ECU within the SPARK software
- Adjusting fuel injection corrections across various RPM ranges
Tuner License
Tailored for professional tuners, this license enables full control over map creation and configuration, including:
- Designing and modifying base maps
- Create custom maps from scratch
- Managing configurations to be sent and applied to the ECU
Smoothing Algorithm
By selecting at least three contiguous cells and right-clicking, a context menu appears. Choosing ‘Smoothing’ from the menu applies the smoothing algorithm, which is also reflected in the 2D view.
3D Visualisation
3D visualisation mode complements the 2D view. The 3D graph supports rotation, zooming, and panning, with controls detailed in the tab’s legend.
TPS Sensor Calibration Gauge
TPS Sensor Calibration Gauge provide a clearer and more intuitive visualisation of the TPS signal voltage.
Download the FREE Spark App on iOS or Android
SPARK is now available as a mobile app for both Android and iOS, with seamless Bluetooth connectivity to your bike.
Connect your smartphone to the Taipan and Yarara ECU in two ways:
- Via the CAN-BT Module, for instant access to key engine data and real-time telemetry.
- Using the XLog, if you want to collect data while driving as well.
CAN-BT Module
The CAN-BT Module grants instant access to key engine data from your Taipan ECU.
Installing the SPARK App on your smartphone provides a streamlined, data-driven interface for real-time monitoring of live engine parameters.
Get real-time insights into:
• Live Dash Telemetry
• Warning and Alerts for Diagnostic Faults
• Map Switching
• Fuel Adjustments
Technical Information
Technical Specs

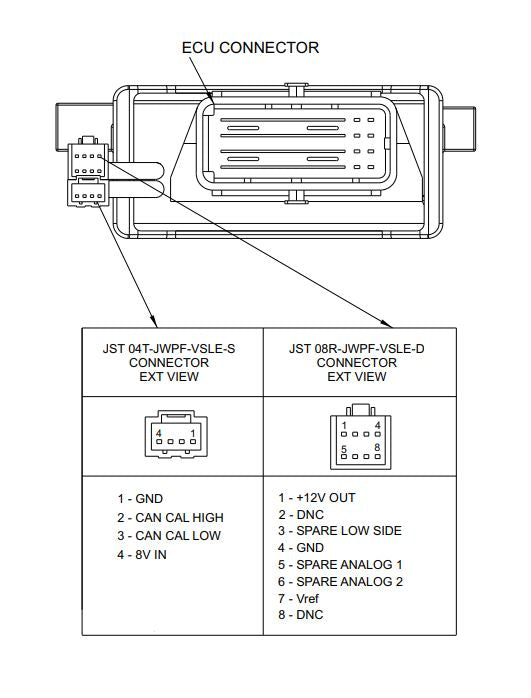

Pinout
Connections
Included in the Box
Taipan K Control Unit
-
Free Aim Software

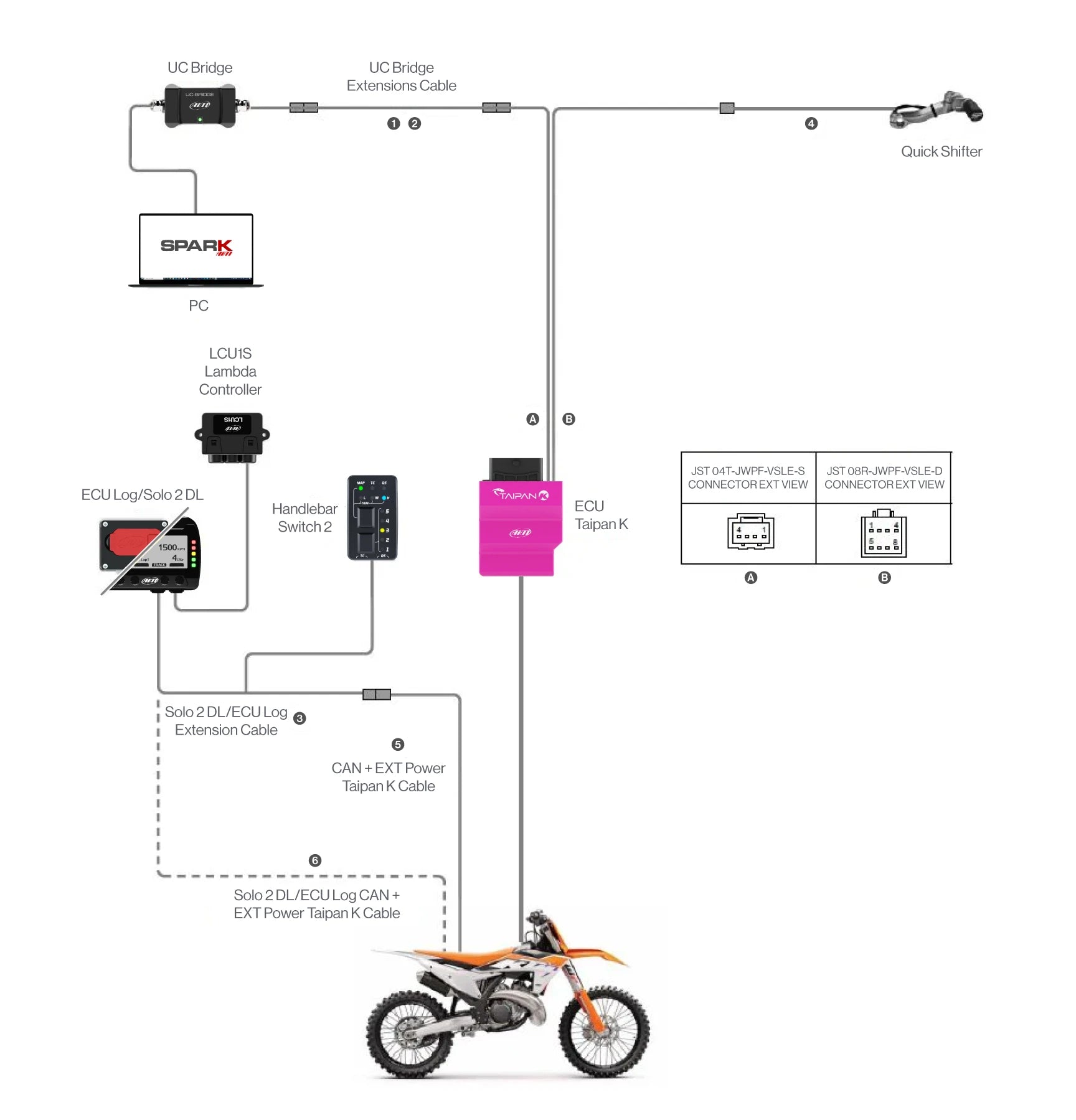

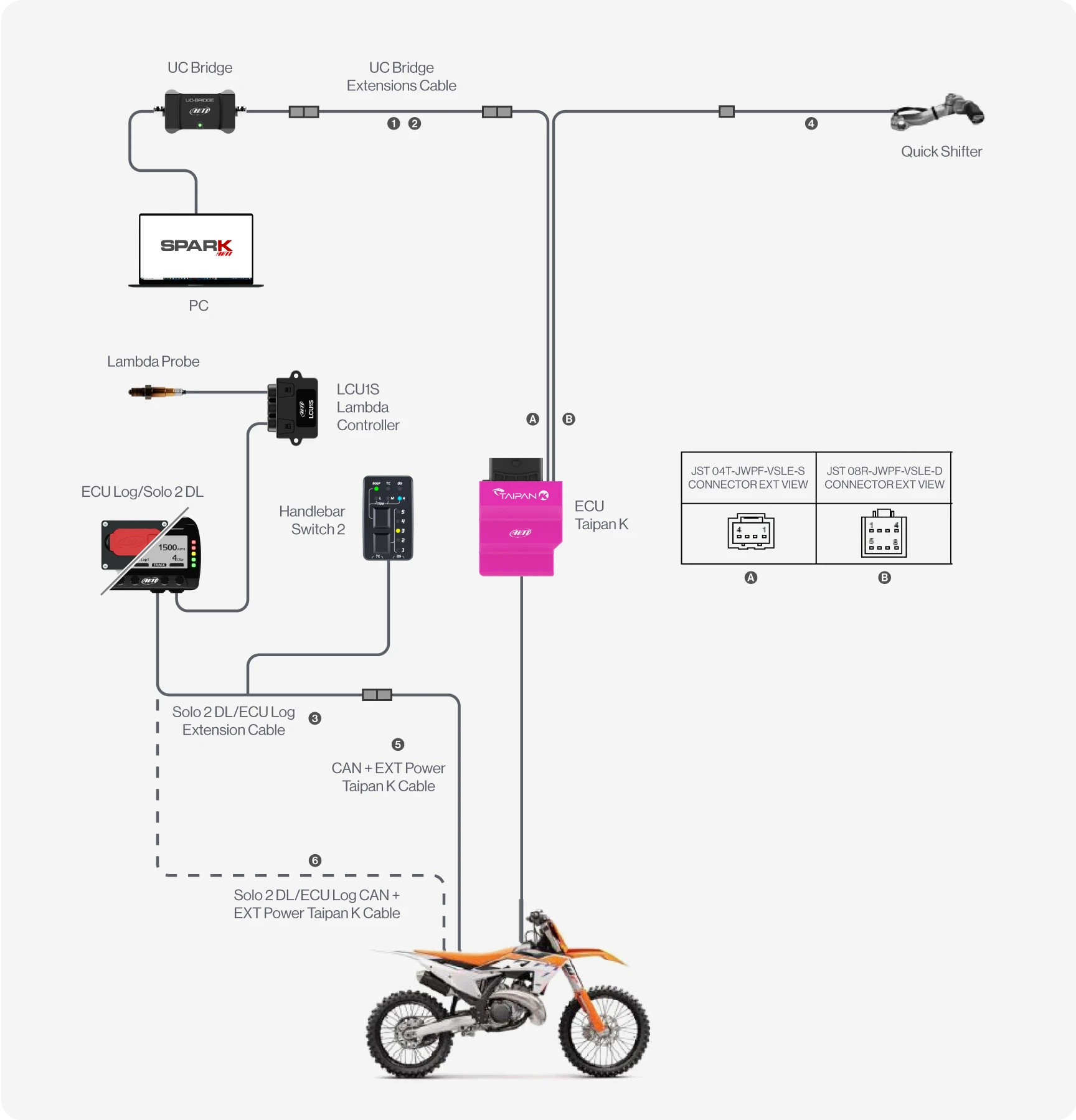

Connection Example
Videos
Cobra (Now Taipan) ECU Installation
Downloads
