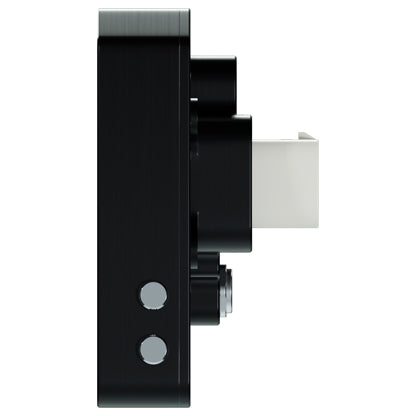

AiM MXP 1.3 Strada Yamaha IVA Compliant 6" TFT Display Plug & Play Kit

SKU: MXP-S-YAM-KIT

Regular price
£1,075.00
Regular price
Sale price
£1,075.00

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders

AiM MXP Strada 6" TFT Dash Display with Road Icons

The MXP Strada IVA compliant digital dash display is a complete road legal display solution.

Key Features :

6" TFT display Road legal & MOT approved
10 shift light RGB LEDs 8 analogue inputs
CAN output Configure data

AiM MXP Strada 6" TFT Dash Display with Road Icons

The MXP Strada features a 6" wide colour TFT display, offering a fantastic visual impact. It is configurable to show data coming from the ECU, nine axes inertial platform (accelerometer, GYRO and magnetometer). Eight analogue inputs, six digital inputs, pre-defined math channels, a second CAN and an optional GPS Module.

Easy Connection

Connecting the MXP Strada dash to your ECU is simple. You can sample and display dozens of channels straight from the vehicle ECU. This is usually the quickest and easiest setup, needing only 2 cable connections to the ECU instead of multiple connections to analogue sensors.

The dash comes with a  23 pin loom which has pre-configured connections for all the relevant electrical items in your vehicle such as oil. temperature, engine temperature, fuel level, sidelights, hazards, front and rear fog, handbrake, main beam, dipped beam and left and right-hand indicator. A speed sensor is also included in the kit to connect to this additional loom.

Digital Outputs

The MXP features two digital outputs. The two digital outputs (Dout) are the LOW SIDE type (switch to ground). They can be configured in order to be turned on/off depending on the value of the analogue or digital inputs. They permit to automatically run external systems. For example, switch on/off additional lights, to activate/deactivate a cooling fan or circulation pumps when a certain event happens.

With CAN Output you can send messages directly to an existing CAN network to improve the range of vehicle control possibilities.


Display

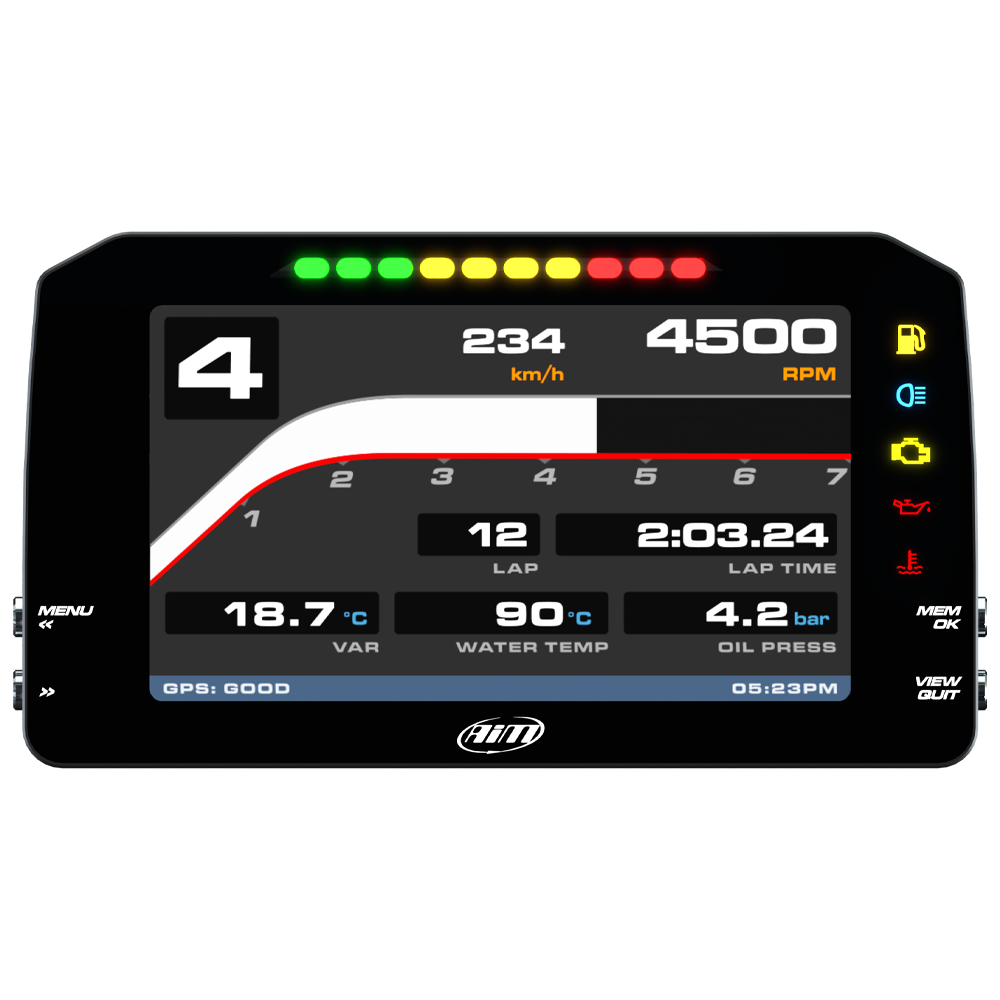

The MXP has a 6" high contrast TFT display. The visual quality is kept optimised by the ambient light sensor which keeps the backlight to its best brightness levels, so as to avoid the screen dazzling you while driving in the dark.


Pre-configured Pages

The MXP Strada shows the RPM scale and all the data you need, like speed, water temperature and oil pressure, lap times and much more. You can custom pages to suit your requirements, including up to four additional fields. Define what data is shown with the end of scale and measure units. Swapping between the pages is easy just use the pushbuttons.


Flexible Shift Light & Alarms

The ten multi-coloured RGB shift lights can be customized to your liking, defining the RPM threshold on analogue or digital inputs, ECU values, expansion values, math channels or optional GPS options. You can choose the conditions and colours, select a solid arm or flashing one, also the flashing frequency. You can also configure an accompanying text message and set the alarm priorities.


Camera Inputs

Two analogue camera inputs are available, to switch your display into a mirror camera, through pushbutton command or event management. The camera is sold separately.


Expand Your System

These are only some of the items that can be added to our MXP Strada for incrementing the performance and the data acquired.


Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by MXP Strada and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM MXP Strada 6" TFT Dash Display with Road Icons

  • Display: 6" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 600:1
  • Brightness: 700cd/m2 - 1,100 Lumen
  • Ambient Light Sensor: Yes
  • Alarm Display Icons: Yes, fully configurable
  • Alarm LEDs: 5 integrated freely configurable RGB LEDs
  • Shift Lights: 10 integrated freely configurable RGB LEDs
  • CAN Connections: 3
  • ECU Connections: CAN, RS232 or K-Line
  • ECU Compatibility: +1000 industry-leading ECUs
  • Expansion CAN Connection: GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
  • Analogue Inputs: 8 fully configurable, max 1000 Hz each
  • Digital Inputs: 1-speed input, coil RPM input
  • Digital Outputs: 1 (1 A max)
  • Second CAN: Yes
  • Body: Anodized Aluminium
  • Pushbuttons: Metallic
  • Connectors: 2 AMP connectors + 1 Binder connector
  • Power Consumption: 400 mA
  • Dimensions: 189.6 X 106.4 X 24.9mm
  • Weight: 590g
  • Waterproof: IP65


AiM MXP Strada 6" TFT Dash Display with Road Icons

  • MXP Strada
  • USB Cable
  • 23 IVA Loom
  • Wheel Speed Sensor
  • AiM Sticker
