MXP Strada Road Icons Motorcycle Dash Display


+ VAT (UK Only)

Order before 3pm - For same day despatch *

AiM 6" MXP 1.2 Strada Display with Road Icons


The MXP Strada Dash features a 6" wide colour TFT display with great visual impact.

Key Features:

  • 6" TFT display
  • 1000 + ECU connections
  • ECU connection, CAN, RS232, K-Line
  • Add optional expansion modules
  • 8 analogue inputs
  • 6 digital inputs

Aim MXP Strada with Road Icons

The AiM Strada Dash features a 6" wide colour TFT display offering a great visual impact. The MXP is configurable to show all the data coming from your vehicles Engine Control Unit (ECU). 9 axis internal platform - accelerometer, gyro and magnetometer, 8 analogue inputs, 6 digital inputs, pre-defined math channels, a second CAN and optional GPS08 Module.

Connecting the MXP Strada dash to your car/motorcycle ECU (standard or racing) is very simple. You can sample and display dozens of channels straight from the ECU. This is usually the quickest setup, needing only two cable connections to the ECU instead of multiple connections to analogue sensors.

The sampled data depends on the actual ECU but normally included RPM, throttle position (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear, lambda value (air, fuel ratio). The list of available ECU drivers 1,000+ and is constantly being updated and added to.

Pre-Configured Pages

The MXP Strada shows with RPM scale all the data you need, such as speed, water temperature and oil pressure and lots more. You can choose the custom pages you wish, including up to four additional fields, from large library of page styles, defining which data you want to be shown - their end of scale measure units. Swapping between pages is easy using the push buttons.


Flexible Shift Lights & Alarms


The MXP has 10 multi-coloured RGB shift lights can be customised to how you like them. Defining the RPM threshold for each single gear. The same flexibility applies to the configurable RGB alarm LEDs. You can configure them in order to turn them on/off depending on analogue or digital inputs.ECU values, expansion values, math channels or optionally a GPS08.

You choose the conditions and colours, you can select a solid alarm or a flashing one, also the flashing frequency. It is also possible to configure an accompanying text message on the display and set the alarm priorities.

High Contrast TFT Display

The MXP Strada has a 6" high contrast TFT display. It's visual quality is optimised by it's ambient light sensor which keeps the backlight at the best brightness levels, avoiding the screen from dazzling you when it gets dark, yet keeping it bright and visual during the day.



Two Digital Outputs


The MXP Strada has two digital outputs. These LOW SIDE type (switch to ground), can be configured in order to be activated/deactivated depending on the value of the analogue/digital outputs. This allows you to automatically run external systems, such as switch on/off additional lights or to activate/de-activate a cooling fan or circulation pumps etc when a certain event happens.


Compare AiM Dashes

Prepare to unlock your potential

Our mission is to help educate you and enable you to get the most out of your AiM data equipment… whether you are new to racing or a seasoned professional, there is always something new to learn.

AiM MXP Strada Road Icons Dash Display

  • Display: 6" TFT
  • Resolution: 800x480 pixels
  • Contrast: 600:1
  • Brightness: 700cd/m2-1,100 Lumen
  • Ambient Light Sensor: Yes
  • Alarm display icons: Yes, freely configurable
  • Shift lights: 10 integrated freely configurable RGB LEDs
  • Alarm LED: 5 integrated freely configurable RGB LEDs
  • CAN connections: 3
  • ECU connection: CAN, RS232 or K-Line
  • ECU compatibility: 1,000 + industry leading ECUs
  • Expansion CAN connection: GPS Module, Channel Expansion, Thermocouples expansions, Lambda Controller, SmartyCam HD
  • Analog inputs: 8 fully configurable, max 1,000 Hz each
  • Digital inputs: 1 Speed input, coil RPM input
  • Digital outputs: 1 (1 A max)
  • Second CAN: Yes
  • Body: Anodised Aluminium
  • Pushbuttons: Metallic
  • Connectors: 2 AMP connectors
  • Power consumption: 400 mA
  • Dimensions: 189.6 x 106.4 x 24.9 mm
  • Weight: 640g
  • Waterproof: IP65







Search compatible ECU's by manufacturer supported by AiM

Click here >

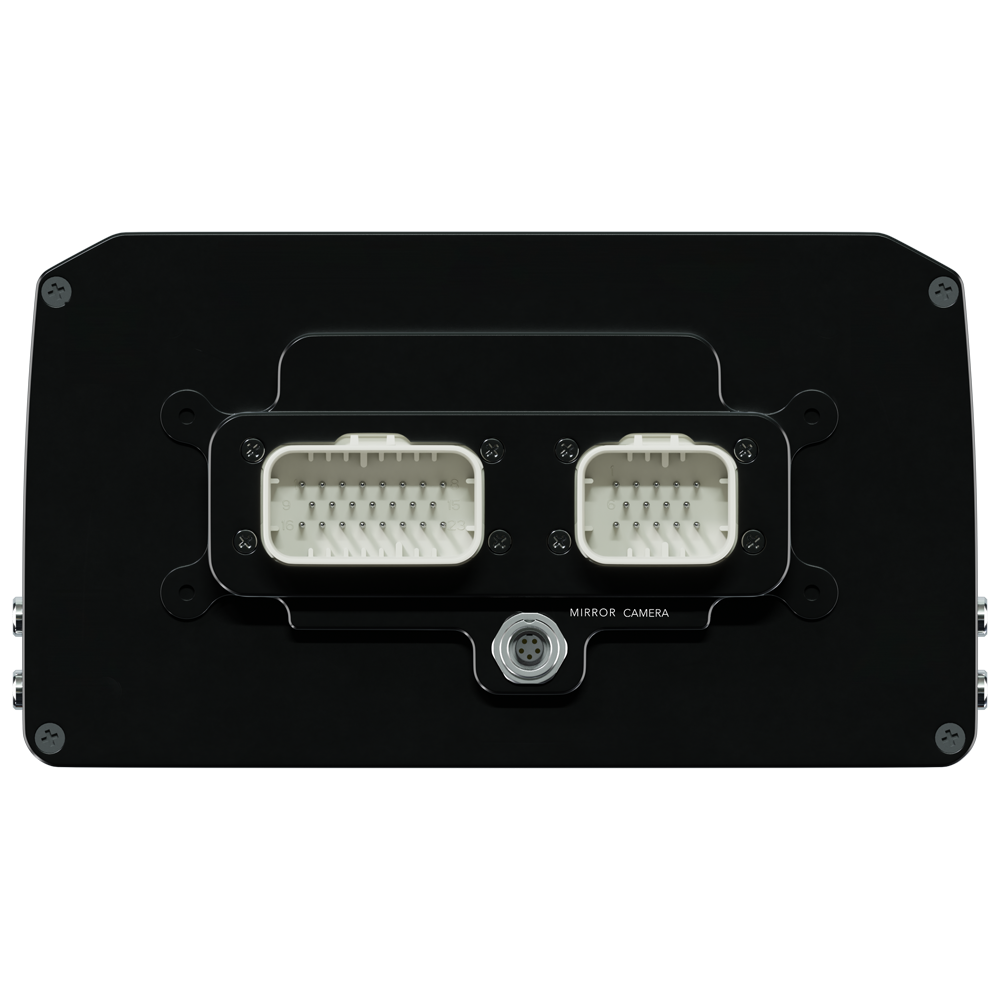

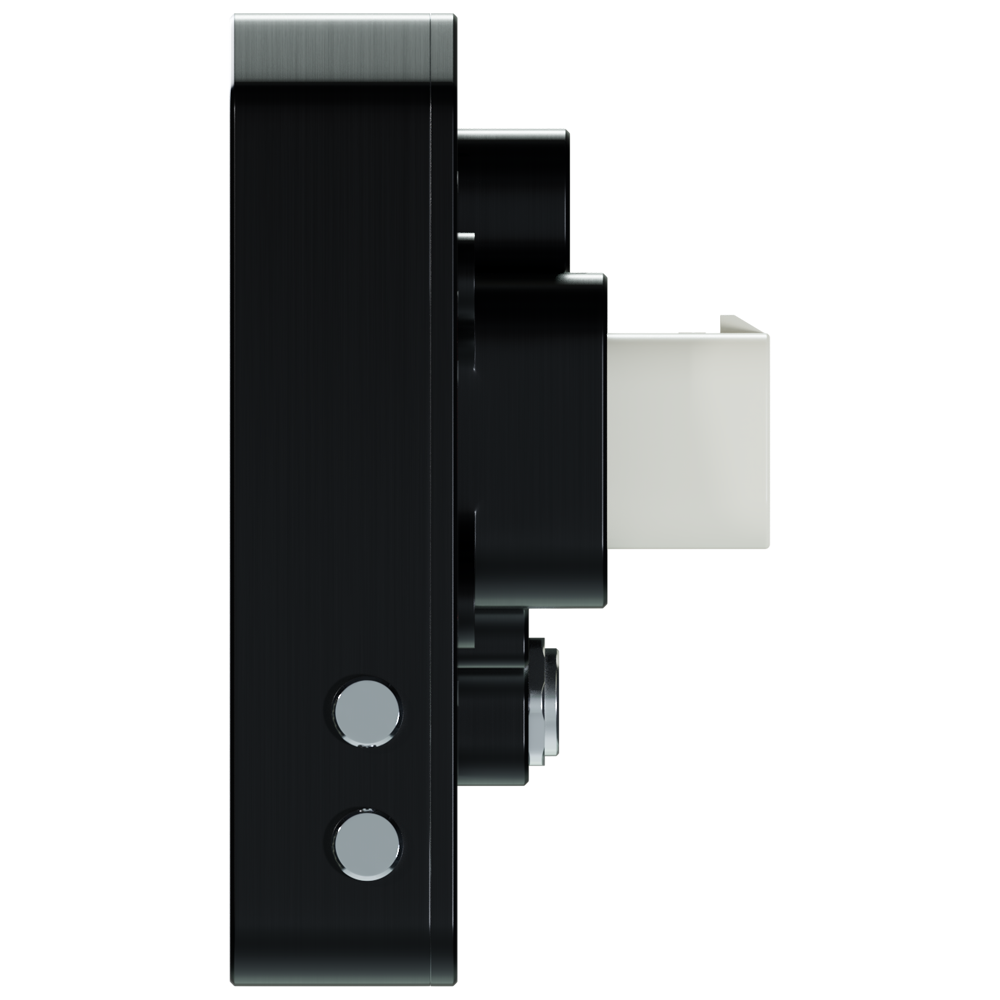

AiM MXP 360° View

AiM MXP Strada Road Icons Dash Display

  • MXP Strada
  • USB Cable
  • 14 pins standard cable
  • 23 pin connector + contacts
  • AiM Sticker
