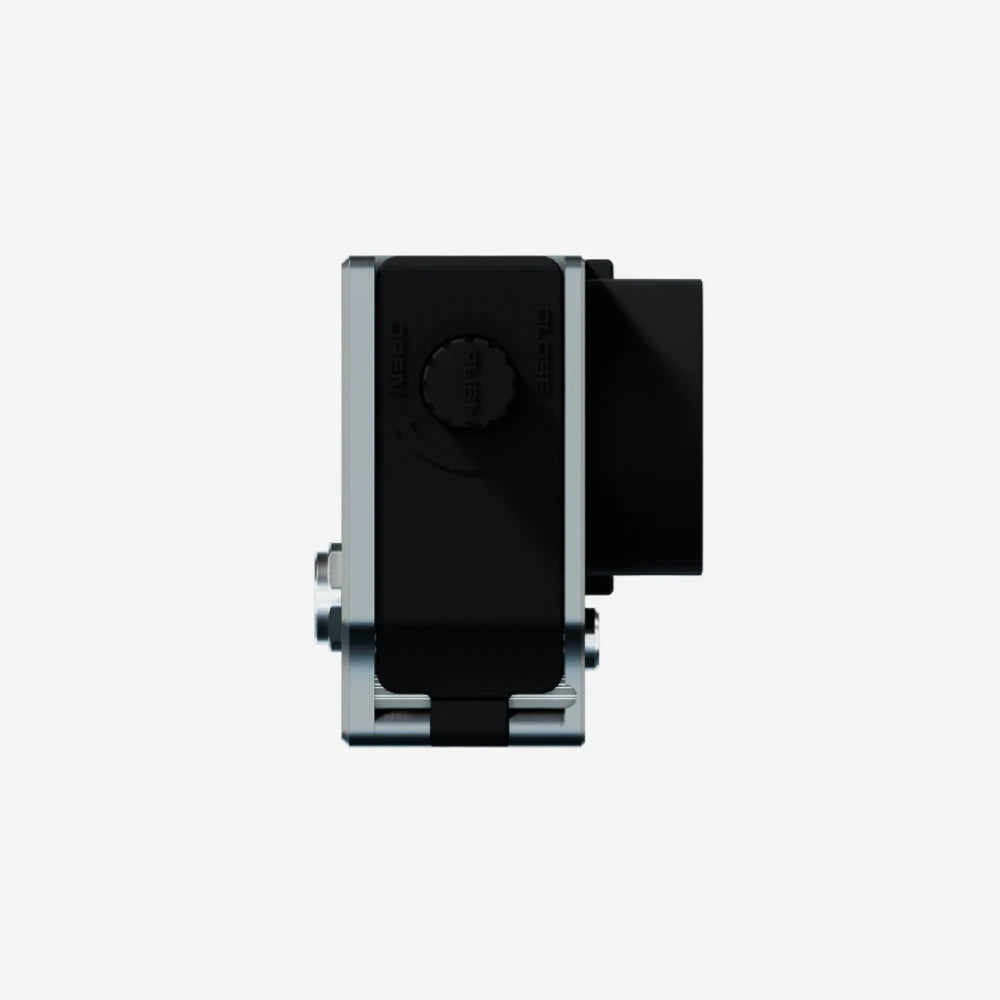

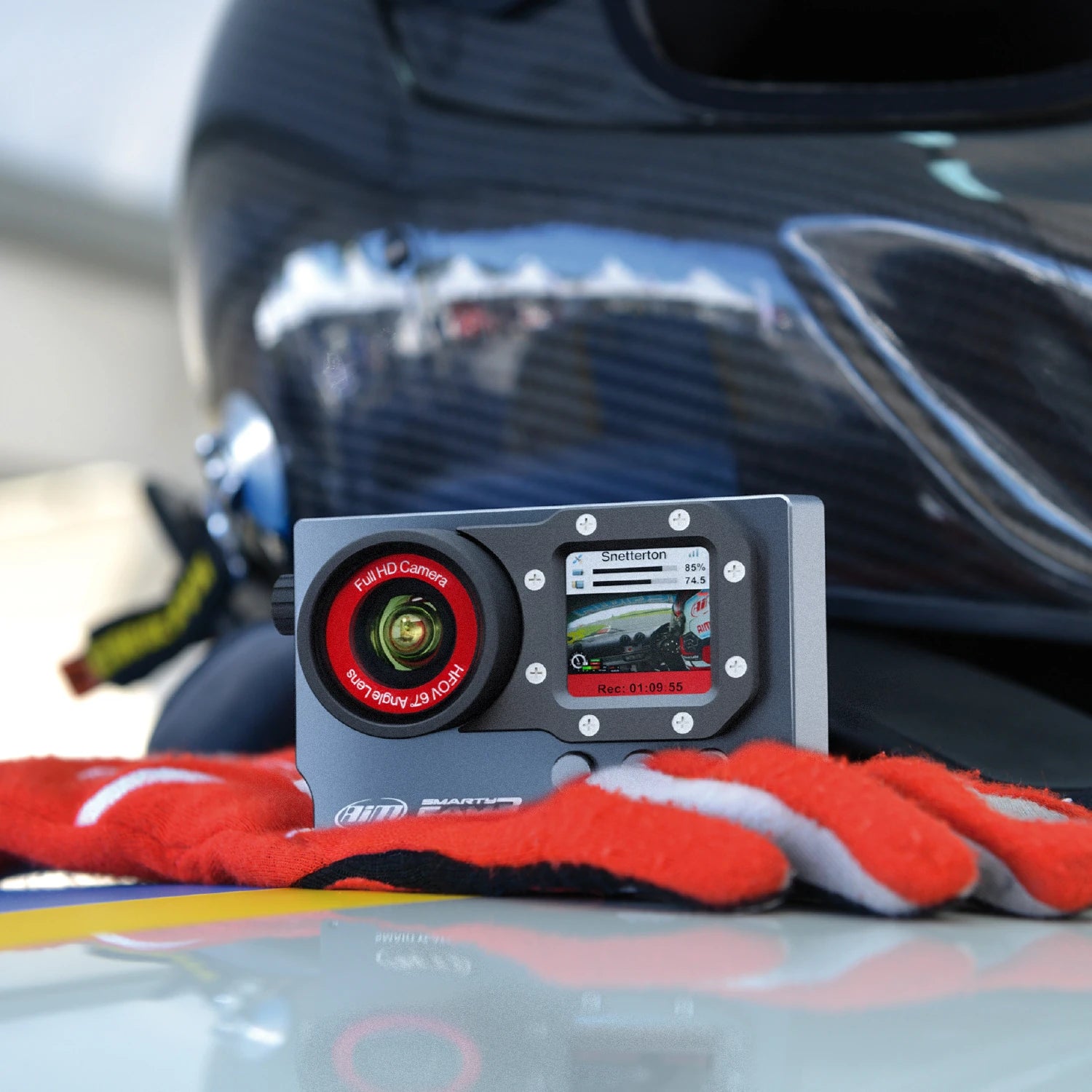

SmartyCam 3 Corsa

SKU: SM3

Regular price: £1,150.00
Regular price
Sale price: £1,150.00
Unit price: per

+ VAT (UK Only)

Title

Product variants

Compact, Advanced, Precise

The SmartyCam 3 Corsa: The Ultimate Motorsports Camera. Engineered to deliver unparalleled video performance, with GPS and ECU data for complete and comprehensive information.

The NEW SmartyCam 3 Corsa saves all your information to a supported SD card for up to 2TB of data, this includes speed, RPM, lap number, gear shifts and many more features. With a built-in data logger running on an external power of 9-15 volts, the new SmartyCam 3 Corsa automatically powers on and off in-sync with your engine – and will start/stop recording for you. Analyse your data from a vast range of sources such as GPS track map, vehicle position and speed, lap & split times.

Video format is at H.264 1920x1080 pixels, 60 FPS, and the display resolution of 128x128 pixels gives your footage crisp condition. Our quality doesn’t falter, even under the pressure of extreme motorsport conditions such as poor weather, strong vibrations, continuous rain, and high/low temperatures as extreme as -10°C to + 50°C. Our camera is also waterproof (IP65) for extra protection. With the built-in data logger experience enhanced RPM, throttle, engaged gears, acceleration, temperatures, and pressures including a tri-axis accelerometer measuring 16G.

With the built-in data logger experience enhanced RPM, throttle, engaged gears, acceleration, temperatures, and pressures including a tri-axis accelerometer measuring 16G.

The SmartyCam 3 Corsa provides you with a CAN expansion that connects with many Aim devices such as the Solo 2 DL Laptimer, various Aim Dash Display Loggers, and PDM Dash systems. This is a standard practice within our products, however we have also equipped the SmartyCam 3 Corsa with unterminated CAN connections which allow you to connect the camera to any system as a standalone feature. No matter your vehicle and equipment, with the unterminated connectors you can run the Corsa through your CAN/ECU connections.

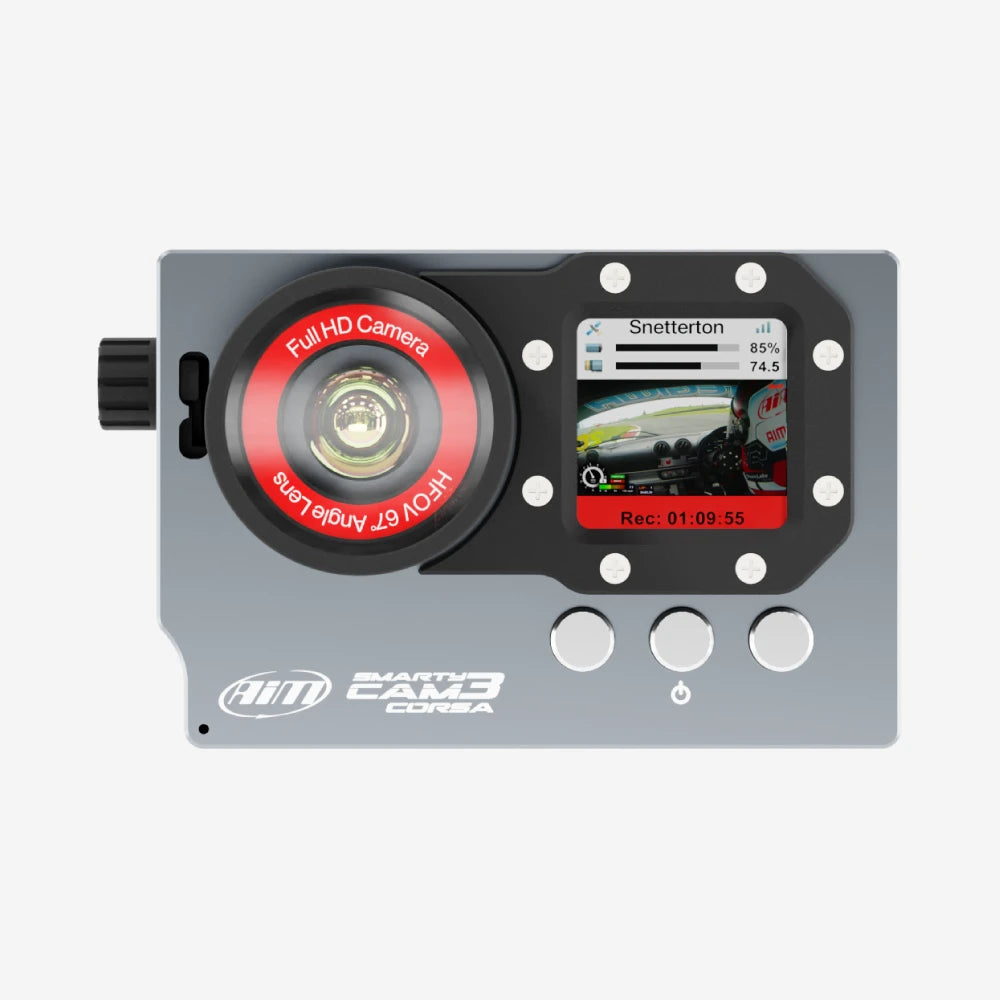

The SmartyCam 3 Corsa includes a global shutter CMOS sensor with a low distortion lens with a field of view of 67° or 84° covering all areas, its lightweight 200g (battery included) framework infallible in providing you with smooth and effortless footage.

Finished with a sleek new look, the SmartyCam 3 Corsa is assured to add efficiency, informational data, productivity, and style to your racing. AiM SmartyCam 3 Corsa allows you to connect ECU direct to your camera with b connectors. Here at AiM, we provide only the best innovations and are constantly and consistently working to better your racing experience.

Generic HD cameras focus too much on pixel numbers resulting in large file sizes. The SmartyCam 3 footage has the same quality as other FHD cameras with smaller files due to H.264 compression system parameters being optimised to a perfect balance between video quality and file size. Choose between three file quality levels: O recording = 4GB (High Quality), 2GB (Normal Quality) or 1.5GB (Lower quality).

The SD card housing is 100% protected from air and weathering.

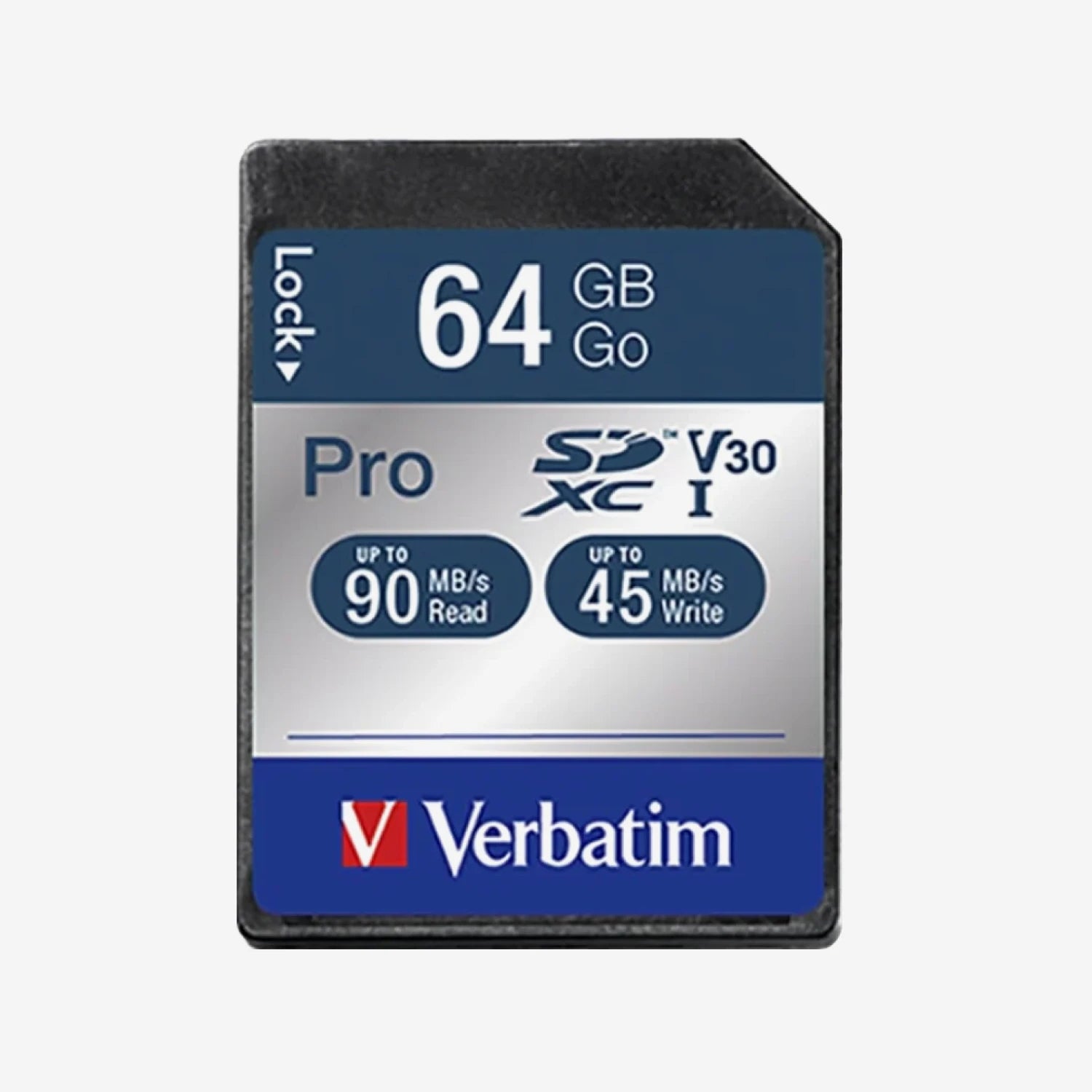

SD cards sold separately.

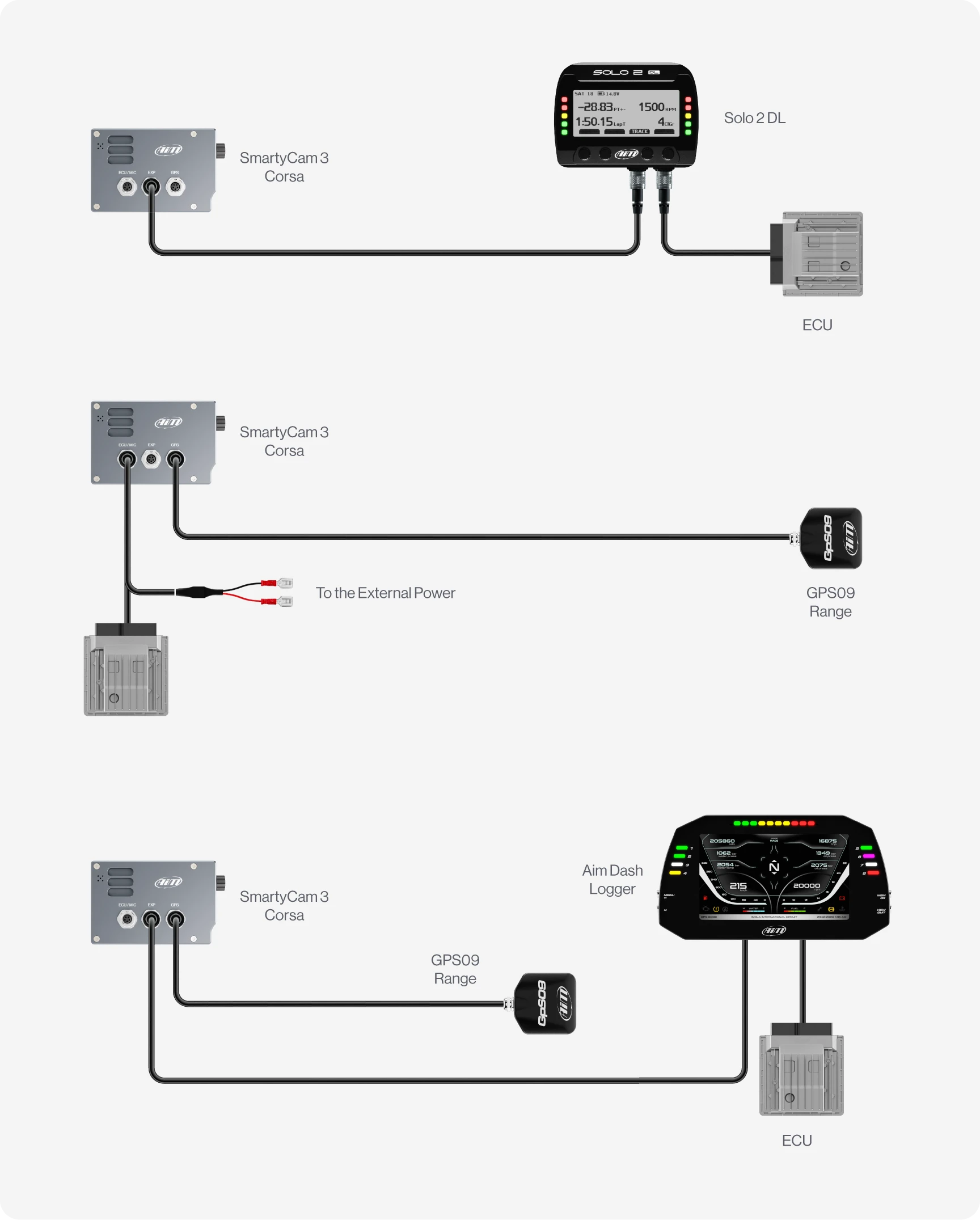

The SmartyCam 3 Corsa can be connected through the CAN network to our AiM Loggers, MX Series, MXL2, MyChron, Solo2 DL, EVO5 and ECU Bridge.

You can connect more SmartyCam 3 cameras on the same CAN network. The SmartyCam has its configuration and automatically retrieves the data it needs from the network without interfering with the others. You can also synchronize your video and data with the Loggers using Race Studio 3 software.

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps by watching the video recorded by SmartyCam cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by the SmartyCam and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performance.

Video format: H.264 1920x1080 pixels @ 60 FPS
Display resolution: 128 x 128 pixels
Lens: Low distortion camera lens
CMOS sensor: Global Shutter
Field of view: 67°, 84°
Internal battery: Rechargeable lithium battery
External power: 9-15 Volt
Supports SD card: Up to 2 TB

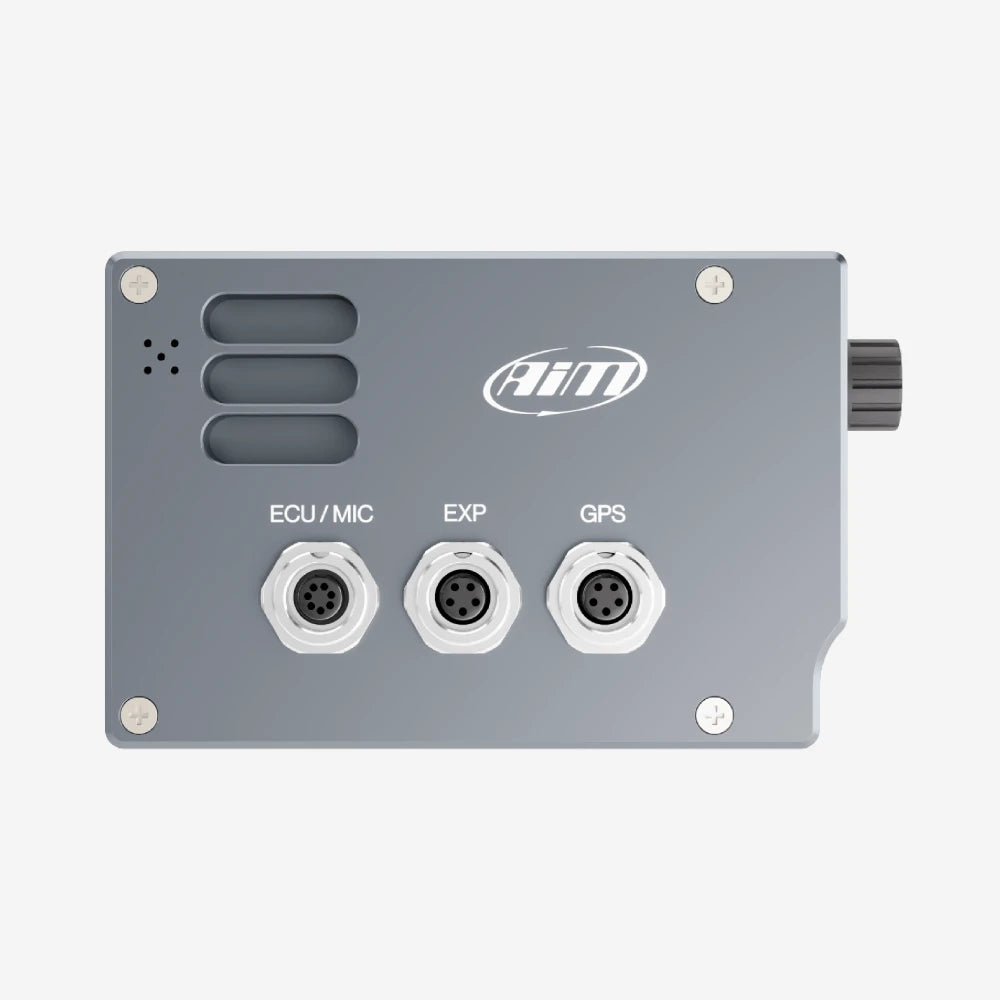

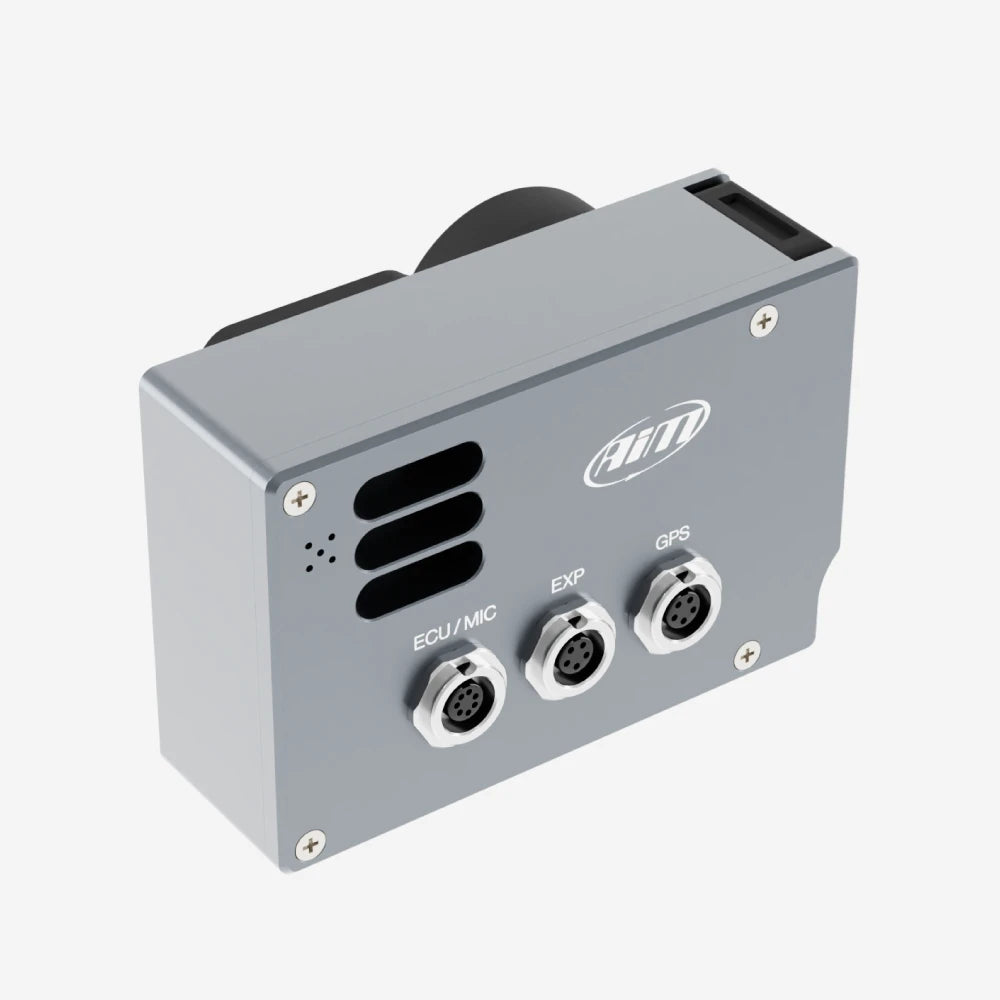

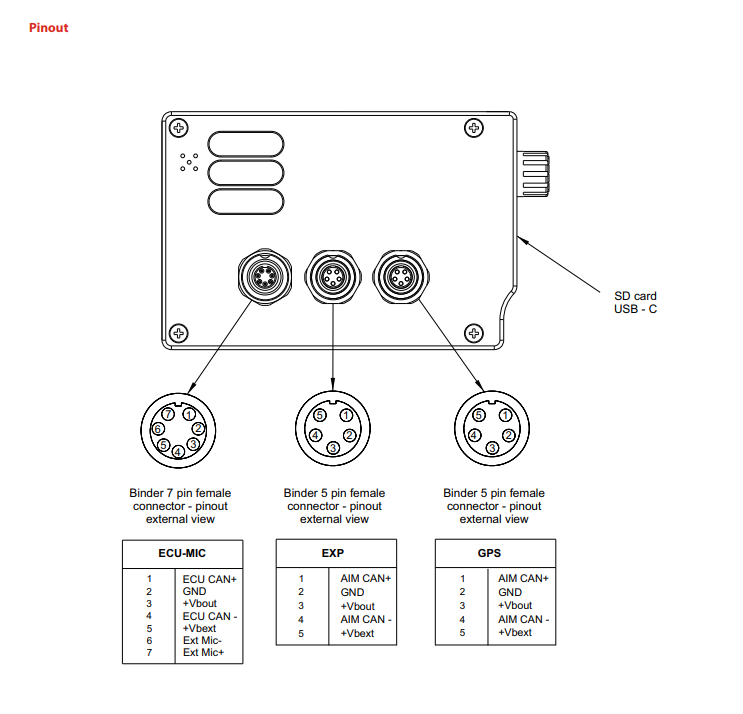

Connectors: 3 Binder 712 female 1 USB-C
Usage temperatures: -10°C/+50°C
Auto Power ON: Yes
Auto Power OFF: Yes
Auto Start/Stop Recording: Yes
Dimensions: 102.2 x 63 x 46.5 mm
Weight: 280g, battery included
Waterproof: IP65

SmartyCam 3 Corsa
USB-C Cable
712 5 Pin Male
2 or 4 Metre Patch Cable


User Guide	Technical sheet

Description

Compact, Advanced, Precise

The SmartyCam 3 Corsa: The Ultimate Motorsports Camera. Engineered to deliver unparalleled video performance, with GPS and ECU data for complete and comprehensive information.

With the built-in data logger experience enhanced RPM, throttle, engaged gears, acceleration, temperatures, and pressures including a tri-axis accelerometer measuring 16G.

The SmartyCam 3 Corsa contains a rechargeable lithium battery confined inside its 102.2x63x46.5mm body, and using its connectors - 3 Binder 712 female + 1 USB-C - slots right into the back of your dashboard.

Finished with a sleek new look, the SmartyCam 3 Corsa is assured to add efficiency, informational data, productivity, and style to your racing. AiM SmartyCam 3 Corsa allows you to connect ECU direct to your camera with b connectors. Here at AiM, we provide only the best innovations and are constantly and consistently working to better your racing experience.
