Smartycam 3 dual
If you’ve got a question, you’re looking for information, or you just want to chat, please find a host of available help options below.
The Best Dual Motorsport Camera System

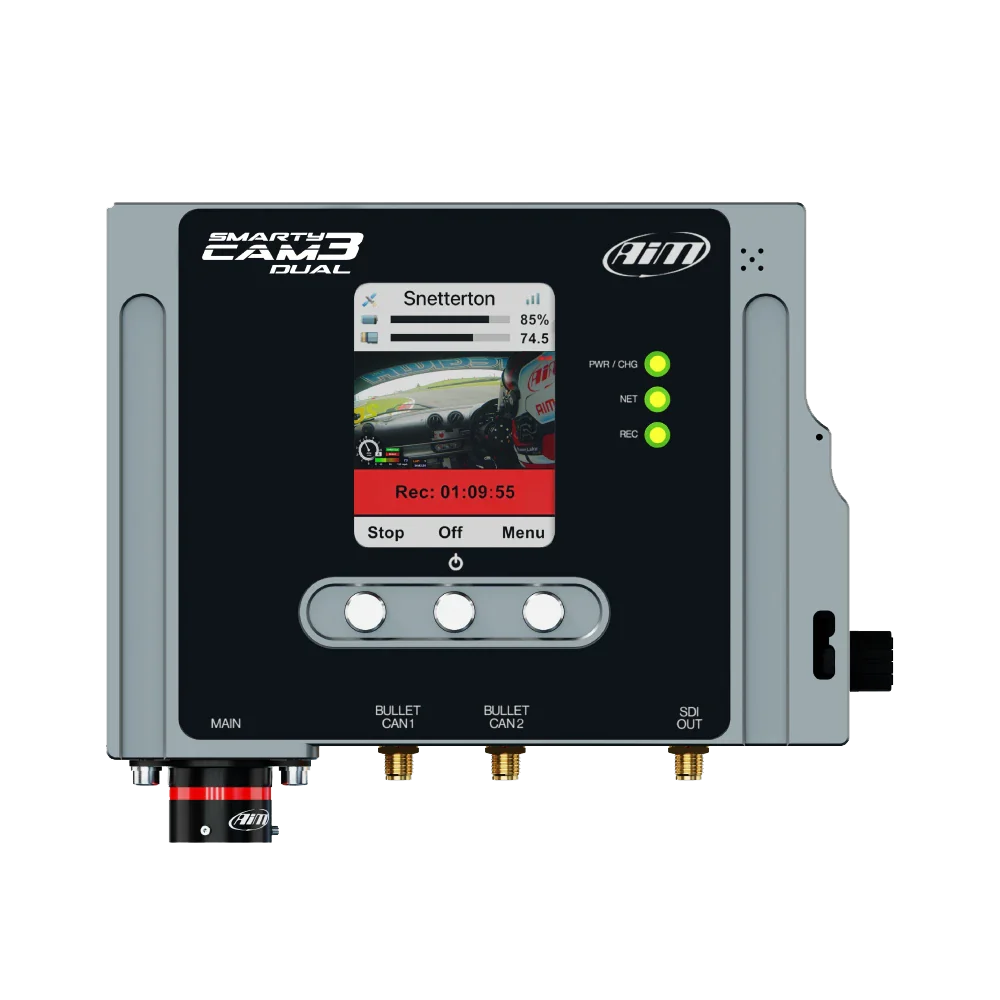

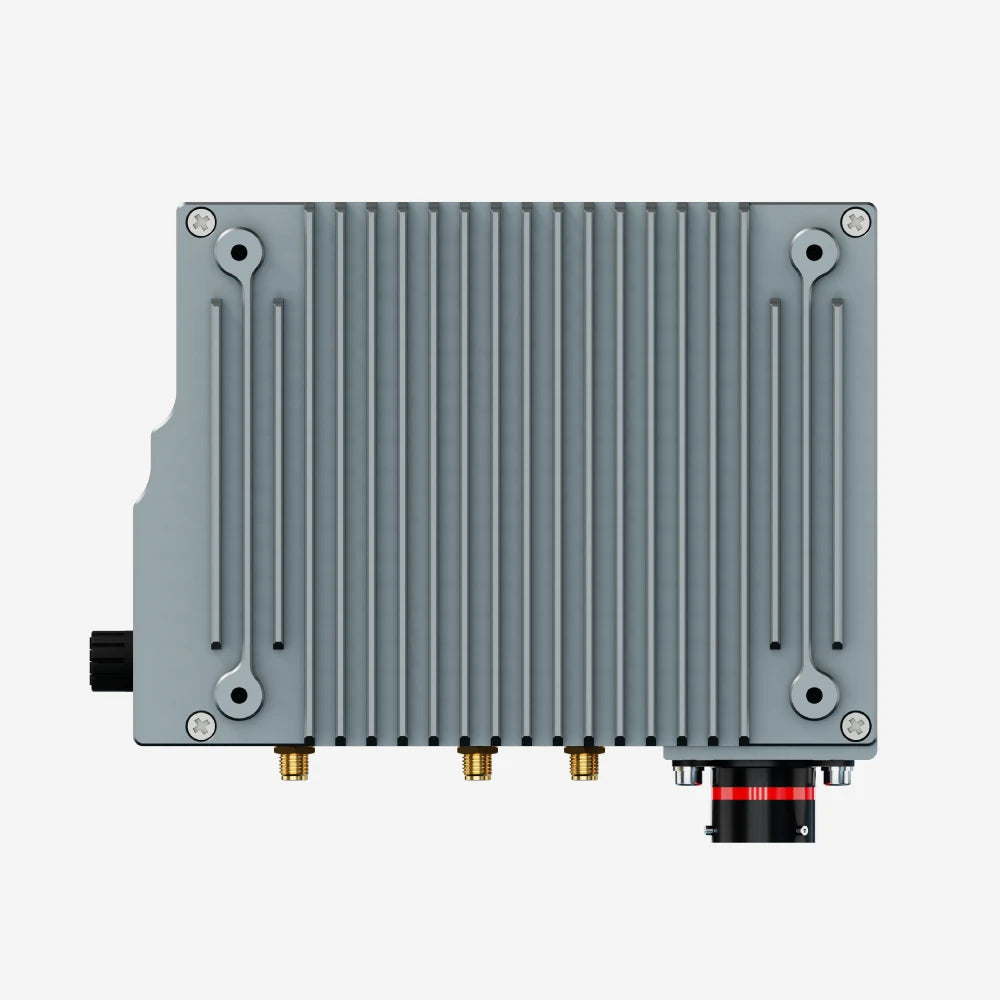

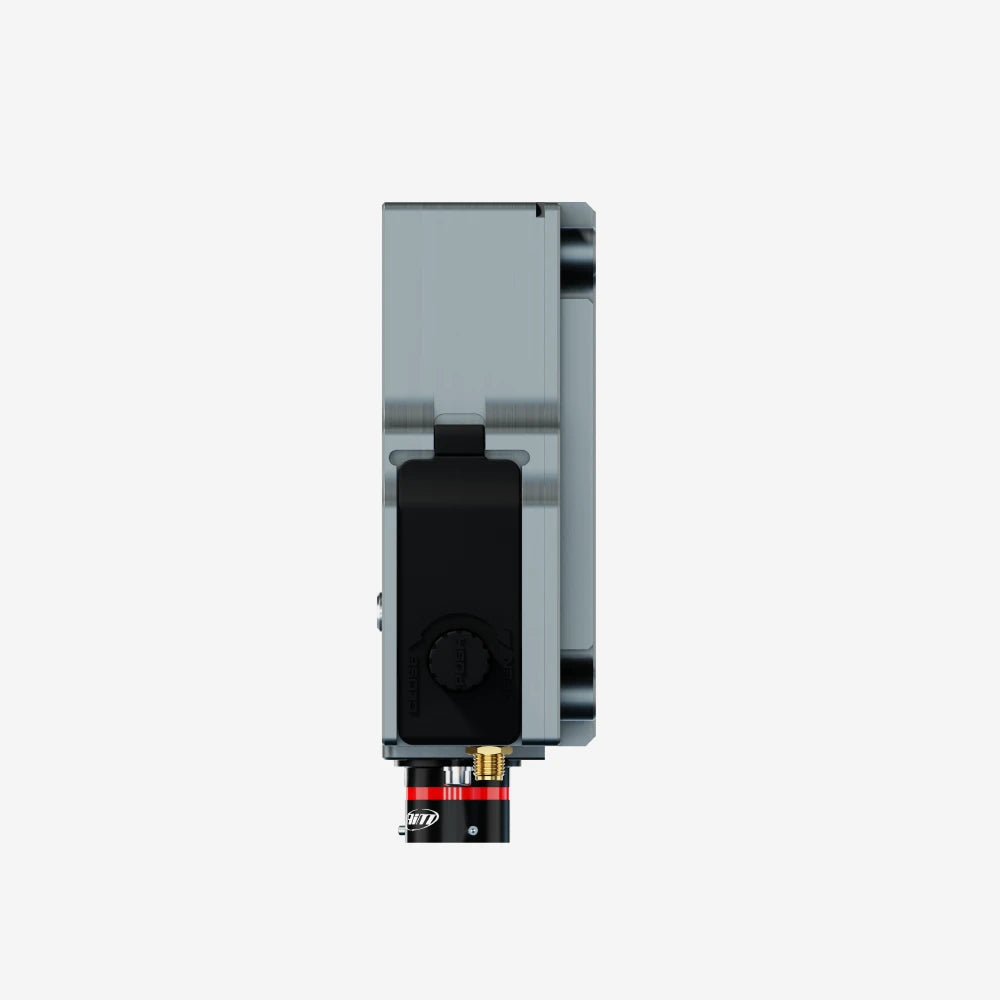

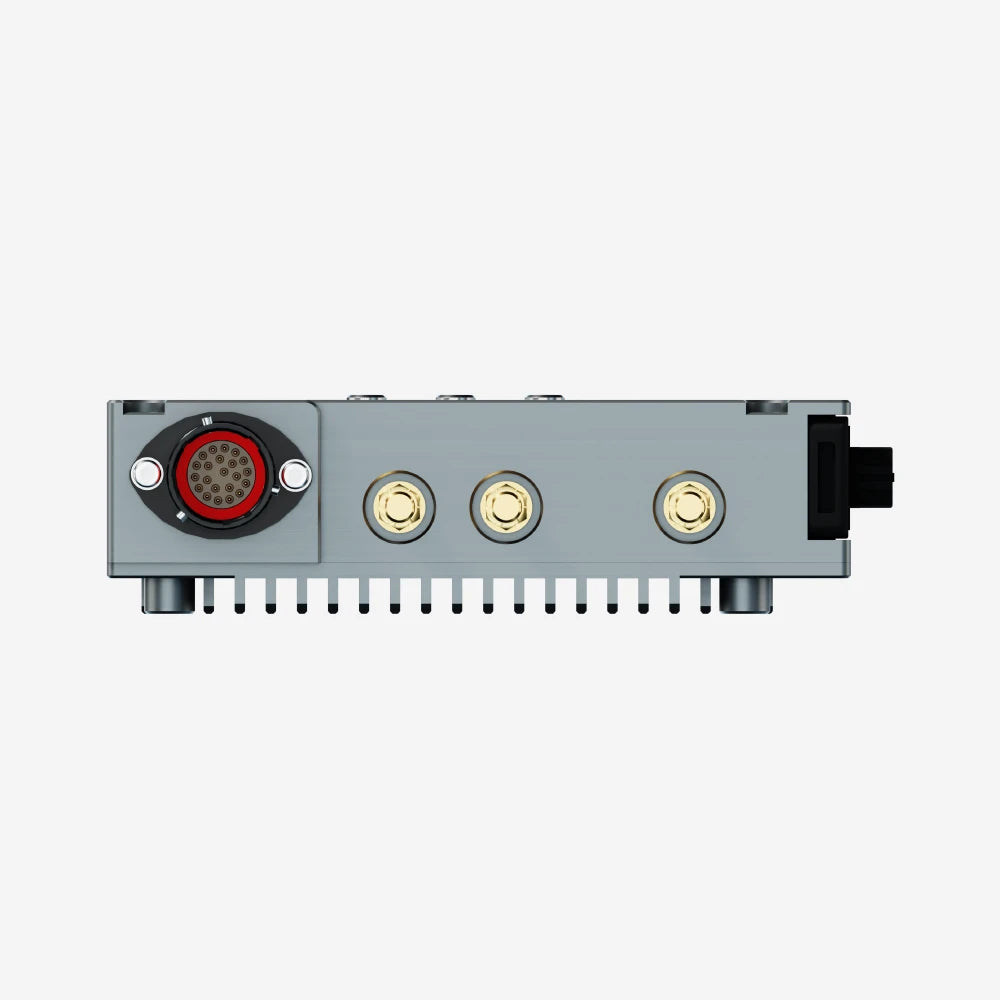

The Aim SmartyCam 3 Dual is the best onboard dual motorsport camera system in our range, designed for any racer who wants to get the most out of any performance video on the track and in the pits.
Please Note: The camera MUST be externally powered as the internal battery is only designed for initial configuration.
Why Choose the SmartyCam 3 Dual

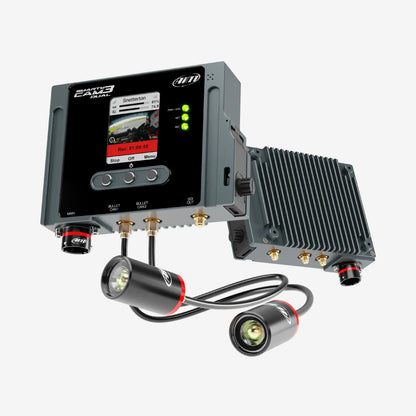

The Aim SmartyCam 3 Dual is a professional onboard motorsport system with 2 bullet cameras. It automatically powers on and off in-sync with your engine and will auto start/stop recording based on parameters you set. It saves all your information to a supported SD card for up to 2TB of data, including speed, RPM, lap number, gear shifts and more.
Data from the SmartyCam 3 Dual can be analysed from a vast range of sources such as ECU information, GPS information, track map, vehicle position, speed, lap & split times. With IP65 waterproof, wobble-resistant global shutter CMOS sensor, and machined aluminium that allows the camera to withstand extreme temperatures and severe weather circumstances, your performance will hit the next level.
Video Output/Streaming
The SmartyCam 3 Dual features a video output with an SD interface. It allows you to send the video/audio directly to wherever you choose, for example your pit crew, at 30 or 60fps.
Two Video Inputs
With two video inputs, you can film from two locations on your vehicle, which can be displayed on 'Picture in Picture’ using Race Studio 3. This allows you to overlay and analyse your driving from any two angles in or out of the vehicle.
Picture in Picture
Overlay your videos with our all-new 'Picture in Picture' effect. Pick your angles and align your dual bullet cameras accordingly. In your post-race analysis in Race Studio 3, you can overlay all angles with your data and analyse from a picture-in-picture standpoint.
Automatic Track Selection
SmartyCam 3 Dual can automatically recognise which track you're on and begin mapping - if your track does not register, you can create your own custom track within Race Studio 3.
Higher Storage Capacity
Other HD cameras often chase higher pixel counts which leads to huge file sizes without much real benefit. The SmartyCam 3 Dual is different: it uses smart H.264 compression settings that keep the video quality you need while keeping file sizes small. This means you can quickly download and review footage at the track for data analysis, instead of dealing with huge cinematic files that look pretty but slow you down.
Choose between three file quality levels: One hour recording = 4GB (high quality), 2GB (normal quality) or 1.5GB (lower quality).
The SD card housing on the Aim SmartyCam 3 Dual is 100% protected from air and weathering.
SD cards sold separately.
Expand Your System
Overlay your delta, predictive, timing splits, lap data and more in Race Studio 3 when you pair the SmartyCam 3 Dual with the Aim Solo 2 DL GPS lap timer. Expand your system further with additional sensors and expansions such as the ACC, LCU-One S, Data Hubs, sensors and more.
Technical Information
Technical Specs
Diagram
Pinout
Harness Options
Included in the Box
SmartyCam 3 Dual
USB-C Cable
Your Chosen Harness
2x Bullet Cameras
2x Coax Cables
-
Free Aim Software
Downloads
Connection Example
FAQs
Please read our FAQs page to find out more.
How does a SmartyCam 3 Dual differ from other racing cameras?
The SmartyCam 3 Dual vastly differs from other action cameras on the market by operating as a dual bullet camera data logger, particularly for motorsport applications. It simultaneously records 2 angles of your choice, with fully integrated, real time telemetry overlays.
What are the best applications for the Aim SmartyCam 3 Dual?
The Aim SmartyCam 3 Dual is designed specifically for motorsport where, in addition to video, precise data analysis is required to improve lap times. It is best-suited to closed-wheel, touring, and endurance cars, as well as complex cockpit setups in formula cars due to its robust design and ability to overlay engine data directly onto full HD video.
Which products are compatible with the SmartyCam 3 Dual camera?
All SmartyCams are designed to work within the Aim ecosystem, including the Solo 2 DL, MX Displays (including Display Loggers), PDMs, Data Hubs, ACC3 and various sensors.
How are cameras & sensors used in racing?
Aim SmartyCam cameras automatically record track sessions with telemetry data overlays on the video. When combined with sensors, the SmartyCam 3 Dual helps to monitor essential vehicle data to keep the vehicle running at its best and improve overall driving performance.
How do I mount the Aim SmartyCam 3 Dual?
The Aim SmartyCam 3 Dual has a variety of optional mounts, such as a suction cup, u bolt, or roll cage bracket for the bullet cameras. All mounting options provide a stable and vibration-resistant mounting solution, ensuring the best view of your laps.
Where should the SmartyCam bullet cameras be aimed?
The first bullet camera should be aimed towards the track, ideally capturing the driver's view through the windscreen pillars. The second bullet camera can be used to capture a view of the drivers pedals or the driver themselves to review the drivers focus and reaction.
Does the SmartyCam 3 Dual come with a microphone?
Yes, the Dual model comes with a built-in internal microphone, as well as supporting an external microphone for enhanced audio quality. You will need the full harness to connect an external microphone to the SmartyCam 3 Dual. See our PDF for more information on SmartyCam audio.
