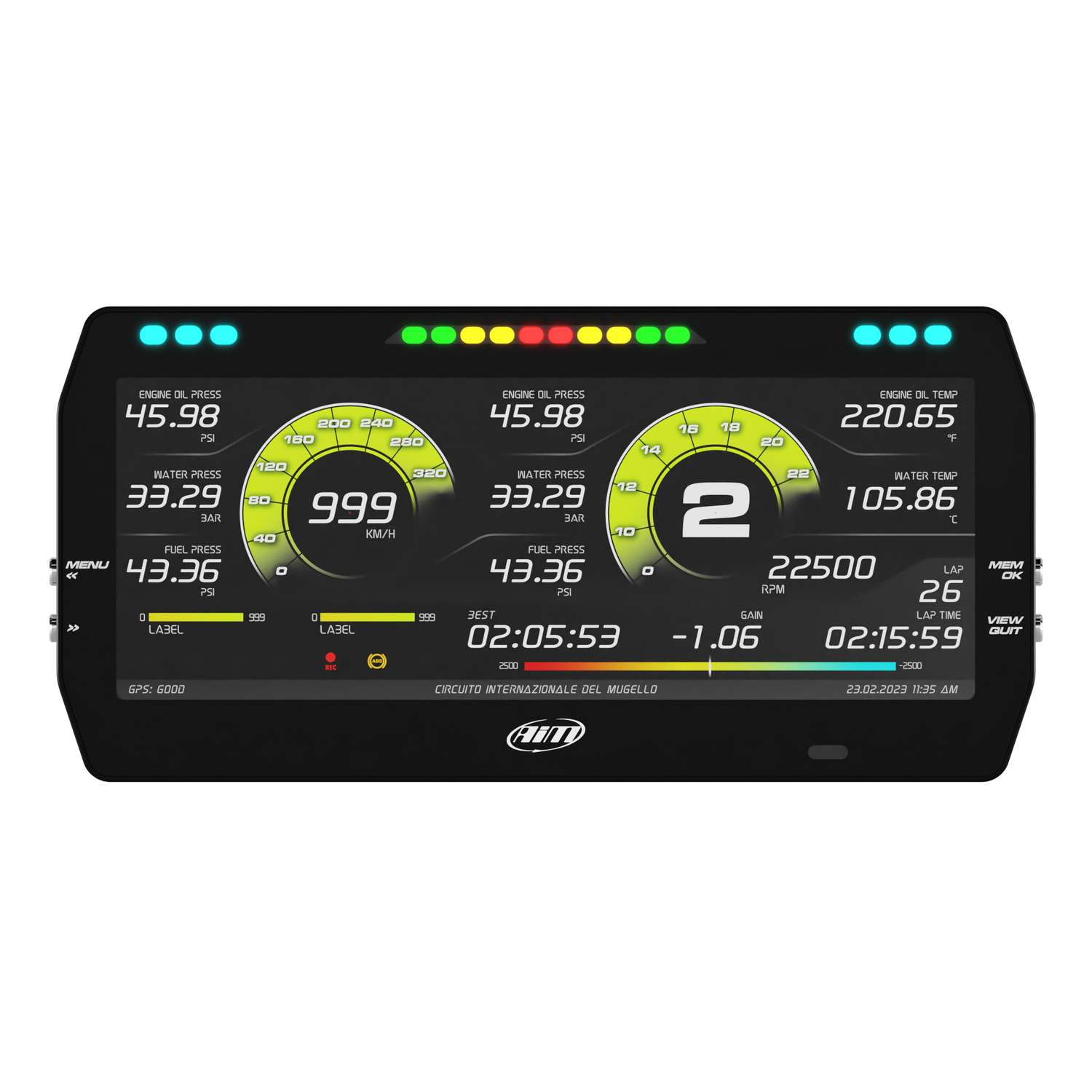

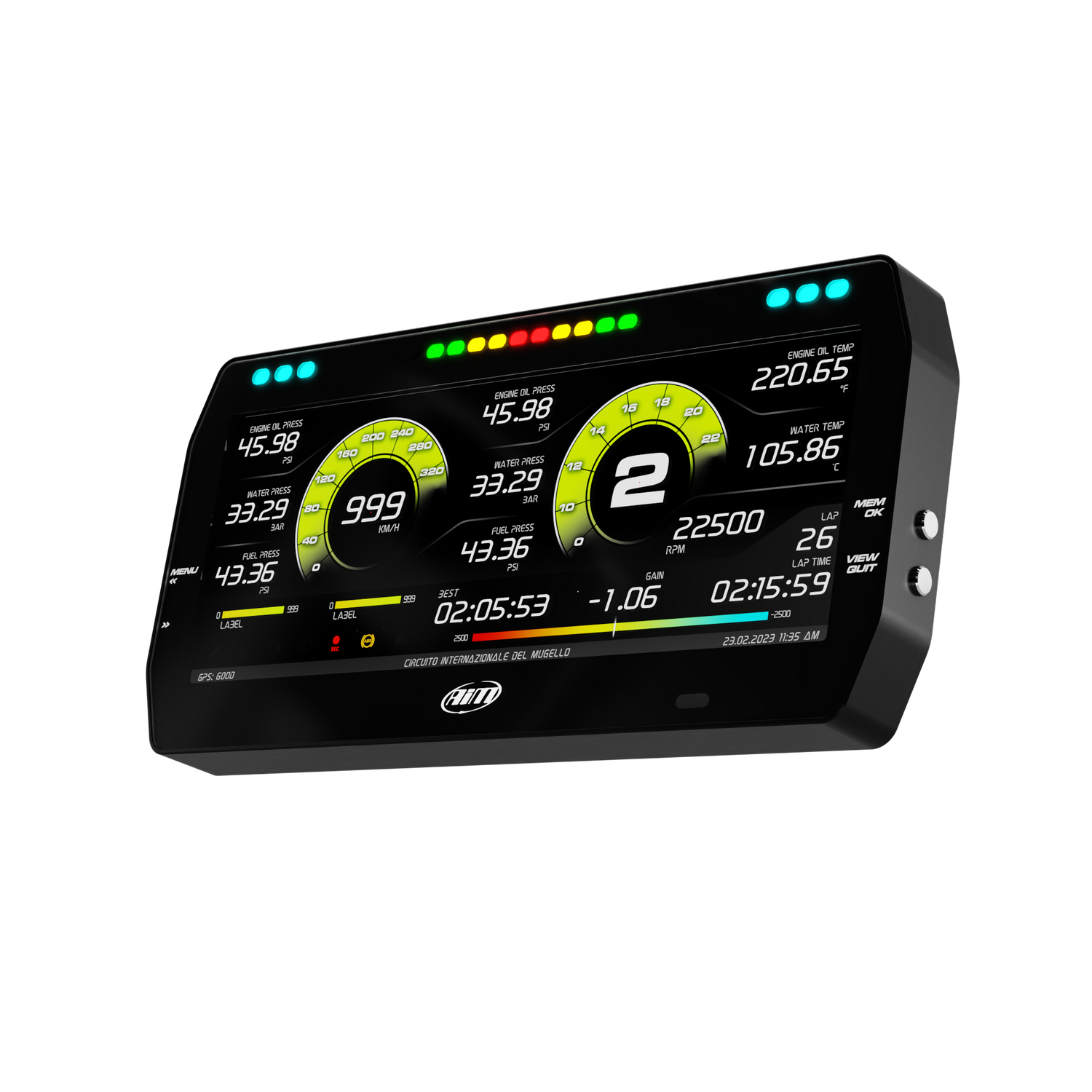

AiM MXT 1.3 10" TFT Digital Display and Data Logger

SKU: MXT

Regular price
£2,500.00
Regular price
Sale price
£2,500.00

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders

AiM MXT 1.3 10" TFT Dash Display and data logger

The MXT 1.3 features a 10" wide colour dash display offering great visual impact, and configurable to show data coming from your vehicles ECU.

Key Features :

10" TFT display 6 alarm RGB LEDs
10 shift light RGB LEDs 8 analogue inputs
CAN output Configure data

AiM MXT 1.3 10" TFT Dash Display and data logger

The MXT 1.3 has an integrated shift array, configurable multicolor alarms, drag and drop multi page configuration, Wi-Fi and USB connectivity, GPS09 Module, analog and digital inputs, digital outputs, Motorsport connectors, 4 GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections.

MXT 1.3 samples data coming from your ECU, the GPS09 Module, 8 fully configurable analog inputs, 6 digital inputs, predefined math channels and second CAN. Performance and data acquired can also be incremented adding up to eight expansion modules.

Freely configurable pages

You can define up to 8 custom pages, choosing among a selection of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two pushbuttons.


Display

A high contrast TFT display identifies MXT 1.3 at the first glance. An ambient light sensor keeps the backlight at optimum brightness levels.


Flexible alarms & custom street icons

MXT 1.3 features five configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Furthermore you can select the street icons you need among the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn't be enough, you will be able to upload and set up your own customized icons.


Two digital outputs

MXT 1.3 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.


Camera inputs, also for mirror camera

Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.


Integrated shift light array

Choose from a host of advanced multicoloured RGB shift light patterns that can be customized as you like, and for each unique gear when required.


Expand Your System

Using the built-in CAN bus, you can add expansion modules to the MXT 1.3 to increment the performance and the data acquired:

GPS09 Module

Thanks to GPS09 Module (included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.

Channel Expansion

It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

TC Hub

It adds 4 K thermocouples.

LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

SmartyCam 3 cameras

The on-board cameras that overlays on videos the data sampled by your logger.

Memory Module

The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.


Connection Example

These are only some of the items that can be added to our MXT 1.3 for incrementing the performance and the data acquired:

connection example


Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by MXP 1.3 Strada and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM MXT 1.3 10" TFT Dash Display and data logger

  • Display: 10" TFT
  • Resolution: 1280 x 480 pixels
  • Contrast: 1,100:1
  • Brightness: 800cd/m
  • Ambient Light Sensor: Yes
  • Alarm Display Icons: Yes, freely configurable
  • Alarm LEDs: 6 configurable RGB LEDs
  • Shift Lights: 10 configurable RGB LEDs
  • CAN Connections: 3
  • ECU Connections: CAN, RS232 or K-Line
  • ECU Compatibility: +1000 industry-leading ECUs
  • Expansion CAN Connection: GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
  • Analogue Inputs: 8 fully configurable, max 500 Hz each
  • Digital Inputs: 4-speed input, lap signal, coil RPM input
  • Digital Outputs: 2 (1 A max)
  • Second CAN: Yes
  • Wi-Fi connection: Yes
  • Internal memory: 4GB
  • Body: Anodized Aluminium
  • Pushbuttons: Metallic

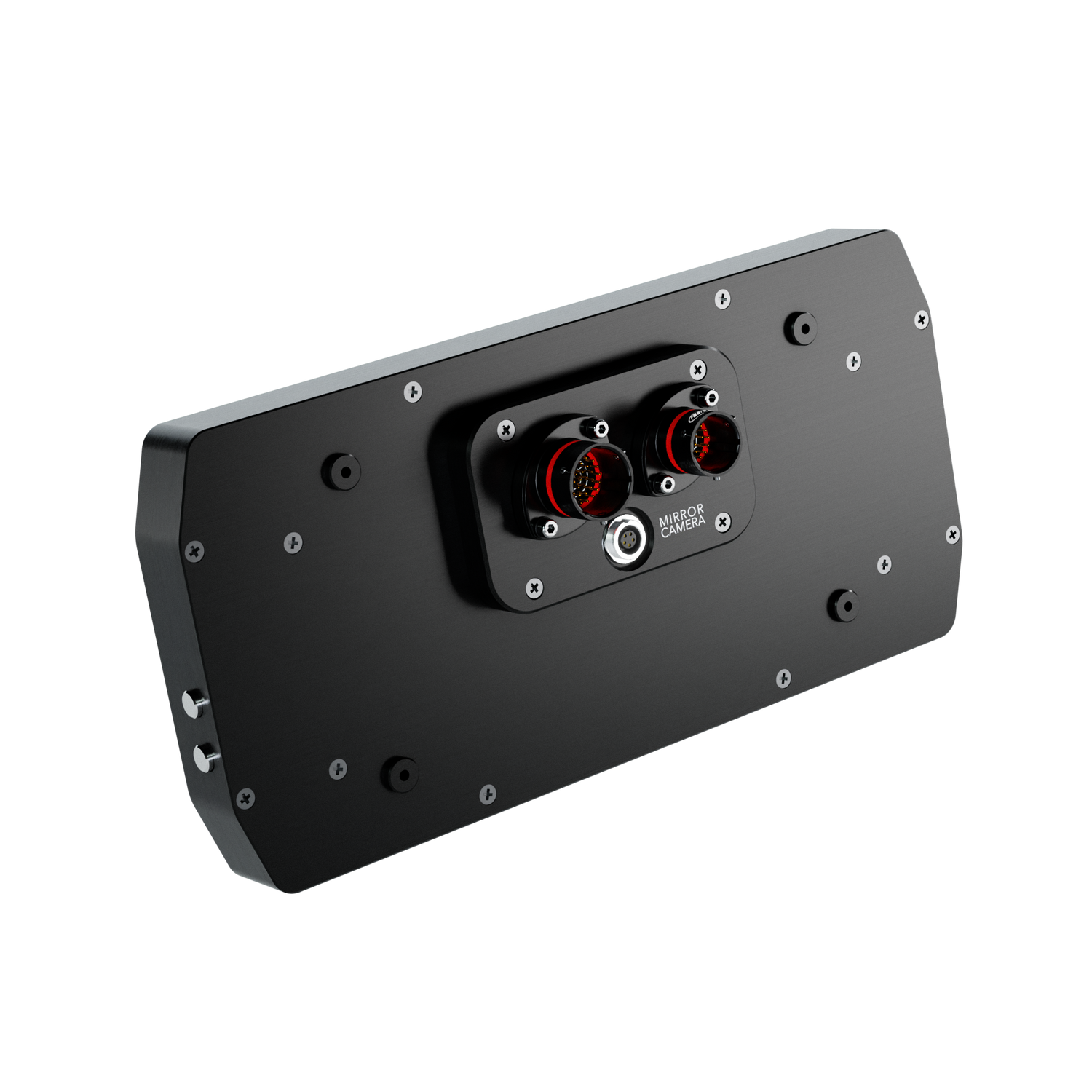

  • Connectors: 2 Autosport connectors + 1 Binder connector
  • Power Consumption: 450 mA
  • Dimensions: 278 X 135 X 43.2mm
  • Weight: 1,200g
  • Waterproof: IP65


AiM MXT 1.3 10" TFT Dash Display and data logger

  • MXT 1.3
  • GPS Module with cable
  • USB Cable
  • 37 Pin Standard harness
  • AiM Sticker
