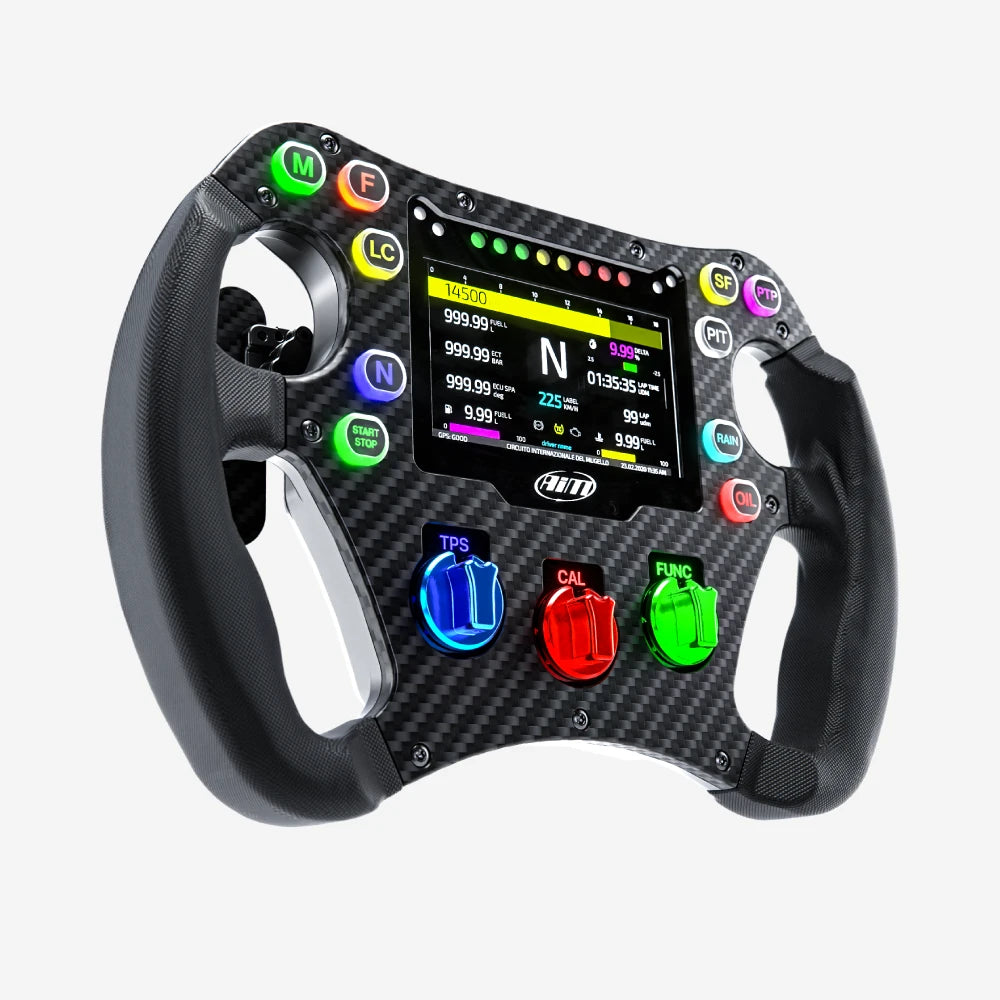

Aim SW4 270 (MY26) Formula Steering Wheel

The SW4 Steering Wheels support over 2,000 ECU protocols, ensuring compatibility with a wide range of vehicles and driver requirements. The high-contrast customisable TFT display offers multiple layout options, allowing drivers to view real time data in their preferred format.

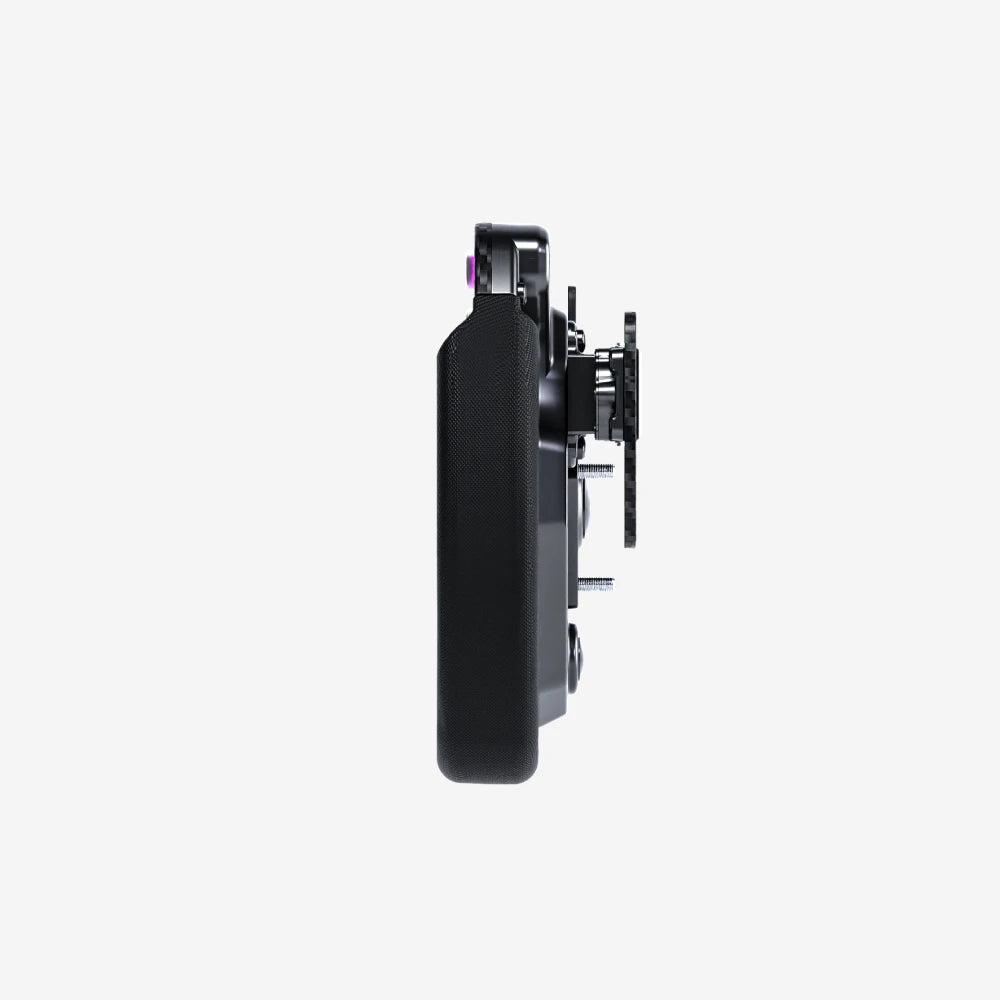

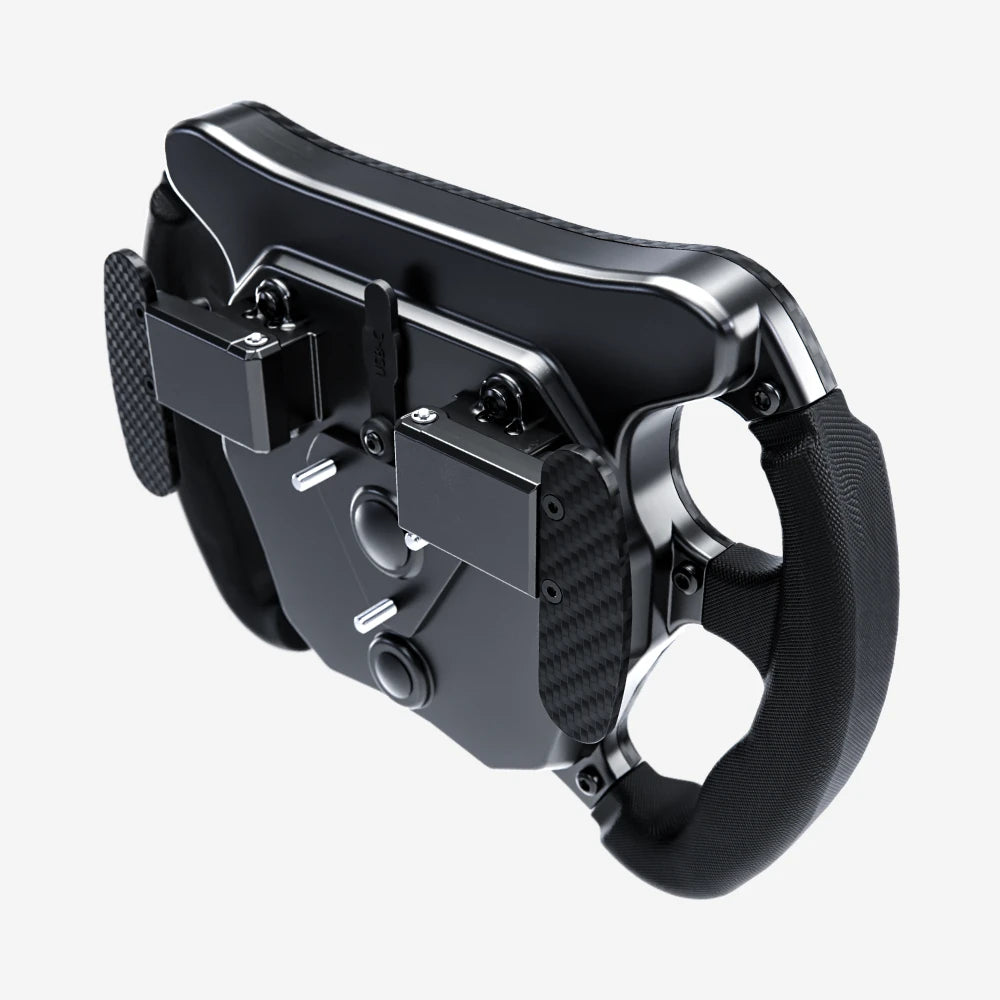

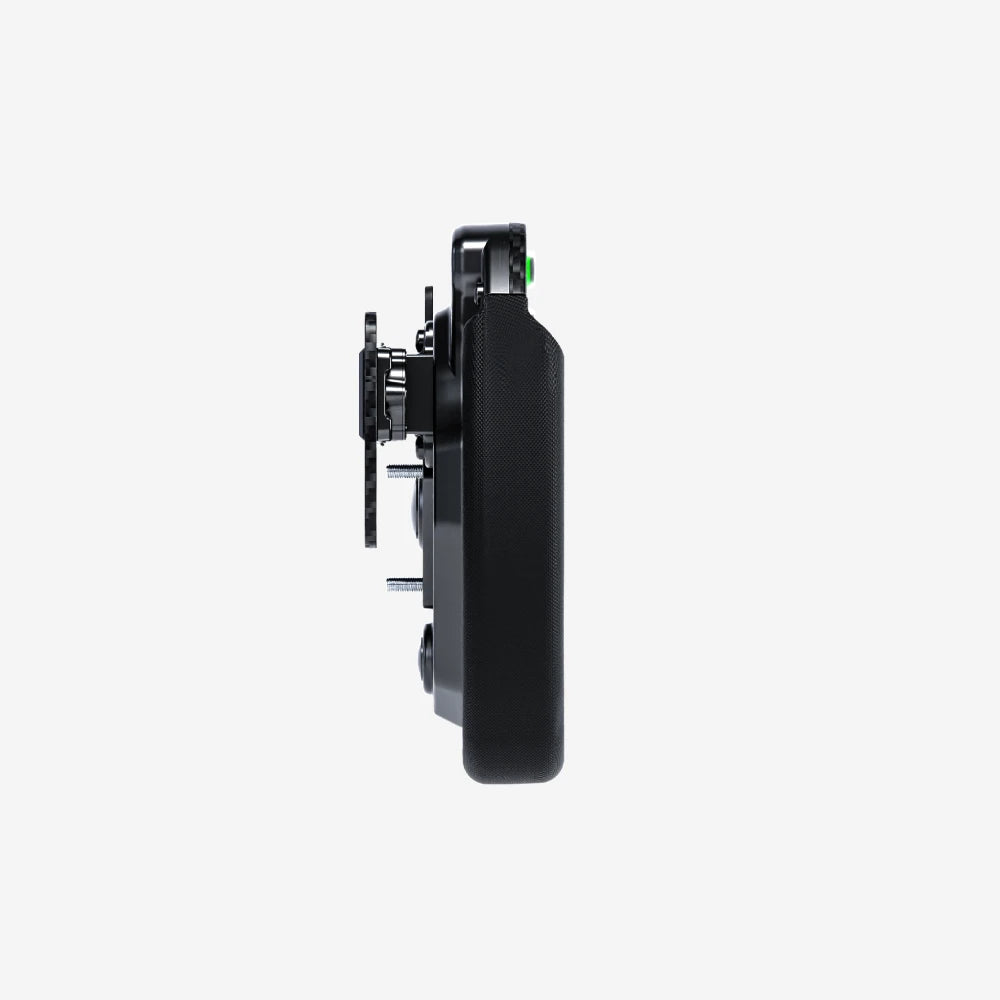

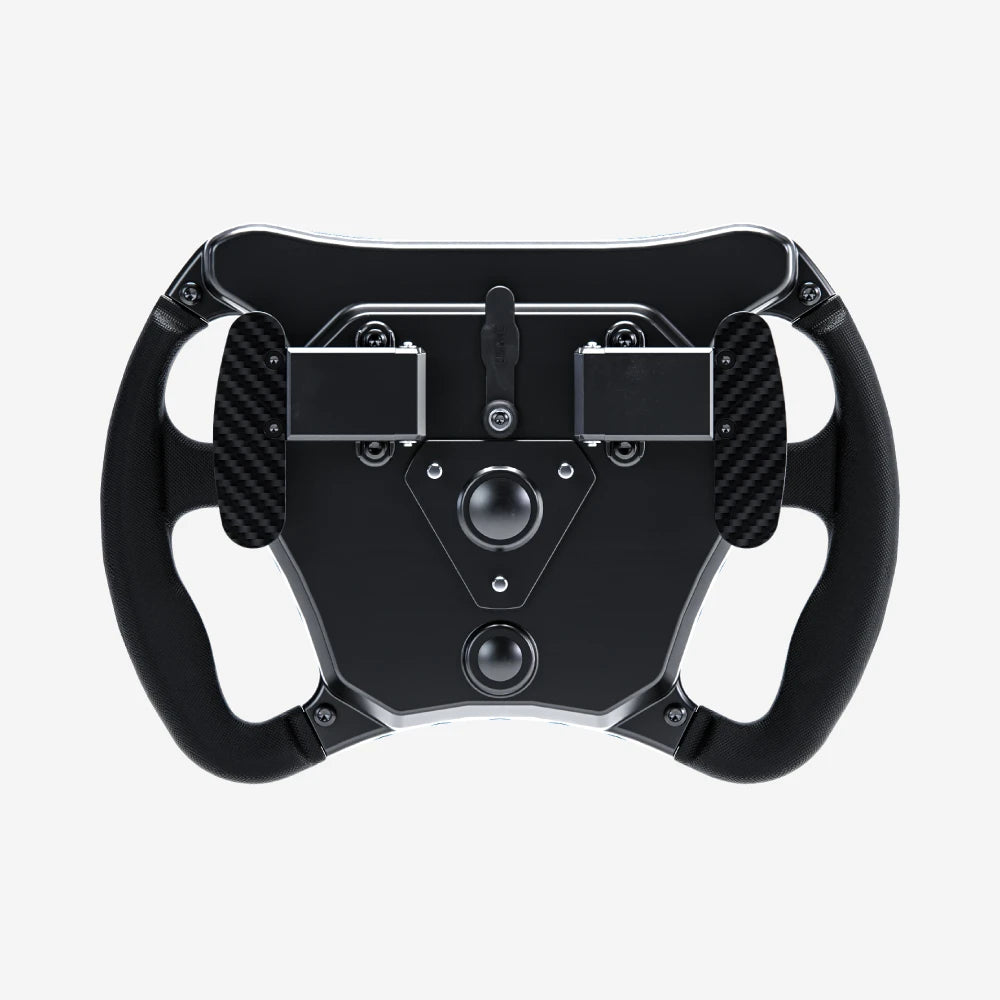

The SW4 270 (MY26) introduces several enhancements, such as a stronger and lighter construction - built with a polymer and carbon front panel, a HBNR hydrocarbon-resistant compound, and a CNC-machined aluminium base. It has improved ergonomics: all buttons and rotary switches are within easy thumb reach, and an optimised design with reduced and refined thickness in the lower section. Key data can be displayed both during the race and after each session. You can select which data to view during configuration for a tailored experience.

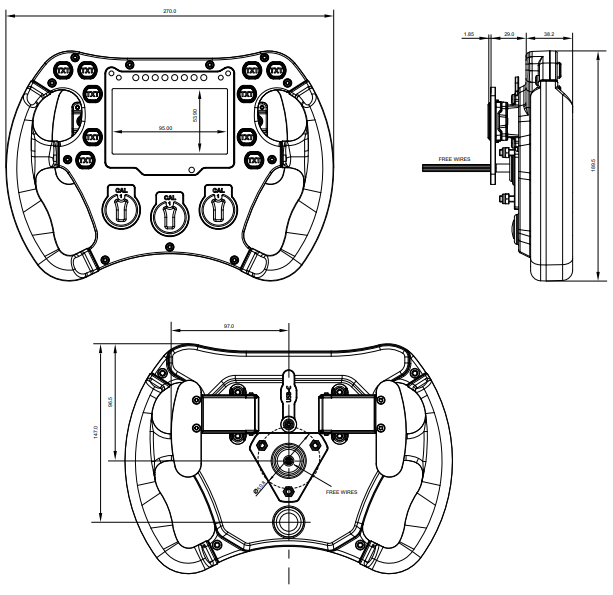

Connecting the Aim 270 (MY26) Formula Steering Wheel to your ECU is straightforward. You can choose between a coiled cable with a 22-pin Autosport connector, or a free-wire cable for Quick Release systems.

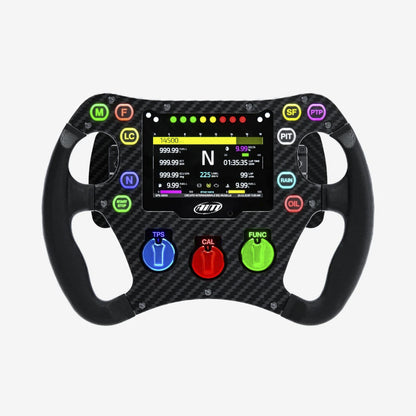

The Aim Formula Steering Wheel 4 270 (MY26) is equipped with a high-contrast 4.3" TFT display, fully configurable and sunlight viewable. With 8 shift lights, 4 RGB alarm LEDs and an integrated ambient light sensor, the steering wheel delivers clear, precise, and reliable information directly to the driver at all times.

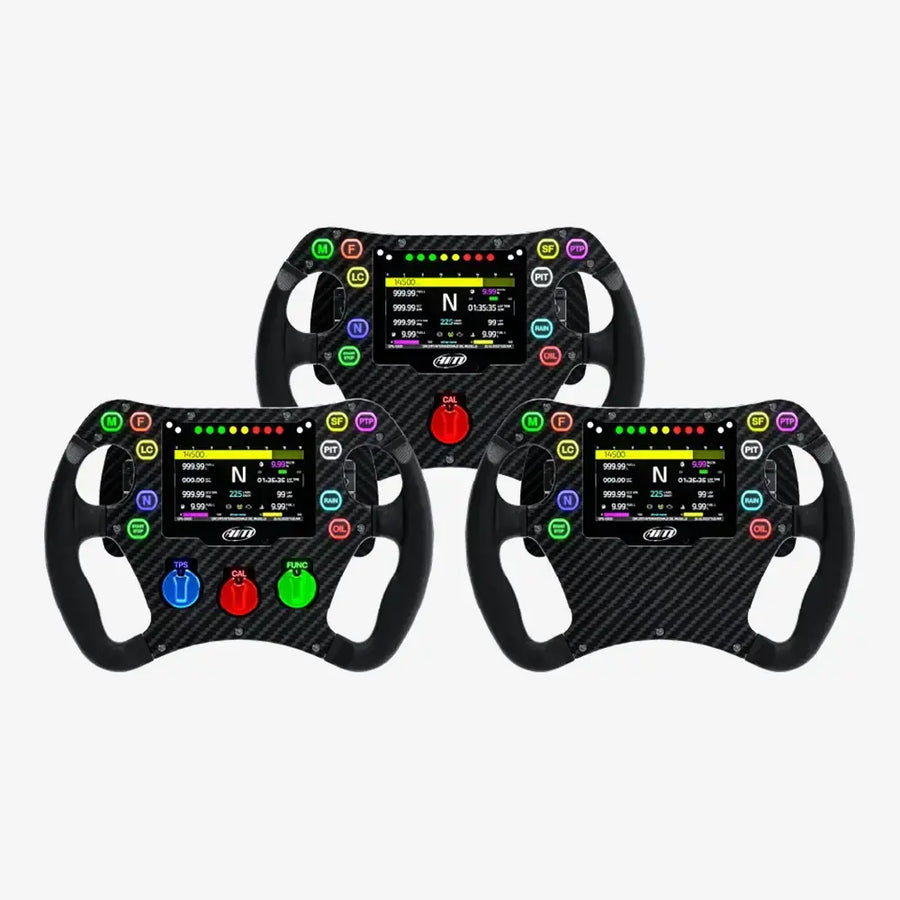

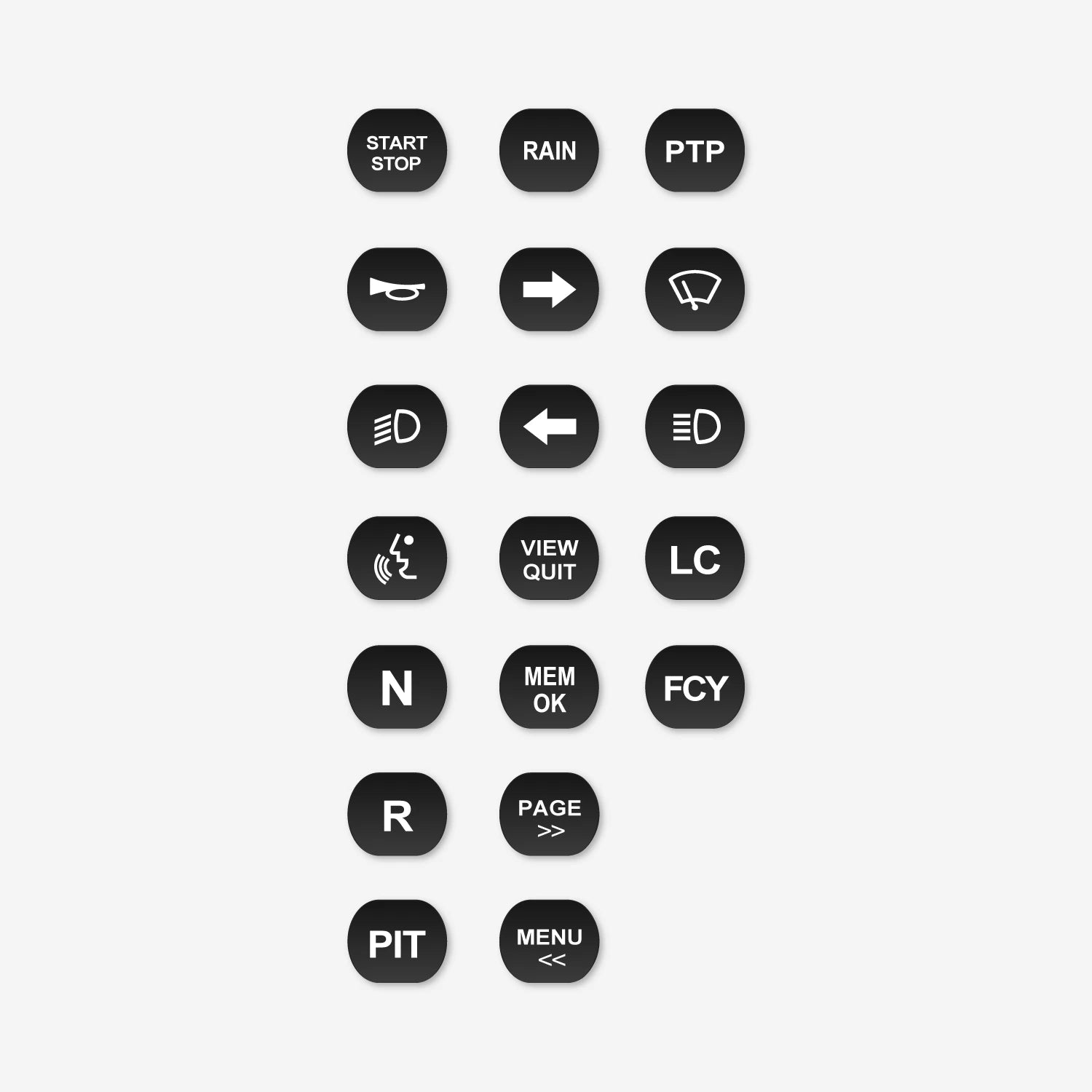

The Formula Steering Wheel 4 270 (MY26) features 8 fully configurable push buttons, 2 open free-contact buttons and up to 3 fully configurable rotary switches (you can choose between versions with 0, 1, or 3 rotary switches, depending on your needs), all backlit with RGB LEDs. It also includes removable ergonomic handle grips made from high-density polyurethane, ensuring excellent grip and comfort in all racing conditions.

The Aim SW4 270 (MY26) Formula Steering Wheel offers 8 configurable shift light RGB LEDs and 4 configurable alarm RGB LEDs. You can define conditions, colours, priorities, and flashing frequencies, as well as display accompanying text messages when required.

The advanced multi-colour RGB shift lights can be fully customised, with the option to define different shift patterns for each gear.

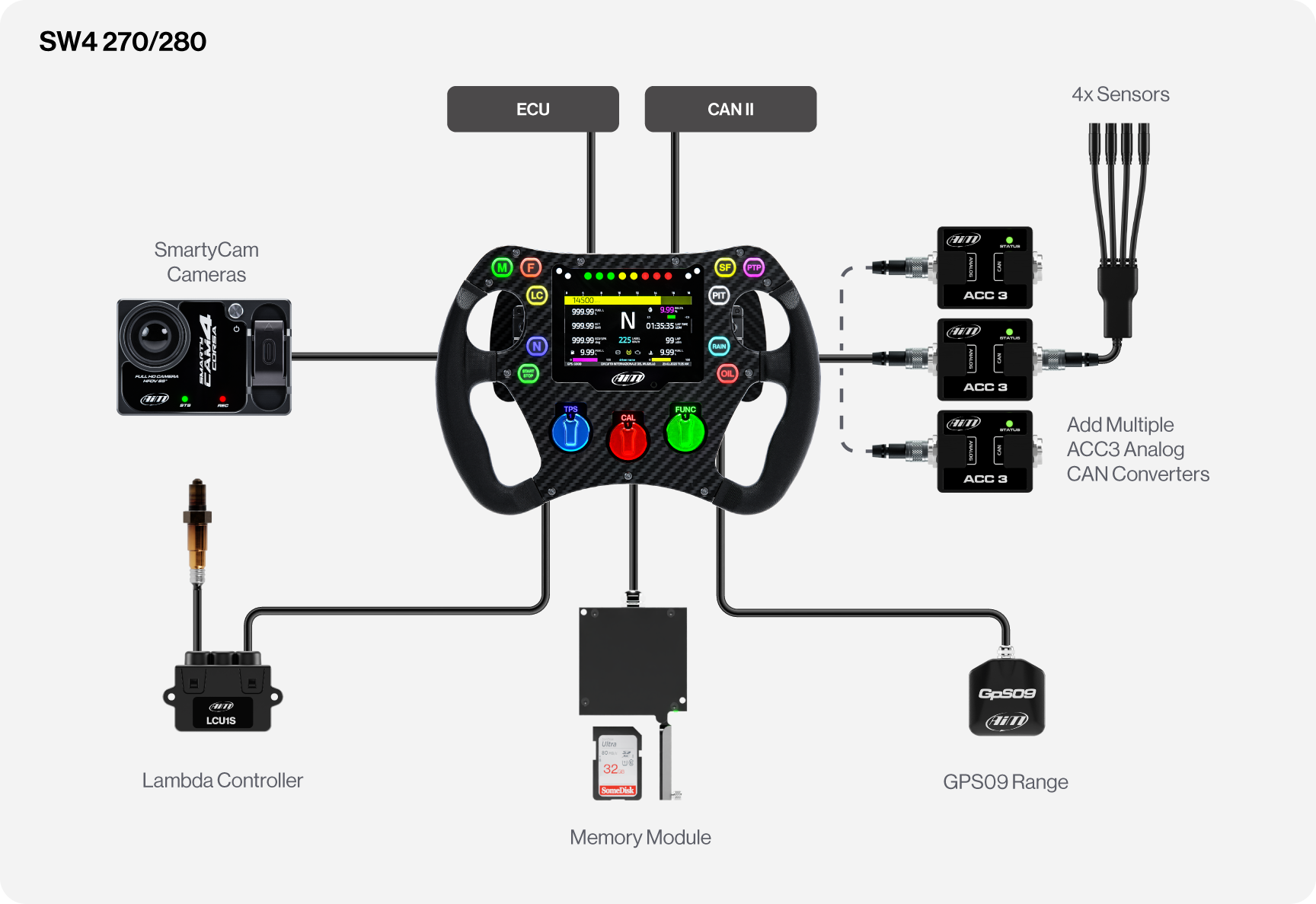

There is a wide selection of accessories available to get the most out of your steering wheel:

• GPS Module: Connected via CAN, the GPS Module makes lap timing and track position analysis easy.
• Other Expansions: Expand your system with a range of additional Aim devices, including the TC Hub, Lambda Controller, SmartyCam 3, RIO, GS-Dash, and more.

Using Race Studio 3, every steering wheel function can be fully customised to match your preferences and racing style. With a firmware upgrade, the SW4 Steering Wheel can also be used for sim racing. It is recognised as a game controller, allowing each button to be mapped to match your real race car setup.

By updating to the latest firmware and connecting the wheel to your simulator, you can train with real motorsport hardware. Race Studio 3 enables you to review and compare data from both real and virtual driving, helping you refine and improve your performance.
