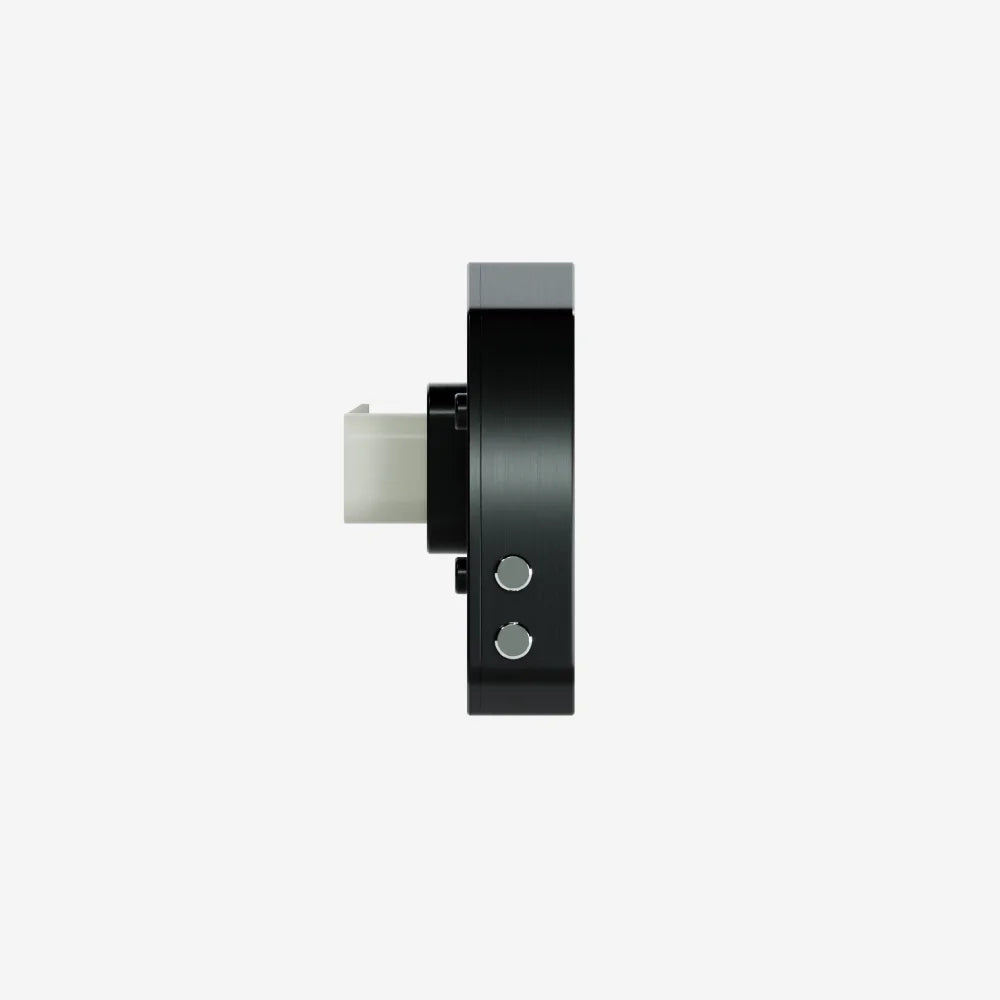

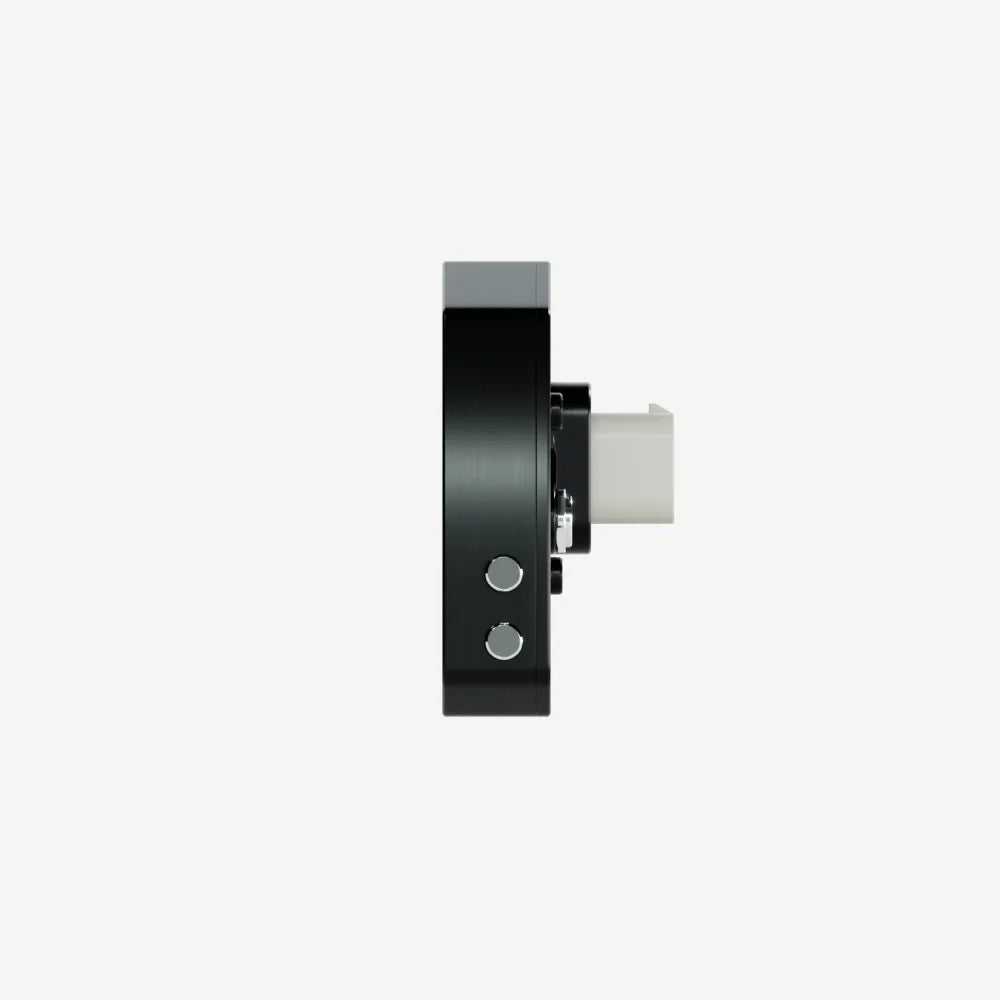

AiM MXS 1.3 Strada Light 5" TFT Dash Display with Road Icons

SKU: MXS-S-I-L

Regular price
£875.00
Regular price
Sale price
£875.00

+ VAT (UK Only)

Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
Powered by Shopify Planet

AiM MXS 1.3 Strada Light  5" TFT Dash Display with Road Icons

The MXS Strada with Road Icons is one of the most widely used dash displays on tracks and roads around the world.

Our brand new Light version has been created as a more accessible product for people who will use less analogue inputs, and just need a CAN connection for their ECU. Whilst being very similar to the MXS Strada, the MXS Strada Light gives 4 fully configurable analogue inputs (Max of 500 Hz each) instead of the 8 that is found on the standard MXS Strada (Max of 1000 Hz each). It also doesn’t have a digital output or a RPM connection which is found within the standard MXS Strada.

Key Features :

5" compact TFT display 6 alarm RGB LEDs
10 shift light RGB LEDs 4 analogue inputs
CAN input Configure data

AiM MXS 1.3 Strada Light  5" TFT Dash Display with Road Icons

The MXS 1.3 Strada Light is one of our most widely used dashes on tracks and roads all over the world. The MXS 1.3 Strada has a 5" colour TFT display that offers a great visual impact. You can configure the dash to show all the information coming from the ECU, analogue /digital inputs, predefined math channels and an optional GPS Module.

The MXS 1.3 Strada Light is available with a choice of connection. Choose either the OBDII or K-Line CAN, depending on whether you want to connect to the vehicles ECU or OBDII port or directly to the ECU through the CAN channel.

Easy Connection

Connecting the MXS 1.3 Strada Light dash to your ECU is simple. You can sample and display dozens of channels straight from the vehicles ECU. This is usually the quickest and easiest setup, needing only 2 cable connections to the ECU instead of multiple connections to analogue sensors. The sampled data depends on the actual ECU, but will typically include RPM, throttle position, (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear, lambda value (air/fuel ratio). The list of available ECU drivers is 1000+ and is constantly being updated and upgraded.

Digital Outputs

The MXS 1.3 Strada Light features 1 AMP digital output configurable to be activated/deactivated depending on the value of the analogue /digital inputs or on the impulses coming from the ECU. This allows you to automatically run external systems, such as switching on/off additional lights, to activate/deactivate a cooling fan or circulation pumps when a certain event happens.

With CAN Output you can send messages directly to an existing  CAN network to improve the range of vehicle control possibilities.


Display

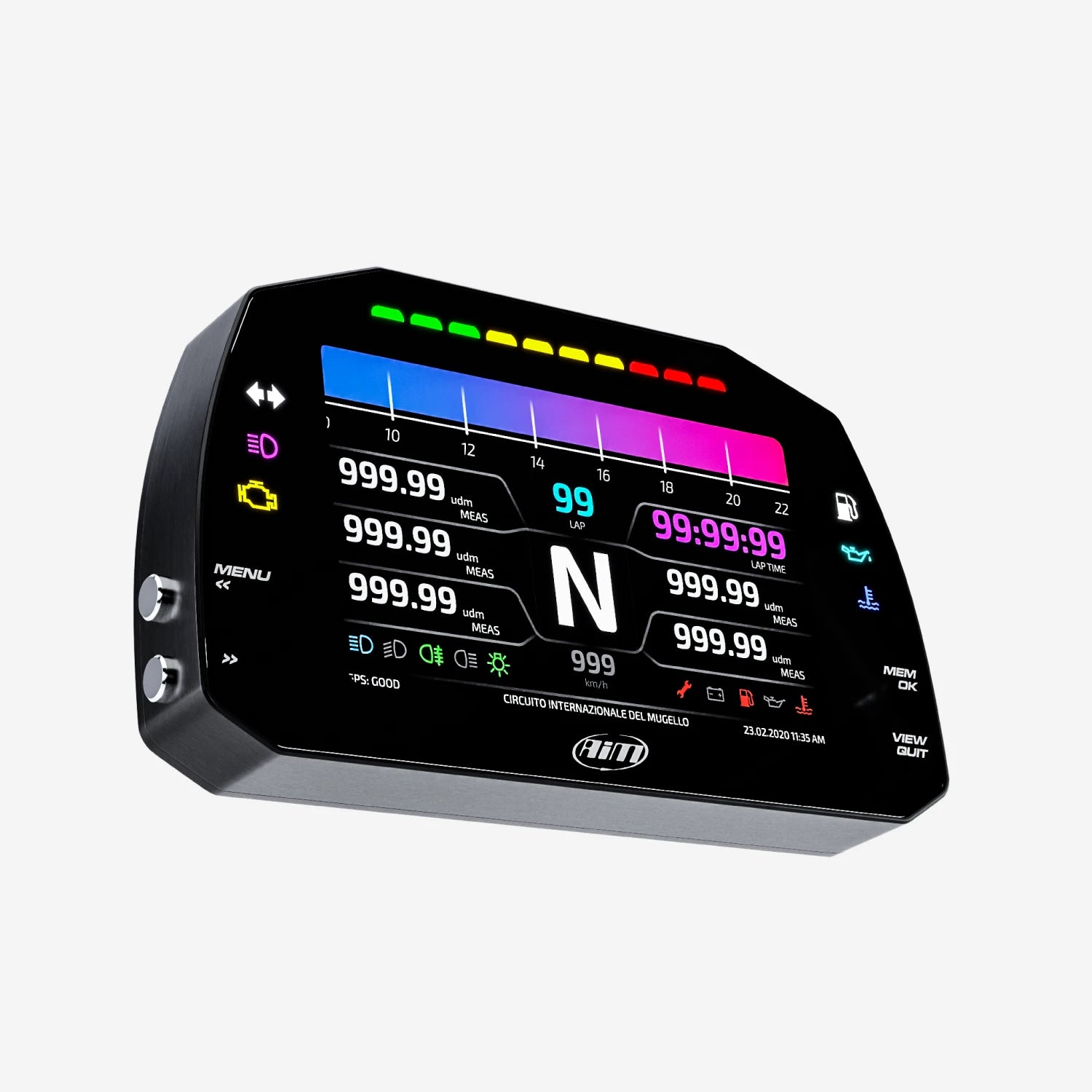

The MXS 1.3 Strada Light has a 5" TFT high contrast colour display. The visual quality is optimized by the ambient light sensor which keeps the backlight at the best brightness levels.


Pre-configured Pages

The MXS 1.3 Strada Light shows the RPM scale and all the data you need, like speed, water temperature and oil pressure, lap times and much more. You can custom pages to suit your requirements, including up to four additional fields. Define what data is shown with the end of scale and measure units. Swapping between the pages is easy just use the pushbuttons.


Flexible Shift Light & Alarms

The ten multi-coloured RGB shift lights can be customized to your liking, defining the RPM threshold on analogue or digital inputs, ECU values, expansion values, math channels or optional GPS option. You can choose the conditions and colours, select a solid arm or flashing one, also the flashing frequency. You can also configure an accompanying text message and set the alarm priorities.


Camera Inputs

Two analogue camera inputs are available, to switch your display into a mirror camera, through a pushbutton command or event management. The camera is sold separately.


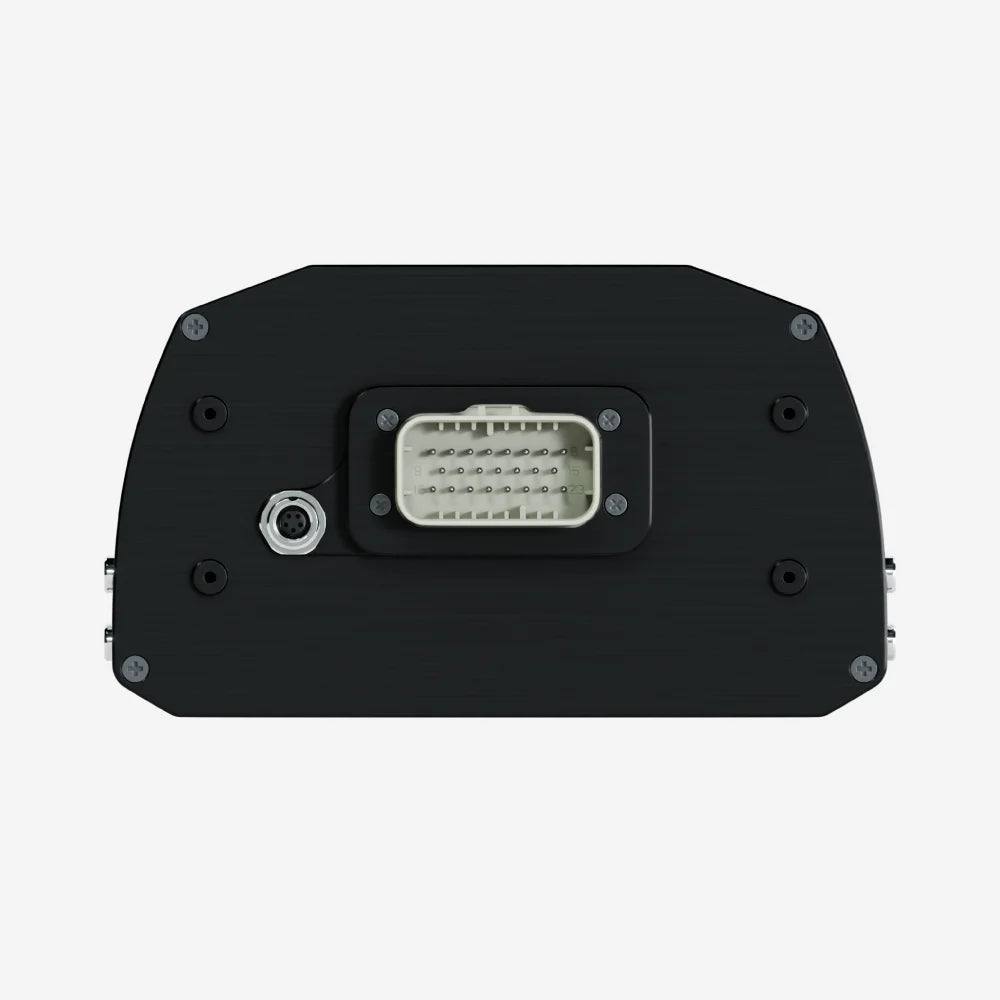

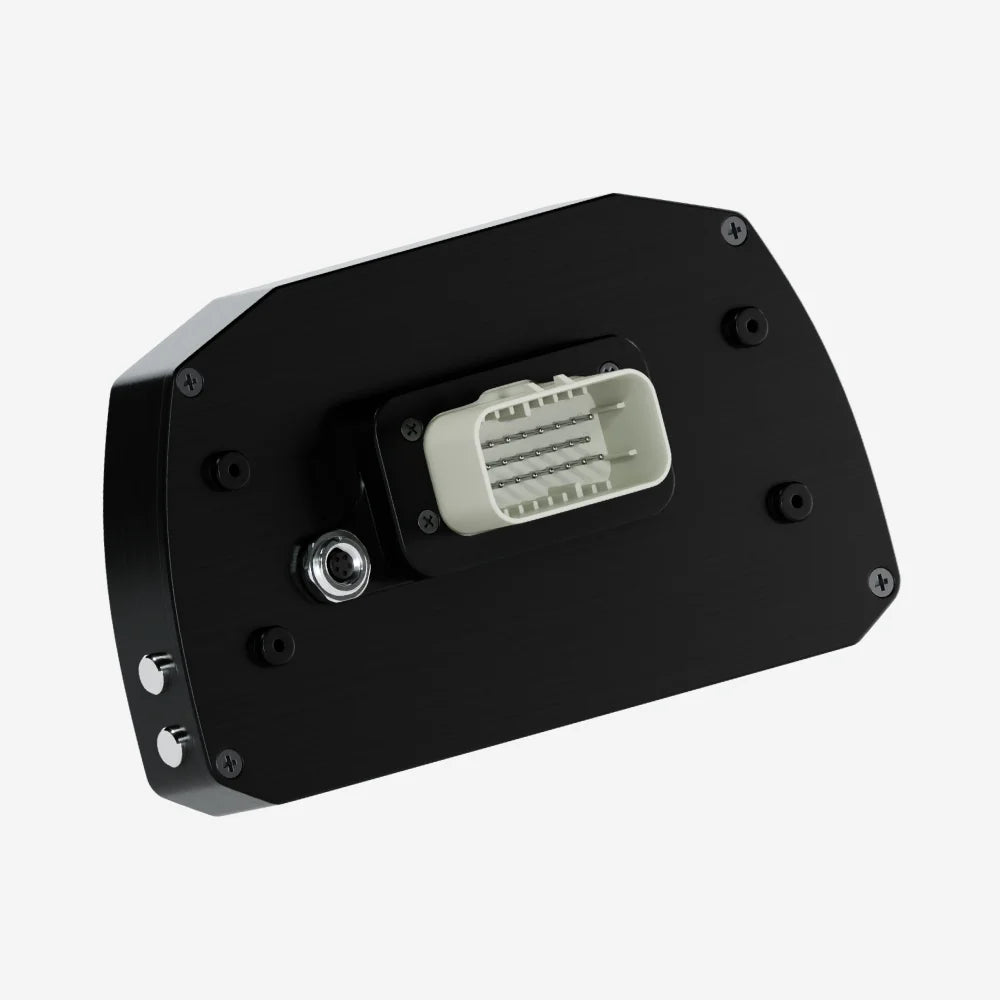

Pin Harness

The MXS 1.3 Strada Light has a choice of ECU connection. Choose between the OBDII or K-Line CAN. Depending on whether you want to connect to the vehicles ECU using the OBDII port or directly to the ECU through the CAN channel.

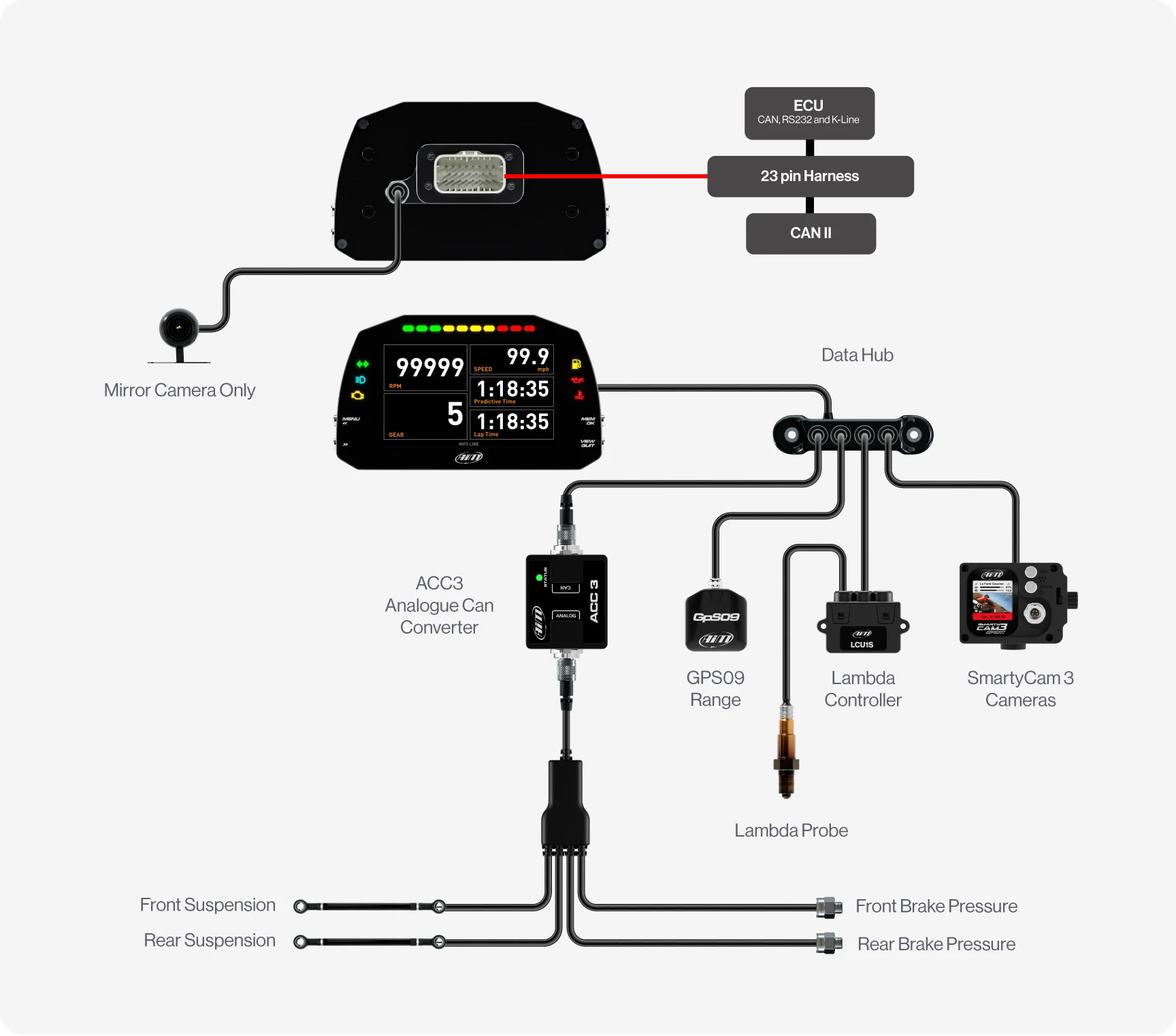

Expand Your System

These are only some of the items that can be added to our MXS 1.3 Strada Light for incrementing the performance and the data acquired.


Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by MXS Strada and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

AiM MXS 1.3 Strada Light 5" TFT Dash Display with Road Icons

  • Display : 5" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 600:1
  • Brightness: 700cd/m2 - 1,100 Lumen
  • Ambient Light Sensor: Yes
  • Alarm LEDs: 6 RGB freely configurable
  • Shift Lights: 10 integrated freely configurable RGB LEDs
  • CAN Connections: 2
  • ECU Connections: CAN or K-Line to 1,000+ industry leading ECUs
  • Expansion CAN Connection: GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
  • Analogue Inputs: 4 fully configurable, max 500 Hz each
  • EXT Video Inputs: 1 PAL-NTSC
  • Second CAN: Yes
  • Body: Anodized Aluminium
  • Pushbuttons: Metallic
  • Connectors: 1 AMP connector + 1 Binder connector
  • Power Consumption: 400 mA
  • Dimensions: 169.4 x 4 x 97 x 33.2mm
  • Weight: 460g
  • Waterproof: IP65



AiM MXS 1.3 Strada Light 5" TFT Dash Display with Road Icons

  • MXS Strada Light 1.2
  • USB Cable
  • 23 Pin Standard Wiring
  • AiM Sticker
FAQ Centre

Description

AiM MXS 1.3 Strada Light  5" TFT Dash Display with Road Icons

The MXS Strada with Road Icons is one of the most widely used dash displays on tracks and roads around the world.

Our brand new Light version has been created as a more accessible product for people who will use less analogue inputs, and just need a CAN connection for their ECU. Whilst being very similar to the MXS Strada, the MXS Strada Light gives 4 fully configurable analogue inputs (Max of 500 Hz each) instead of the 8 that is found on the standard MXS Strada (Max of 1000 Hz each). It also doesn’t have a digital output or a RPM connection which is found within the standard MXS Strada.

Key Features :

5" compact TFT display 6 alarm RGB LEDs
10 shift light RGB LEDs 4 analogue inputs
CAN input Configure data


AiM MXS 1.3 Strada Light  5" TFT Dash Display with Road Icons

The MXS 1.3 Strada Light is one of our most widely used dashes on tracks and roads all over the world. The MXS 1.3 Strada has a 5" colour TFT display that offers a great visual impact. You can configure the dash to show all the information coming from the ECU, analogue /digital inputs, predefined math channels and an optional GPS Module.

The MXS 1.3 Strada Light is available with a choice of connection. Choose either the OBDII or K-Line CAN, depending on whether you want to connect to the vehicles ECU or OBDII port or directly to the ECU through the CAN channel.

Easy Connection

Connecting the MXS 1.3 Strada Light dash to your ECU is simple. You can sample and display dozens of channels straight from the vehicles ECU. This is usually the quickest and easiest setup, needing only 2 cable connections to the ECU instead of multiple connections to analogue sensors. The sampled data depends on the actual ECU, but will typically include RPM, throttle position, (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear, lambda value (air/fuel ratio). The list of available ECU drivers is 1000+ and is constantly being updated and upgraded.

Digital Outputs

The MXS 1.3 Strada Light features 1 AMP digital output configurable to be activated/deactivated depending on the value of the analogue /digital inputs or on the impulses coming from the ECU. This allows you to automatically run external systems, such as switching on/off additional lights, to activate/deactivate a cooling fan or circulation pumps when a certain event happens.

With CAN Output you can send messages directly to an existing  CAN network to improve the range of vehicle control possibilities.


Display

The MXS 1.3 Strada Light has a 5" TFT high contrast colour display. The visual quality is optimized by the ambient light sensor which keeps the backlight at the best brightness levels.


Pre-configured Pages

The MXS 1.3 Strada Light shows the RPM scale and all the data you need, like speed, water temperature and oil pressure, lap times and much more. You can custom pages to suit your requirements, including up to four additional fields. Define what data is shown with the end of scale and measure units. Swapping between the pages is easy just use the pushbuttons.


Flexible Shift Light & Alarms

The ten multi-coloured RGB shift lights can be customized to your liking, defining the RPM threshold on analogue or digital inputs, ECU values, expansion values, math channels or optional GPS option. You can choose the conditions and colours, select a solid arm or flashing one, also the flashing frequency. You can also configure an accompanying text message and set the alarm priorities.


Camera Inputs

Two analogue camera inputs are available, to switch your display into a mirror camera, through a pushbutton command or event management. The camera is sold separately.




Pin Harness

The MXS 1.3 Strada Light has a choice of ECU connection. Choose between the OBDII or K-Line CAN. Depending on whether you want to connect to the vehicles ECU using the OBDII port or directly to the ECU through the CAN channel.




Expand Your System

These are only some of the items that can be added to our MXS 1.3 Strada Light for incrementing the performance and the data acquired.




Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by MXS Strada and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve performances.


Visit Aim Academy Visit Aim Tech Support Download Race Studio Software

Technical

AiM MXS 1.3 Strada Light 5" TFT Dash Display with Road Icons

  • Display : 5" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 600:1
  • Brightness: 700cd/m2 - 1,100 Lumen
  • Ambient Light Sensor: Yes
  • Alarm LEDs: 6 RGB freely configurable
  • Shift Lights: 10 integrated freely configurable RGB LEDs
  • CAN Connections: 2
  • ECU Connections: CAN or K-Line to 1,000+ industry leading ECUs
  • Expansion CAN Connection: GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
  • Analogue Inputs: 4 fully configurable, max 500 Hz each
  • EXT Video Inputs: 1 PAL-NTSC
  • Second CAN: Yes
  • Body: Anodized Aluminium
  • Pushbuttons: Metallic
  • Connectors: 1 AMP connector + 1 Binder connector
  • Power Consumption: 400 mA
  • Dimensions: 169.4 x 4 x 97 x 33.2mm
  • Weight: 460g
  • Waterproof: IP65



What's in The Box

AiM MXS 1.3 Strada Light 5" TFT Dash Display with Road Icons

  • MXS Strada Light 1.2
  • USB Cable
  • 23 Pin Standard Wiring
  • AiM Sticker
